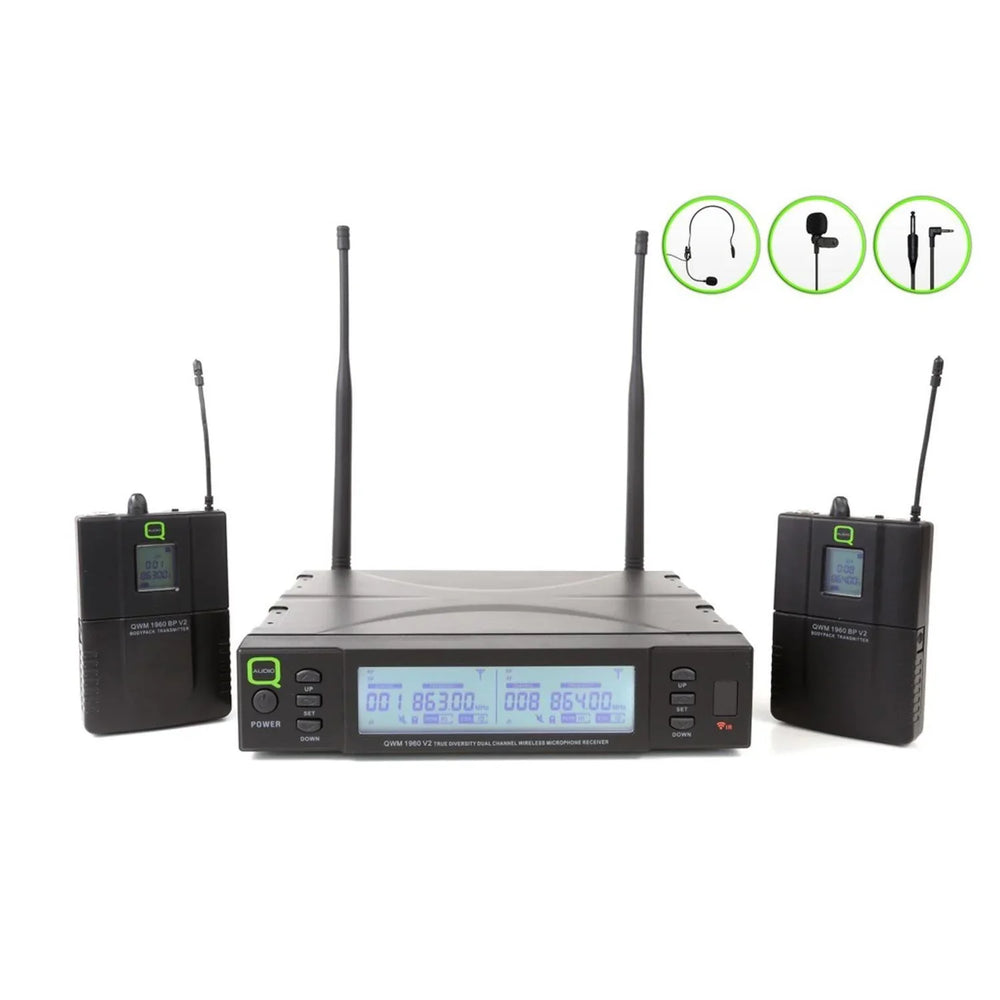

1x Receiver
2x Beltpack Transmitters
2x Headset Microphones
Wireless Channel/Frequency options:
– Channel 38 (606-614 MHz)
Multi-channel UHF PLL receiver and 2 bodypack transmitters
Large backlit display with multiple status indicators
ACT infrared pairing of bodypacks to receiver
2 x balanced XLR outputs
1 x unbalanced 6.35mm jack mixed output
Includes receiver, 2 x bodypacks, 2 x headset mics,
2 x lavalier/lapel mics 2 x guitar/instrument leads,
plus batteries, PSU and audio cable
High efficiency battery consumption design
2 x adjustable/removable high gain antenna
Two systems can be connected for 19 inch rackmount
Working distance: 50 meters
Continuous usage: 5 hours
Frequency response 40Hz-15Hz±3dB
Power Consumption 5w
Audio Output Level 400mV
Battery 3V (2 x 1.5V AA batteries)
Deviation ±25KHz
Power Supply DC 17V/300mA
Frequency Range UHF 863.0 to 865.0 MHz
Dynamic range >90dB
Signal To Noise Ratio >90dB
The total harmonic distortion <0.5%
