Description

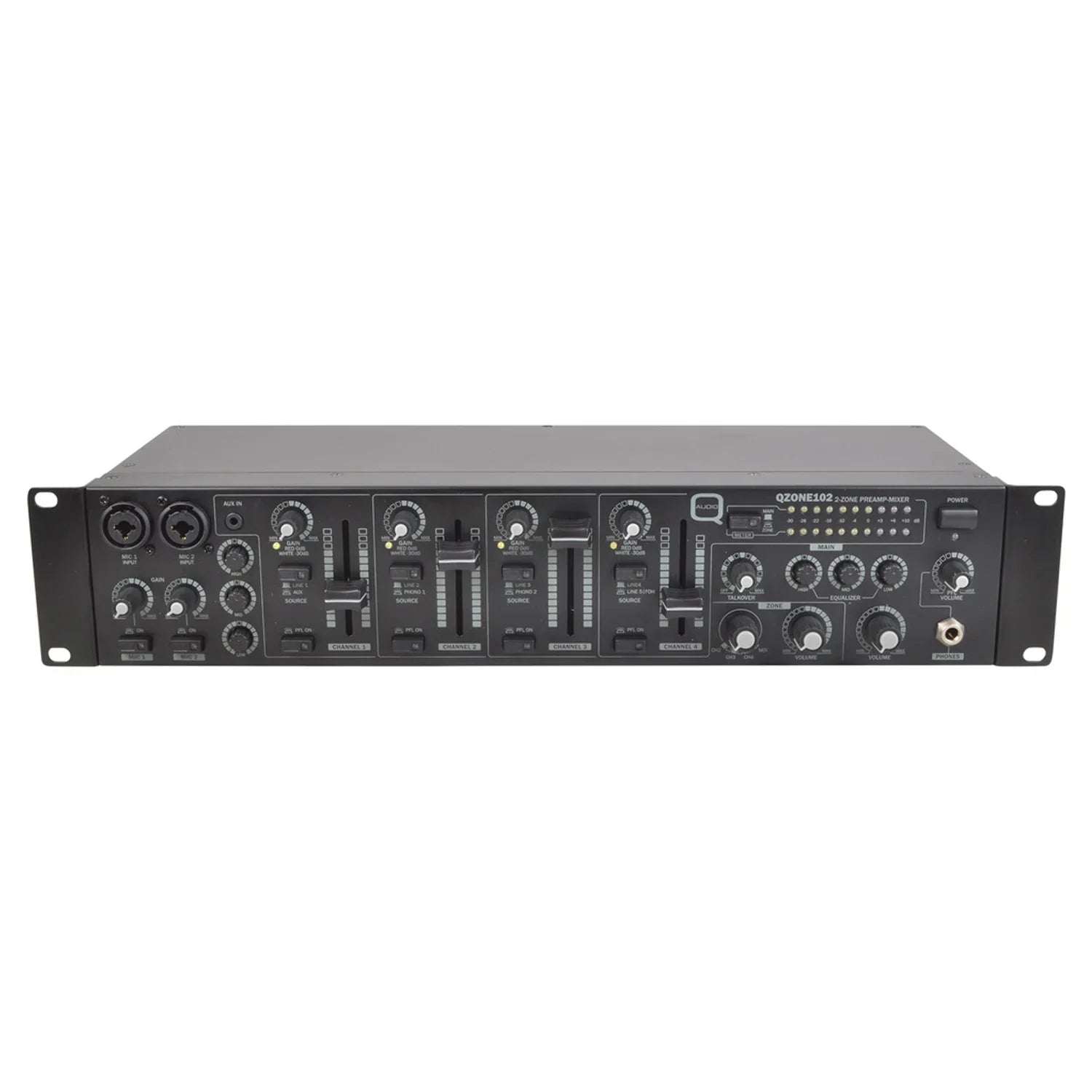

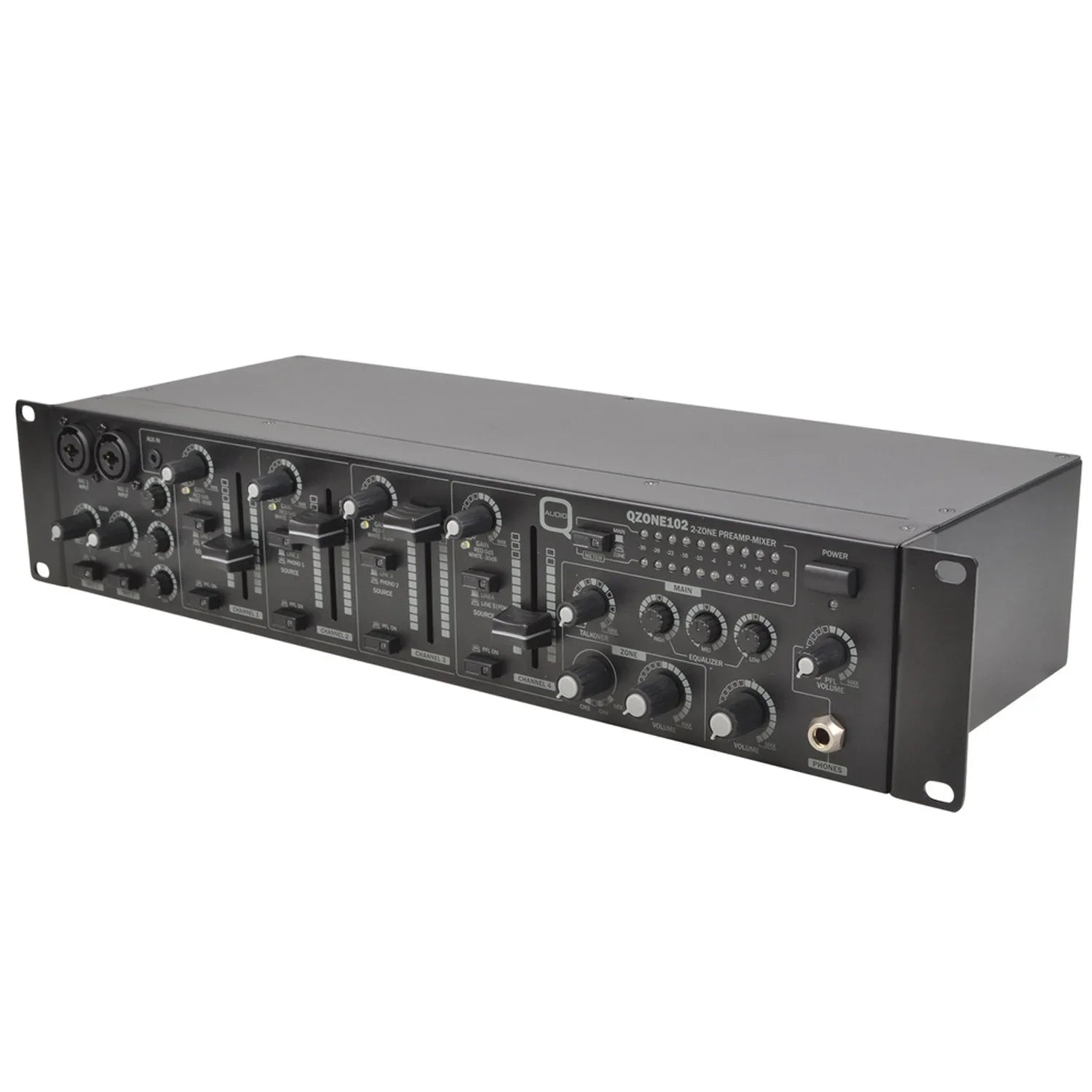

The Q Audio QZONE102 is a well designed mixer specifically designed for small installations in bars, restaurants and gyms. Extremely useful mixer if 2 zones need to be supplied with different music sources or the same music at different volumes.
There are 4 main input channels which can either accept line or phono inputs. Channel 1 has an auxiliary 3.5mm jack input on the front for iPods and phones etc. Channel 4 has a FOH input, this allows external sound systems to be connected via balanced stereo jacks, this is useful if a band or DJ want to patch into the background music system.
Two microphone inputs can be found on the front panel with a choice of XLR or jacks inputs; also parallel to these are 2 mic inputs on the back panel. The mic inputs have bass, mid & treble controls and can be turned on or off. An automatic talk over will lower the music levels once sound is picked up through a microphone.
Rear panel balanced and unbalanced connections can be made to amplifiers via XLR or RCA. The zone output can be mono or stereo, balanced or unbalanced and a 100Hz switch can be activated to cut out some bass frequencies, this is perfect when small speakers are used for background music. A two way tone control and volume can be adjusted on the back panel prior to installation. The main output can be unbalanced or balanced and has a rear panel volume control.
An emergency input can be found on the back panel which will mute any music playing and output an emergency message. There is also an output mute facility for connection to suitable fire alarms which will mute the music when the fire alarms are activated.
- 2 Zone Installation Mixer.
- 4 Line Inputs RCA.
- 2 Microphone Inputs ¼" Jack.
- 2U 19" Rack Mountable.
- 3 band Tone Controls for Master Output.
- 3 Band Tone Controls for Microphone Channels.
- Emergency Input & Output Mute.
- 45mm smooth dual-rail input channel faders.
- 1 balanced stereo front of house input.
- Front panel 3.5mm stereo jack input.
- 12V phantom power via internal jumper for Condenser Microphones.
- Adjustable auto talk-over for automatic music level reduction during microphone use
- Zone-assignable 2x10 LED level meter
- Rear Gain Controls for each output.
- Balanced XLR and Phoenix output connectors plus unbalanced RCA connectors for each zone
- 100Hz High pass filter for Back ground speakers.
- Unbalanced record output
- LED status indicators for all switches
- Hi-Fi Quality linear power supply for excellent audio dynamics
- Sturdy full metal case with detachable rack ears
