Description

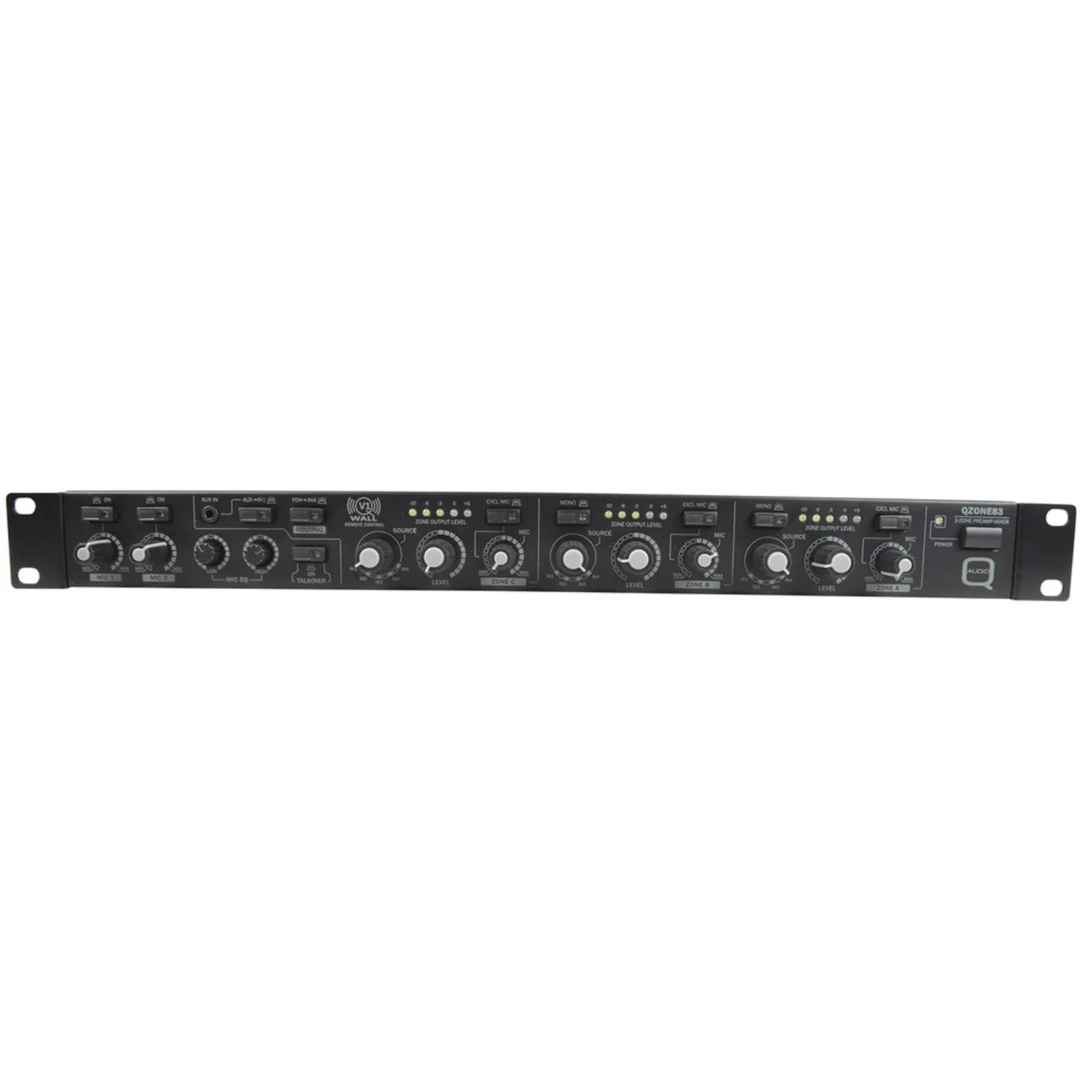

The Q Audio QZONE83 is a feature packed mixer for installation in bars restaurants, gyms Schools and much more. This is a compact 1u 19 rack mountable 3 zone mixer. This robust and feature-rich mixer is perfect for any professional audio setup, ensuring seamless integration and superior sound quality.

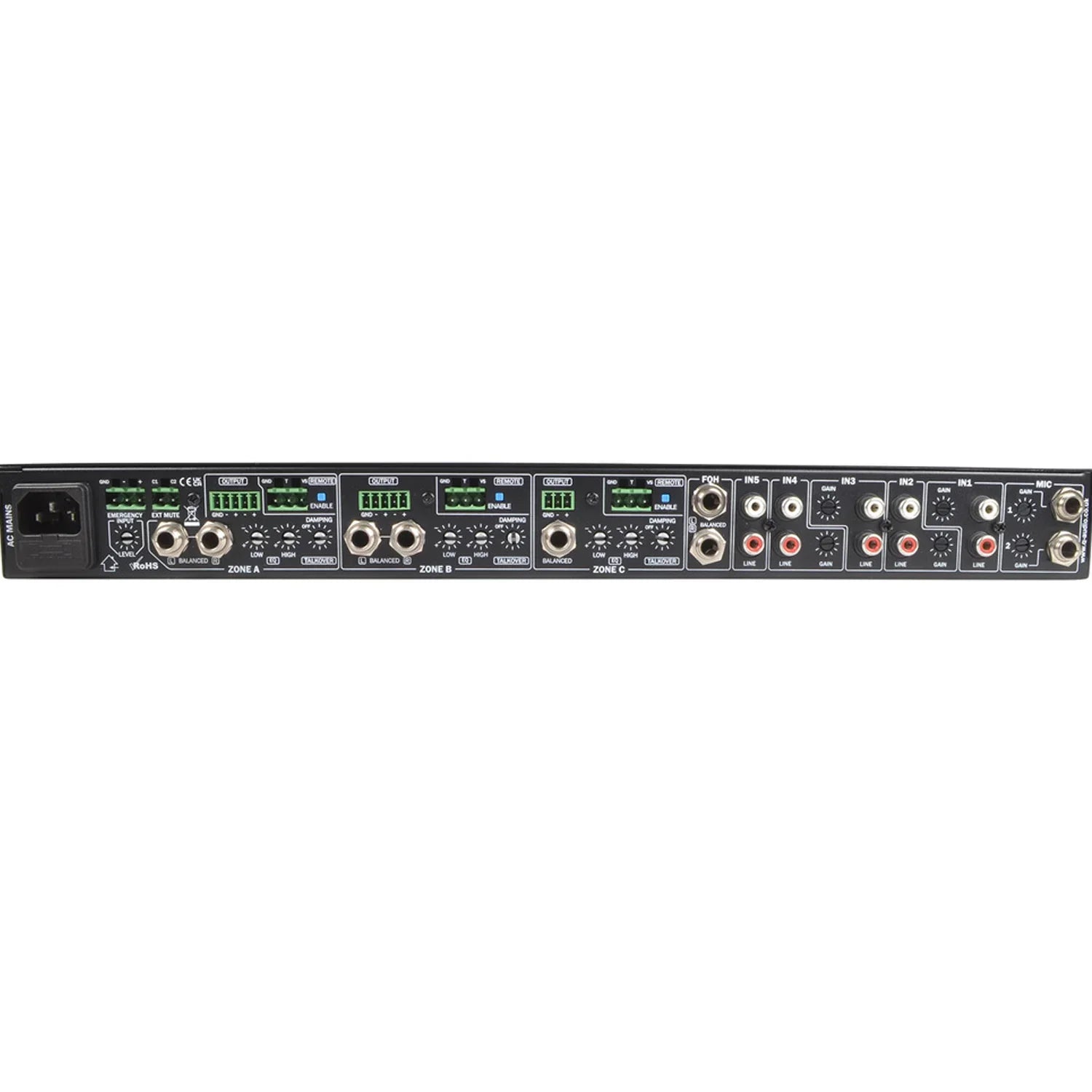

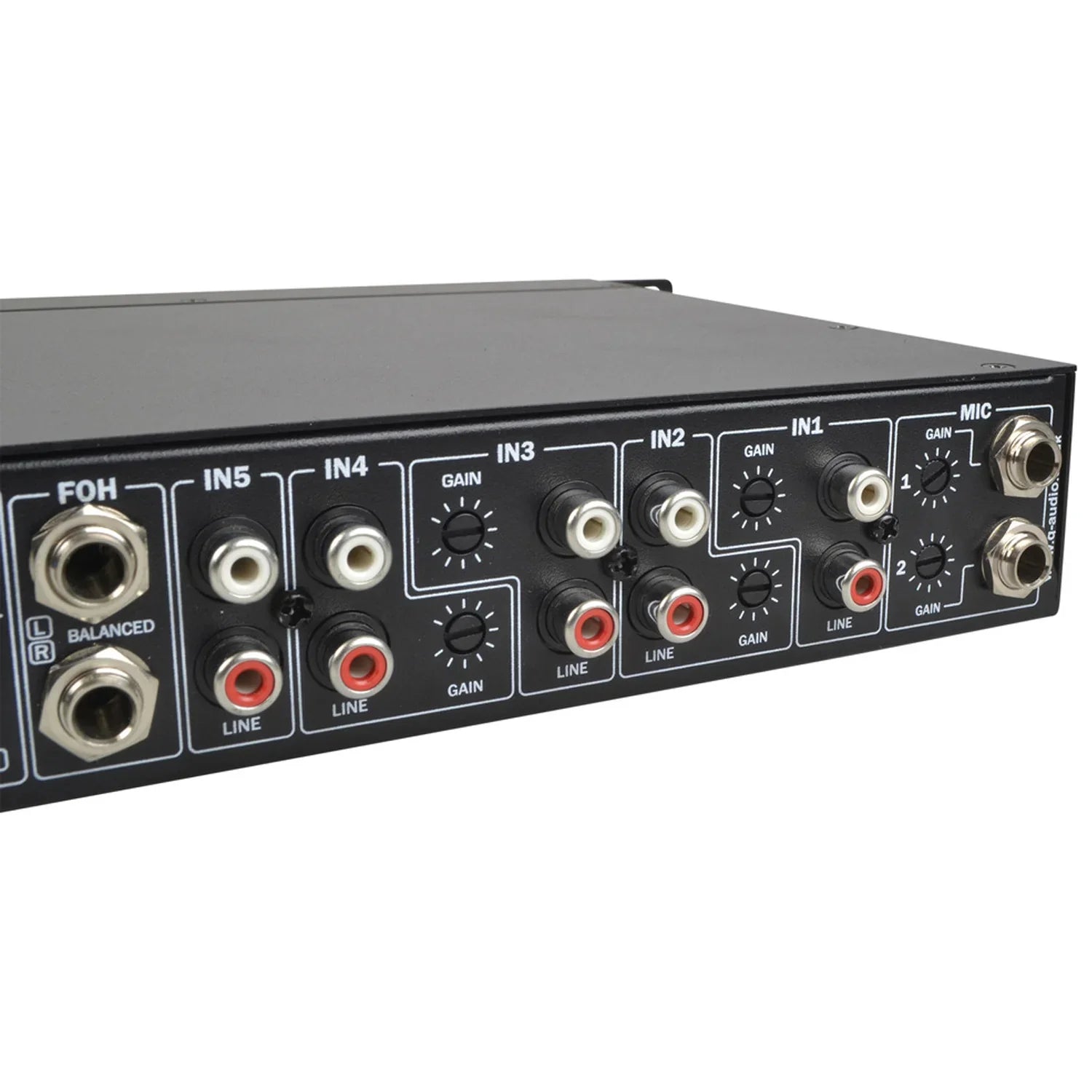

The QZONE83 mixer features five stereo inputs, with four equipped with rear-panel gain controls and the flexibility to be routed to output zones A, B, or C. The fifth input is exclusively routable to Zone C, providing dedicated audio output. Additionally, there is rear-panel balanced stereo FOH input and a front-side 3.5mm stereo jack input, these will replace inputs 1 and 4 can be routed to zones A, B, or C.
The mixer includes two mic inputs with rear-side 1/4 TRS connectors and gain control. It offers phantom power for microphones via an internal jumper, ensuring compatibility with a wide range of professional condenser microphones. The voice-specific 2-band EQ and on-air switches for microphone inputs allow for precise sound customisation. The auto talk-over feature automatically reduces music levels when the microphone is in use, with adjustable damping levels per zone.

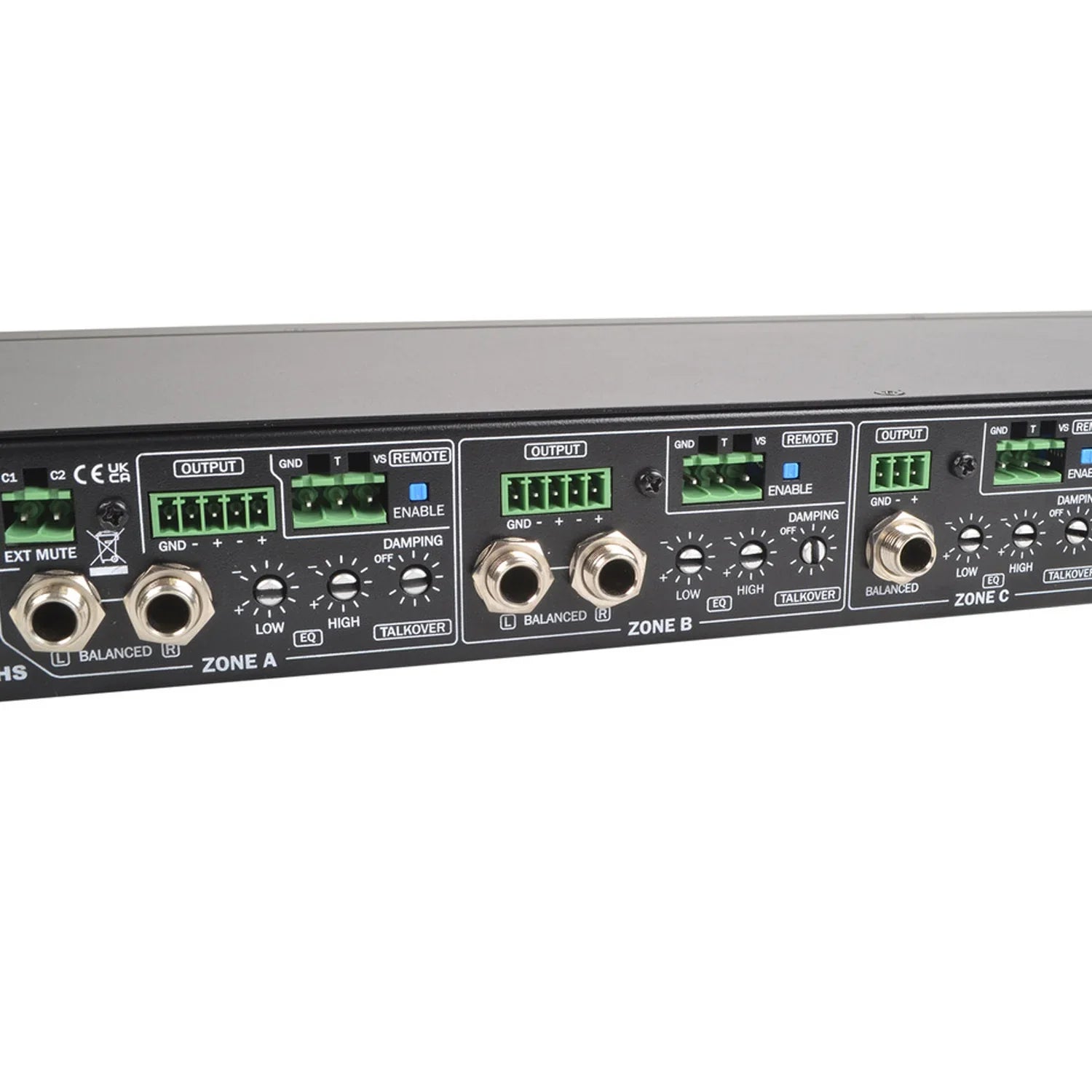

The mixer boasts two stereo output zones and one mono output zone, each with a 5 LED level meter for precise monitoring. Rear-side adjustable 2-band EQ for each zone allows for fine-tuning of audio output. Volume control can be easily switched between the front-panel volume control and an optional rear-panel connected remote control potentiometer, such as the recommended QWALL control panel (sold separately). Balanced TRS and Phoenix output connectors ensure reliable connections for each zone.
In terms of emergency management, the mixer includes an emergency input that shuts down the master output when an emergency signal is detected, playing the emergency signal instead. An output mute contact allows for external muting of the output, ensuring complete control over your audio environment.
- 3 Zone Installation Mixer
- 5 Stereo line level Inputs
- Rear Gain Controls
- Each Stereo Input Routable to each Zone.
- 2 Microphone Inputs.
- Zone exclude for Microphones on each Zone.
- Rear-panel balanced stereo input (FOH input) routable to Zones.
- Front 3.5mm stereo jack Routable to Zones.
- 12V phantom power available via internal jumper for Condenser Microphones.
- Individual microphone level setting per zone.
- Two stereo output zones and one mono output zone.
- Rear Adjustable EQ for Each zone Output.
- Volume control for each zone switchable between front-panel and optional external remote control potentiometer (QWALL).
- Balanced TRS and Phoenix output connectors for each zone.
- LED status indicators for all switches.
- Hi-Fi Quality linear power supply for superior audio dynamics.
- 19" 1U Rack mountable.
