Q-Audio QZONE92 Zoner Mixer 6 Stereo Channels with Mic and Talk Over
Product Description

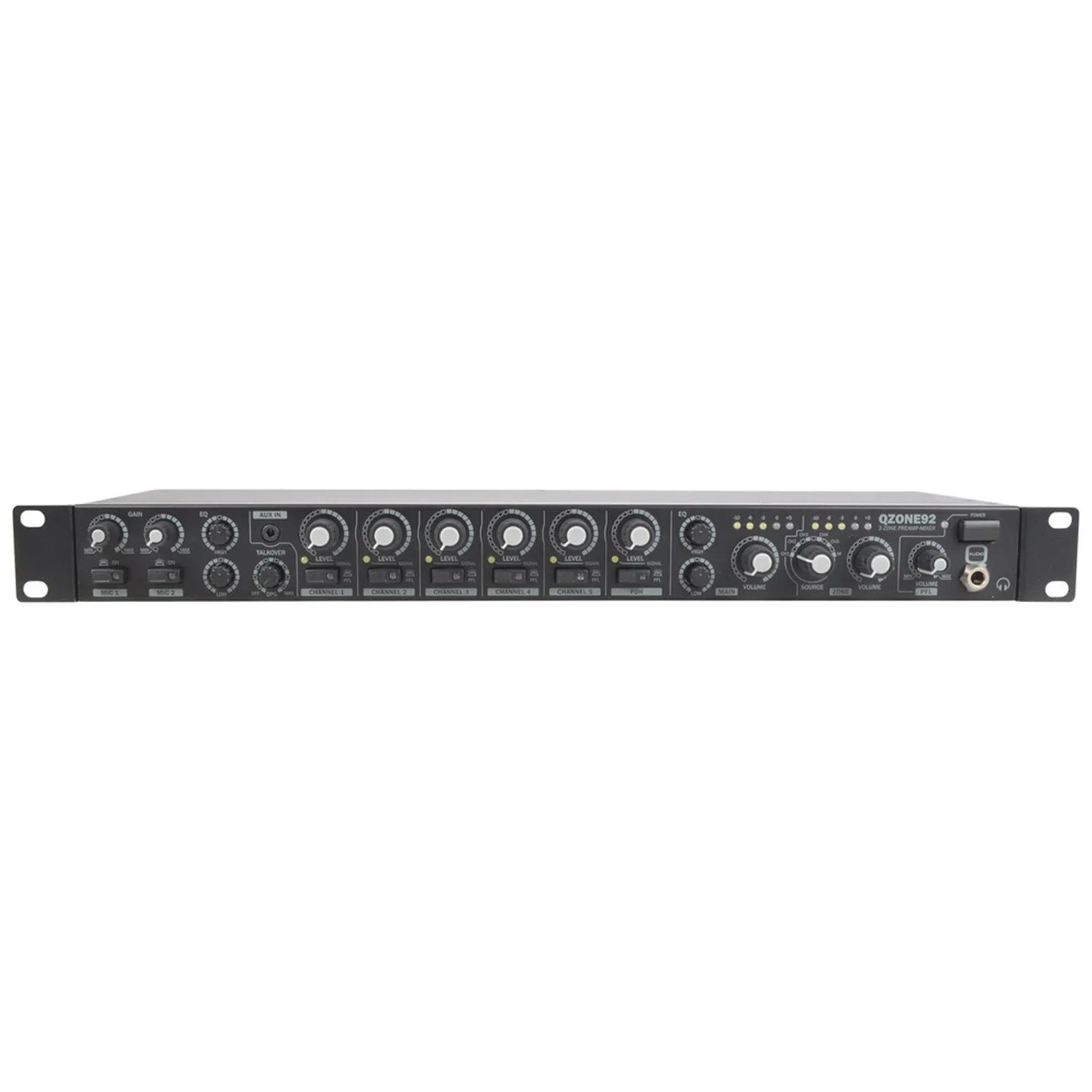

An easy to use installation mixer designed in the UK by Q Audio. The QZONE92 is a 1U two zone mixer for bars, restaurants, shops, and gym installations.

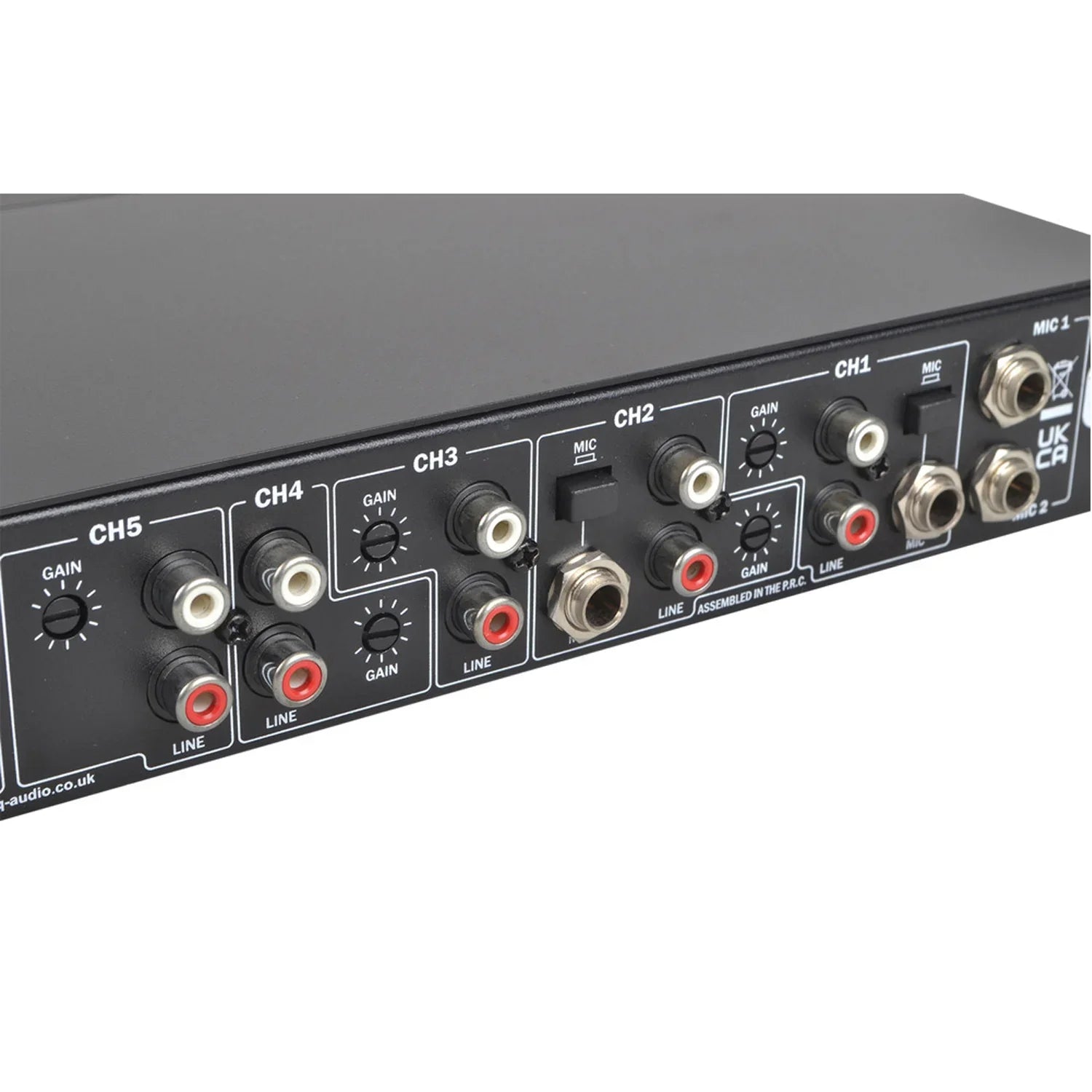

There are 6 music input channels; inputs 1 & 2 have an RCA line input on the rear panel with the option to switch them to microphone channels via a jack socket if required. Input 1 also has a 3.5mm jack input on the front for handy connections to MP3 players & phones etc. There are 2 dedicated mic inputs with a 2 band EQ using 1/4 jack plugs.

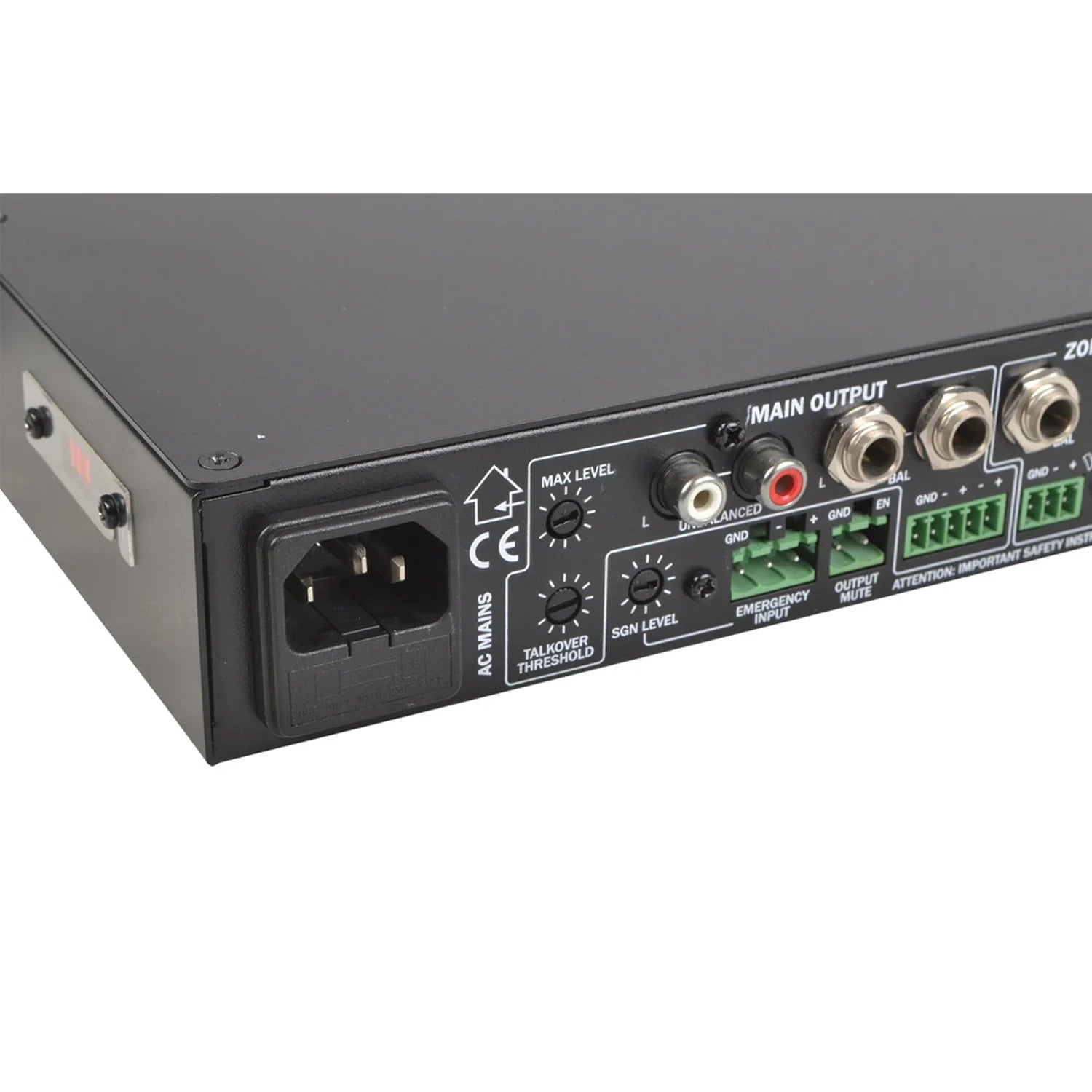

The main output has volume control, bass & treble controls and can send either a balanced or unbalanced signal to suitable amplifiers. The zone output has volume control and the option of sending input channels 1-5 or the master volume via a mono balanced output to suitable amplifiers. This feature is handy for installations where either different music sources need to be routed to different areas or just the overall sound level needs to be set at a lower level in one area.
All music inputs & outputs have rear volume controls so settings can be set pre installation and once installed in a rack the volumes can't be tampered with. There is also a line input for emergency announcements which will allow all music to be muted when an announcement is made. A suitable relay alarm can also be connected so that music will mute when the alarm sounds.
- Easy To Use Zone Mixer.
- Compact 1U 19" Rack Mountable.
- 2 Microphone Inputs, 2Mic/Line inputs, 3 line inputs.
- Front of House Input Balanced Jack.
- 2 Band EQ For Main Output.
- Emergency Input & Mute Facility.
- Front panel 3.5mm stereo jack input.
- 12V phantom power for Condenser Microphones (internal jumper).
- 2-Band EQ and "on air" switches for mic inputs.
- Adjustable auto talk-over.
- One stereo output zone and one mono output zone.
- 5 LED level meters for each zone.
- Selectable Input for Mono Zone.
- Rear Gain control for Inputs and outputs.
- Jack and Phoenix balanced outputs.
- Unbalanced record output.
- LED status indicators for all switches.
- Hi-Fi Quality linear power supply for superior audio dynamics.
- Detachable rack ears.
