Description

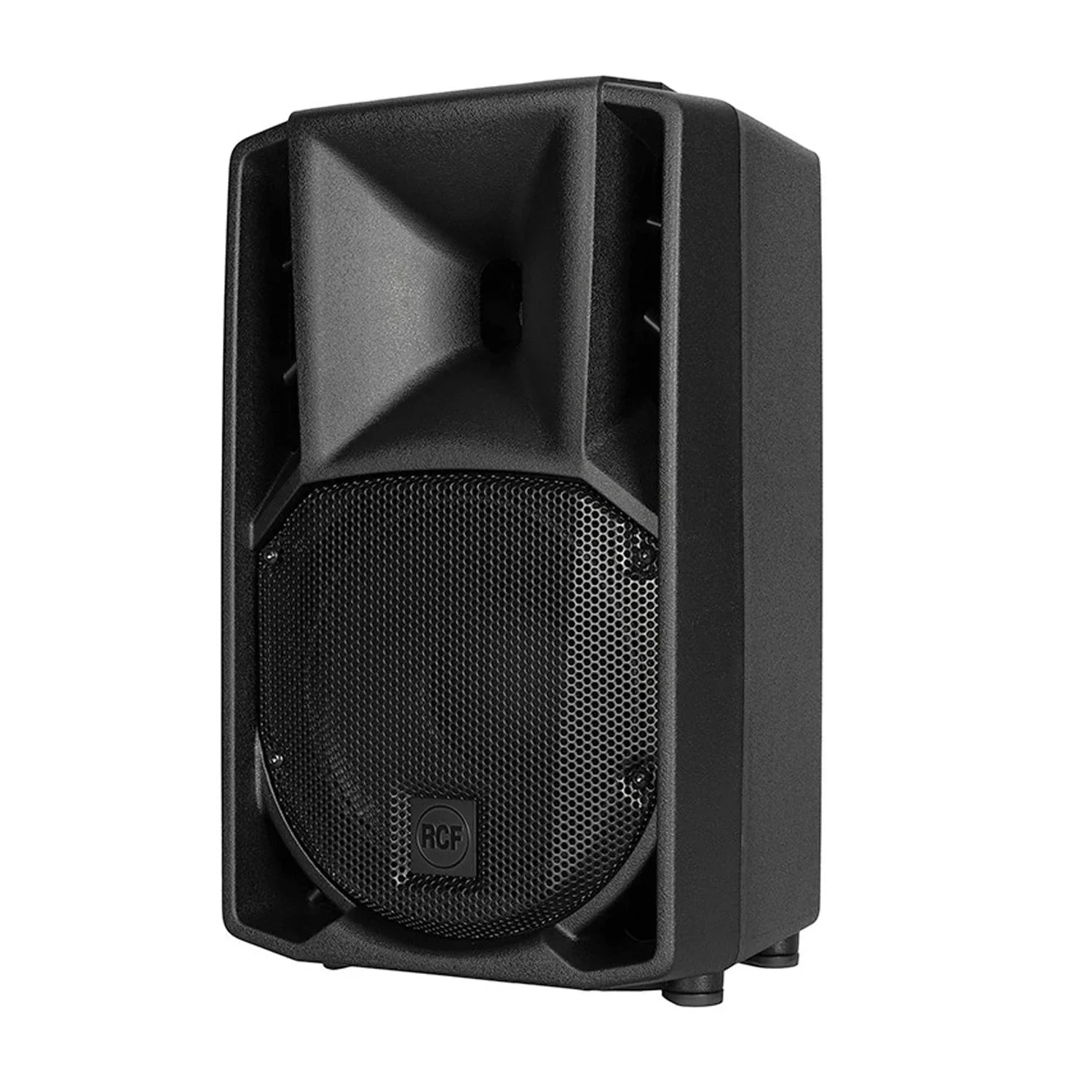

ART 708-A MK4 is a unique product in its category. The 1.0" compression driver offersunique vocal clarity and sound projection. The 8” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 800 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
- 127 dB Max SPL
- 800 WATT 2-way peak power
- 90 x 70, Wide dispersion constant directivity horn
- Innovative DSP Processing
- 1" Compression Driver, 1.0" v.c.
- 8" Woofer
- FiRPHASE Technology
-
General
- ACOUSTICAL SPECIFICATIONS
- Frequency Response -3 dB: 60 Hz ÷ 20 Hz
- Max SPL: 127 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 70°
- Compression Driver: 1", 1.0" v.c.
- Woofer: 8", 2" v.c.

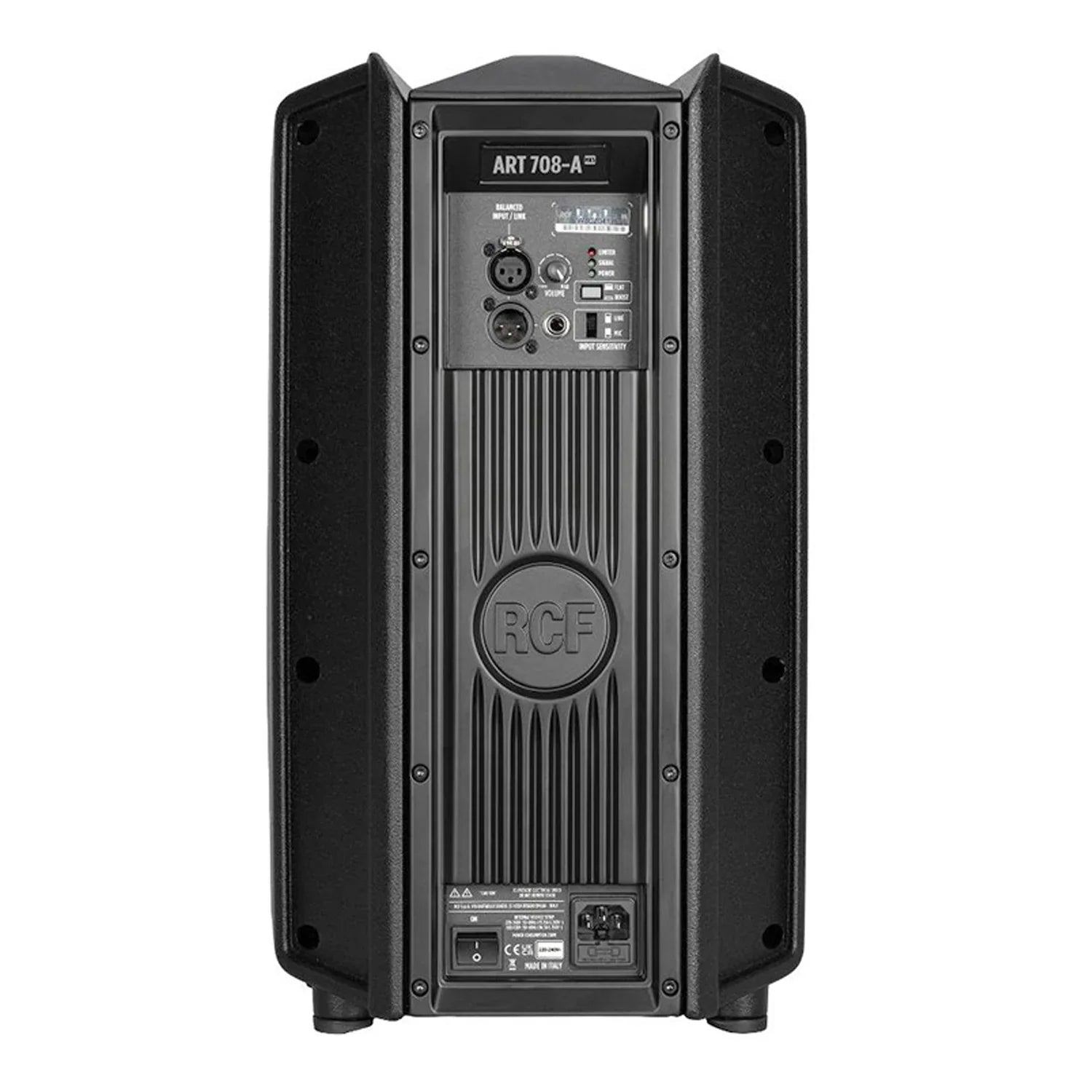

- INPUT/OUTPUT SECTION
- Input signal: bal / unbal
- Input connectors: XLR male, Jack
- Output connectors: XLR female
- Input sensitivity: -2 dBu / +4 dBu
- PROCESSOR SECTION
- Crossover frequencies: 1600 Hz
- Protections: RMS
- Limiter: Soft limiter
- Controls: Volume, Boost, Mic/Line
- AMPLIFIER SPECIFICATIONS
- Total power: 800 W PEAK
- High frequencies: 200 W PEAK
- Low frequencies: 600 W PEAK
- Total power: 400 W RMS
- High frequencies: 100 W RMS
- Low frequencies: 300 W RMS
- Cooling: Convection
- Connections: VDE AC socket
- CABINET
- Cabinet Material: Composite PP

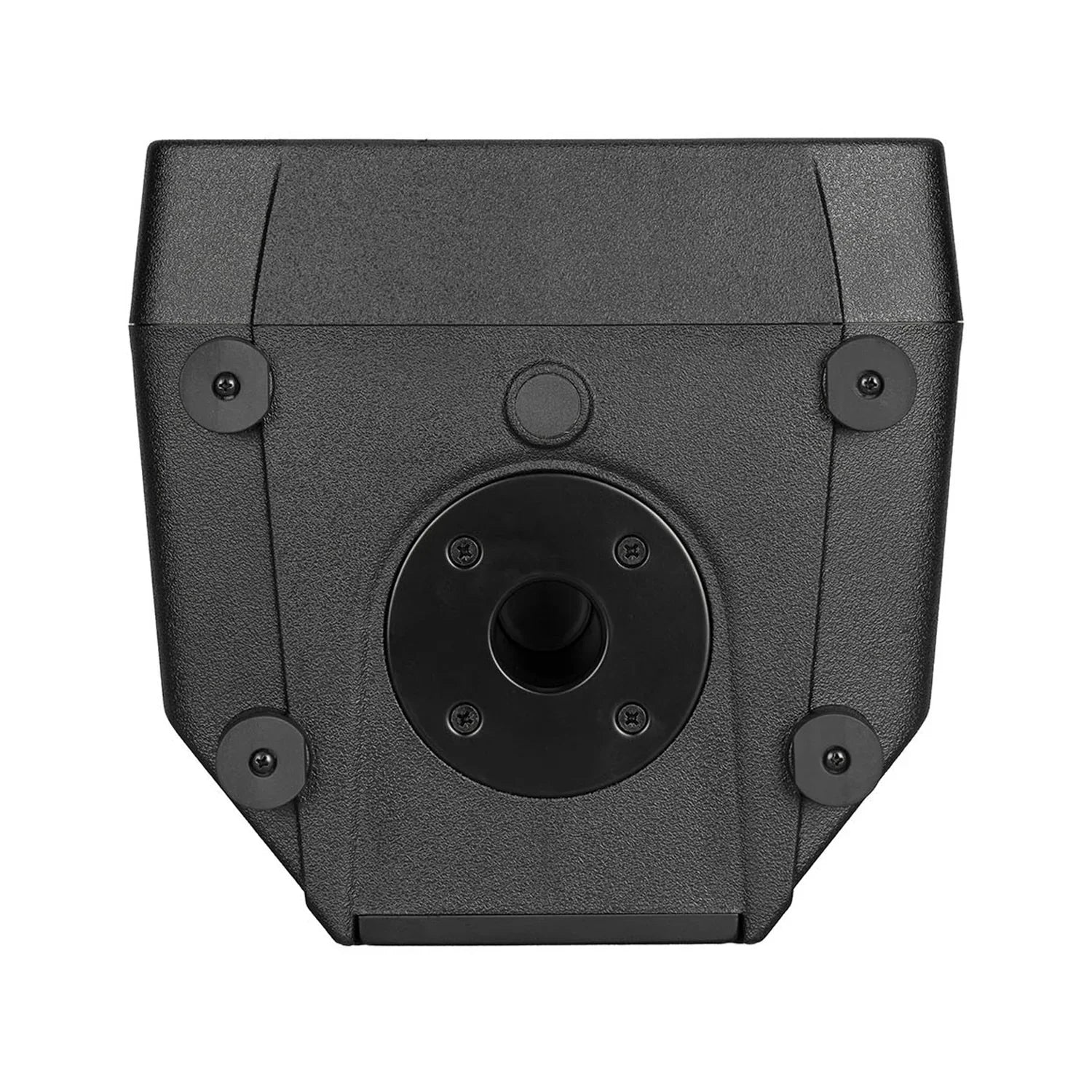

- Hardware: 2xM10 flying p.
- Handles: 1 top
- Pole Mount/Cap: yes
- Grille: steel
- Colour: Black
Physical & Dimensions
- Height: 480mm
- Width: 291mm
- Depth: 276mm
- Weight: 10.6kg
- ACOUSTICAL SPECIFICATIONS
