Description
ART 712-A MK5 is a unique product in its category. The 1.75" compression driver offers unique vocal clarity and sound projection. The 12” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
Product Features
- 129 dB Max SPL
- 1400 WATT 2-way peak power
- 90° x 60°, Wide dispersion constant directivity horn
- Innovative DSP Processing
- 1,75" Compression Driver
- 12" Woofer
- FiRPHASE Technology
- XBOOST Low Frequencies Enhancer
Product Specifications
Acoustical Specifications
- Frequency Response: 45 Hz ÷ 20000 Hz
- Max SPL @ 1m: 129 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 60°
Transducers
- Compression Driver: 1 x 1.0'', 1.75'' v.c
- Woofer: 12'', 2.5'' v.c

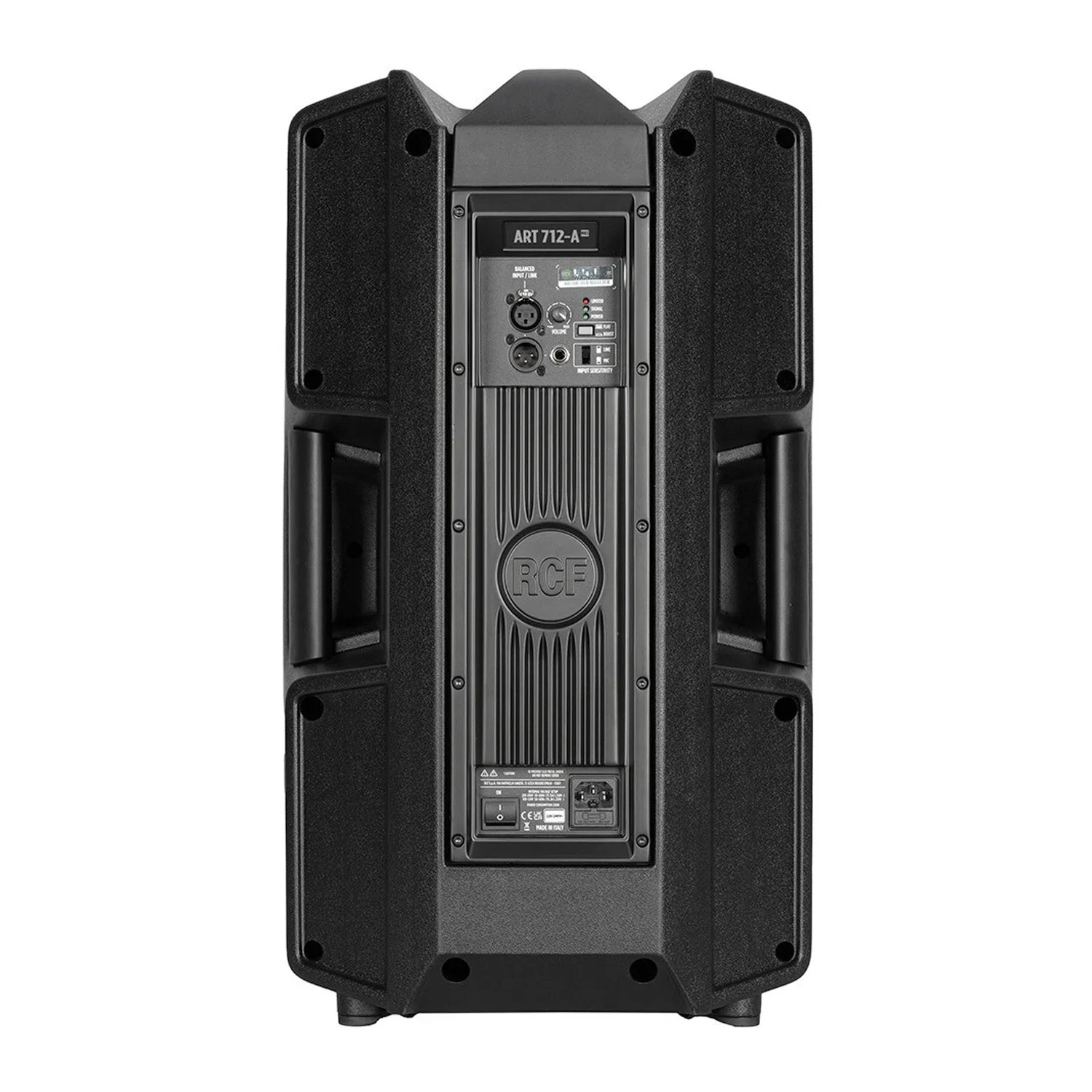

Input/Output Section
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- Mic. Input Sensitivity: -32 dBu
Processor Section
- Crossover Frequencies: 1600
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, MIC/Line
Power Section
- Total Power: 1400 W Peak
- High frequencies: 400 W Peak
- Low frequencies: 1000 W Peak
- Cooling: Convection
- Connections: VDE
Standard Compliance
- Safety agency: CE compliant
Physical Specifications
- Cabinet/Case Material: PP Composite
- Hardware: 2 x M10

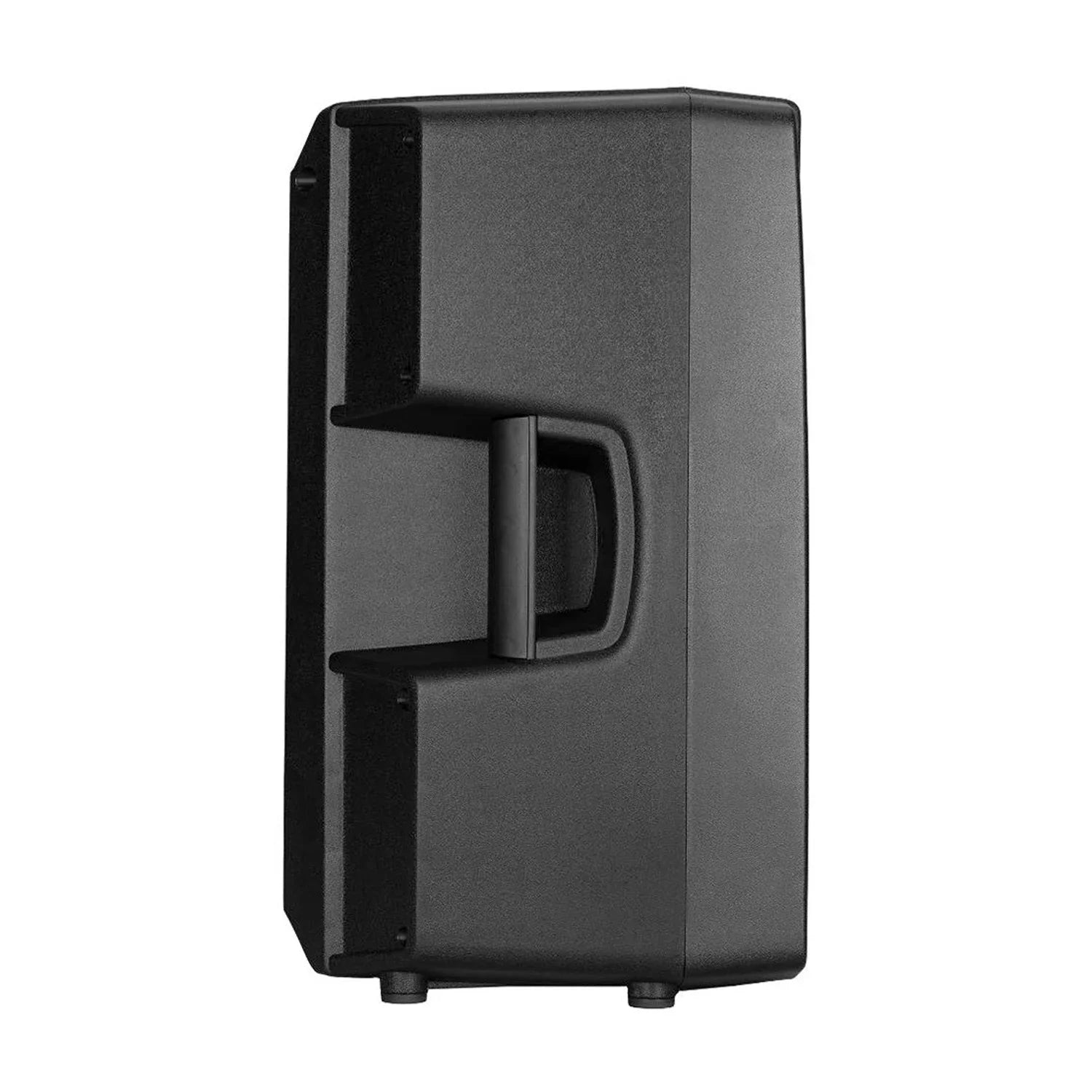

- Handles: 1 on top, 1 each side
- Pole mount/Cap: Yes
- Grille: Steel
- Colour: Black
Physical & Dimensions
- Height: 637 mm / 25.08 inches
- Width: 387 mm / 15.24 inches
- Depth: 363 mm / 14.29 inches
- Weight: 17.8 kg / 39.24 lbs
