Description
The ART 9 AX is an incredibly flexible tool for live events and presentations or venues like leisure centres or schools looking for a flexible solution without compromising on power. The ART 9 AX range comes fitted with the same cabinet, construction and advanced DSP, FiRPHASE and Bass Motion Control as the ART 9 series. The AX series features 6-in, 2-out stereo digital mixer & output processing as well as Bluetooth® and a Colour display with capacitive touch for Audio Streaming and Control.
The advanced woofer excursion management increases linearity and improves bass punch with a radical new approach. BMC extends the lowest audible frequency without affecting the transducer’s stability, limiting over-excursions for greater reliability and superior performance at high volume levels.
With 2100 Watts of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss.
- 2100W Class-D Bi-Amplification
- Up to 50 ÷ 20000 Hz linear frequency response
- Wide 100° x 60° Constant Directivity
- Up to 1800 Hz Crossover Frequency
- True Resistive Waveguide for superb, distortion-free coverage
- Road-proof Cabinet with M-Brace Reinforcement
- Bass Motion Control and FiRPHASE processing
- Bluetooth® for Audio Streaming and Control
- Smartphone app for remote control
- 6-in, 2-out stereo digital mixer and output processing
- Internal digital mixer and crossover for RCF subwoofers
- Colour display with capacitive touch
- 131 dB SPL
- 15" Woofer
Processor section
- Controls: Colour touch panel, data entry/volume encoder, dedicated App for iOS and Android.
Electronic specifications
- Frequency Response: 20 Hz ÷ 20 kHz
- THD+N, 20dB gain, 0dBu out 0.005% A-Weighted
Processing
- Processing Channels: 6
- Signal Processing: 24 Bit
- A/D-D/A conversion: 32 Bit @ 48.0 kHz
- Dynamic Range: 110
Inputs
- Mic: 2
- Remote controlled storable gain: Yes
- Gain Range: 0 dB ÷ 42 dB
- Input Noise Level: -114 dBu A-Weighted
- Mic Inputs Impedance: 6 kohm
- Low Cut: 20 Hz ÷ 400 Hz
- Phantom Power +48V: Yes
- Mono Line: 2
- Gain Selection: 0 dB ÷ 22 dB
- Line Input Impedance: 21 kohm
- A/D Dynamic range: 114 dB
- Stereo Line: 1
- Gain Selection: 0 dB ÷ 10 dB
- Stereo Line Input Impedence: 13 kohm
Outputs
- Main MIX: 1
- Outputs specifications
- Main Out Impedance: 150 ohm
- Main Out Level: 22 dBu
- D/A Dynamic Range: 114 dB
Compressors
- RCF Compressors: Compressors on MIC/LINE CH1 & CH2 inputs
EQ
- Input Channels EQ: 2 Shelving 1
- Description: 3 Band EQ: High and Low band shelving, MID band peak on IN
- 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output
Internal Effects
- Send Effects: 1
Mastering processors
- Main OUT type: Mix out, Crossover out with RCF Subwoofers presets, Stereo output, CH1 Link out

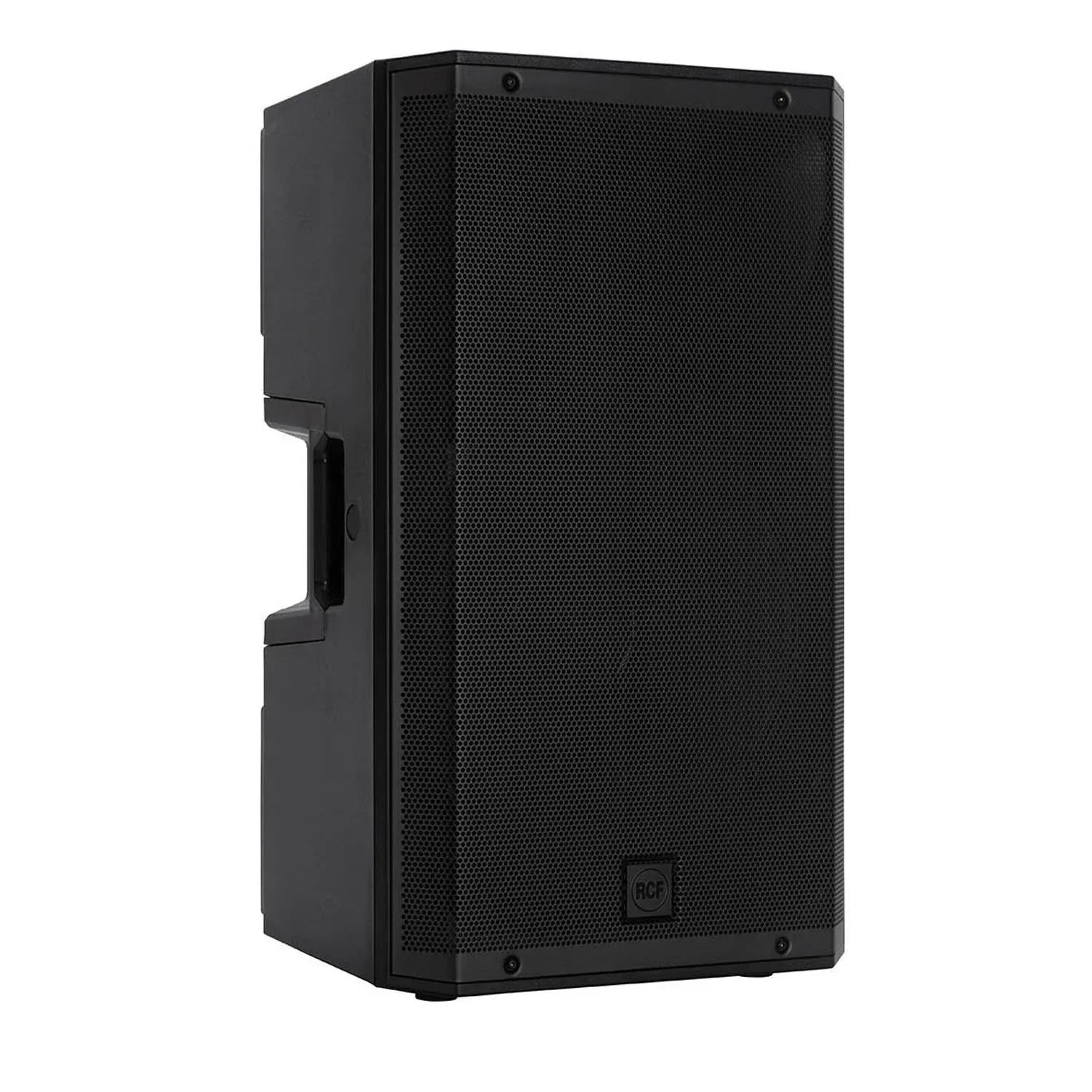

ART 915-AX
Acoustical specifications
- Frequency Response: 45 Hz ÷ 20 kHz
- Max SPL @ 1m: 131 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 60°
Transducers
- Compression Driver: 1'', 1.75'' v.c
- Woofer: 15'', 2.5'' v.c
Input/Output section
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
Processor section
- Crossover Frequencies: 1800 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Linear, Boost, Stage, Volume
Power section
- Total Power: 2100 W Peak
- High frequencies: 700 W Peak
- Low frequencies: 1400 W Peak
- Cooling: Convection
- Connections: VDE
Standard compliance
- CE marking: Yes
Physical & Dimensions
- Cabinet/Case Material: PP Composite
- Hardware: 1 x M10 Top, 1 x M10 each side
- Handles: 1 Top , 1 each side
- Pole mount/Cap: Yes
- Grille: Steel
- Colour: Black
- Height: 717 mm / 28.23”
- Width: 415 mm / 16.34”
- Depth: 410 mm / 16.14”
- Weight: 22 kg / 48.5 lbs
