Description

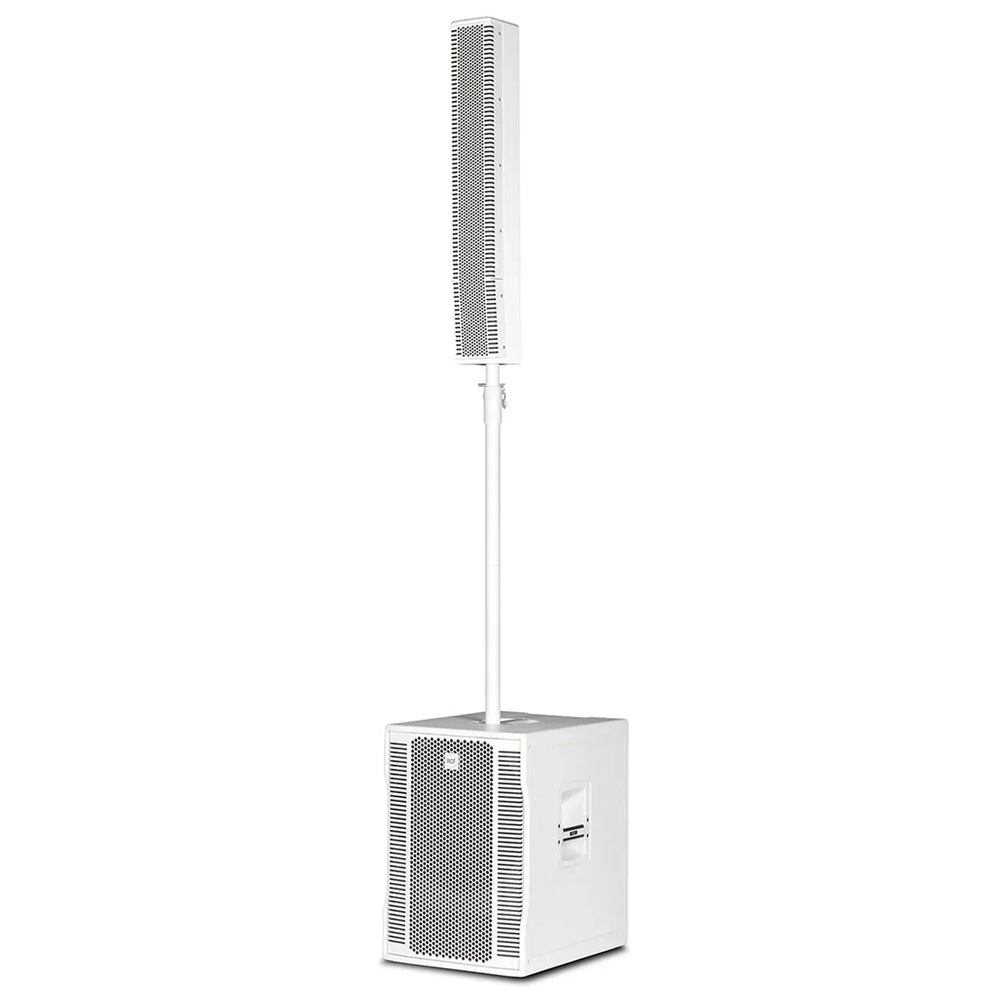

EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high performance neodymium 4 “full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15” subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.
- 1400 Watt
- 130 dB max SPL
- 40 Hz 20 kHz frequency response
- 15" Woofer
- 8 x 4" neodymium full-range woofer
- 90° x 30° slightly tilted pattern control
- Innovative DSP processing
- Pole mountable, easy set-up and transportation
General
- Acoustical Specifications
- Frequency Response -3 dB: 40 Hz ÷ 20 Hz
- Max SPL: 130 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 30°
- Fullrange: 8x4.0", 1.0"v.c.
- Woofer: 15", 3.0" v.c.
- Input/Output Section
- Input connectors: Jack-XLR male
- Output connectors: XLR female
- Input sensitivity: -2 dBu / + 4 dBu
- Processor Section
- Crossover frequencies: 180 Hz
- Protections: thermal, rms
- Limiter: Soft limiter
- Controls: Volume, EQ
- Amplifier Specifications
- Total power: 1400 W PEAK
- High frequencies: 400 W PEAK
- Low frequencies: 1000 W PEAK
- Total power: 700 W RMS
- High frequencies: 200 W RMS
- Low frequencies: 500 W RMS
- Cooling: Convection
- Connections: VDE connector
- Total power: 1400 W PEAK
- Cabinet
- Cabinet Material: Baltic birch plywood
- Handles: 2 side, 1 top
- Pole Mount/Cap: Yes
- Colour: white
Physical & Dimensions
- Height: 2220mm
- Width: 410mm
- Depth: 560mm
- Weight: 36.4kg
