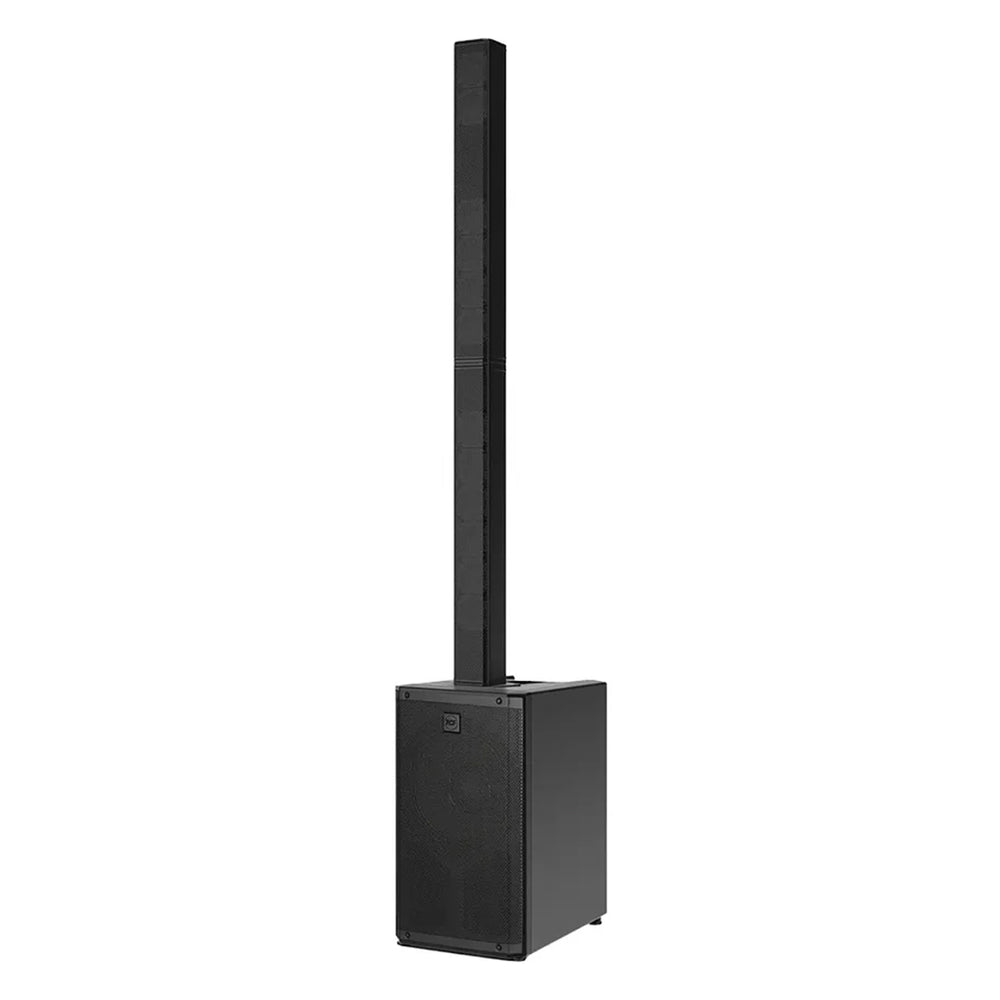

RCF EVOX J11 Three-way Portable Active Array Column Speaker System

EVOX J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 12 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 3500W onboard dual-channel Class-D amplifier, EVOX J11 delivers an impressive 132 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live
performers.

• Black
• 132 dB Max SPL

• 3500 W Class-D Amplifier - Built-In DSP

• 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide

• 12 × 3” Full-Range Neo Transducers

• 12” RCF Precision Low-Frequency Woofer

• Enhanced Coverage And Clarity

• Composite Cabinet With Aluminium Stand Mount

• Sleek, Road-Ready Design

• Top Speaker Padded Carrying Bag Included

• PowerCON TRUE1-TOP Mains Connector

Acoustical Specifications

• Frequency Response:  37Hz - 20000Hz
• Max SPL @1m:  130dB
• Horizontal Coverage Angle:  120°
• Vertical Coverage Angle:  40°

Transducers

• Compression Driver:   1 x 0.75'' neo, 1.75'' v.c
• Fullrange:  12 x 3.0'' neo, 1.0'' v.c
• Woofer:  1 x 12'', 2.5'' v.c

Input/Output Section

• Input Signal:  bal/unbal
• Input Connectors:  Combo XLR/Jack
• Output Connectors:  XLR
• Input Sensitivity:  +4 dBu

Processor Section

• Crossover Frequencies:  160 Hz/1800 Hz
• Protections:  Thermal, RMS
• Limiter:  Soft Limiter
• Controls:  Volume, Presets: LINEAR/LIVE, CLUB, VOICE


Power Section

• Total Power:  3500 W Peak
• High Frequencies:  1500 W Peak
• Low Frequencies:  2000 W Peak
• Cooling:  Convection
• Connections:  Powercon TRUE1 TOP IN/OUT

Standard Compliance

• Safety Agency:  CE Compliant

Physical Specifications

• Cabinet/Case Material:  PP Composite
• Handles:  1 Top
• Pole Mount/Cap:  Quick-fit socket
• Grille:  Steel
• Colour:  Black

Size/Weight

• Height:  2285 mm / 89.96 inches
• Width:  400 mm / 15.75 inches
• Depth:  460 mm / 18.11 inches
• Weight:  29 kg / 63.93 lbs
