RCF Evox J8

RCFSKU: 001285

Price:
Sale price£859

Description

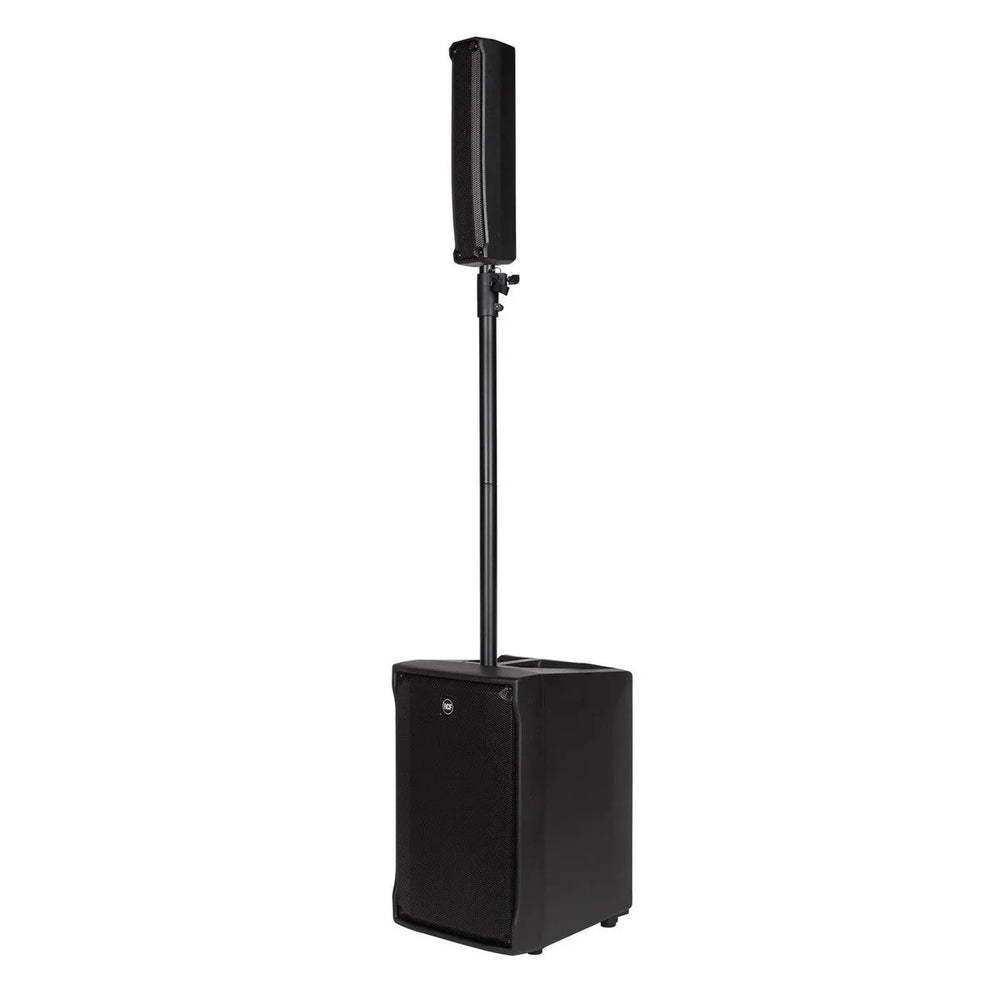

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.
  • 128 dB Max SPL
  • 1400 Watt 2-way peak power
  • DSP Processing with FiRPHASE
  • 12" woofer, high power 2.5" voice coil
  • 8 x 2" ultra compact fullrange 1.0" voice coil
  • Perfect for Live Sound, Clubs and DJs, Corporate events, AV presentations

Acoustical Specifications

  • Frequency Response -3 dB: 40 Hz ÷ 20 Hz
  • Max SPL: 128 dB
  • Horizontal coverage angle: 120°
  • Vertical coverage angle: 30°
  • Fullrange: 8 x 2.0'', 1.0'' v.c
  • Woofer:12'', 2.5'' v.c

Input/Output Section

  • Input signal: bal/unbal
  • Input connectors: XRL, Jack
  • Output connectors: XLR
  • Input sensitivity: -2 dBu/+4 dBu

Processor Section

  • Crossover frequencies: 220 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Volume, Boost, Mic/Line

Amplifier Specifications

  • Total power: 1400 W PEAK
    • High frequencies: 400 W PEAK
    • Low frequencies: 1000 W PEAK
  • Total power: 700 W RMS
    • High frequencies: 200 W RMS
    • Low frequencies: 500 W RMS
  • Connections: Convection

Cabinet

  • Cabinet Material: PP Composite
  • Handles: 1 Top
  • Pole Mount/Cap: Yes
  • Grille: steel
  • Colour: Black

Physical & Dimensions

  • Height: 623mm
  • Width: 400mm
  • Depth: 460mm
  • Weight: 23.8kg
