Description

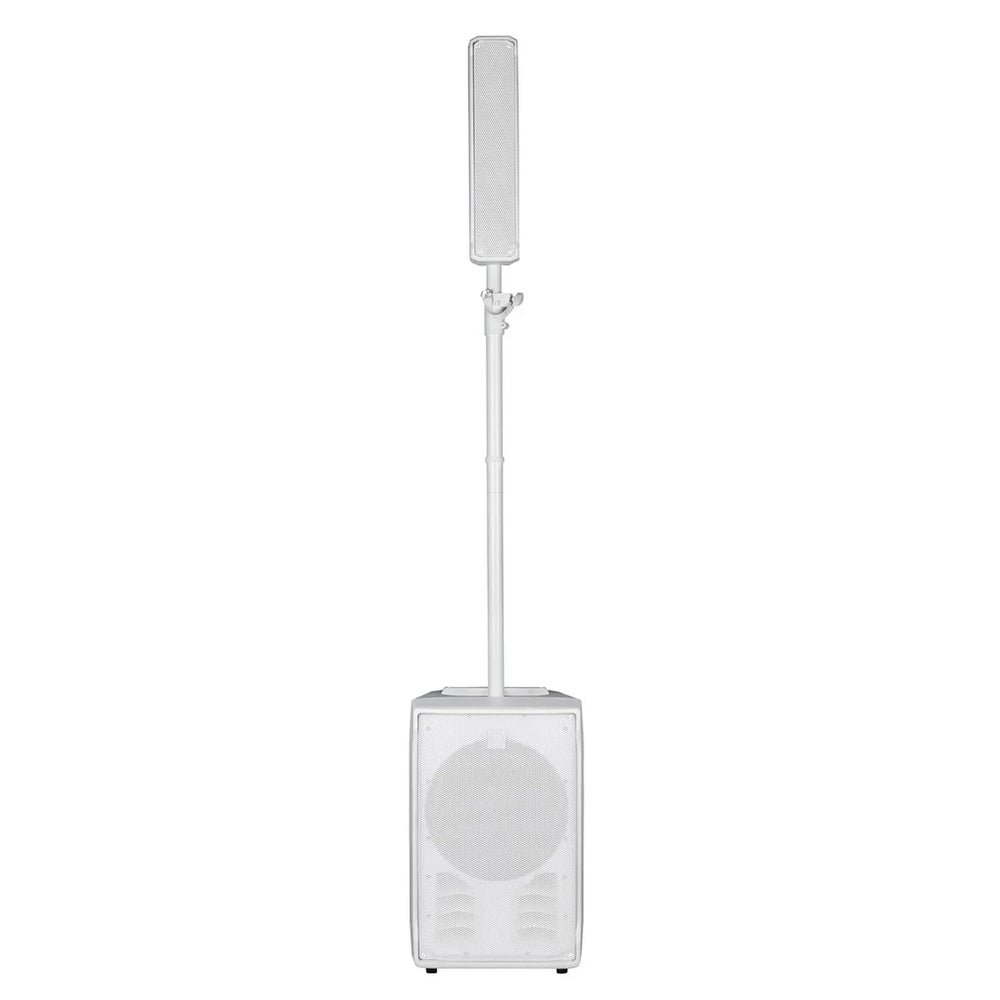

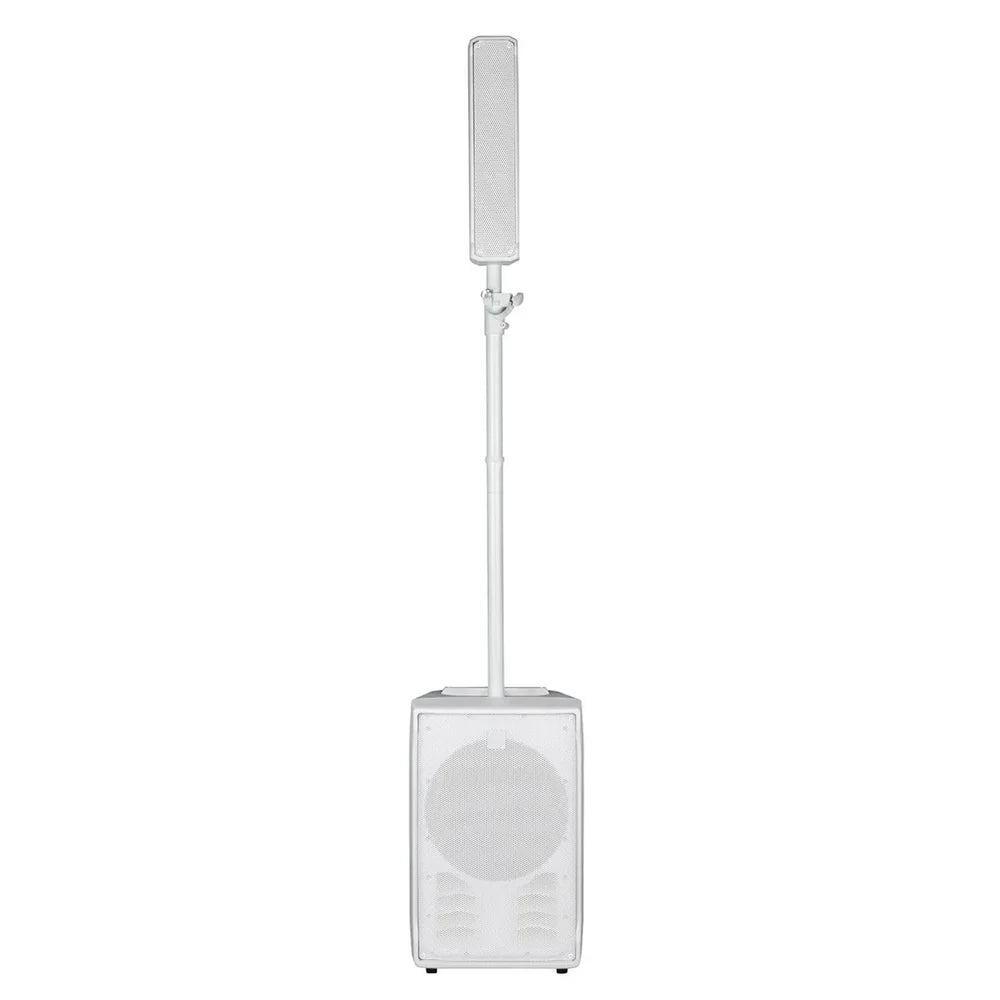

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.
- 128 dB Max SPL
- 1400 Watt 2-way peak power
- DSP Processing with FiRPHASE
- 12" woofer, high power 2.5" voice coil
- 8 x 2" ultra compact fullrange 1.0" voice coil
- White finish
- Perfect for Live Sound, Clubs and DJs, Corporate events, AV presentations
Acoustical Specifications
- Frequency Response -3 dB: 40 Hz ÷ 20 Hz
- Max SPL: 128 dB
- Horizontal coverage angle: 120°
- Vertical coverage angle: 30°
- Fullrange: 8 x 2.0'', 1.0'' v.c
- Woofer:12'', 2.5'' v.c
Input/Output Section
- Input signal: bal/unbal
- Input connectors: XRL, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
Processor Section
- Crossover frequencies: 220 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, Mic/Line
Amplifier Specifications
- Total power: 1400 W PEAK
- High frequencies: 400 W PEAK
- Low frequencies: 1000 W PEAK
- Total power: 700 W RMS
- High frequencies: 200 W RMS
- Low frequencies: 500 W RMS
- Connections: Convection
Cabinet
- Cabinet Material: PP Composite
- Handles: 1 Top
- Pole Mount/Cap: Yes
- Grille: steel
- Colour: White
Physical & Dimensions
- Height: 623mm
- Width: 400mm
- Depth: 460mm
- Weight: 23.8kg
