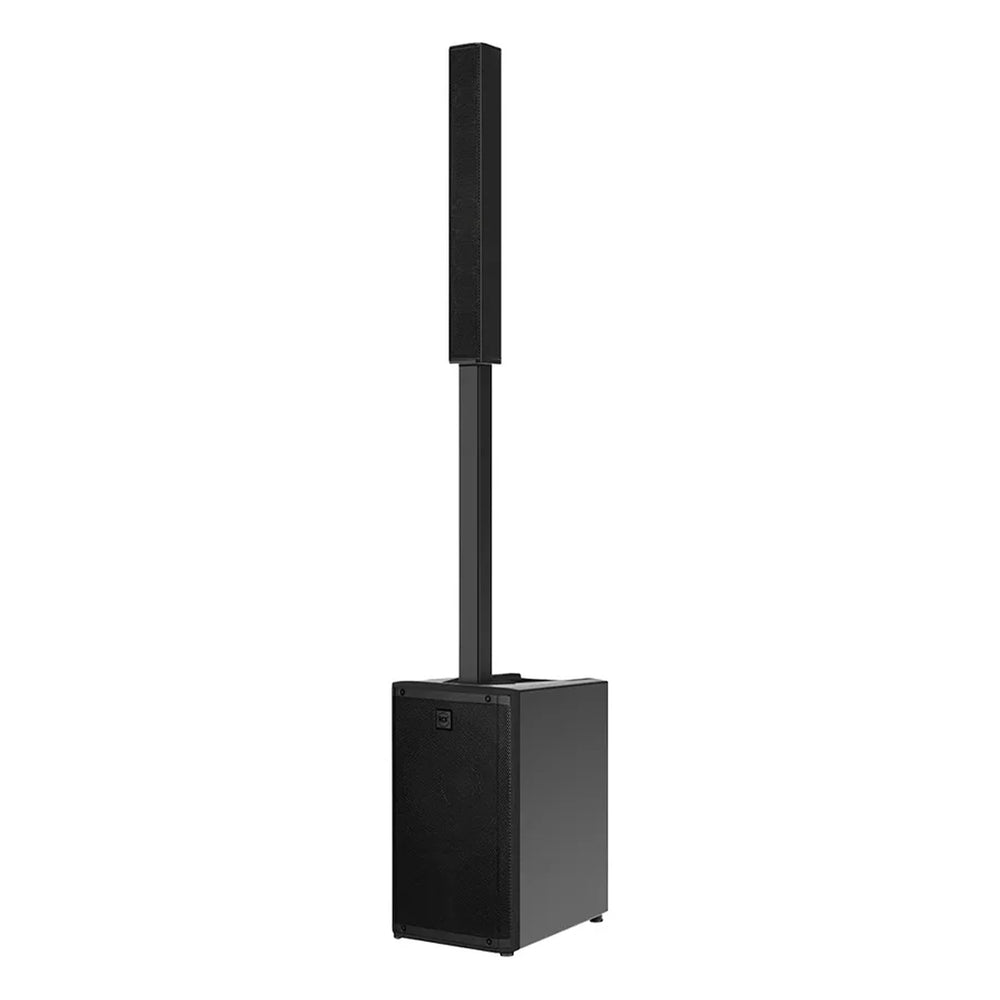

RCF EVOX J9 Portable 3 Way Column Speaker PA System

EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live
performers.

• Black
• 130 dB Max SPL

•  2100 W Class-D Amplifier - Built-In DSP

•  1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide

•  6 × 3” Full-Range Neo Transducers

•  12” RCF Precision Low-Frequency Woofer

•  Enhanced Coverage And Clarity

•  Composite Cabinet With Aluminium Stand Mount

•  Sleek, Road-Ready Design

•  Top Speaker Padded Carrying Bag Included

•  VDE Mains Connector

Acoustical Specifications

• Frequency Response:  40Hz - 20000Hz
• Max SPL @1m:  130dB
• Horizontal Coverage Angle:  120°
• Vertical Coverage Angle:  40°

Transducers

• Compression Driver:   1 x 0.75'' neo, 1.75'' v.c
• Fullrange:  6 x 3.0'' neo, 1.0'' v.c
• Woofer:  1 x 12'', 2.5'' v.c

Input/Output Section

• Input Signal:  bal/unbal
• Input Connectors:  Combo XLR/Jack
• Output Connectors:  XLR
• Input Sensitivity:  -2 dBu/+4 dBu

Processor Section

• Crossover Frequencies:  160Hz
• Protections:  Thermal, RMS
• Limiter:  Soft Limiter
• Controls:  Volume, Presets: LINEAR/LIVE, CLUB, VOICE
• RDNet:  Ready

Power Section

• Total Power:  2100 W Peak
• High Frequencies:  700 W Peak
• Low Frequencies:  1400 W Peak
• Cooling:  Convection
• Connections:  VDE

Standard Compliance

• Safety Agency:  CE Compliant

Physical Specifications

• Cabinet/Case Material:  PP Composite
• Handles:  1 Top
• Pole Mount/Cap:  Quick-fit socket
• Grille:  Steel
• Colour:  Black

Size/Weight

• Height:  2080.1 mm / 81.89 inches
• Width:  350 mm / 13.78 inches
• Depth:  462.6 mm / 18.21 inches
• Weight:  28.3 kg / 62.39 lbs
