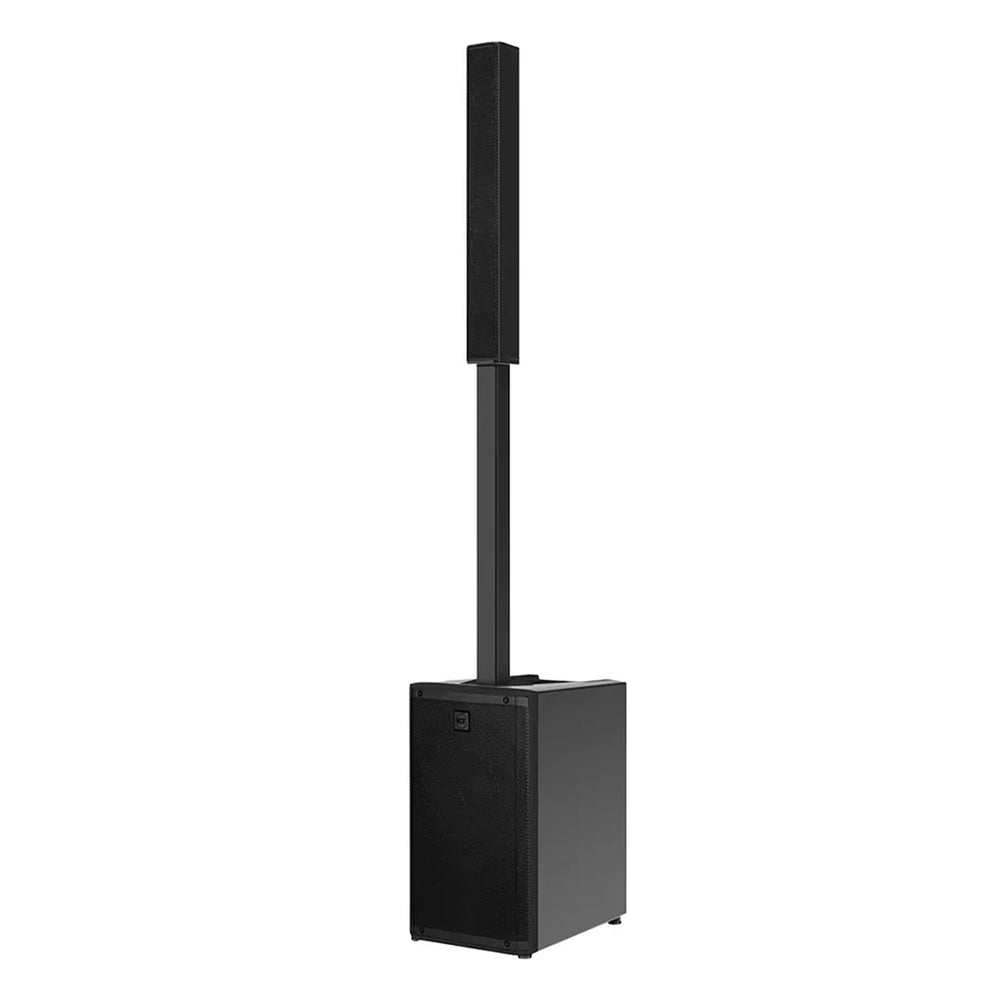

RCF EVOX J9MIX Portable 3 Way Column Speaker PA System with Built in Mixer

EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer featuring a colour touch display, encoders, Bluetooth® streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. A 1.75” compression driver on a 120° × 40° True Resistive Waveguide delivers wide, uniform coverage, while six 3” transducers and a high-power 12” bass-reflex woofer provide articulate mids and deep, controlled lows. Powered by a 2100 W Class-D amplifier for up to 130 dB Max SPL, the system includes combo inputs, stereo/aux out, EQ, reverb, phantom power, and Bluetooth audio. All functions are accessible from the touch interface or the JMixRemote app.

• Black
• 8-Ch True-Stereo Digital Mixer w/ Bluetooth®

• 130 dB Max SPL

• 2100 W Class-D Amplifier - Built-In DSP

• 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide

• 6 × 3” Full-Range Neo Transducers

• 12” RCF Precision Low-Frequency Woofer

• Enhanced Coverage And Clarity

• Sleek Composite Cabinet With Aluminium Stand Mount

• Top Speaker Padded Carrying Bag Included

• VDE Mains Connector

Acoustical Specifications

• Frequency Response:  40Hz - 20000Hz
• Max SPL @1m:  130dB
• Horizontal Coverage Angle:  120°
• Vertical Coverage Angle:  40°

Transducers

• Compression Driver:   1 x 0.75'' neo, 1.75'' v.c
• Fullrange:  6 x 3.0'' neo, 1.0'' v.c
• Woofer:  1 x 12'', 2.5'' v.c

Input/Output Section

• Input Signal:  bal/unbal
• Input Connectors:  Combo XLR/Jack
• Output Connectors:  XLR
• Input Sensitivity:  -2 dBu/+4 dBu

Processor Section

• Crossover Frequencies:  200 Hz/1800 Hz
• Protections:  Thermal, RMS
• Limiter:  Soft Limiter
• Controls:  Digital mixer controlled by touch screen and encoders


Power Section

• Total Power:  2100 W Peak
• High Frequencies:  700 W W Peak
• Low Frequencies:  1400 W Peak
• Cooling:  Convection
• Connections:  VDE

Electronic Specifications

• Frequency Response:  20 Hz - 20 Hz
• THD+N, 20dB gain, 0dBu out:  0.003% A-Weighted

Processing

• Processing Channels:  8
• Signal Processing:  32 Bit

• A/D-D/A conversion:  24 Bit @ 48.0 kHz

• Dynamic Range:  114

Inputs

• Mic:  4

• Remote Controlled Storable Gain:  Yes

• Gain Range:  0 dB - 36 dB

• Input Noise Level:  -114 dBu A-Weighted

• Mic Inputs Impedance: 3 kohm

• Low Cut:  20 Hz - 400 Hz

• Phantom Power:  +48V Yes

• Mono Line:  4

• Gain Selection:  0 dB - 36 dB

• Line Input Impedance:  10 kohm

• A/D Dynamic range:  120 dB

• Stereo Line:  2

• Gain Selection:  0 dB - 0 dB

• Stereo Line Input Impedence:  24 kohm

Outputs

• Main MIX:  1

• FX Send:  1

• AUX Send:  1

• AUX Output:  1

• Phones:  1

Outputs Specifications

• Main Out Impedance:  150 ohm

• Main Out Level:  20 dBu

• Aux Out Impedance:  150 ohm

• Aux Out Level:  20 dBu

• Phones Out impedance (ohm):  100 ohm

• Phones Out Level: 20 dBm

• D/A Dynamic Range: 118 dB

Compressors

• RCF Compressors:  Compressors on MIC/LINE CH1 to CH4 Inputs

EQ

• Input Channels EQ 1 Semi Parametric / 2 Shelving

• Description 3 Band EQ: High and Low band shelving, MID band peak on INPUT 8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output.

Auxiliary Sends

• AUX:  1 PRE/POST

• FX POST:  1

Internal Effects

• Send Effects:  1

Mastering Processors

• Main OUT processors:  1
• Main OUT type:  MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT.

Electrical Specifications

• Power Supply:  Internal

Standard Compliance

• Safety agency:  CE compliant

Physical Specifications

• Cabinet/Case Material:  PP Composite
• Handles:  1 Top
• Pole Mount/Cap:  Quick-fit socket
• Grille:  Steel
• Colour:  Black

Size/Weight

• Height:  2080 mm / 81.89 inches
• Width:  350 mm / 13.78 inches
• Depth:  460 mm / 18.11 inches
• Weight:  28.8 kg / 63.49 lbs
