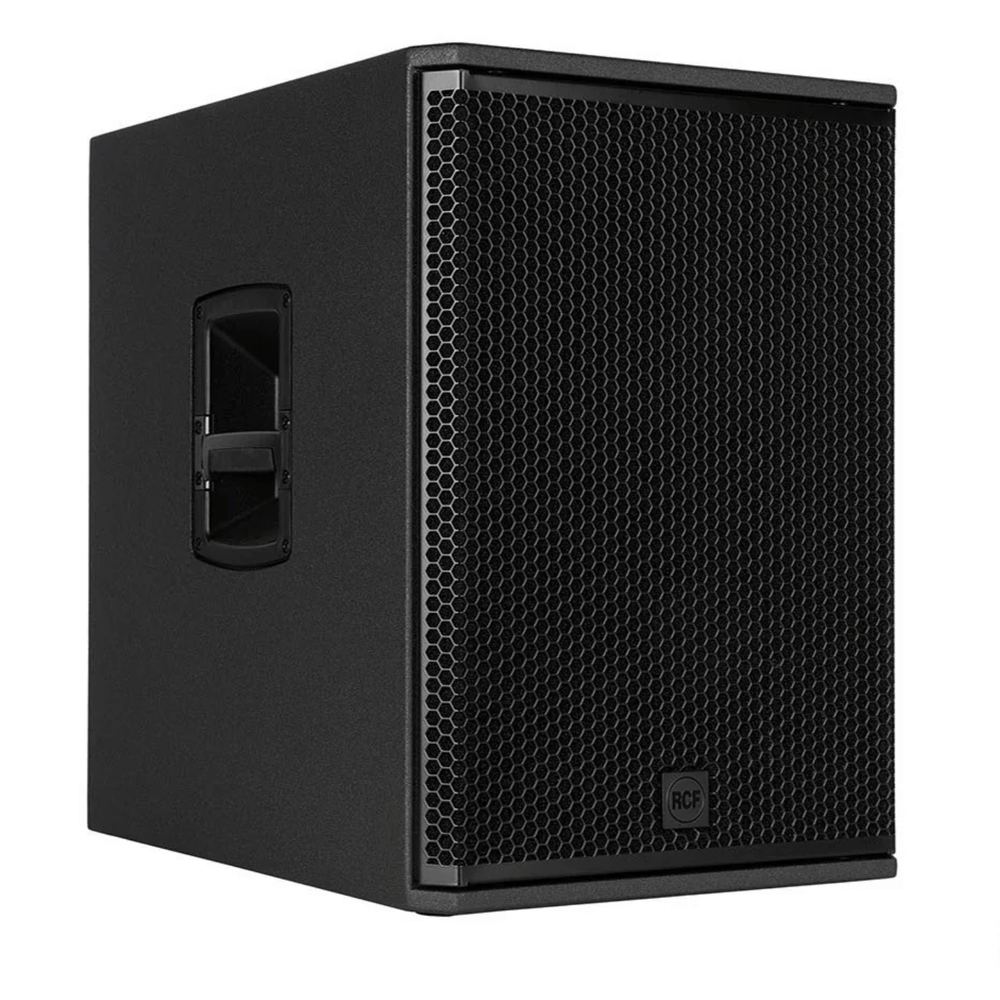

RCF SUB 15-AX 2200W 15" Active Bass Reflex Subwoofer

Brand: RCF
SKU: 13000835
£1,325.00
Only 2 left in stock!
Quantity:
Secure Payment
We accept all major payment methods including:
Visa Mastercard Klarna PayPal Credit
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.

Product Description

The SUB 15-AX is a portable 15" high-power active subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth®. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 133 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB 15-AX is the ideal complement for 10" or 12" woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.

RCF’s proprietary Advanced Crossover Engine (ACE) is engineered to precisely match the time delay and align the phase on a broader range than the usual crossover frequency range between RCF subwoofers and FiRPHASE-enabled full-range speakers.

  • 2200 Watt Class-D Amplifier
  • 133 dB MAX SPL
  • 15” Woofer, bass reflex housing
  • Digital Crossover w/ Presets
  • Multi-ply hardwood polyurea-coated
  • LiveRemote App
  • Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
  • Bass Motion Control excursion management
  • Powercon True1 Top Sealed AC Connector
  • Acoustical specification
    • Frequency Response: 35 Hz ÷ 120 Hz
    • Max SPL @ 1m: 133 dB
  • Transducers
    • Woofer: 1 x 15\'\', 3.0\'\' v.c
  • Input/Output section
    • Input signal: bal/unbal
    • Input connectors: Combo XLR/Jack
    • Output connectors: XLR
    • Input sensitivity: -2 dBu/+4 dBu
  • Processor section
    • Protections: Thermal
    • Limiter: Soft Limiter
    • Controls: Encoder for Volume control and data entry. Touch Screen for parameter management and monitor.
  • Power section
    • Total Power: 2200 W Peak, 1100 W RMS
    • Cooling: Convection
    • Connections: Powercon TRUE1 TOP IN/OUT
  • Standard compliance
    • Safety agency: CE compliant
  • Physical specifications
    • Cabinet/Case Material: Plywood
    • Handles: 1 handle per side
    • Pole mount/Cap: M20 thread
    • Grille: Steel
    • Colour: Black

Physical & Dimensions

  • Height: 590 mm / 23.23 inches
  • Width: 420 mm / 16.54 inches
  • Depth: 590 mm / 23.23 inches
  • Weight: 31.4 kg / 69.23 lbs
