Description

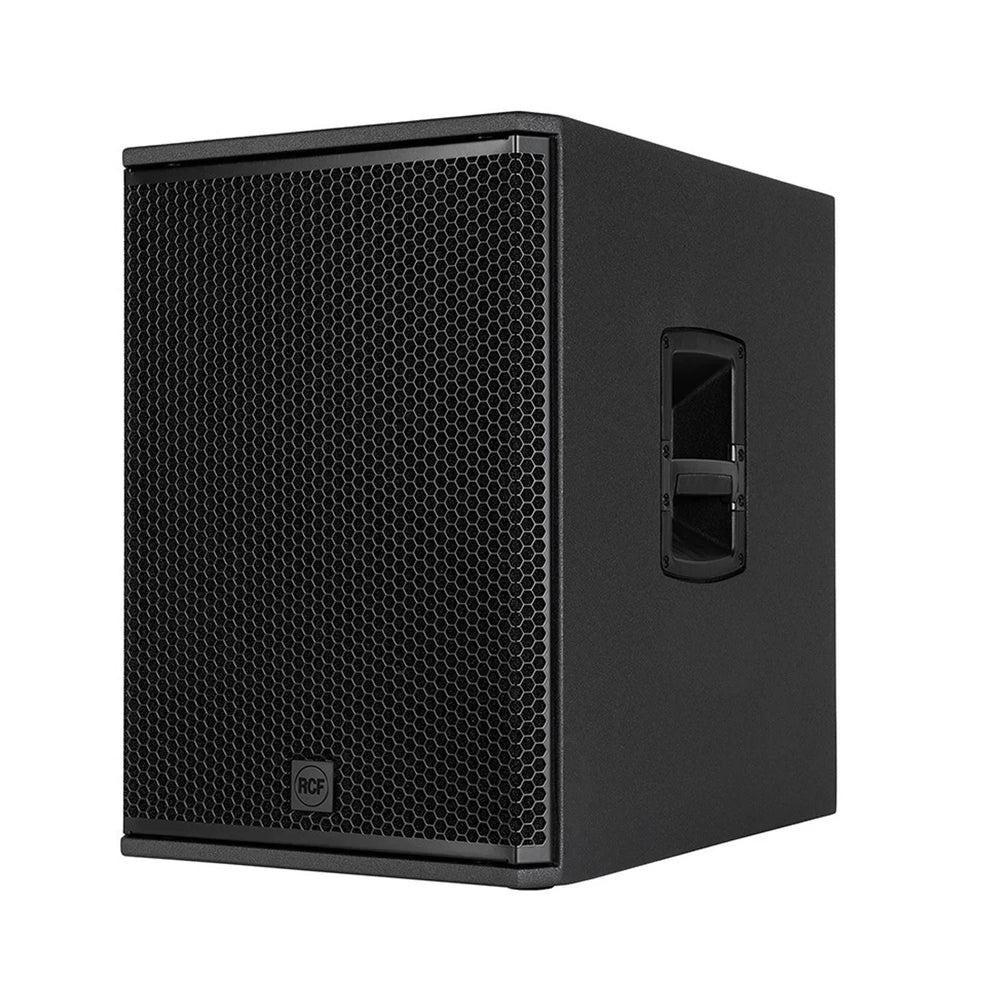

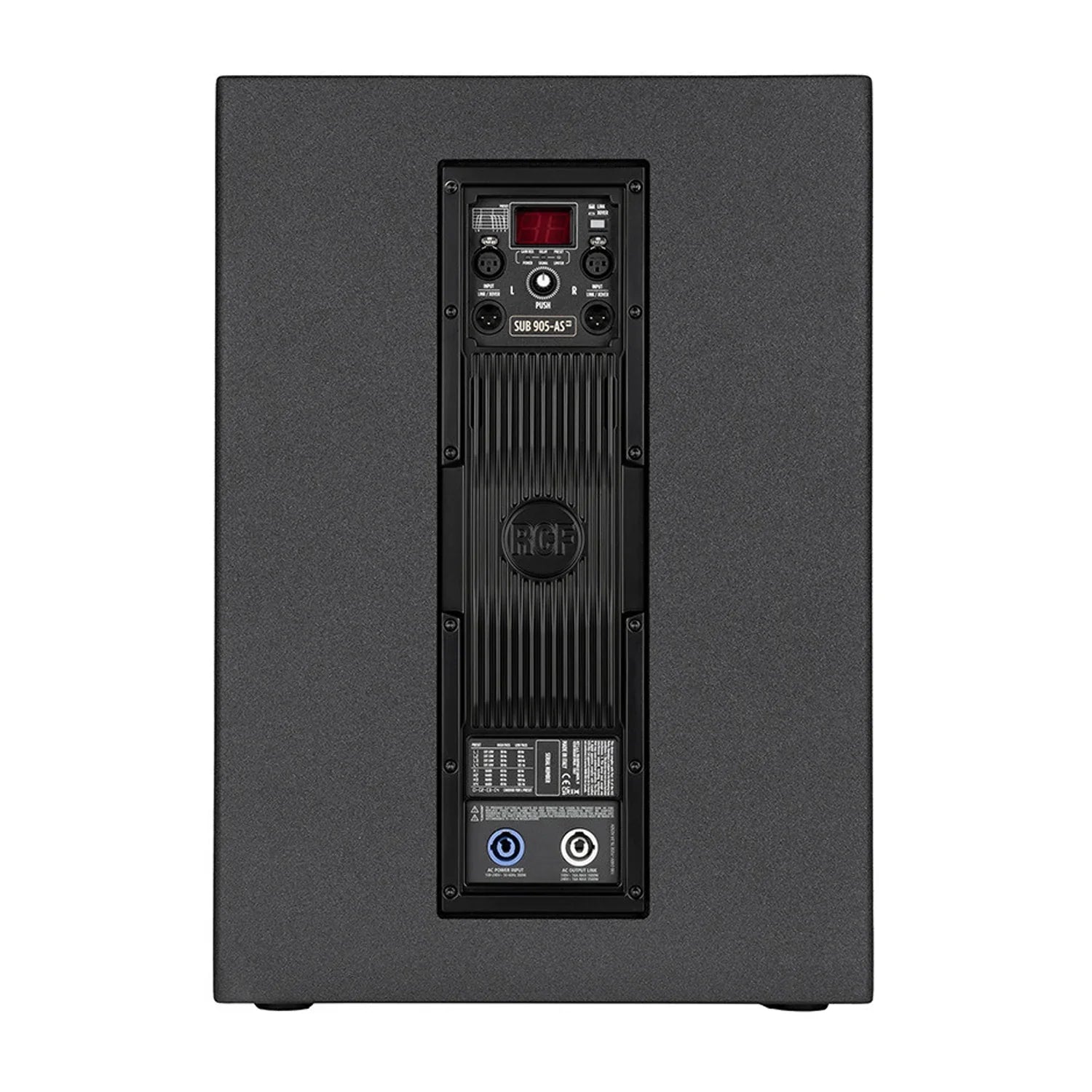

The SUB 905-AS MK3 is a self-powered extended low-frequency subwoofer with internal DSP. Its compact cabinet houses a state-of-the-art 15" transducer featuring ceramic magnets and a 3.0” voice coil. The internal amplifier manages up to 2200W power output,, delivering sound pressure levels up to 133 dB. Proprietary Bass Motion Control processing provides extended linearity and remarkable sound integrity. Rear panel controls include presets, crossover frequency, and polarity selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is stackable and lightweight, ensuring quick set-ups and tear-downs. Built specifically for highly demanding applications, SUB 905-AS MK3 is the perfect workhorse for music professionals.
2200 W
133 dB max SPL
40 Hz - 120 Hz frequency response
15" Woofer, 3.0" v.c.
Birch tour grade cabinet
Selectable gain, X-over, cardioid mode and time delay
Stereo XLR input, Stereo XLR signal output
Acoustical Specifications
Frequency Response: 40 Hz ÷ 120 Hz
Max SPL: 133 dB
Transducers
Woofer: 15", 3.0" v.c
Input/Output Section
Input connectors: Stereo XLR
Output connectors: Stereo XLR
Input sensitivity: -2 dBu / + 4 dBu
Processor Section
Crossover frequencies: Selectable
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Gain,EQ, phase, xover, delay, cardioid
Amplifier Specifications
Total power: 2200 W Peak, 1100 W RMS
Low frequencies: 2200 W Peak, 1100 W RMS
Cooling: Convection
Connections: Powercon in/out
Cabinet
Cabinet Material: Plywood
Handles: One Handle on each side
Pole Mount/Cap: Yes
Grille: steel with clothing
Colour: Black
Physical Specifications
Height: 590 mm / 23.23 inches
Width: 420 mm / 16.54 inches
Depth: 590 mm / 23.23 inches
Weight: 26 kg / 57.32 lbs
