Adastra RM120D Mixer Ampliifer 100V with Bluetooth and DAB+

AV LinkSKU: 953.224UK

Price:
Sale price£239.00
Stock:
10 In Stock

Description

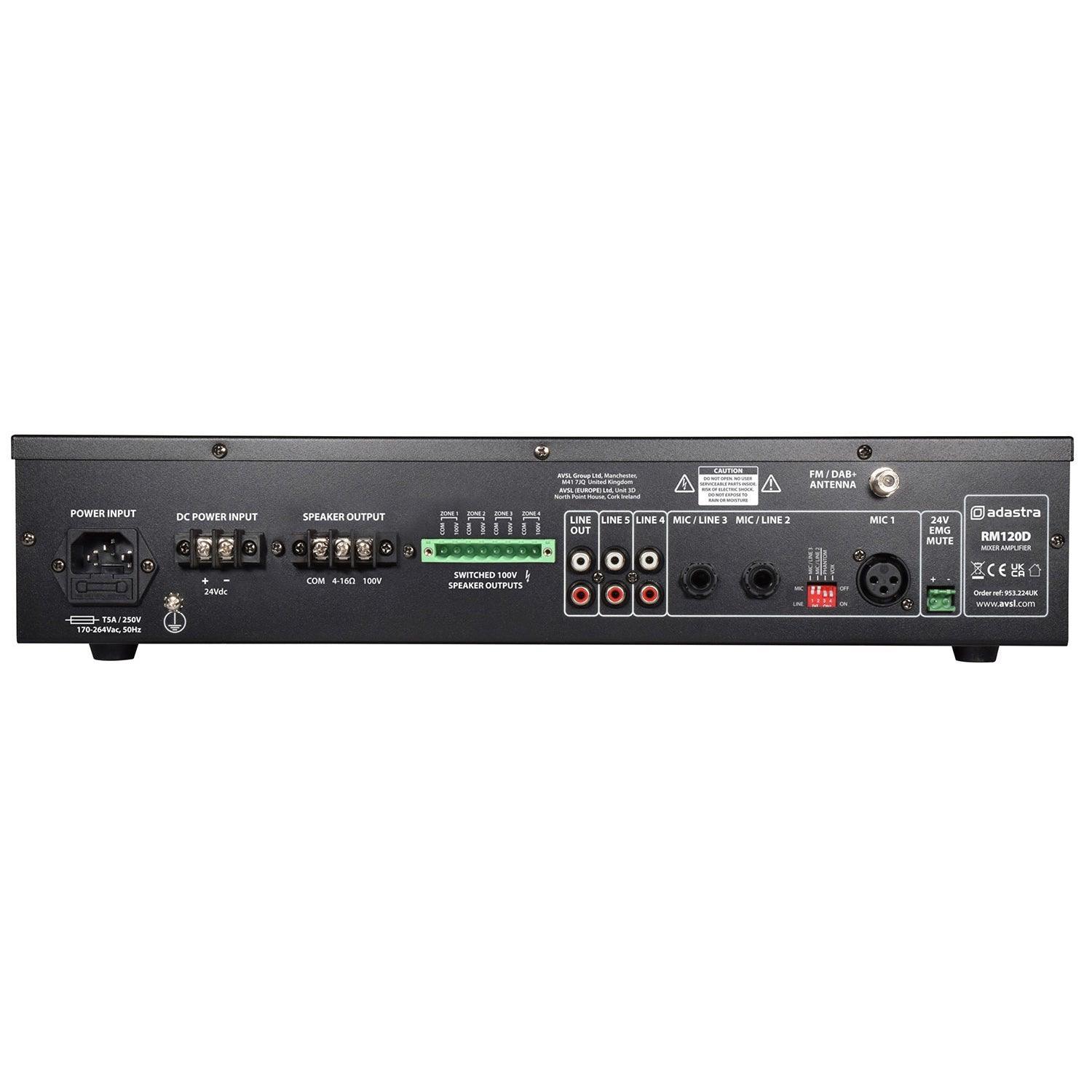

5-channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth® connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. Outputs on screw terminla are via 4 switchable zones with a separate "always on" output for priority alert speakers.

  • DAB+/FM radio tuner
  • Bluetooth receiver with unique serial ID
  • USB/SD audio player
  • 4 switchable 100V outputs and 1 unswitched output
  • Optional 4-16 Ohm output
  • XLR input with switchable +20V phantom power
  • 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
  • Switchable VOX voiceover feature
  • 2U 19" rack mountable (rack ears supplied)
  • 24V emergency mute contacts
  • Mains 230Vac or 24Vdc power option
  • Power supply170-264Vac, 50Hz (IEC)
  • DC power24Vdc (screw terminals)
  • InputsMic XLR, 2 x mic/line jack, 2 x RCA line
  • Input sensitivity : mic 1 (balanced)-53dBV
  • Input impedance : mic 15k Ohms
  • Input sensitivity : line (unbalanced)-15dBV (-18.5dBV line 5)
  • Input impedance : inputs 2-51k Ohms
  • Line outputRCA
  • Speaker outputs4 switched + 1 non-switched 100V / 4-16 Ohms / COM
  • Bluetooth version5.0
  • ControlsMic1, mic/line2+3, line4+5, bass, treble, master volume
  • Equaliser : bass100Hz ±10dB
  • Equaliser : treble10kHz ±10dB
  • Rear panel switchesPhantom, Vox, Mic/Line (2 + 3)
  • Phantom power+20V (mic 1 XLR, switchable)
  • Audio sourceDAB+/FM tuner, USB/SD player, Bluetooth receiver
  • Emergency control24V contacts - mute all except Mic.1 when triggered
  • THD<1.0
output power : rms
120W
Fuse
T3.15A
Dimensions
433 x 320 x 88mm
Weight
6.36kg
