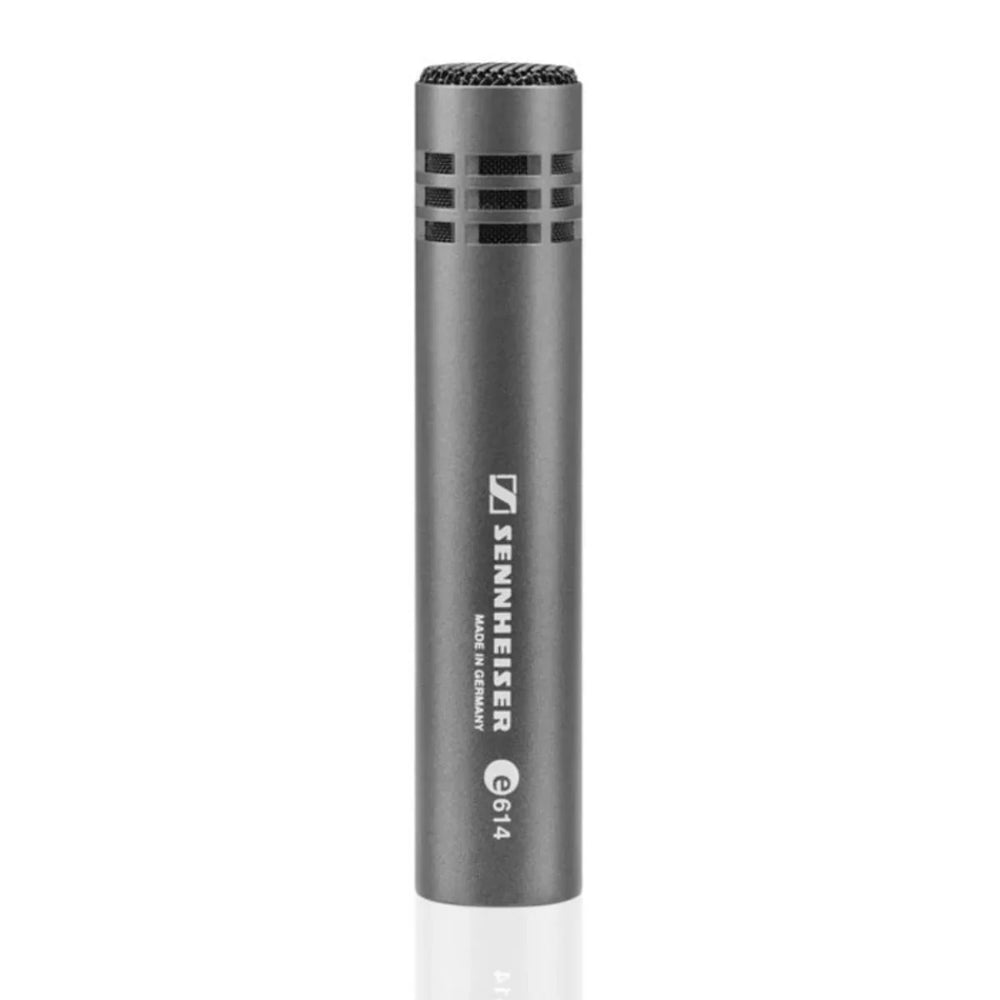

Sennheiser E614 Condenser Instrument Microphone

The super-cardioid E614 is a permantly polarized condenser microphone designed for demanding applications which require a wide frequency response, high SPL, fast transient response and a compact design. With its frequency response of 40 Hz to 20 kHz, the E614 is able to capture the full sound of the instrument, while its super-cardioid pick-up pattern isolates the microphone from other on-stage signals. An excellent microphone for percussion instruments, the E 614 is also an ideal choice for woodwind and string instruments. Its excellent acoustic properties also make it a valuable tool for home recording.

• Rugged design
• Effective rejection of incidental rear noise
• Excellent directivity across the whole frequency range
• Full, natural sound
• High maximum sound pressure levelF
• Wide frequency response

General

• Transducer principle:  pre-polarised condenser microphone
• Pick-up pattern:  super-cardioid
• Frequency response:  40 Hz ... 20 kHz
• Sensitivity in free field, no load (1kHz):  3 mV/Pa = - 50dB (0 dB = 1 V/Pa)
• Nominal impedance:  50 Ohm
• Min. terminating impedance:  1000 Ohm
• Maximum sound pressure level (passive):  139 dB/SPL
• Equivalent noise level:  24 dB(A)
• Equivalent noise level weighted as per CCIR 468-3:  35 dB
• Phantom powering:  12 – 52 V / 3 mA

Physical & Dimensions

• Connector:  XLR-3
• Dimensions:  Ø 20mm, L = 100mm
• Weight w/o cable:  93 g

What's in the Box?

• 1 x E614
• 1 x Microphone pouch
• 1 x Microphone clip MZQ 100
• User Manual
