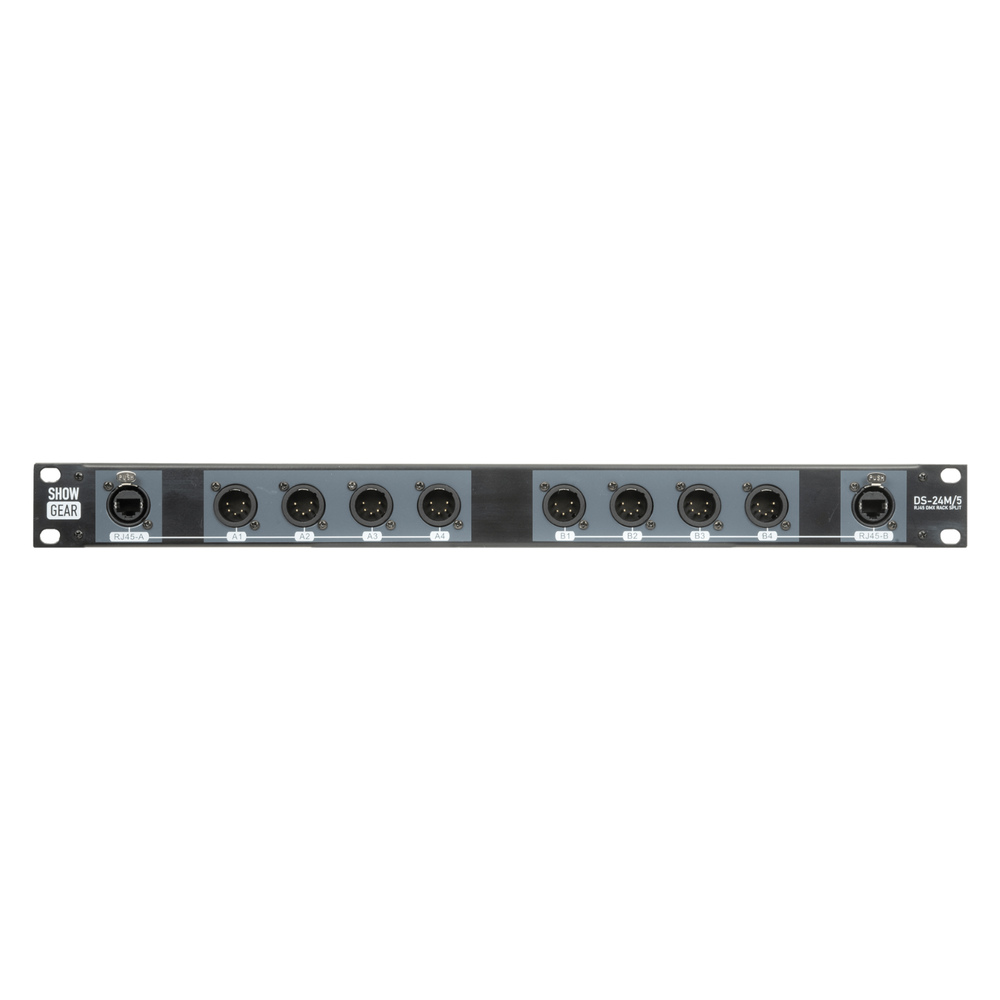

Showgear DS-24M/5 DMX Rack Split 8x 5-pin male XLR to 2x female RJ45 converter (4 universes per CAT cable)
Product Description
The Showgear DS-24M/5 is a 19" rack version for converting 8 universes to 2 CAT cables. Each CAT connector is linked to four male 5-pin XLR connectors. This will help you to have fewer cables and to reach longer distances while minimizing signal latency.
The DS-24M/5 is suitable for any 19" rack or case and is built to last and outperform due to a strong metal housing and high quality components. We recommend to use a shielded CAT cable for optimum results.
Electrical Specifications and Connections
Impedance 110 Ω
DMX Connector Out XLR 5P
Data Connector In RJ45
Pins 5
Mechanical Specifications
Length (mm) 483 mm (19.016″)
Height (mm) 45 mm (1.772″)
Width (mm) 36 mm (1.417″)
Weight 0.9 kg (1.984 lb)
IP Rating IP20 (indoor use only)
Housing
Metal
Colour Black
Product Properties
Locking Device Latch
Contact Type Nickel plated
Conductors 3
