Showgear PowerCore 16A 6x CEE 16 A (1P) - 1x CEE 16 A (5P) Power Splitter
Product Description

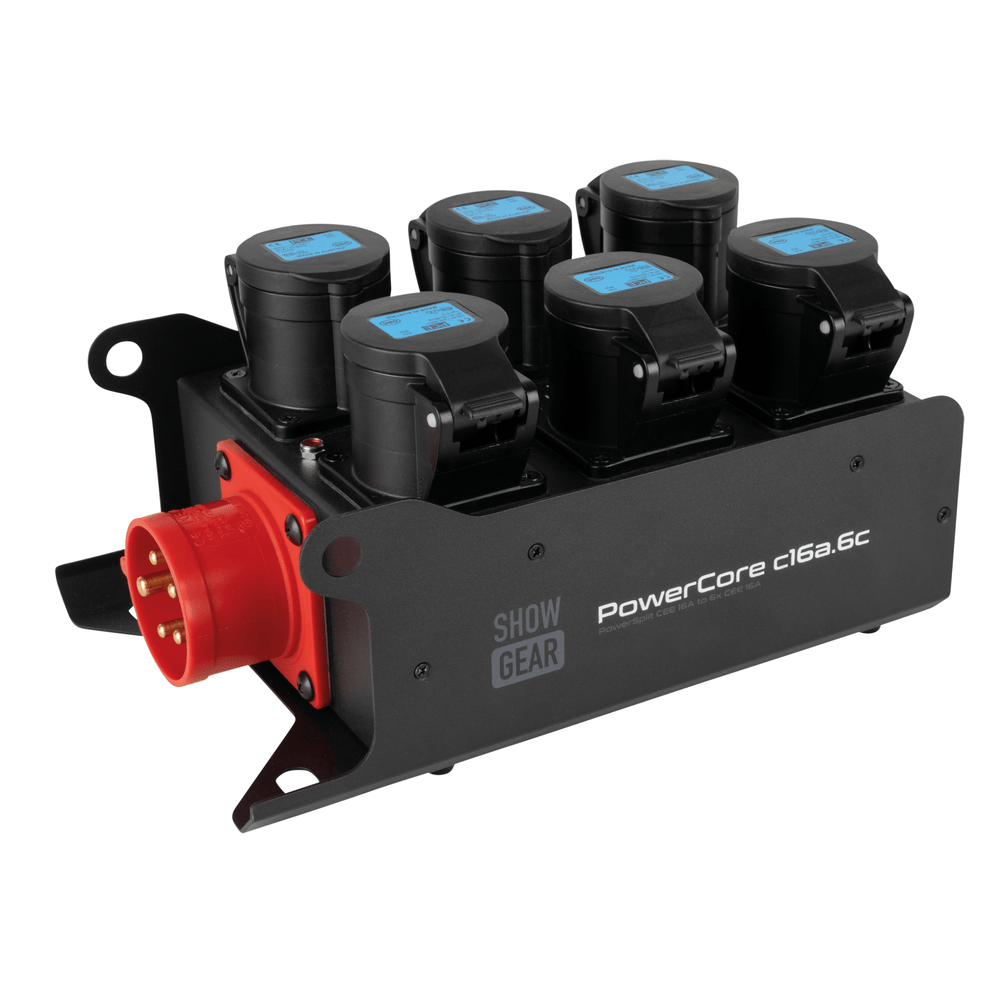

The Showgear PowerCore c16a.6c is a professional power splitter designed to convert a CEE 16 A (5P) input into six high-quality CEE 16A (1P+N+PE) outlets from PCE. Each phase is distributed across two CEE outlets , ensuring balanced and reliable power delivery. For quick and convenient monitoring, the unit features voltage indication LEDs per phase, allowing instant status checks. For flexible installation, the PowerCore c16a.6c offers multiple mounting holes for permanent setups and a quick-lock mounting point for fast, tool-free attachment using the optional PowerCore Quick Lock Bracket.
Electrical Specifications and Connections
Rated Current (A) 16 A
Power Connector In CEE5P 16 A
Power Connector Out CEE3P 16 A
RCCB Residual Type A
Mechanical Specifications
Length (mm) 260 mm (10.236″)
Height (mm) 140 mm (5.512″)
Width (mm) 175 mm (6.89″)
Weight 2.6 kg (5.732 lb)
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
Product Properties
LED Indicators Power
Ground Lug Position
6H Rigging
Mounting Options Quick-Lock, Wall
Fixed Mounting Option 11 mm
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Ambient Temperature -5 °C (23 °F)
