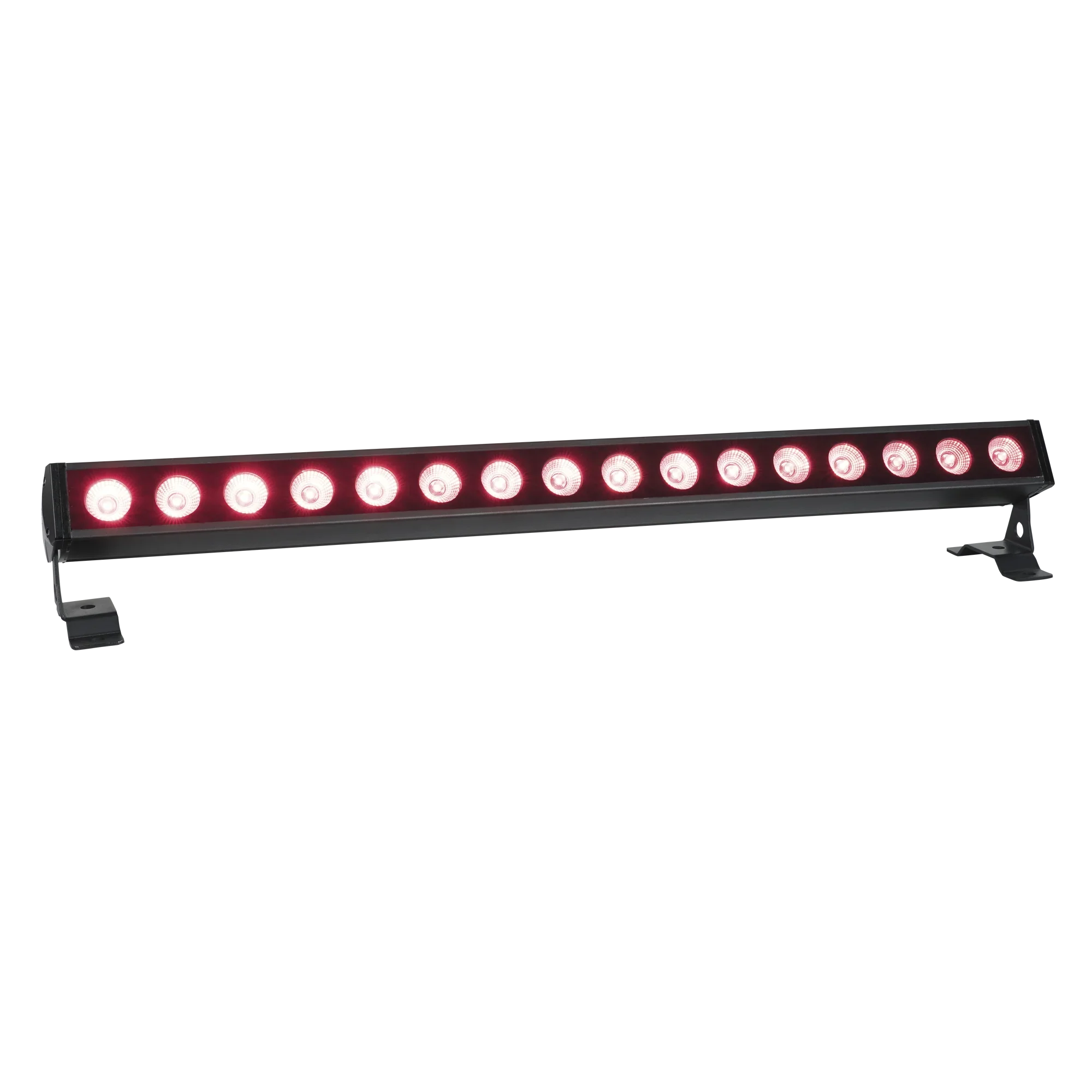

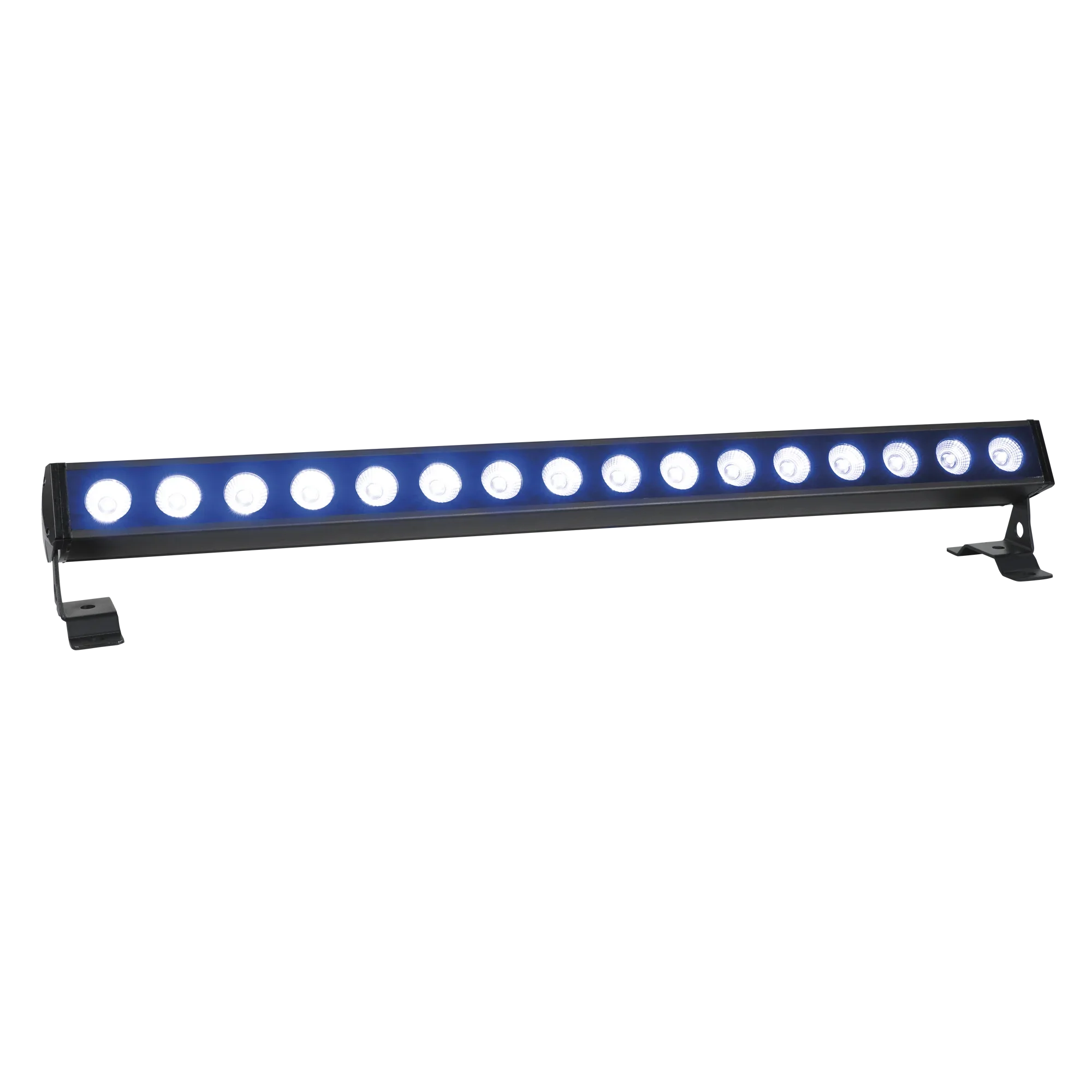

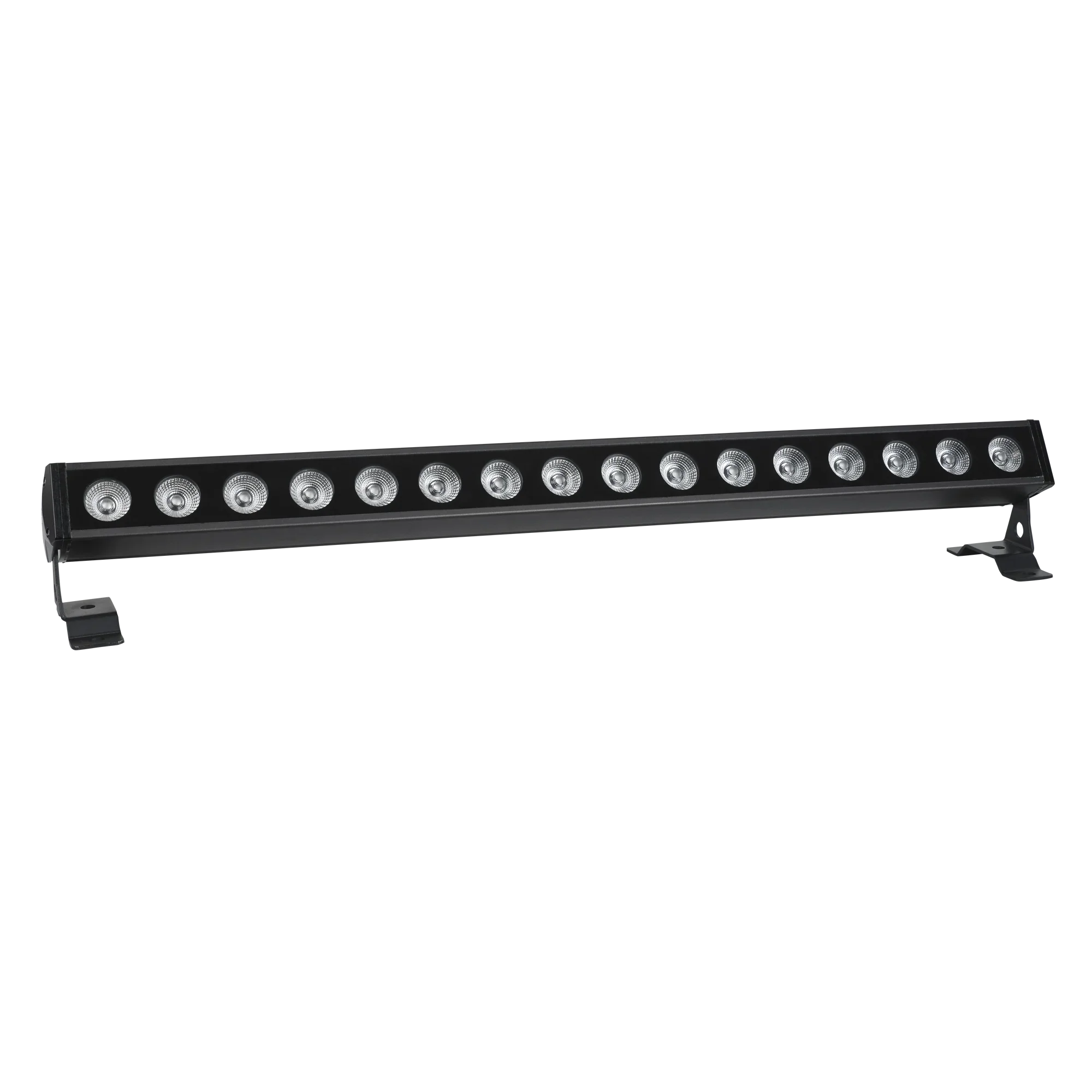

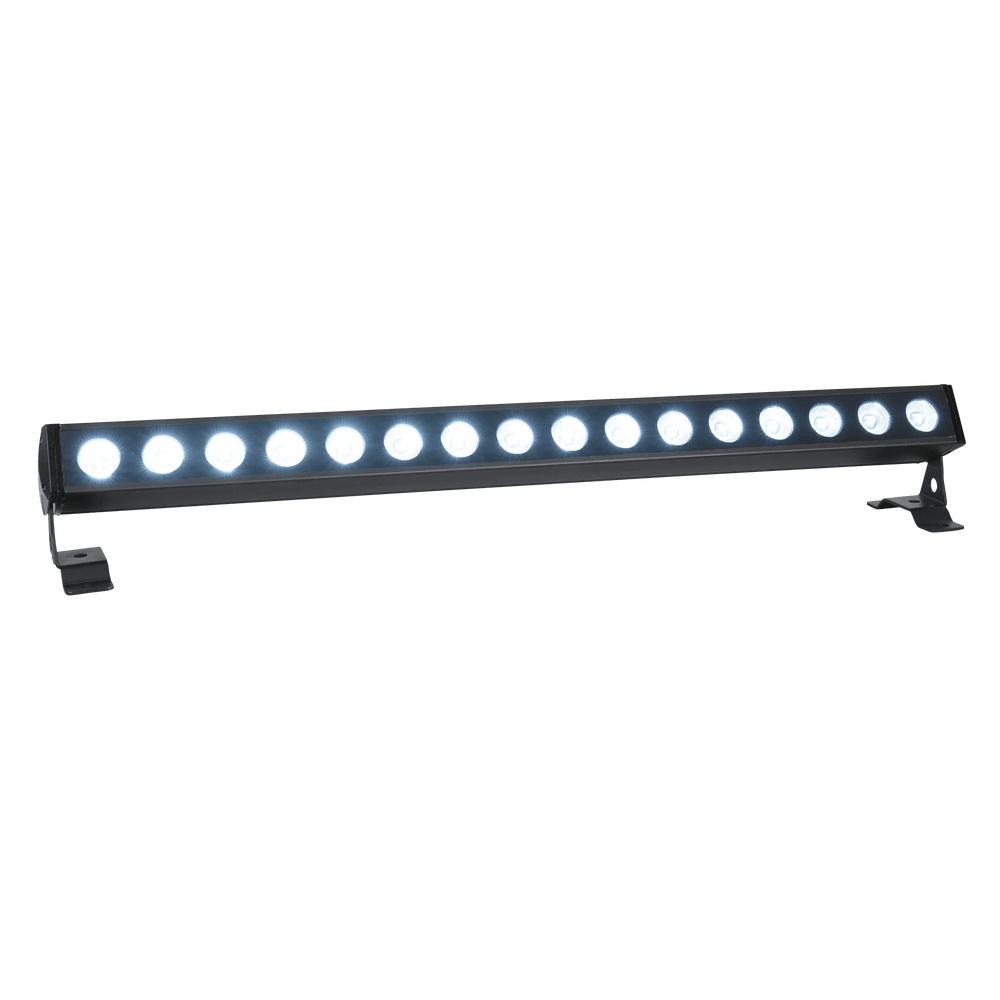

Showtec Cameleon Bar 16 16x 5 W RGBW LED Bar - IP65
Product Description
The Showtec Cameleon Bar 16 is a 16x 5 W RGBW LED batten with an IP65 rating, making it suitable for indoor and outdoor applications. It has a 39° fixed beam angle and features a 0 - 100 % dimmer and 0 - 15 Hz strobe effects. The Cameleon Bar 16 can be controlled manually, via DMX, Master/Slave and IR Remote in either Manual or Auto run mode with many available built-in programs. It comes with a bracket for quick rigging. An infrared remote is optional.
Source
Light Source Type LED
Light Source Quantity 16
Light Source Power 5 W
LED Colour Type RGBW
Drive Current 3.5 A
Refresh Rate 6000 Hz
Illuminance @ 2 m 2966 lx
Luminous Flux (Total) 2966 lm
Luminous Flux (Red) 640 lm
Luminous Flux (Green) 898 lm
Luminous Flux (Blue) 282 lm
Luminous Flux (White) 1287 lm
Optical
Beam Angle (Horizontal) 39 °
Beam Angle (Vertical) 39 °
Control and Programming
Control Mode Auto, DMX, Master Slave
DMX Channels 4, 5, 6, 9
Protocols DMX
Display OLED
Dynamic Effects
Dimmer 0-100 %
Strobe 0-15 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 75 W
Power Connector In Dedicated IP65 Powerconnection
Power Connector Out Dedicated IP65 Powerconnection
DMX Connector Dedicated 3P IP65 In/Out
DMX Connector In Dedicated 3P IP65
DMX Connector Out Dedicated 3P IP65
Mechanical Specifications
Length (mm) 1002 mm
Width (mm) 72 mm
Height (mm) 142 mm
Weight 6.2 kg
IP Rating IP65
Housing Aluminium die-cast
Colour Black
Product Properties
Cooling Convection
Rigging
Mounting Options Bracket
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C
Included Items
Included Cables Dedicated IP65 Powerconnection
Included Rigging Bracket
