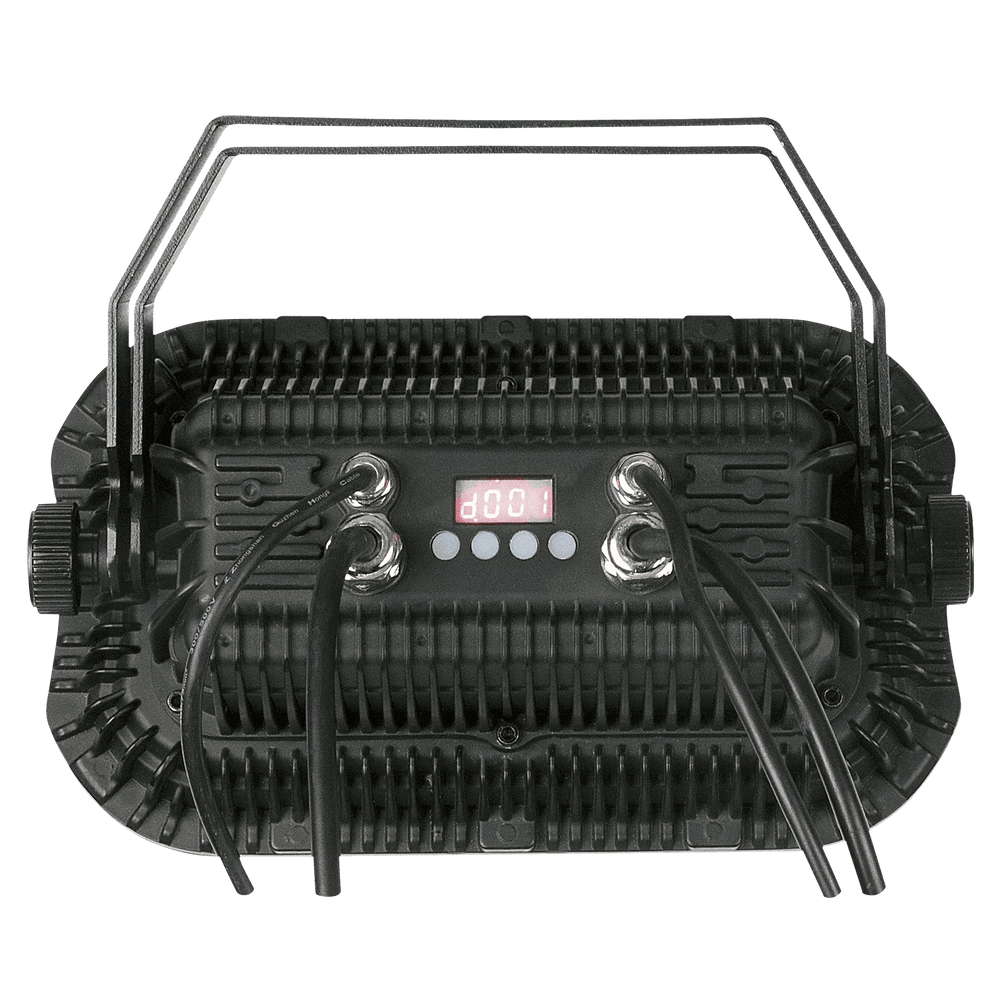

Showtec Cameleon Flood 18/3 RGB IP65 Flood Light
Product Description
The Cameleon Spot 18/3 is a compact but powerful fixture for both indoor and outdoor use. The specially designed housing has a stylish design and has the function of convection cooling which eliminates the use of fans. The Cameleon Spot 18/3 is suitable for temporary and permanent outdoor solutions.
Source
Light Source Type LED
Light Source Quantity 18
Light Source Power 3 W
LED Colour Type RGB
Refresh Rate 400 Hz
Illuminance @ 2 m 4101 lx
Illuminance @ 3 m 1823 lx
Illuminance @ 5 m 656 lx
Luminous Flux (Total) 2553 lm
Luminous Flux (Red)651 lm
Luminous Flux (Green)1671 lm
Luminous Flux (Blue) 318 lm
Optical
Beam Angle (Horizontal)40 °
Beam Angle (Vertical)40 °
Control and Programming
Control Mode Auto, DMX, Master Slave
DMX Channels 1, 3, 4, 6
Protocols DMX
Display 4-segment, LED
Dynamic Effects
Dimmer0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 70 W
Power Connector InDedicated IP65 Powerconnection
Power Connector Out Dedicated IP65 Powerconnection
DMX Connector Dedicated 3P IP65 In/Out
DMX Connector In Dedicated 3P IP65
DMX Connector Out Dedicated 3P IP65
Mechanical Specifications
Length (mm) 320 mm
Width (mm) 212 mm
Height (mm) 195 mm
Weight 4.4 kg
IP Rating IP65
Housing Aluminium die-cast
Colour Black
Product Properties Cooling
Convection Rigging
Mounting Options Clamp
Safety Attachment Yes
Thermal Specifications Maximum Ambient Temperature
40 °C
Included Items Included Cables
Dedicated IP65 PowerconnectionIncluded Rigging
Bracket
