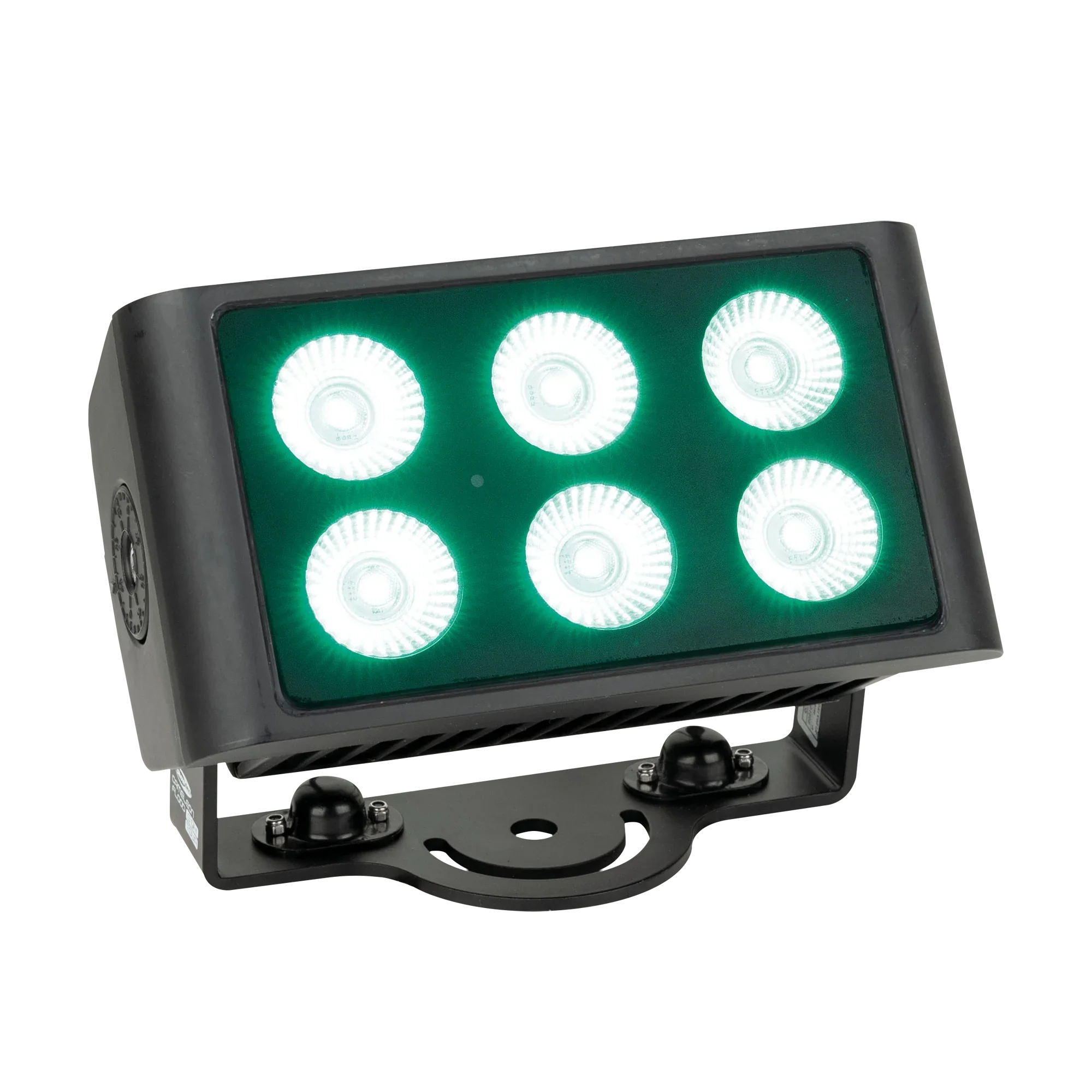

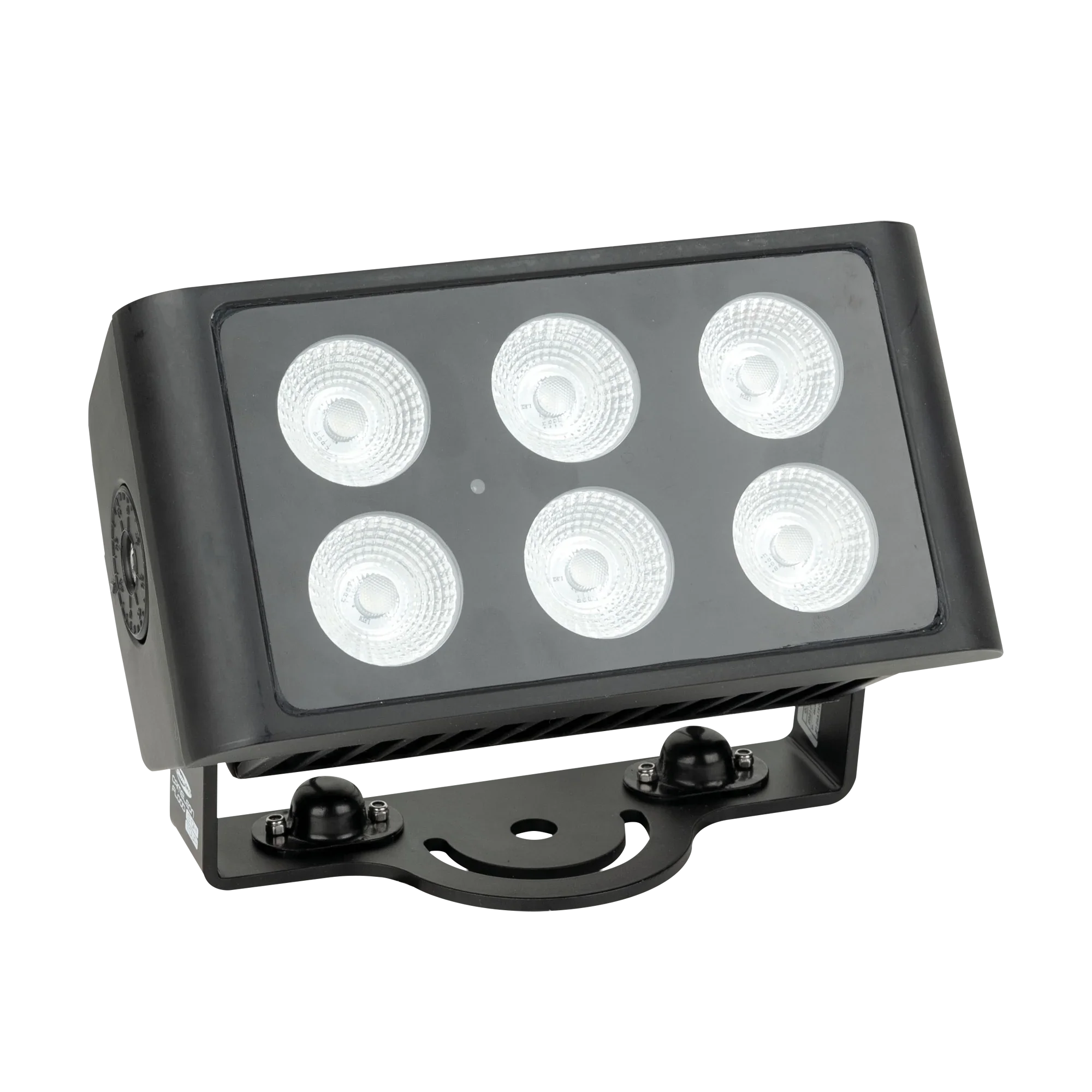

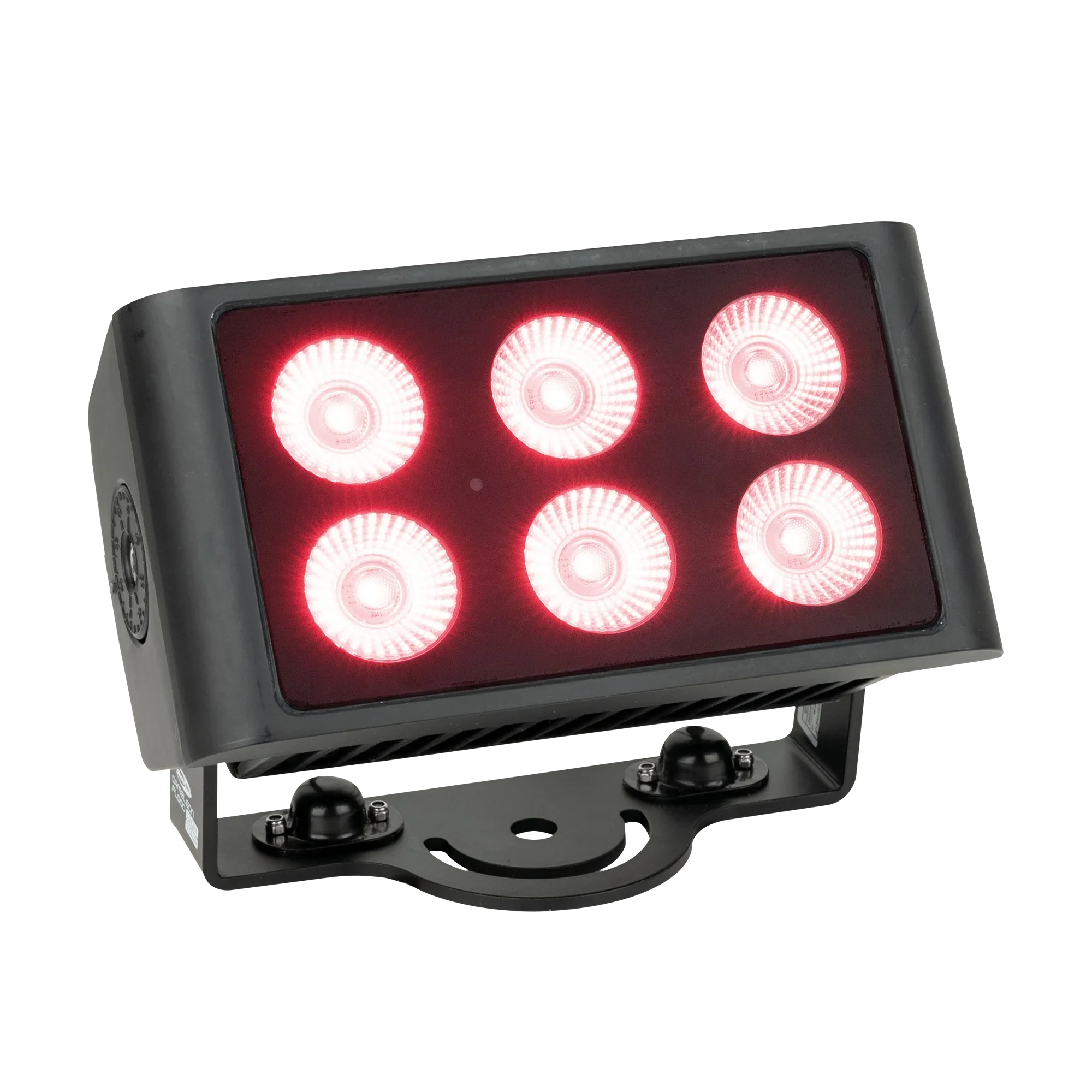

Showtec Cameleon Flood 6 Q4 Tour 6x 5 W RGBW LED Flood
Product Description
The Showtec Cameleon Flood 6 Q4 Tour is a 6x 5 watt RGBW LED Flood with IP65 rating, suitable for indoor and temporary outdoor applications. It has a 40° fixed beam angle and features 0 - 100 % dimmer and 0 - 15 Hz strobe effects, perfectly suitable for colour mixing on stage. The Cameleon Flood 6 Q4 can be controlled manually, via DMX, Master/Slave, and IR Remote in either Manual or Auto-run mode with many available built-in programs. It is equipped with Power Pro True IP65-rated power connectors, which are compatible with the leading brands. A bracket for easy fixation is included. An infrared remote is optionally available.
Source
Light Source Type LED
Light Source Quantity 6
Light Source Power 5 W
LED Colour Type RGBW
Refresh Rate 1200 Hz
Luminous Flux (Total) 1337 lm
Luminous Flux (Red) 324 lm
Luminous Flux (Green) 754 lm
Luminous Flux (Blue) 124 lm
Luminous Flux (White) 579 lm
CRI 77
CCT 7200 K
Optical
Beam Angle (Horizontal) 40 °
Beam Angle (Vertical) 40 °
Control and Programming
Control Mode Auto, DMX, Manual, Master Slave, Remote
DMX Channels 4, 6, 10
Protocols DMX
Display OLED, Touch
Dynamic Effects
Dimmer 0-100 %
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 35 W
Power Connector In
Power Pro True Power Connector Out
Power Pro True

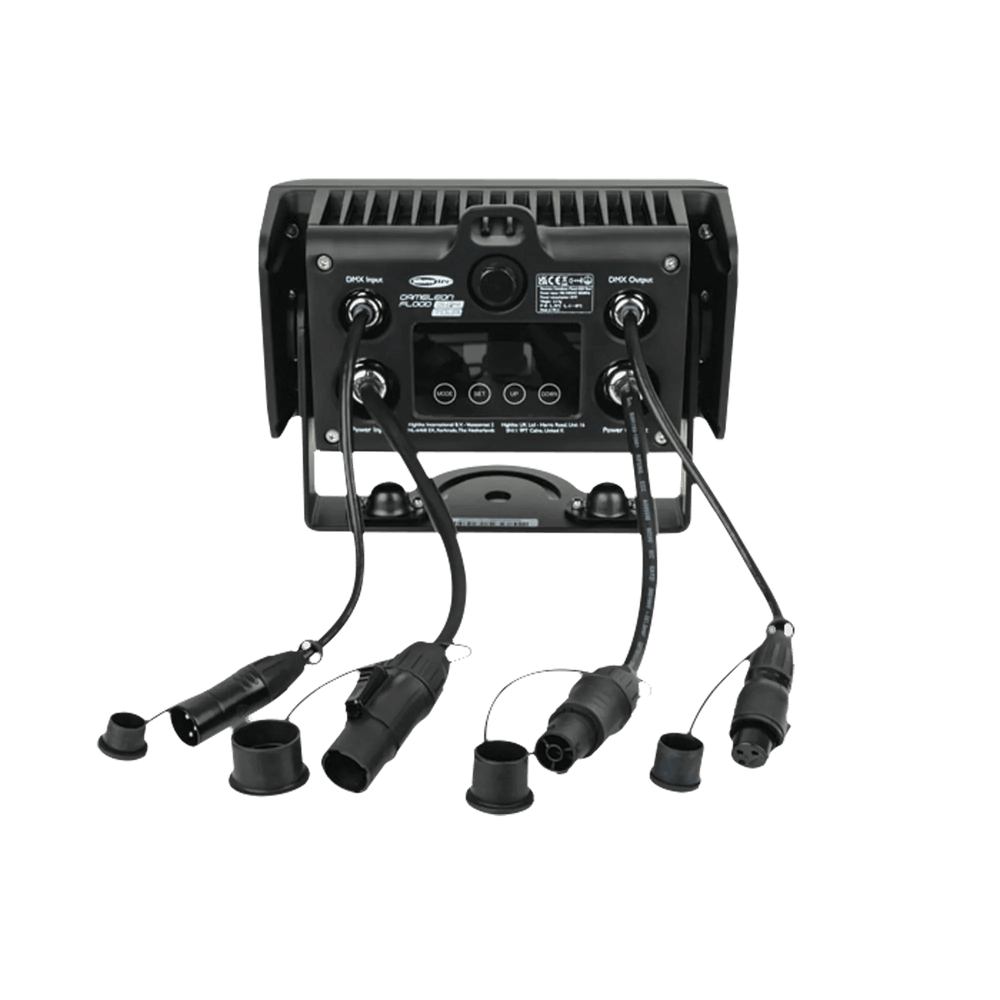

DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 220 mm
Width (mm) 90 mm
Height (mm) 150 mm
Weight 3.5 kg
IP Rating IP65
Housing Aluminium die-cast
Colour Black
Product Properties Cooling
Convection Rigging
Mounting Options Bracket, Quick-Lock
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 45 °C
Minimum Operating Temperature -10 °C
Included Items
Included Cables Power Pro True Cable
Included Rigging Quick-Lock Bracket
