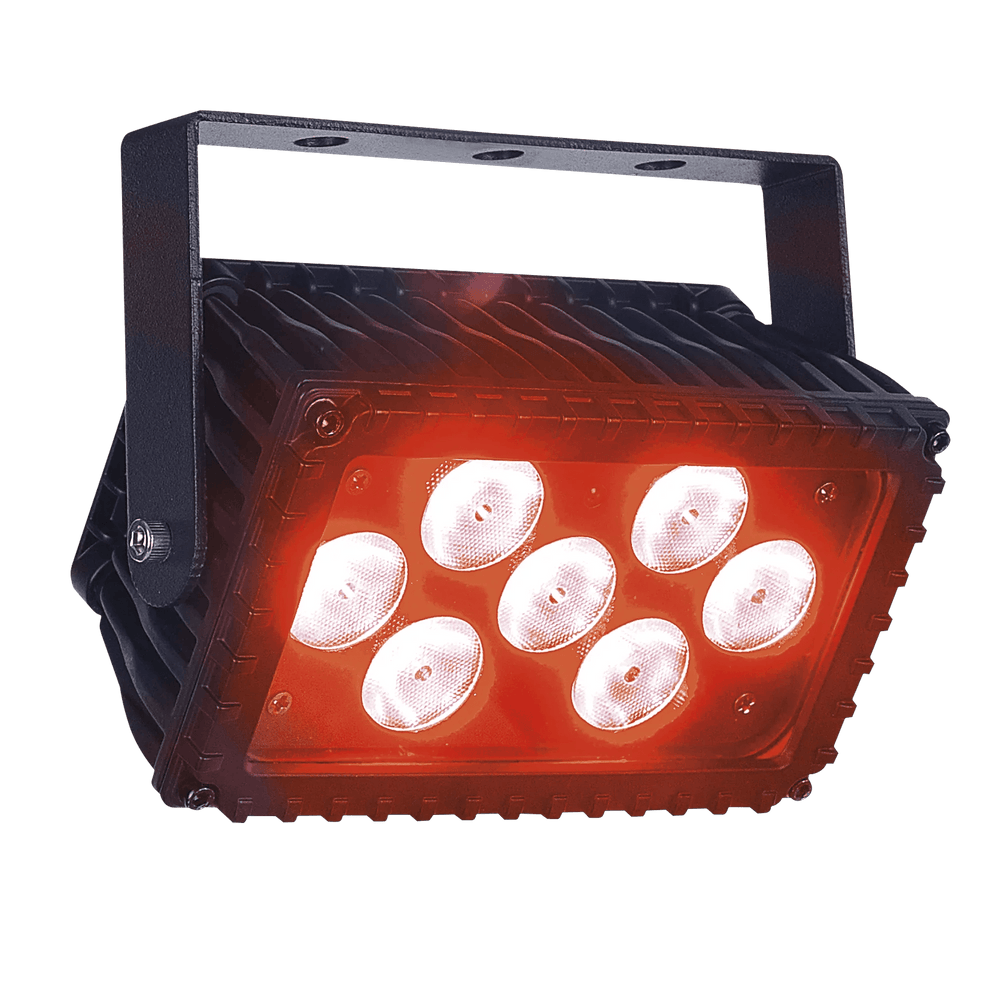

The Showtec Cameleon Flood 7/3 RGB is a compact yet powerful 7x 3 watt LED Flood with double bracket for easy floor positioning and IP65 certification, suitable for indoor and outdoor locations. It has a wide 40° beam angle and is equipped with a 0-100 % dimmer and 0-20 Hz strobe function, ideal for mixing colours on stage.

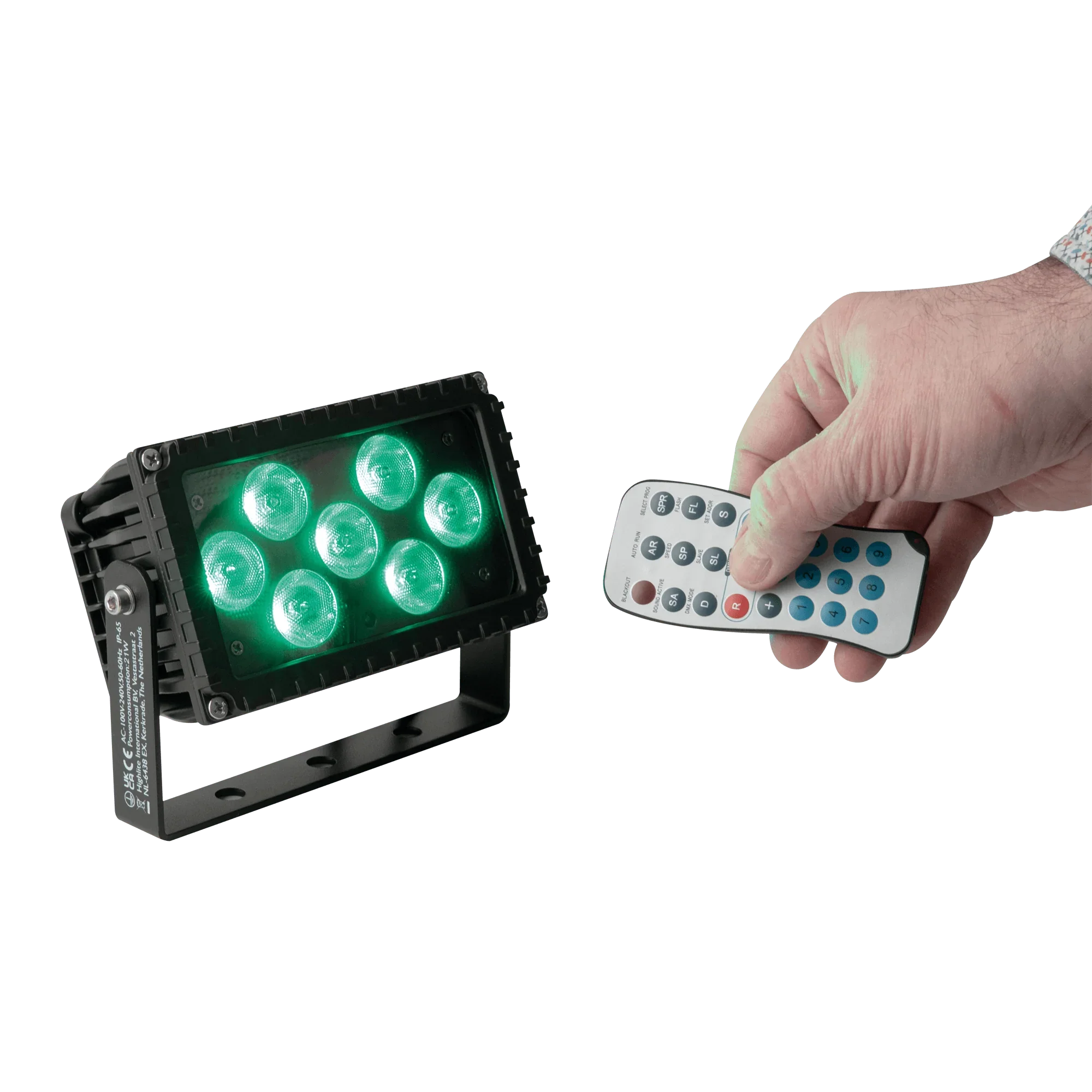

The Cameleon Flood 7/3 RGB is controllable by DMX, Master/Slave or the Showtec Infrared Remote control for Cameleon. Furthermore, it has built-in programs to create a lively atmosphere without having to constantly touch buttons. It comes with an IP65 power cable and mounting bracket.

Please note that a remote control (42704) is not included but required for controlling the Cameleon Flood 7/3 RGB. Not only for wireless control but also for DMX and Master/Slave control.

Source

Light Source Type LED

Light Source Quantity 7

Light Source Power 3 W

LED Colour Type RGB

Refresh Rate 400 Hz

Luminous Flux (Total) 961 lm

Optical

Beam Angle (Horizontal) 40 °

Beam Angle (Vertical) 40 °

Control and Programming

Control Mode Auto, Built-in Program, DMX, Master Slave, Remote, Stand Alone

DMX Channels 3

Protocols DMX

Dynamic Effects

Dimmer 0-100 %

Electrical Specifications and Connections

Power Supply 100-240 V AC 50/60 Hz

Power Consumption 21 W

Power Connector In Dedicated IP65 Powerconnection

Power Connector Out Dedicated IP65 Powerconnection

DMX Connector Dedicated 3P IP65 In/Out

DMX Connector In Dedicated 3P IP65

DMX Connector Out Dedicated 3P IP65

Cable Length 1.5 m

Mechanical Specifications

Length (mm) 170 mm

Width (mm) 70 mm

Height (mm) 128 mm

Weight 1.1 kg

IP Rating IP65

Housing Aluminium

Colour Black

Product Properties Cooling

ConvectionRigging

Mounting Options Clamp

Safety Attachment Yes

Thermal Specifications

Maximum Ambient Temperature  M40 °C

Maximum Surface Temperature 80 °C

Included Items Included Cables

Dedicated IP65 Powerconnection

Included Accessories End Cap

Included Rigging Bracket
