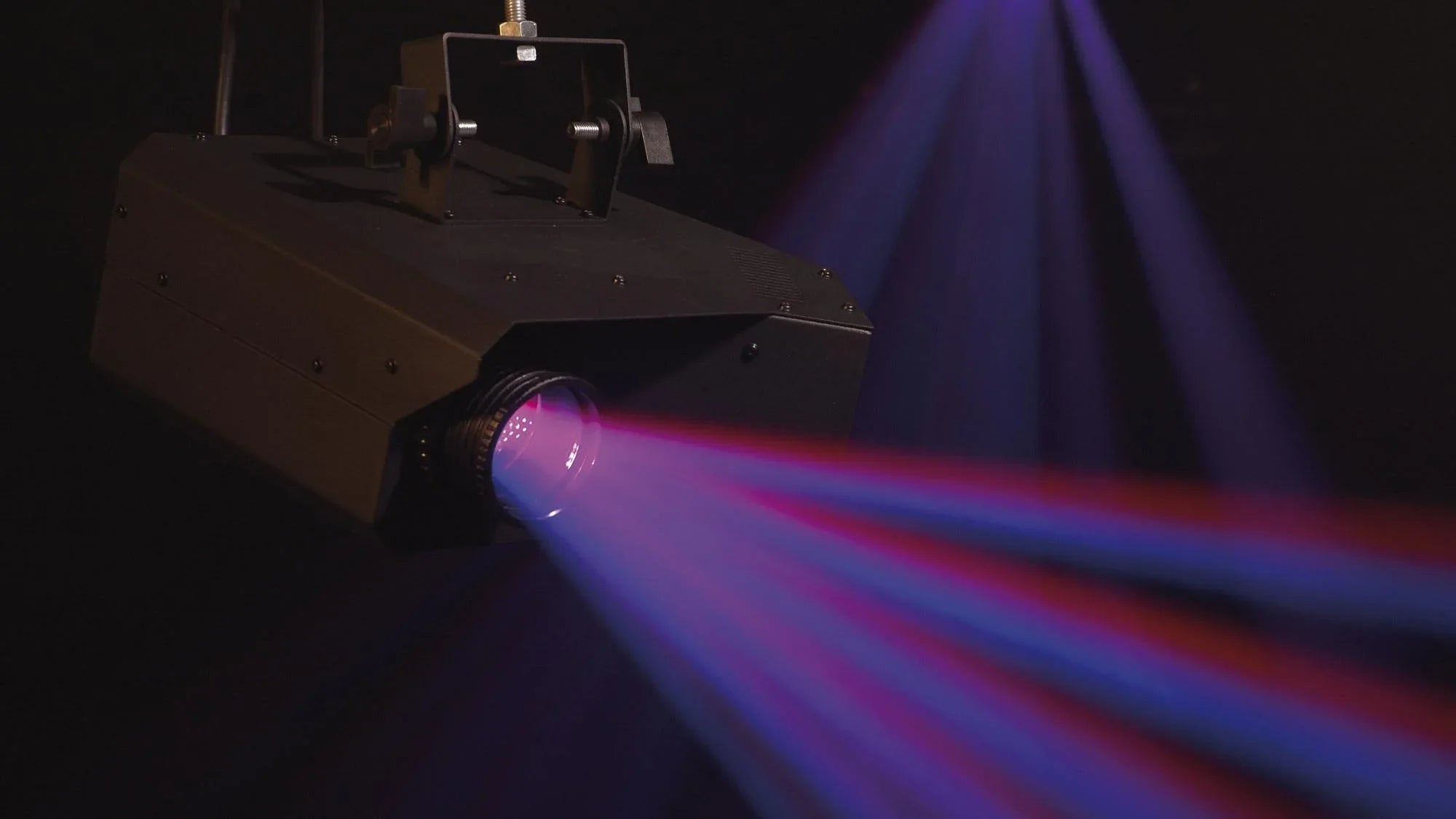

Showtec Dataflower LED Effect Light
Product Description
The Dataflower brings a classic evergreen back with the latest technology. Equipped with a bright and powerful LED light source it produce a wide pattern of moving and coloured gobos on to walls and dance floors. In combination with smoke either haze it also produces stunning aerial effects.
Vivid colours and an optimized selection of gobos makes the Dataflower the ideal fixture for many gigs. The Dataflower has a wide beam angle but still packs a punch over a long distance thanks to its superior optics and high output LED.
Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 100 W
CCT 7400 K
Optical
Beam Angle (Circular) 40 °
Control and Programming
Control Mode Auto, Built-in Program, DMX, Master Slave, Sound
DMX Channels 2, 5, 7
Protocols DMX
Display 7-segment, LED
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Colour System Colour Wheel
Colour Wheel Index & Rotate Yes
Dichroic Colour Wheel 1 9 + Open
Gobo Wheel Index & Rotate Yes
Gobo Wheel 1= 11 + Open
Movement
Continuous Movement Mirror Disc Bi-directional
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 117 W
Power Connector In IEC
Power Connector Out IEC
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Height (mm) 202 mm
Width (mm) 265 mm
Depth (mm) 308 mm
Weight 4 kg
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
