Description

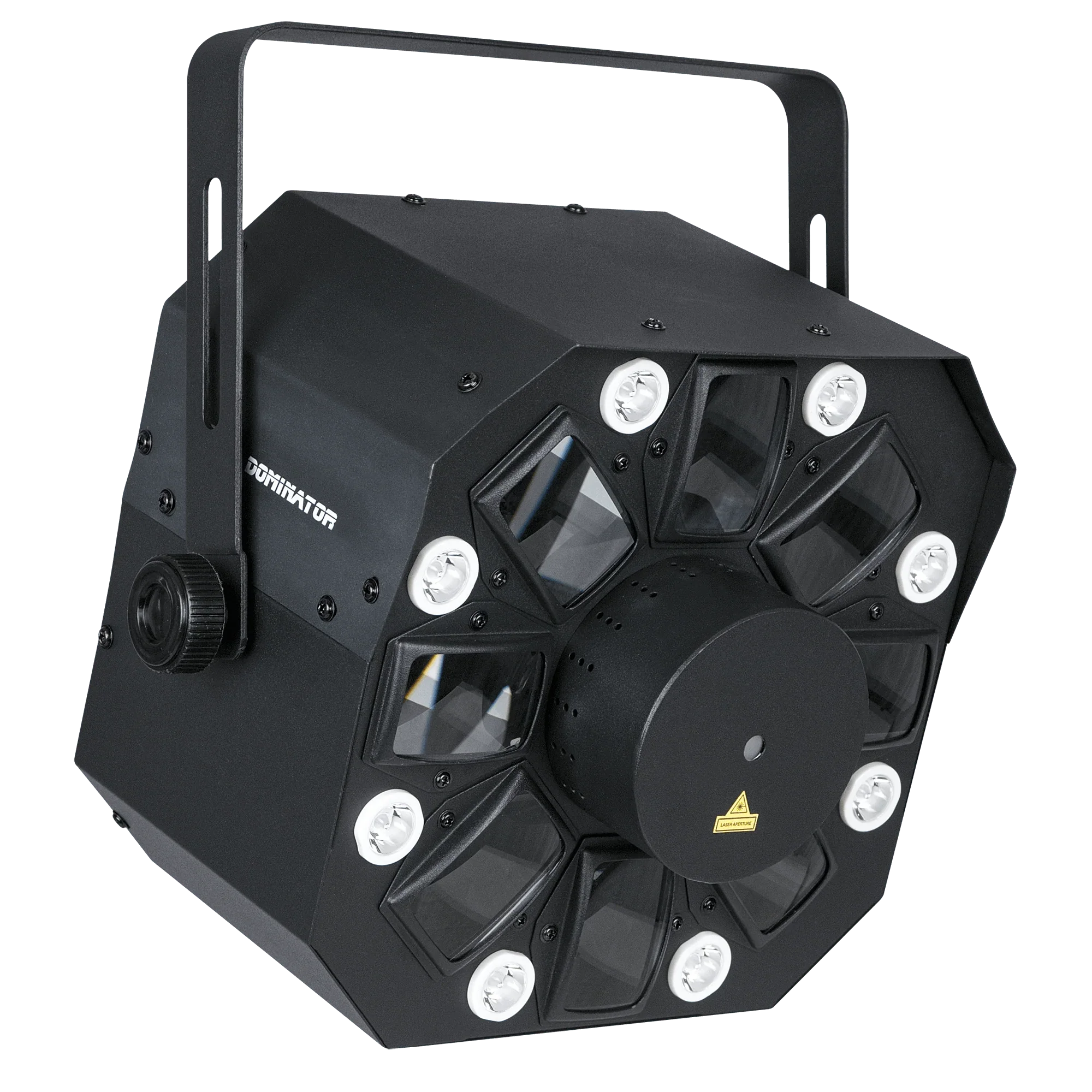

The Showtec Dominator is a 3-in-1 light effect that combines 8 powerful white strobe LEDs, a 200 mW RG laser module and 3 watt RGBWA LED effect. All 3 effects can be selected separately in auto or music controlled programs. It can also be controlled by DMX to give you full control of all features. The RG laser has many versatile grating & burst effects and is equipped with a key lock and remote interlock. The strobe has 8 sections with different preprogrammed patterns. All RGBWA colours can be selected individually or in many preprogrammed combinations. If you have multiple Dominators the master/slave function can be used to create a synchronized lightshow. If you need one solution to get a Strobe, a Laser and a colourful LED light effect with full control of all features, the Showtec Dominator is what you are looking for.
Attention, the laser only works when the interlock connector is connected with a remote interlock (ordercode 51316). You can test if the laser works properly with the included test connector. If you use the laser in public area's an remote interlock is necessary for safety regulations.
Source
Light Source Type LED
Light Source Quantity 5
Light Source Power 3 W
LED Colour Type RGBWA, White
LED Strobe Yes
LED Strobe Quantity 8
LED Strobe Power 1 W
Drive Current 0.35 A
Laser Power 200 mW
Laser Source DPSS
Laser Class 3B
Laser Colour Red, Green
Laser Power (Total) 200 mW
Laser Power (Red) 150 mW
Laser Wavelength (Red) 650 nm
Laser Power (Green) 50 mW
Laser Wavelength (Green) 532 nm
Control and Programming
Control Mode Auto, DMX, Master Slave, Sound
DMX Channels 9
Display 7-segment, LED

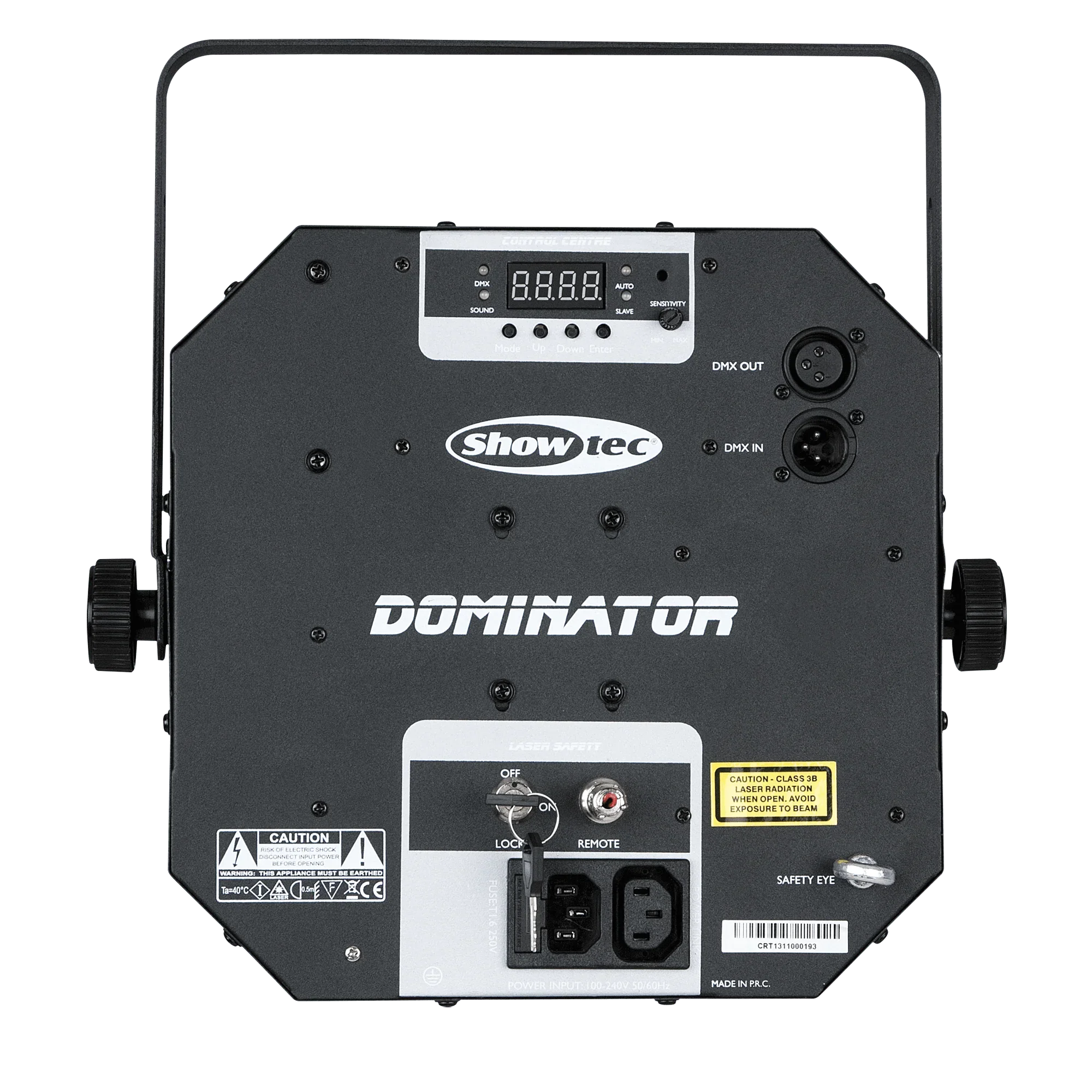

Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 66 W
Power Connector In IEC
Power Connector Out IEC
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Height (mm) 312 mm
Width (mm) 307 mm
Depth (mm) 170 mm
Weight 3.95 kg
