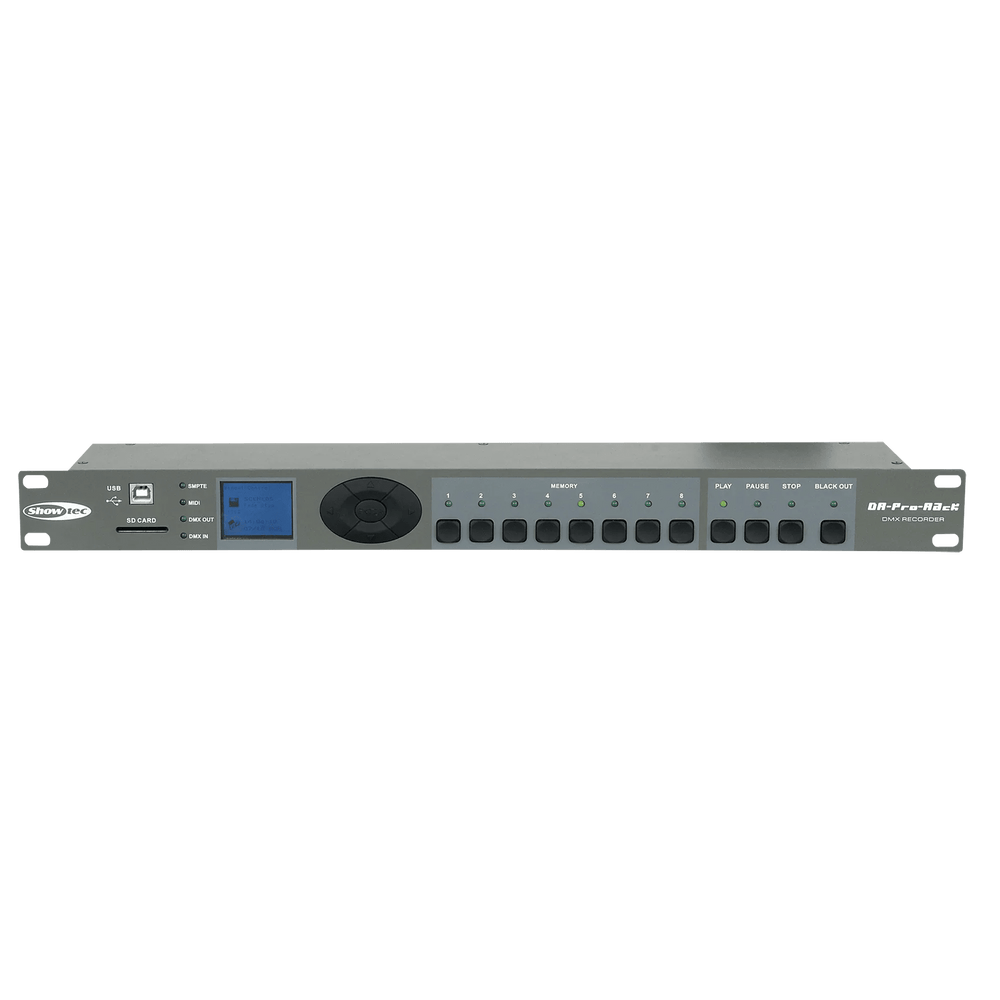

Showtec DR Pro Rack DMX Recorder
Product Description
The DR Pro Rack is a useful tool to store DMX values of complete Scenes, Chases or Shows. The total record time is 5 hours shared over the 8 memories. The basic functions are easy to control with the direct playback buttons at the front which makes it ideal for non-technical users. The unit can be locked with a password.
Server Specifications
Memory Type SD-Card
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz (Power adapter)
Power Consumption 5 W
Power Connector In Low Voltage DC plug
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Data Connector In USB
Data Connector Out USB
MIDI Connector Yes
Power Adapter
Adapter type AC-DC adapter
Input voltage 100-240 V AC, 50/60 Hz V
Output voltage 9 V DC
Mechanical Specifications
Length (mm) 482 mm
Width (mm) 78 mm
Height (mm) 44 mm
Weight 1.2 kg
Rack Units 1 U
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Gray
Product Properties
LED Indicators Operation mode, Power, Signal
Thermal Specifications
Maximum Ambient Temperature 40 °C
Included Items
Included CablesLow voltage DC plug cables, USB-A - USB-B cable
Included Accessories Adapter
Control and Programming
Control Mode Auto, GPIO, Manual
DMX Channels 512
Protocols DMX
SMPTE Timecode Yes
Display LCD
Universes 1
