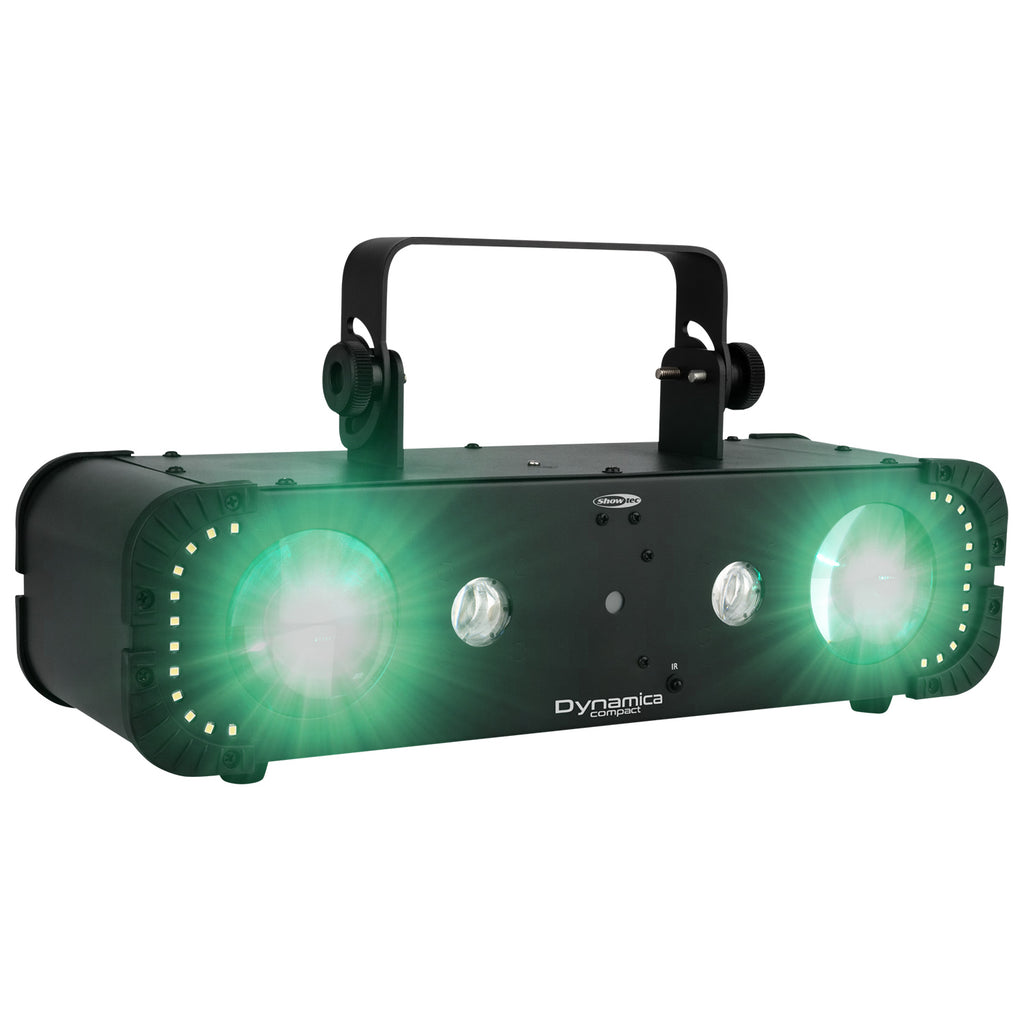

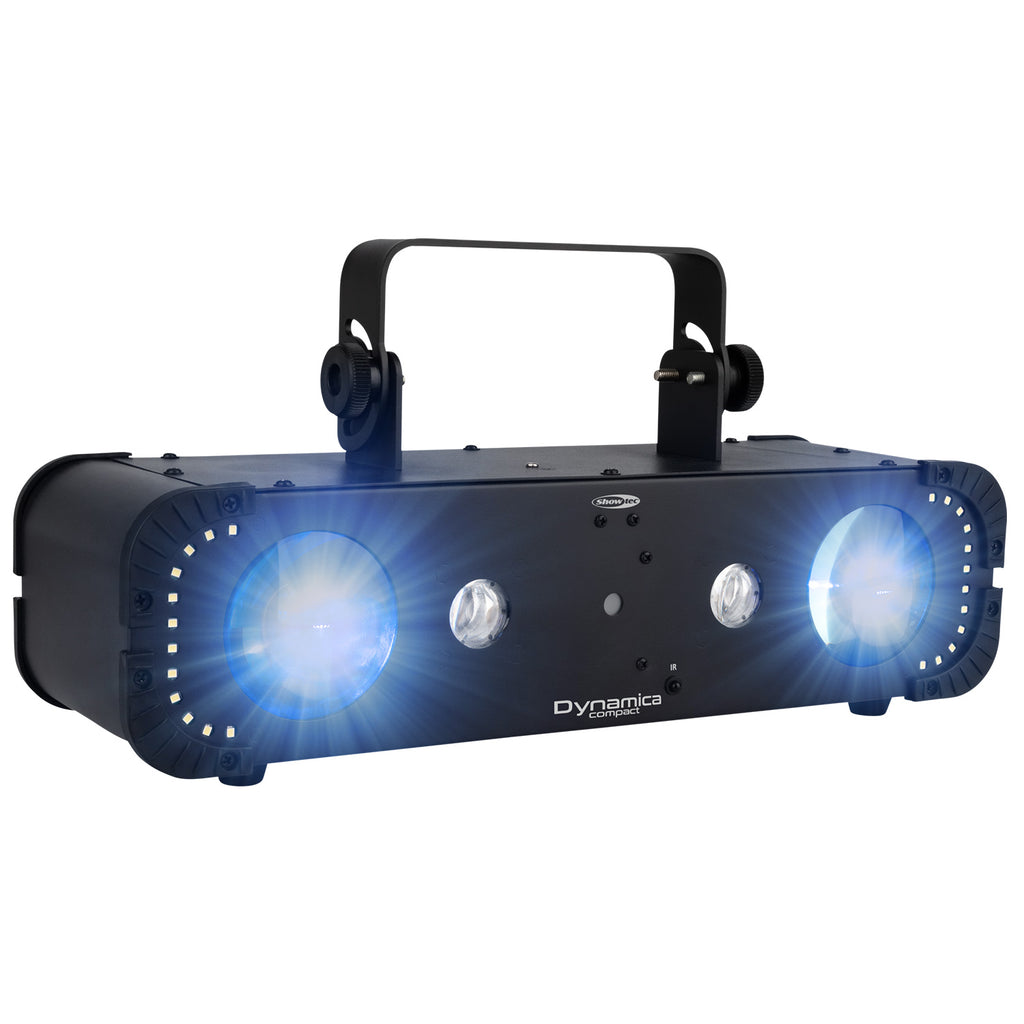

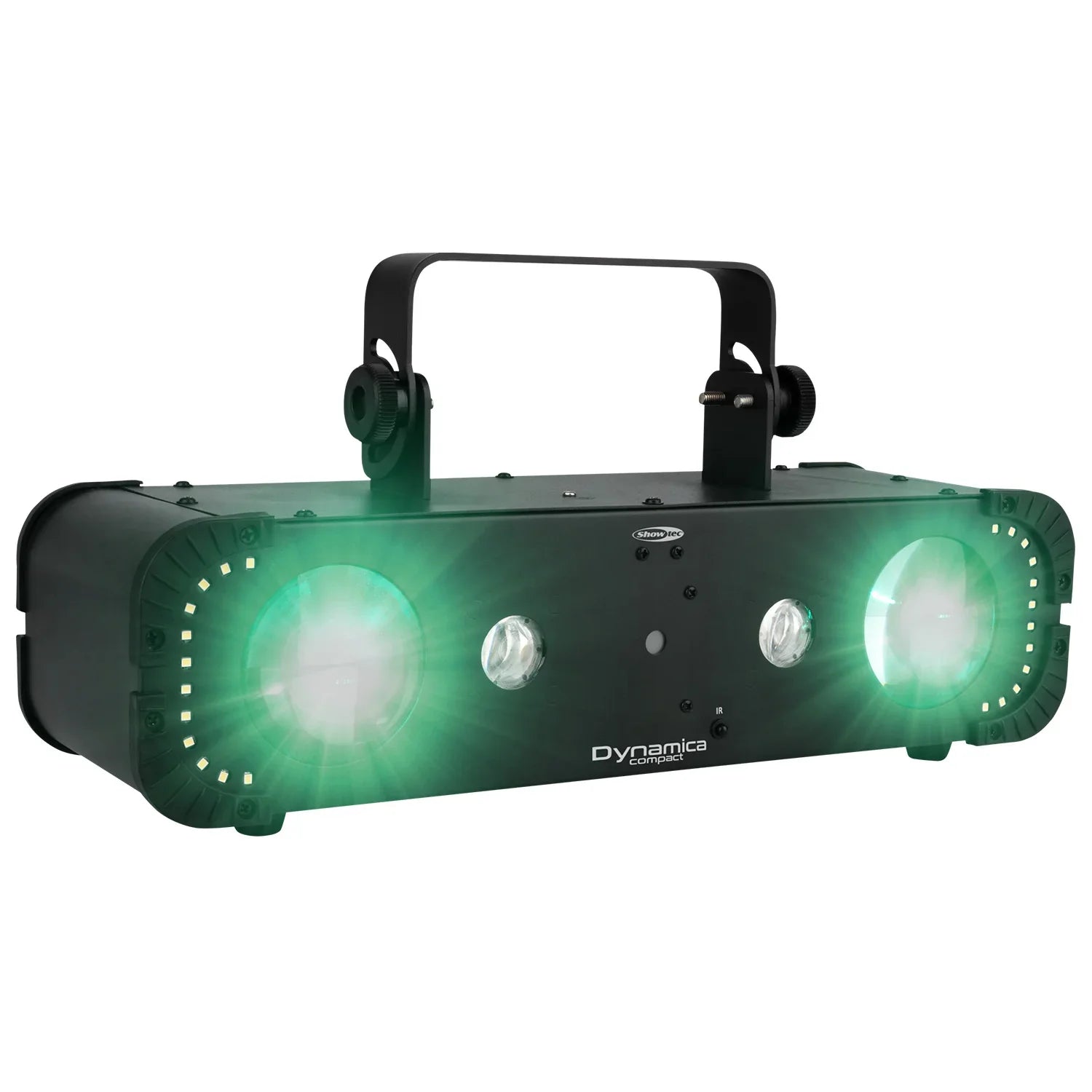

Showtec Dynamica Compact 4-in-1 light effect
Product Description
Showtec’s Dynamica Compact is a 4-in-1 light effect with beam, strobe, UV wash and laser effects. The beam function comes from 128 RGBWA LEDs, 24 CW LEDs take care of the strobe effects, while the UV wash comes from 2 high-power LEDs. The Class 2M laser has 2 laser diodes that project hundreds of red and green laser beams. Each effect can be controlled individually or they can be combined for an all-in-one light show. With control via DMX or IR remote, a stand-alone mode and 14 built-in programs, the Dynamica Compact is perfect for DJs, musicians, clubs, bars and more. To cover larger areas, up to 8 units can be daisy-chained together.Source
Light Source Type Diode, DPSS, LED
LED Colour Type RGBWA
LED Strobe Quantity 24
Laser Class 2M
Laser Colour Red, Green
Laser Power (Red) 100 mW
Laser Wavelength (Red) 650 nm
Laser Power (Green) 30 mW
Laser Wavelength (Green) 532 nm
Control and Programming
Control Mode Auto, DMX, Master Slave, Remote, Sound, Stand Alone
DMX Channels 2, 5, 8, 10
Protocols DMX
Display 7-segment
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 30 W
Power Connector In IEC
Power Connector Out IEC
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Height (mm) 145 mm (5.709″)
Width (mm) 405 mm (15.945″)
Depth (mm) 200 mm (7.874″)
Weight 2.8 kg (6.173 lb)
IP Rating IP20 (indoor use only)
Housing Aluminium die-cast
Colour Black
Product Properties
Cooling Convection/Axial fan
Safety Features Safety Eye
Rigging
Mounting Options Clamp
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Product Compliance
Energy efficiency class T/B/D
Included Items
Included Cables IEC cable
