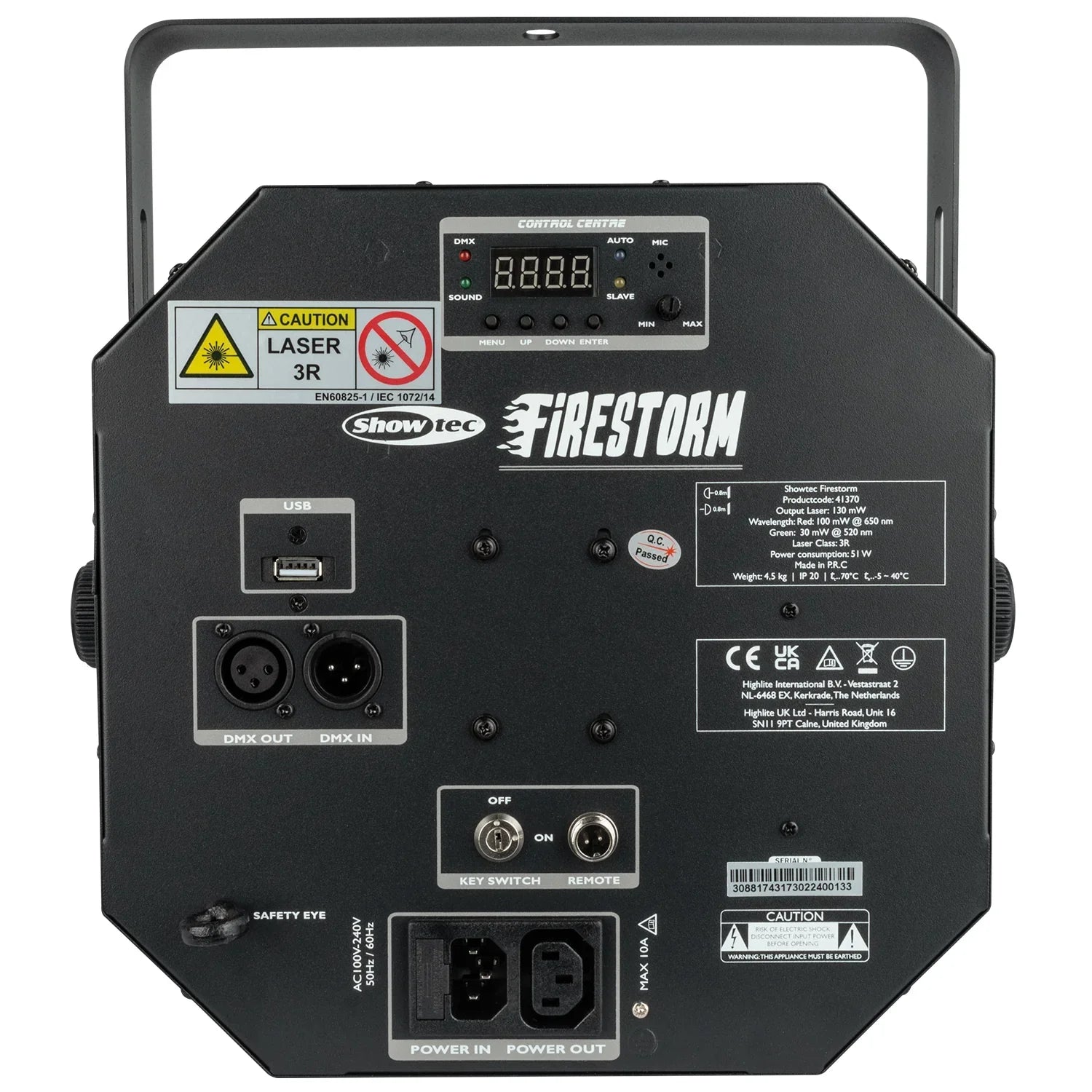

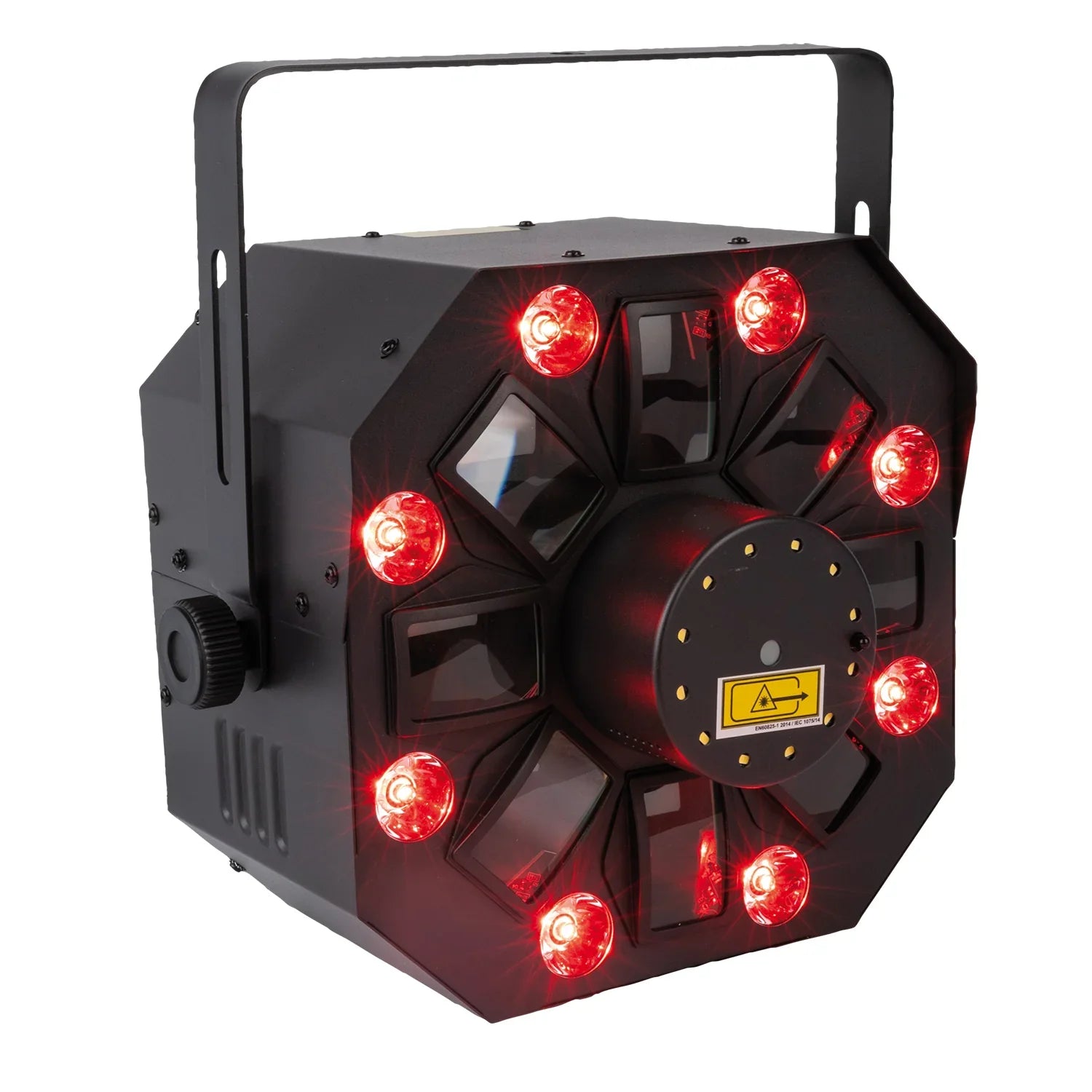

Showtec Firestorm 4-in-1 light effect
Product Description
The Showtec Firestorm is a 4-in-1 light effect fixture that features 8 RGBUV wash LEDs, 8 RGBAW rotating derby LEDs, 12 SMD strobe LEDs and a 130 mW RG laser module. All 4 effects can be selected separately in auto or music-controlled programs. The RGBUV wash LEDs and the RGBAW rotating derby LEDs can be selected individually or in many preprogrammed combinations. The 12 SMD strobe LEDs also benefit from preprogrammed patterns. The RG laser has many versatile grating and burst effects and is equipped with a key lock and remote interlock connector. The Firestorm can also be controlled by DMX, giving you full control over all of the features. If you have multiple Firestorms, the master/slave function can be used to create a synchronised light show. If you want a single solution that includes colourful LED wash and derby light effects with a strobe and a laser, the Showtec Firestorm ticks all the boxes.
Please note that the laser only works when the interlock connector is connected with a remote interlock (order code 51316). You can test if the laser works properly with the included test connector. If you use the laser in public areas, a remote interlock is necessary for safety regulations.
Source
Light Source Type LED
Light Source Quantity (Spot) 8
Light Source Power (Spot) 1.5 W
LED Strobe Quantity 12
LED Strobe Power 1 W
Life Expectancy 50000 h
Laser Source DPSS
Laser Class 3R
Laser Colour Red, Green
Laser Power (Total) 130 mW
Laser Power (Red) 100 mW
Laser Wavelength (Red) 650 nm
Laser Power (Green) 30 mW
Laser Wavelength (Green) 532 nm
Beam Diameter at Aperture 5 mm (0.197″)
Beam Divergence 2 mrad
Control and Programming
Control Mode Built-in Program, DMX, Master Slave, Sound, Stand Alone
DMX Channels 2, 18
Display 7-segment
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 51 W
Power Connector In IEC
Power Connector Out IEC
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Height (mm) 241 mm (9.488″)
Width (mm) 332 mm (13.071″)
Depth (mm)
335 mm (13.189″) Weight 4.3 kg (9.48 lb)
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black
Product Properties Cooling
Convection/Axial fan Safety Features
Key Switch, Safety Eye Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Product Compliance
NOHD 62 m (203.412 ft)
MPE (for Exposure Duration of 0,25 s) 25 W·m⁻² (0.0037 W·ft⁻²)
Included Items
Included Cables IEC cable
