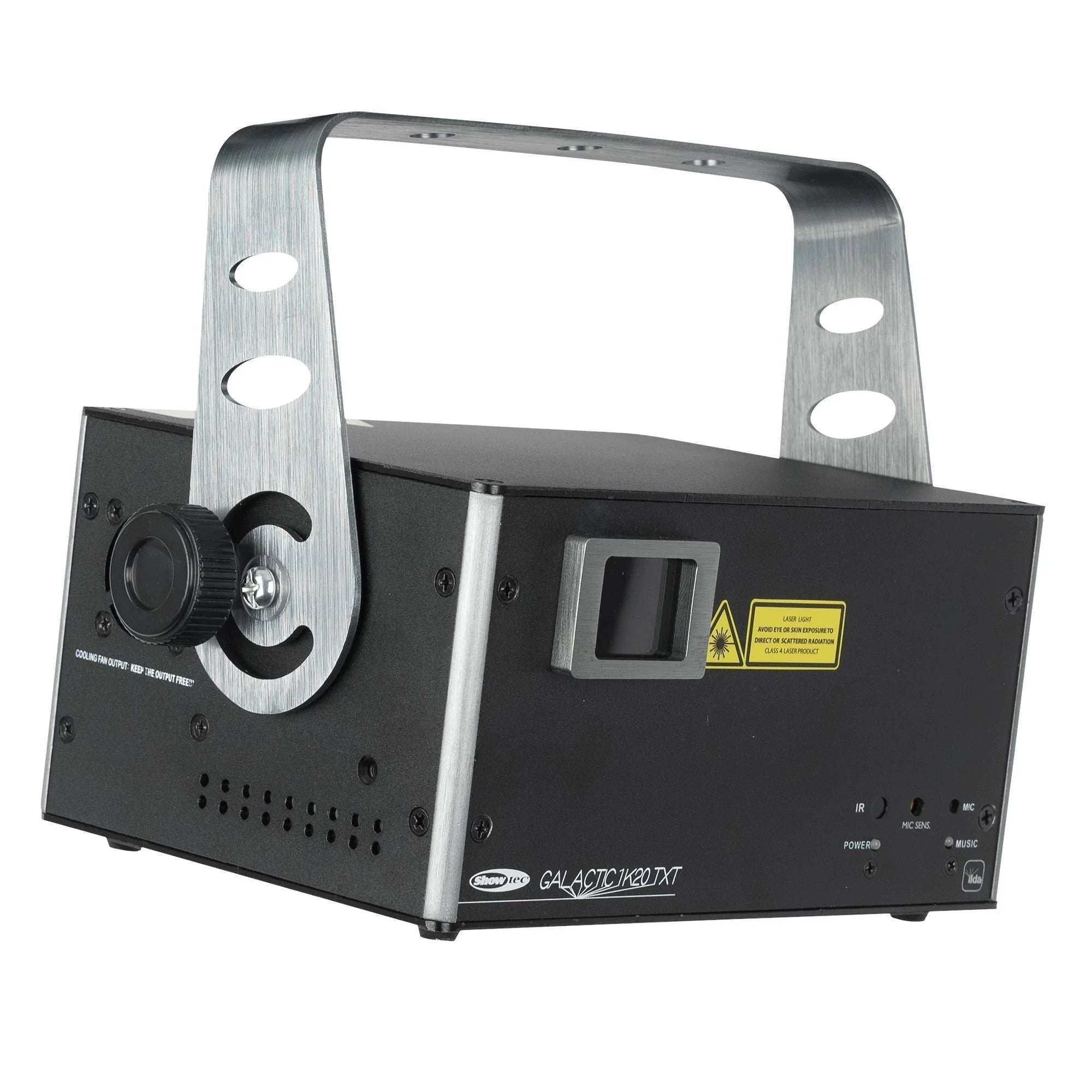

Showtec Galactic 1K20 TXT 1000 mW RGB Laser
Product Description
The Showtec Galactic 1K20 TXT is a strong 1000 mW RGB laser projector for displaying either aerial effects and custom animated text, images and symbols, suitable for indoor venues. Its 128 preset animations & symbols include a built-in clock, countdown and date function with zoom, movements, wave, drawing, rotation and colour effects.
The Galactic 1K20 is controllable via DMX, ILDA and Master/Slave in either Manual, Auto-run and Sound controlled mode. It comes with a keyboard, interlock connector and interlock key and is suitable for either short-throw to long distance applications due to its 60° scan angle with zoom function.
Source
Laser Power 1000 mW
Laser Source Diode
Laser Modulation TTL
Laser Class 4
Laser Colour Red, Green, Blue, White, Yellow, Purple, Cyan
Laser Power (Total) 1000 mW
Laser Power (Red) 200 mW
Laser Wavelength (Red) 638 nm
Laser Power (Green) 200 mW
Laser Wavelength (Green) 520 nm
Laser Power (Blue) 600 mW
Laser Wavelength (Blue) 450 nm
Control and Programming
Control Mode Auto, Built-in Program, DMX, ILDA, Master Slave, Sound
DMX Channels 20
Display 7-segment, LED
Movement
Laser Scanner Speed 20 K
Laser Scan Angle (Max.) 60 °
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 25 W
Power Connector In IEC
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Data Connector ILDA DB25
Data Connector In ILDA DB25 Male
Data Connector Out ILDA DB25 Female
Mechanical Specifications
Height (mm) 215 mm
Width (mm) 228 mm
Depth (mm) 200 mm
Weight 11.5 kg
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black
