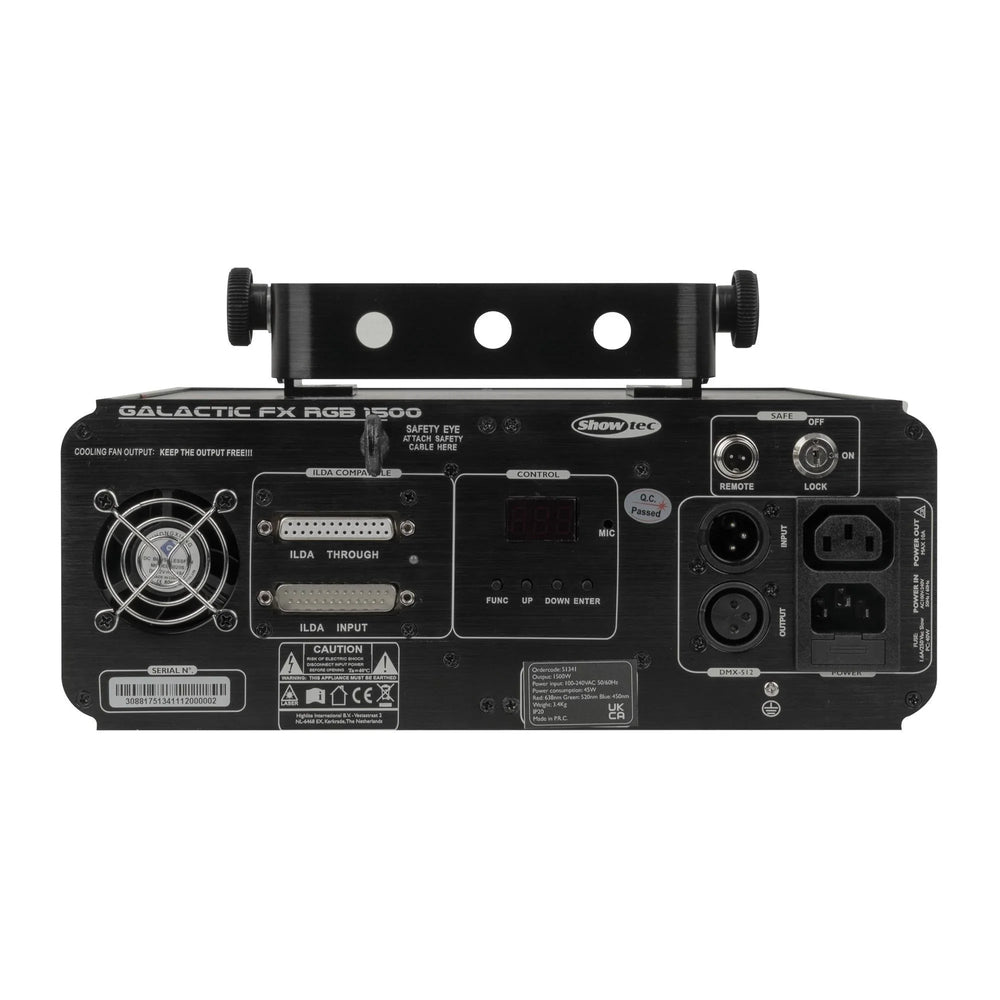

Showtec Galactic FX RGB-1500 1500 mW RGB 3D Laser

The Showtec Galactic FX RGB-1500 is a 1500 mW RGB 3D laser projector for creating a 3D laser show, suitable for indoor venues. Its 80 built-in patterns with color, clipping, zooming, X/Y/Z roll and X/Y move effects can be controlled via ILDA software, DMX and Master/Slave in either Manual, Auto-run and Sound controlled mode. Equipped with a 20 K scanner, the Galactic FX RGB-1500 has smooth projections with little flickering. It comes with an interlock connector and interlock key.

Source

Laser Power 1500 mW

Laser Source Diode, DPSS

Laser Modulation TTL

Laser Class 4

Laser Colour Red, Green, Blue, White, Yellow, Purple, Cyan

Laser Power (Total) 1500 mW

Laser Power (Red) 300 mW

Laser Wavelength (Red) 638 nm

Laser Power (Green) 300 mW

Laser Wavelength (Green) 520 nm

Laser Power (Blue) 1000 mW

Laser Wavelength (Blue) 450 nm

Control and Programming

Control Mode DMX, ILDA, Manual, Stand Alone

DMX Channels 19

Display 7-segment, LED

Movement

Laser Scanner Speed 20 K

Laser Scan Angle (Max.) 20 °

Electrical Specifications and Connections

Power Supply 100-240 V AC 50-60 Hz

Power Consumption 45 W

Power Connector In IEC

Power Connector Out IEC

DMX Connector XLR 3P In/Out

DMX Connector In XLR 3P

DMX Connector Out XLR 3P

Data Connector ILDA DB25

Data Connector In ILDA DB25 Male

Data Connector Out ILDA DB25 Female

Mechanical Specifications

Height (mm) 205 mm

Width (mm) 290 mm

Depth (mm) 260 mm

Weight 3.4 kg

IP Rating IP20 (indoor use only)

Housing Aluminium

Colour Black
