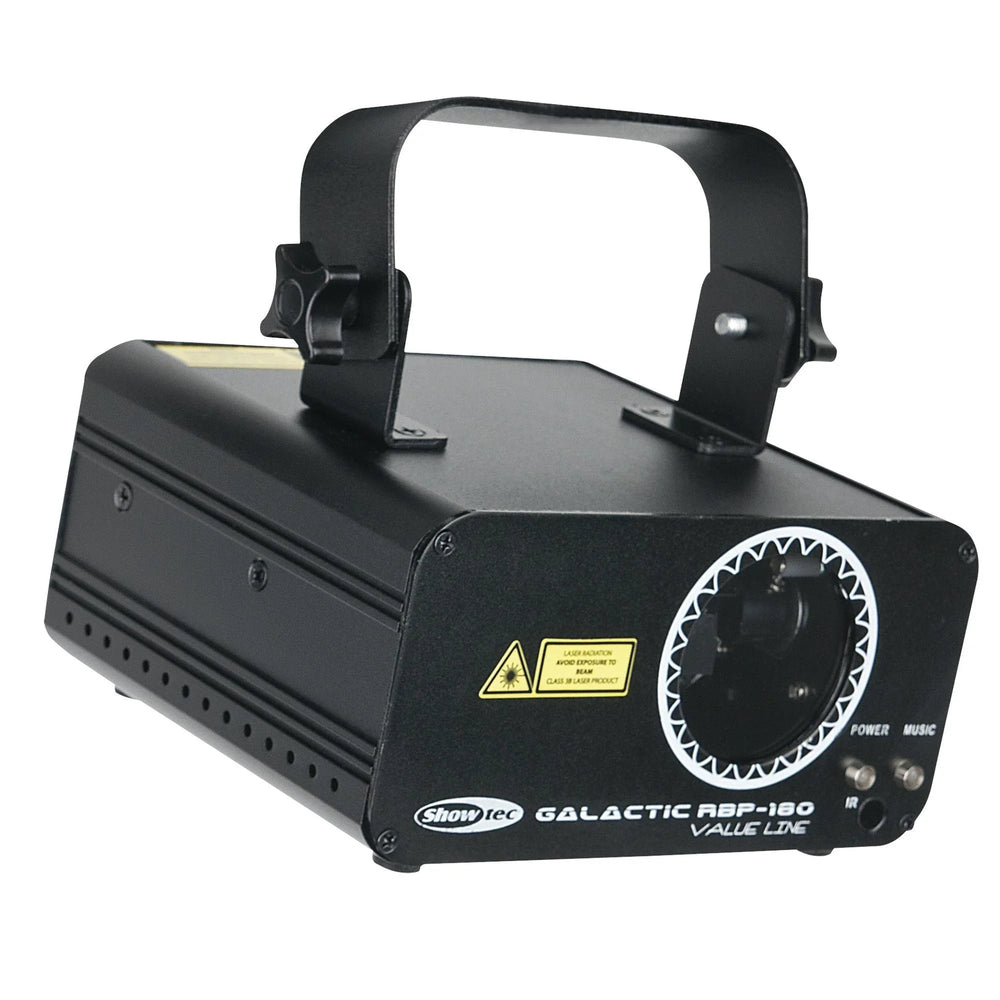

Showtec Galactic RBP-180 180 mW red blue purple Laser
Product Description

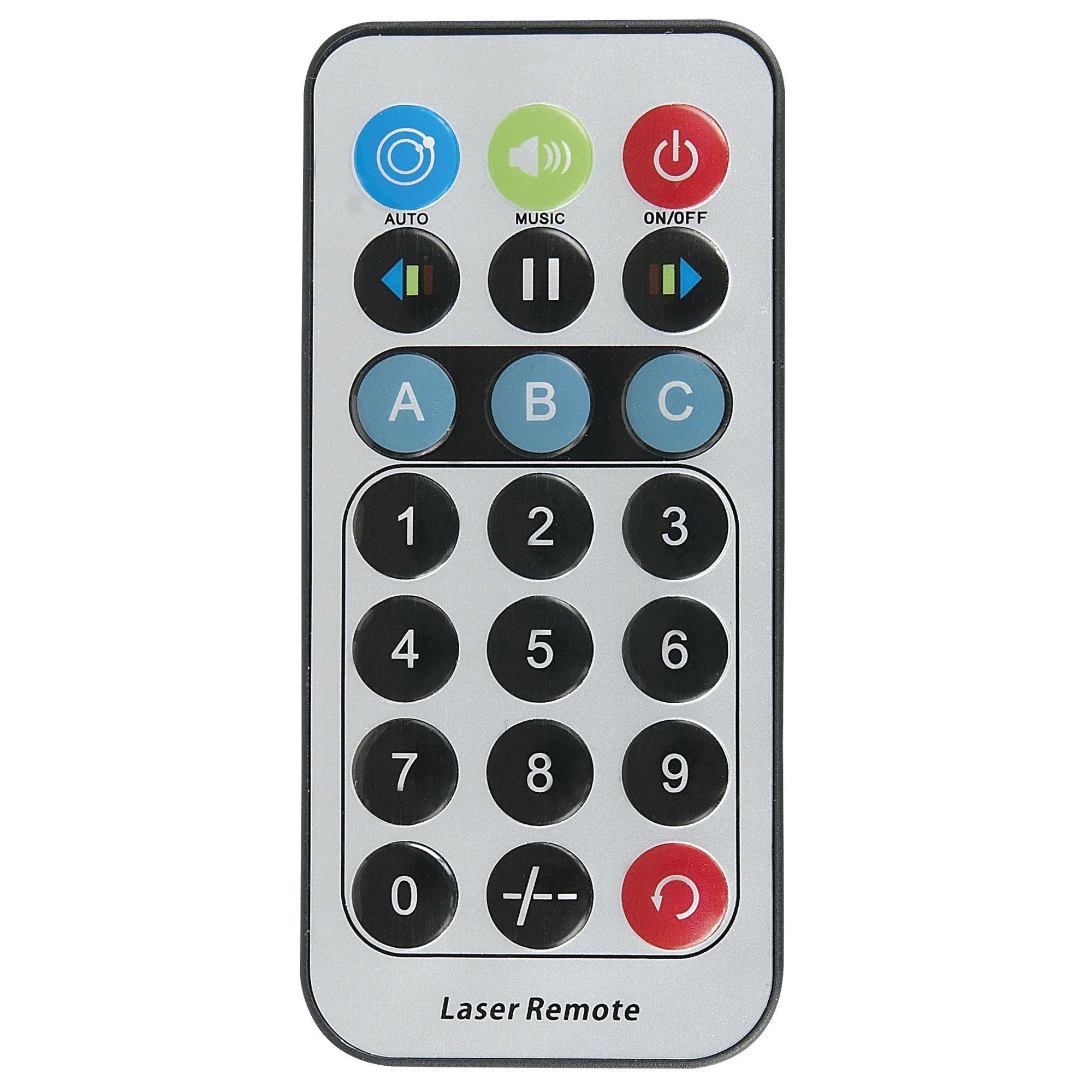

The Showtec Galactic RBP-180 MKII is an 180 mW laser with Red, Blue and Purple colour output, 32 patterns and built-in programs, suitable for indoor venues. Its wide 30° scan angle with manual zoom, rotate and X/Y roll functions makes it fit for either short-throw and long distance applications. The Galactic RBP-180 MKII is controllable via DMX, Master/Slave and Infrared remote in either Manual, Auto-run and Sound controlled mode. It comes with an infrared remote and is compatible with other Galactic MKII lasers.
Please note that an optional remote interlock is required for safety regulations.
Source Laser Power 180 mW
Laser Source Diode
Laser Modulation TTL
Laser Class 3B
Laser Colour Red, Blue, Purple
Laser Power (Total) 180 mW
Laser Power (Red) 100 mW
Laser Wavelength (Red) 650 nm
Laser Power (Blue) 80 mW
Laser Wavelength (Blue) 450 nm
Control and Programming
Control Mode Auto, Built-in Program, Master Slave, Remote, Sound
DMX Channels 10
Display 7-segment, LED
Movement Laser Scan Angle (Max.) 30 °
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 16 W
Power Connector In IEC
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Height (mm) 158 mm
Width (mm) 168 mm
Depth (mm) 148 mm
Weight 1.3 kg
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
