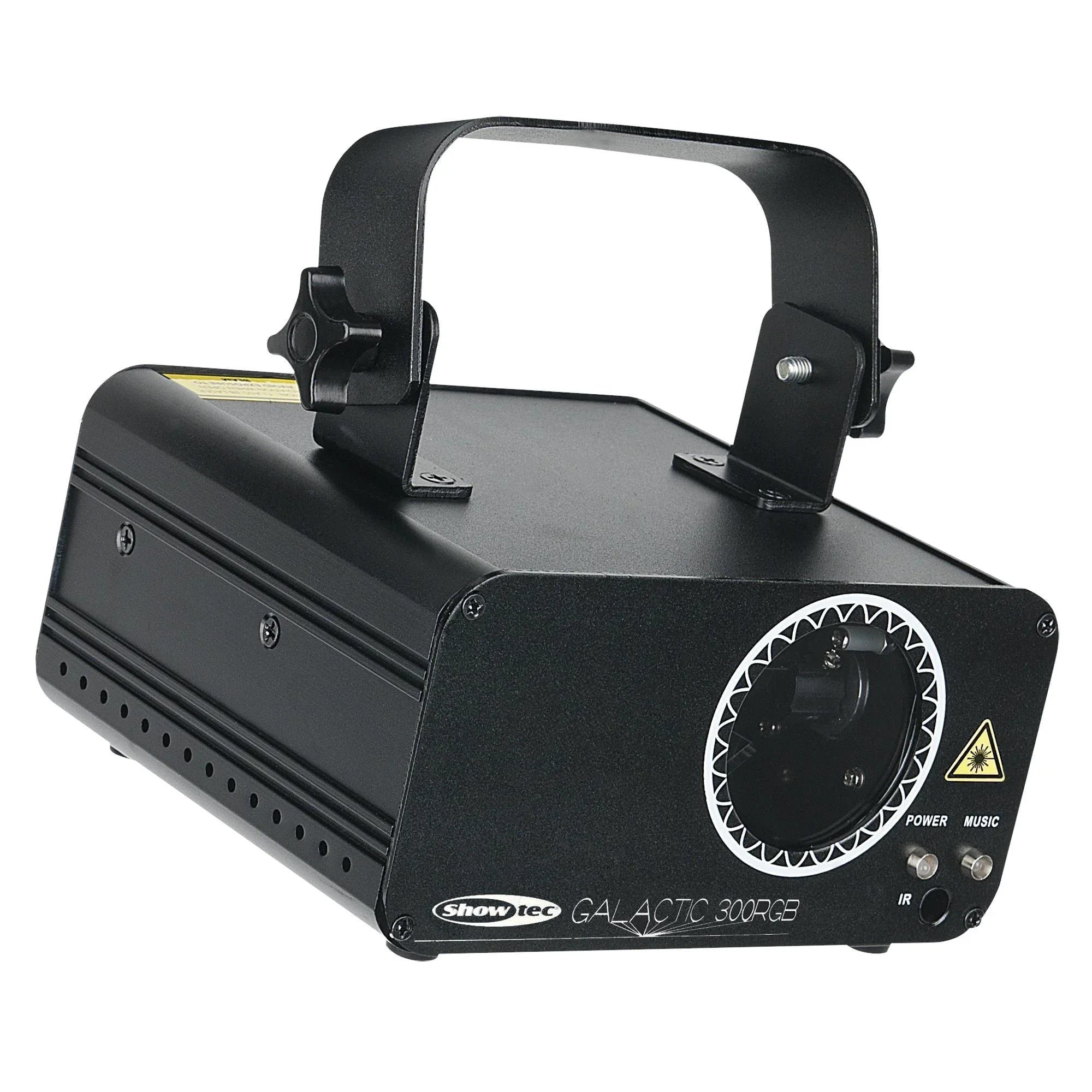

Showtec Galactic RGB 300 300 mW RGB Laser
Product Description
The Showtec Galactic RGB 300 is a 300 mW RGB laser projector with options between 32 built-in aerial patterns, suitable for indoor venues. Its fixed 20° scan angle makes it fit for short-throw applications. Equipped with a TTL modulation on the 3 laser modules and a stepper motor, the Galactic RGB 300 is an low-budget laser system. The Galactic RGB 300 is controllable via DMX, Master/Slave and IR in either Manual, Auto-run and Sound controlled mode. It comes with an infrared remote.
Please note that an optional remote interlock is required for safety regulations.
Source
Laser Power 300 mW
Laser Source Diode
Laser Modulation TTL
Laser Class 3B
Laser Colour Red, Green, Blue
Laser Power (Total) 300 mW
Laser Power (Red) 100 mW
Laser Wavelength (Red) 638 nm
Laser Power (Green) 50 mW
Laser Wavelength (Green) 515 nm
Laser Power (Blue) 100 mW
Laser Wavelength (Blue) 450 nm
Control and Programming
Control Mode Auto, DMX, Master Slave, Remote, Sound
DMX Channels 10
Display7-segment, LED
Movement
Laser Scan Angle (Max.) 20 °

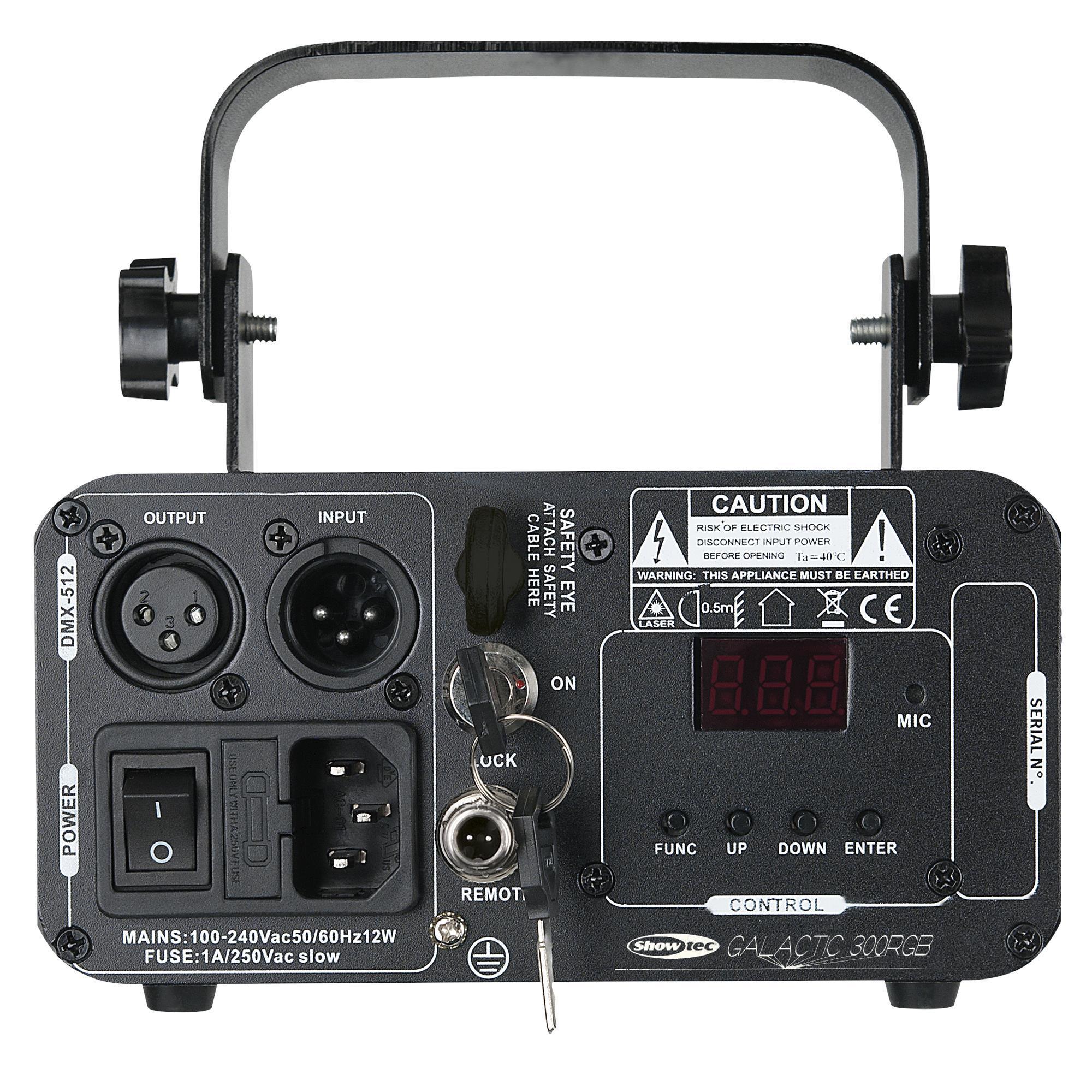

Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 23 W
Power Connector In IEC
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Height (mm) 158 mm
Width (mm) 168 mm
Depth (mm) 148 mm
Weight 1.7 kg
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
