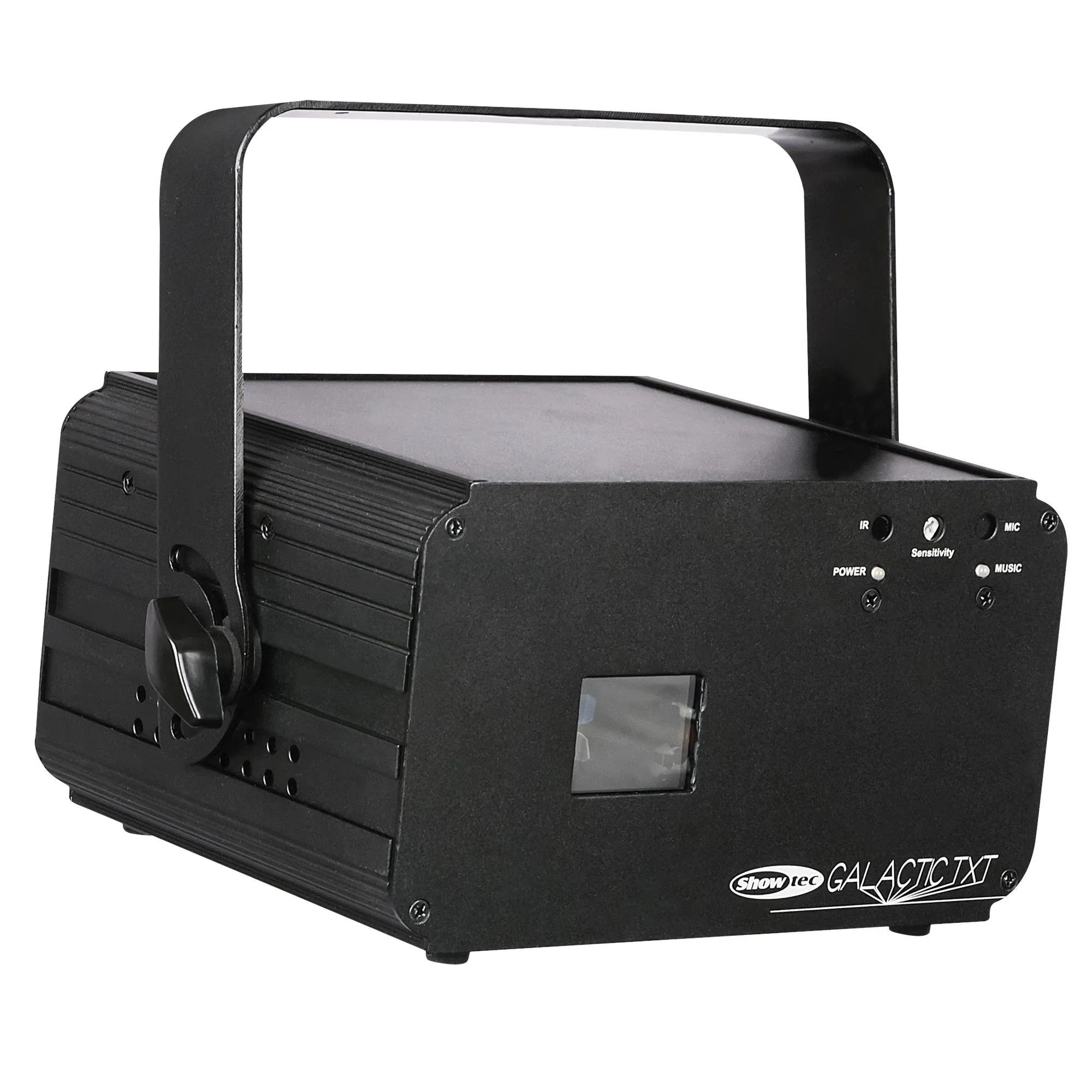

Showtec Galactic TXT 300 mW RGB text Laser

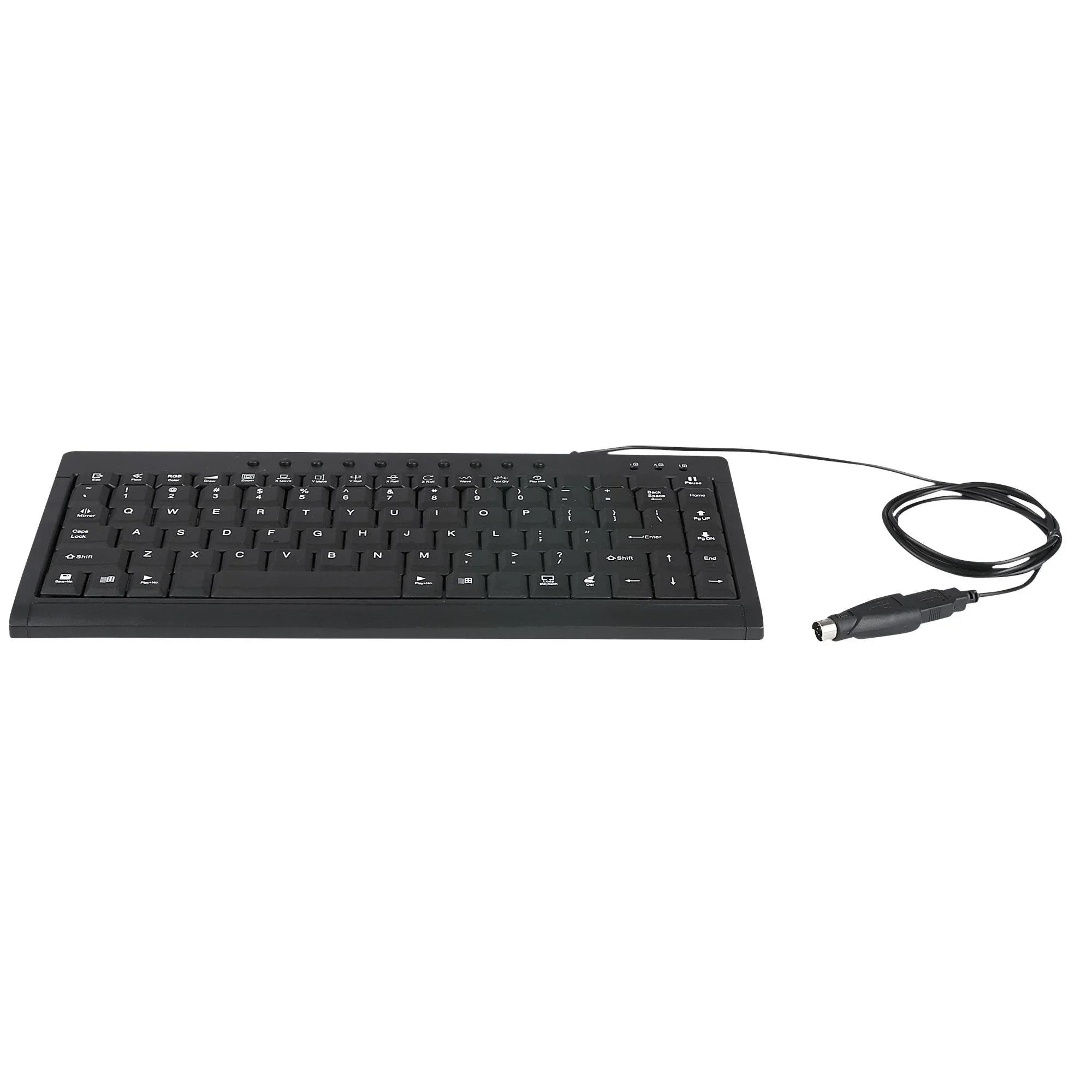

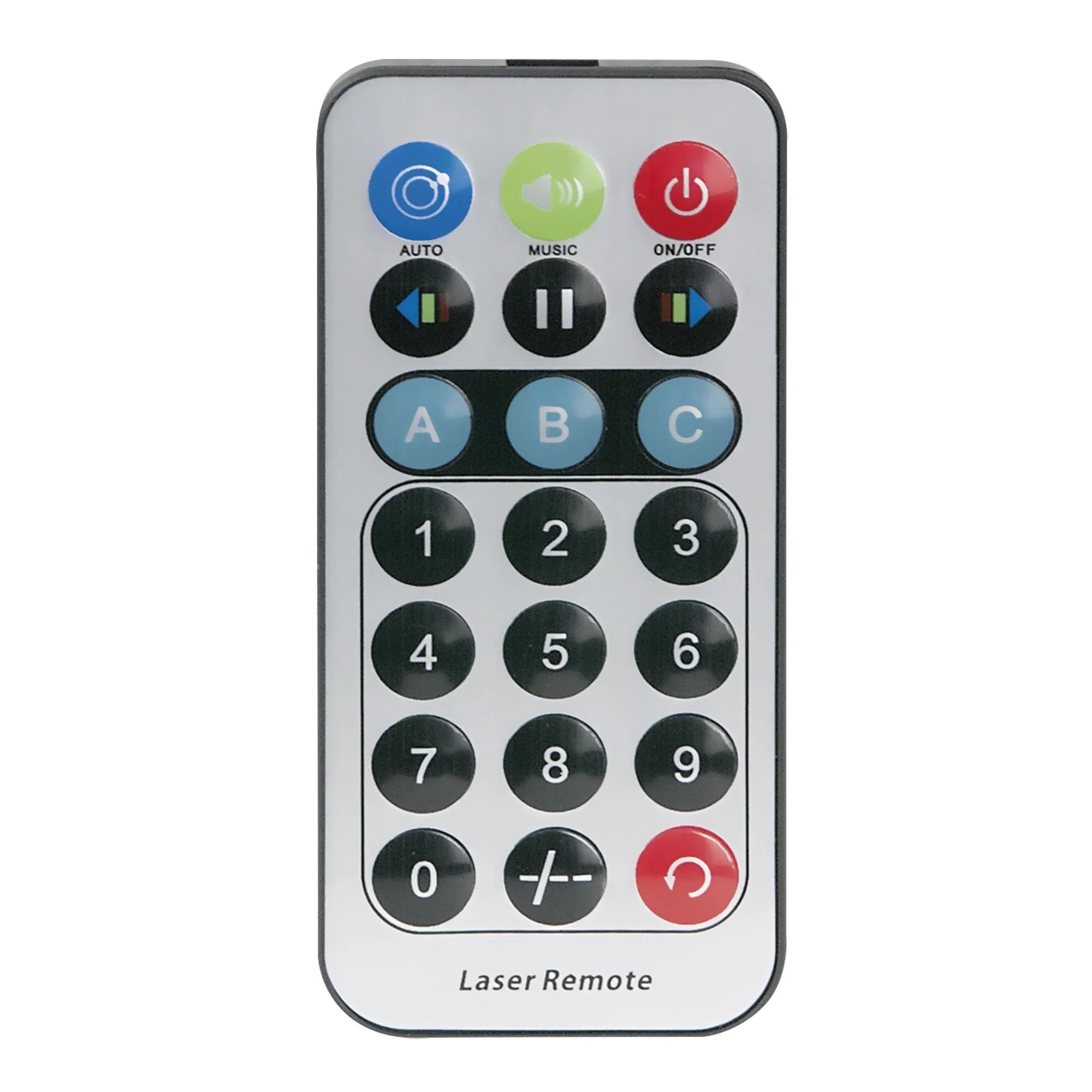

The Showtec Galactic TXT is a 300 mW RGB text laser projector for displaying custom and preset animated text, images and symbols, suitable for indoor venues. Its 128 preset animations & symbols include a built-in clock, countdown and date function with zoom, movements, wave, drawing, rotation and colour effects. The Galactic TXT is controllable via DMX, IR and Master/Slave in Manual, Auto-run or Sound controlled mode. It comes with a keyboard, interlock connector, interlock key and infrared remote and is suitable for either short-throw and long distance applications due to its wide 40° scan angle with zoom function.

Source

Laser Power 300 mW

Laser Source Diode, DPSS

Laser Modulation TTL

Laser Class 3B

Laser Colour Red, Green, Blue, White, Yellow, Purple, Cyan

Laser Power (Total) 300 mW

Laser Power (Red) 150 mW

Laser Wavelength (Red) 638 nm

Laser Power (Green) 50 mW

Laser Wavelength (Green) 532 nm

Laser Power (Blue) 100 mW

Laser Wavelength (Blue) 450 nm

Control and Programming

Control Mode Auto, DMX, Master Slave, Sound

DMX Channels 17

Display 7-segment, LED

Movement

Laser Scanner Speed 10 K

Laser Scan Angle (Max.) 30 °

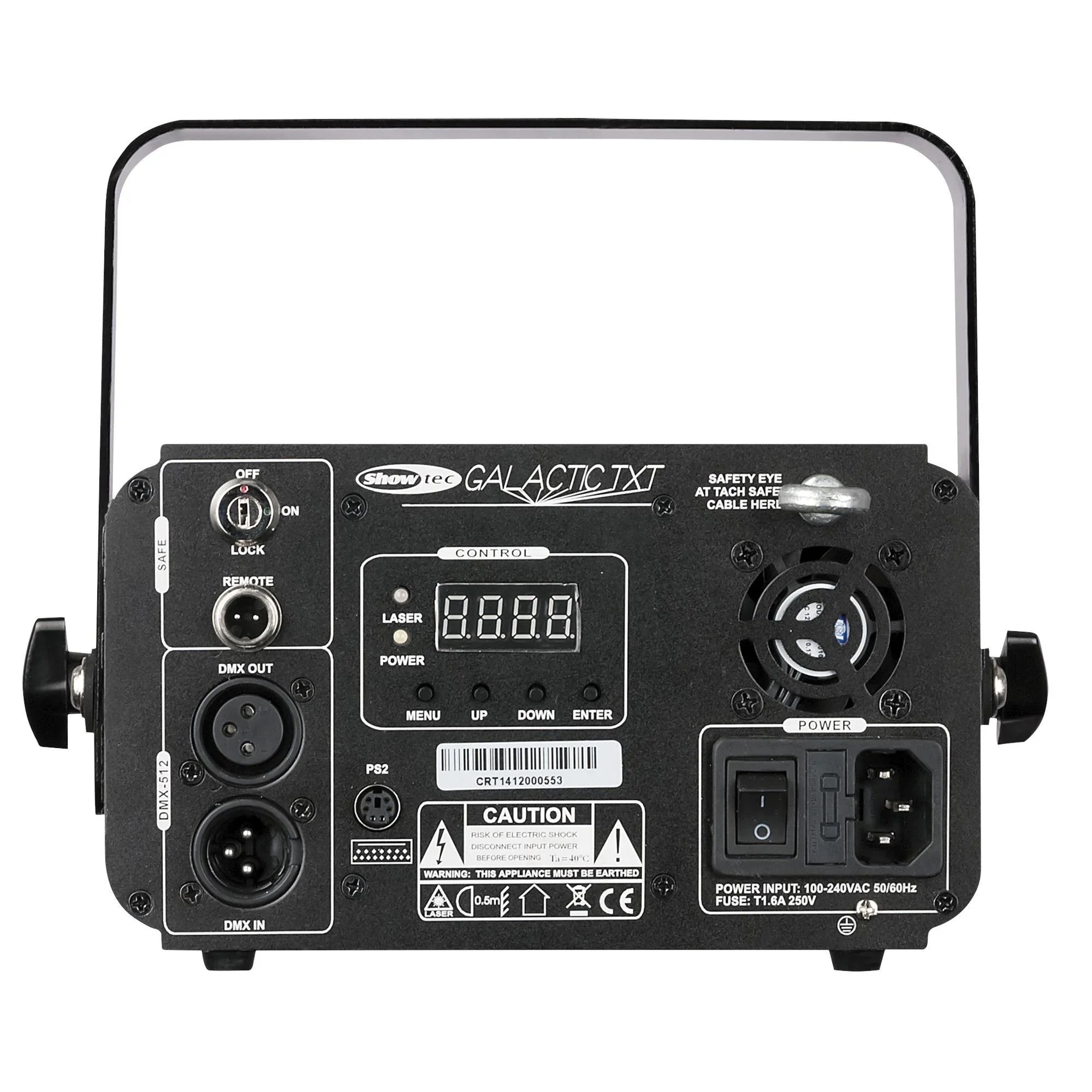

Electrical Specifications and Connections

Power Supply 100-240 V AC 50-60 Hz

Power Consumption 25 W

Power Connector In IEC

DMX Connector XLR 3P In/Out

DMX Connector In XLR 3P

DMX Connector Out XLR 3P

Data Connector In Dedicated data connector

Mechanical Specifications

Height (mm) 185 mm

Width (mm) 225 mm

Depth (mm) 185 mm

Weight 1.9 kg

IP Rating IP20 (indoor use only)

Housing Metal, Plastic

Colour Black
