Description

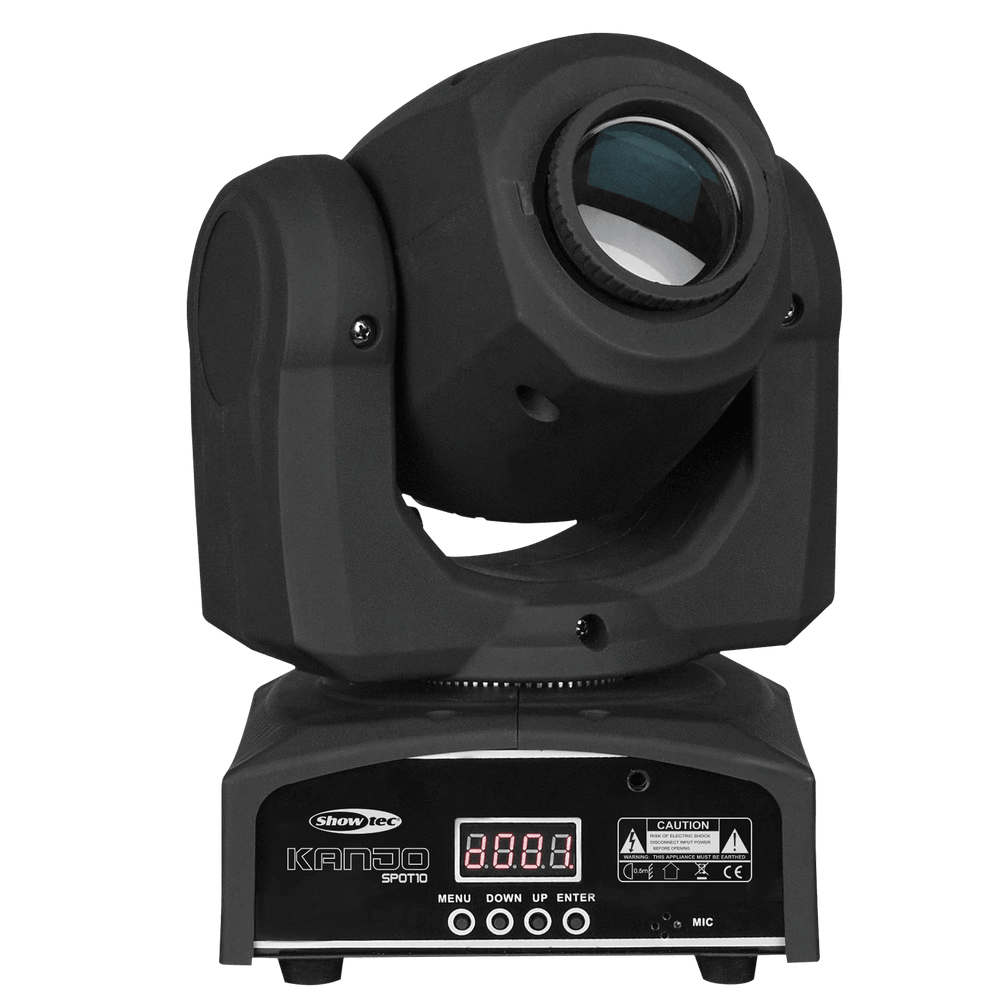

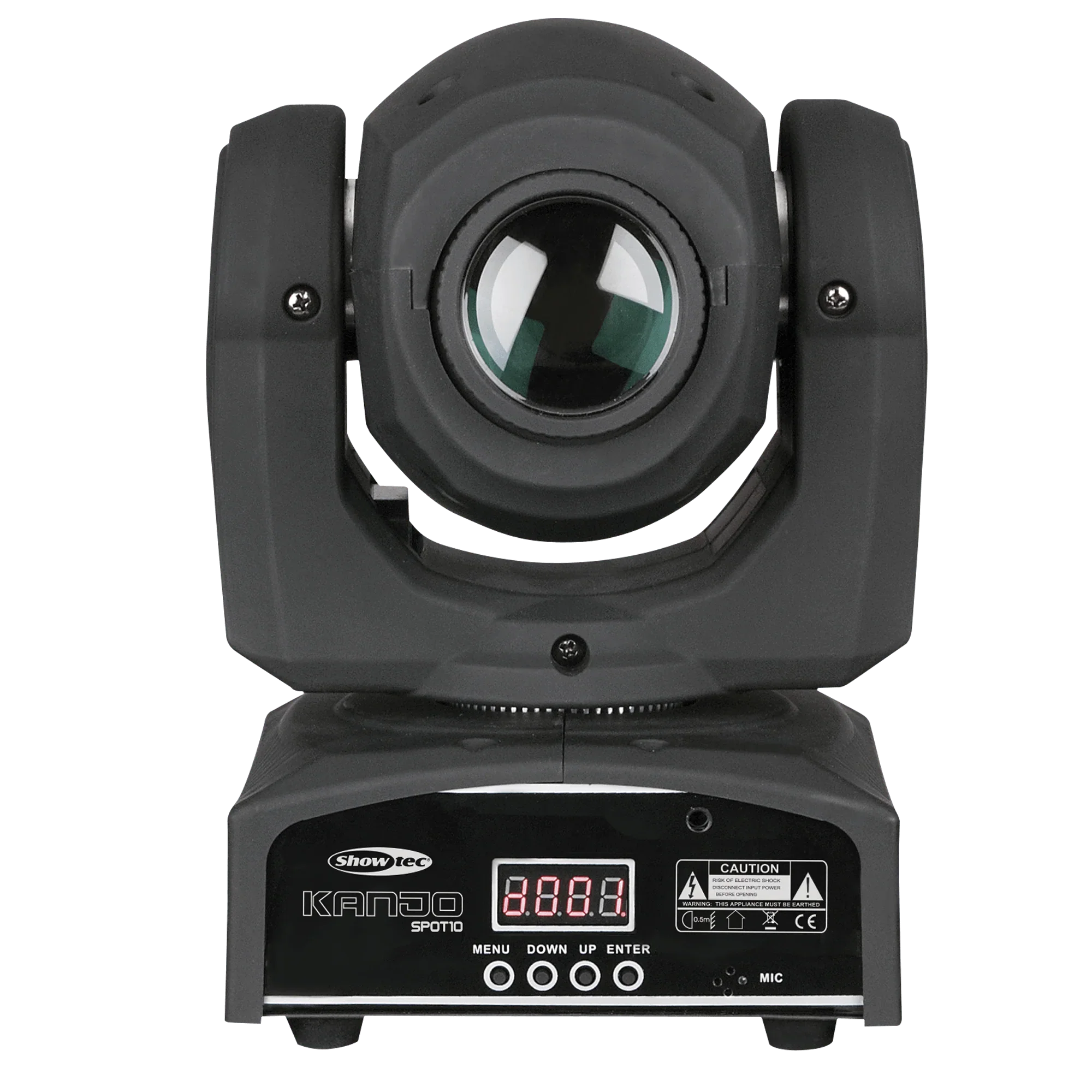

The Showtec Kanjo Spot 10 is an ultra-compact 10 watt LED Moving Head suitable for small indoor venues. Its 7 fixed gobos + open and 7 dichroic colours + white create nice optical effects and can be controlled via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode. Equipped with 0 - 100 % dimmer and 0 - 20 Hz strobe effects, the Kanjo Spot 10 has a 13° fixed beam angle and a manual focus for creating sharp-outlined projections. Its compact one-clamp-mount 3 kg design is ideal for quick rigging on stage..
Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 10 W
Illuminance @ 5 m 180 lx
Luminous Flux (Total) 4500 lm
CCT 7000 K
Optical
Beam Angle Max. (Circular) 13 °
Focus Manual
Control and Programming
Control Mode DMX
DMX Channels 8, 10
Protocols DMX
Display 7-segment
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Colour System Colour Wheel
Colour Wheel Index & Rotate Yes
Dichroic Colour Wheel 1 7 + Open
Gobo System Metal
Gobo Wheel Index & Rotate Yes
Gobo Wheel 1 7 + Open
Movement
Pan 540 °
Tilt 230°
Pan/Tilt Resolution 16-bit
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 26 W
Fuse 3 A

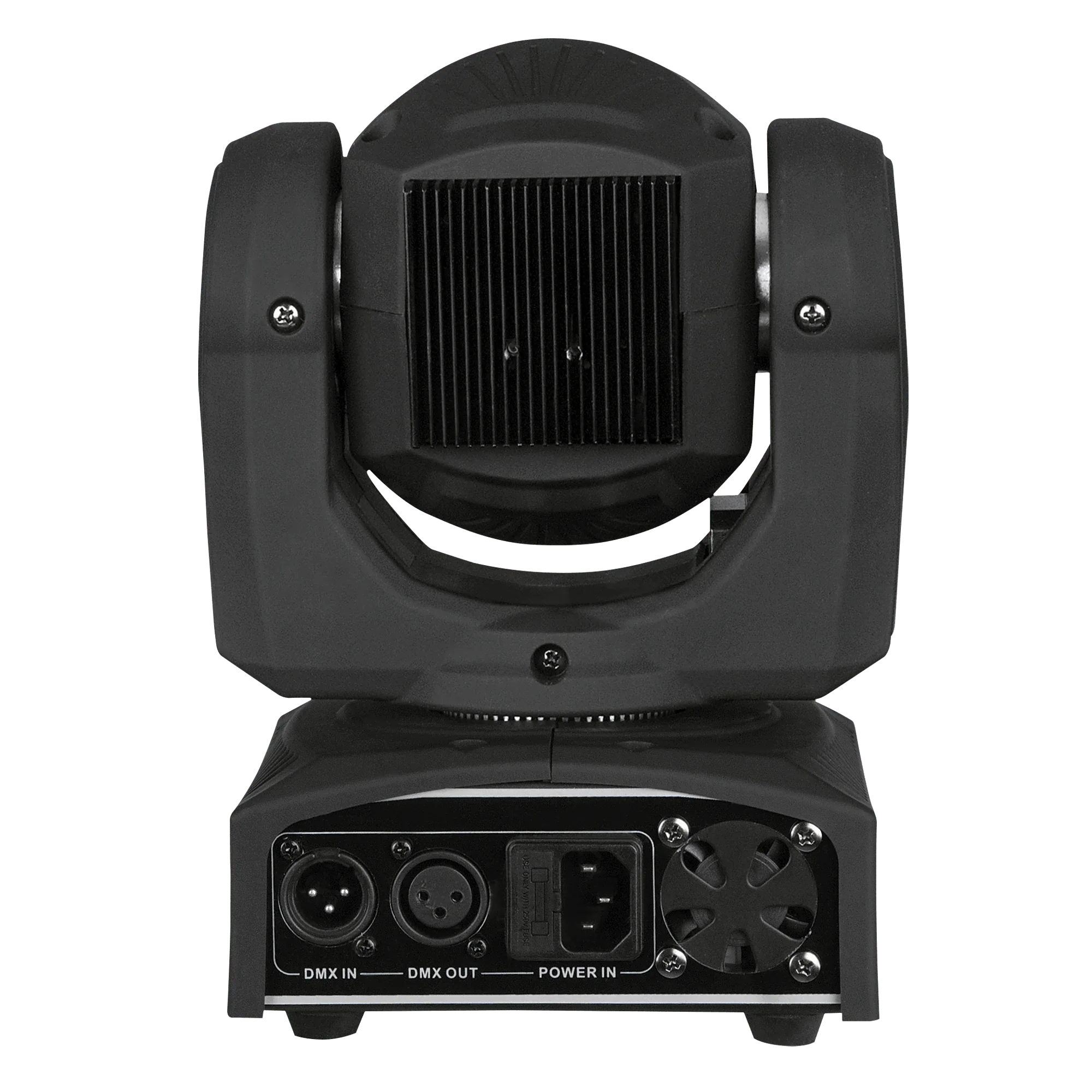

Power Connector In IEC
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 145 mm
Width (mm) 160 mm
Height (mm) 270 mm
Weight 3 kg
IP Rating IP20 (indoor use only)
Housing Plastic
Colour Black
Product Properties
Cooling Convection
Rigging
Mounting Options Bracket
Safety Attachment Yes
Safety Eyes 1
Thermal Specifications
Maximum Ambient Temperature 40 °C
Included Items
Included Cables IEC cable
Included Rigging Bracket
