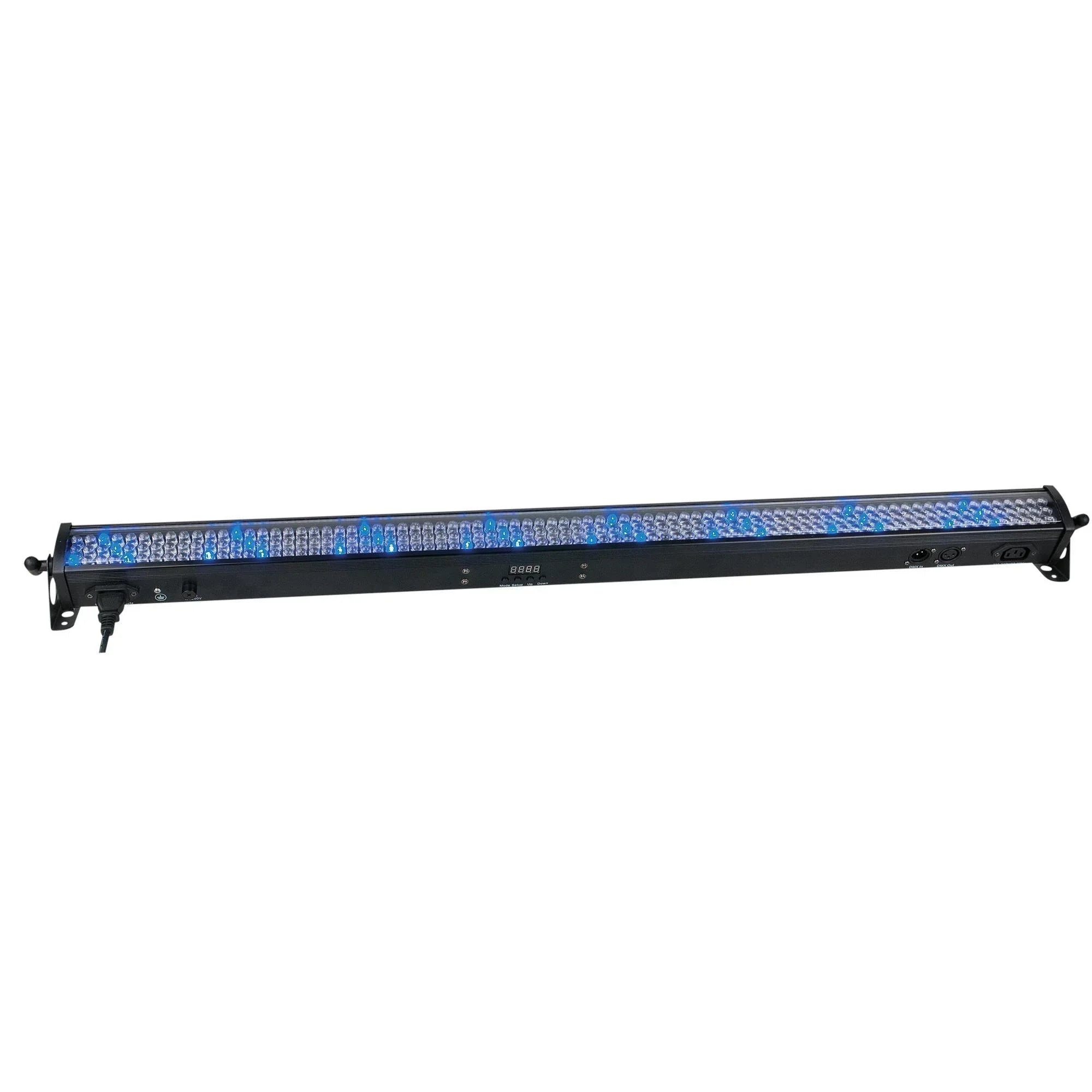

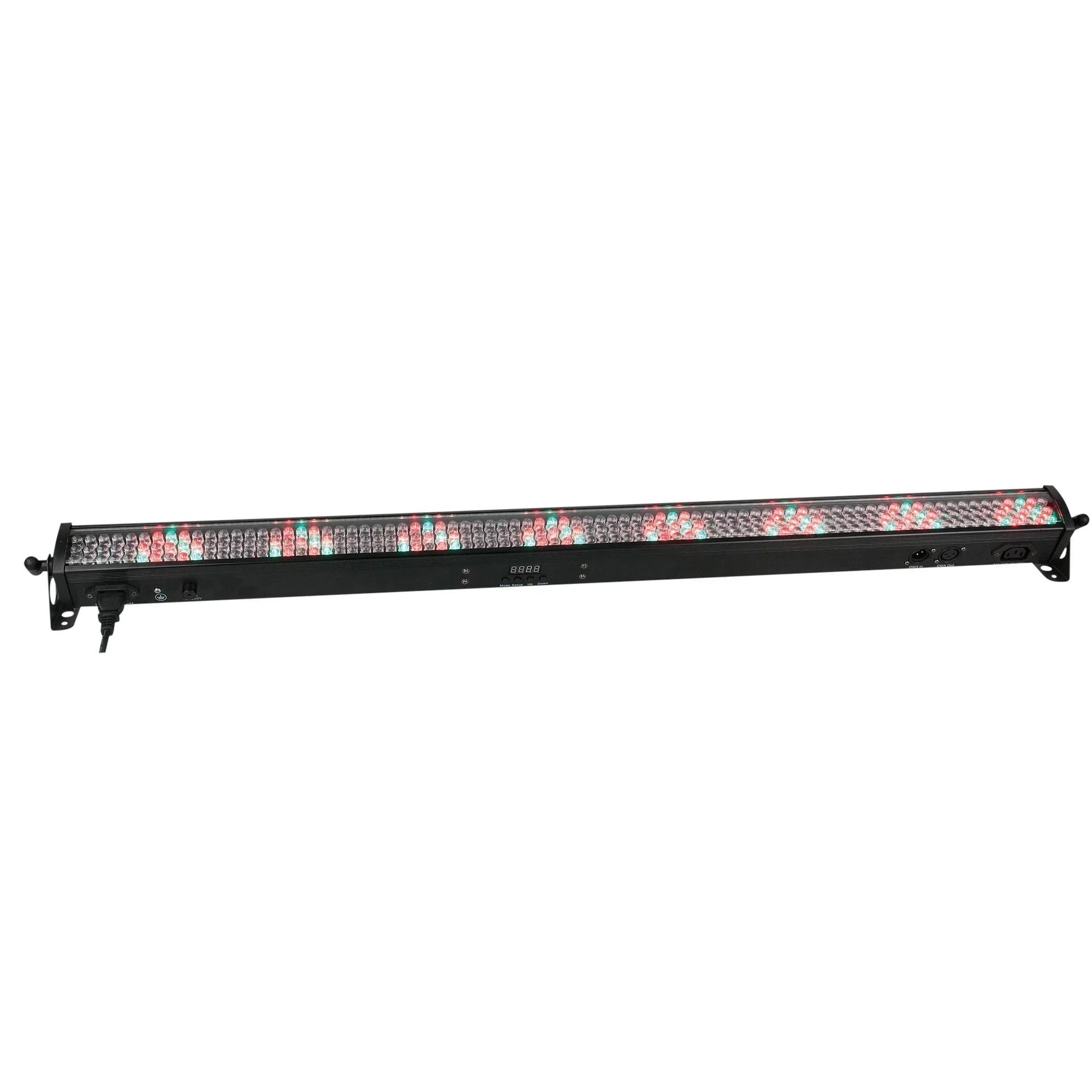

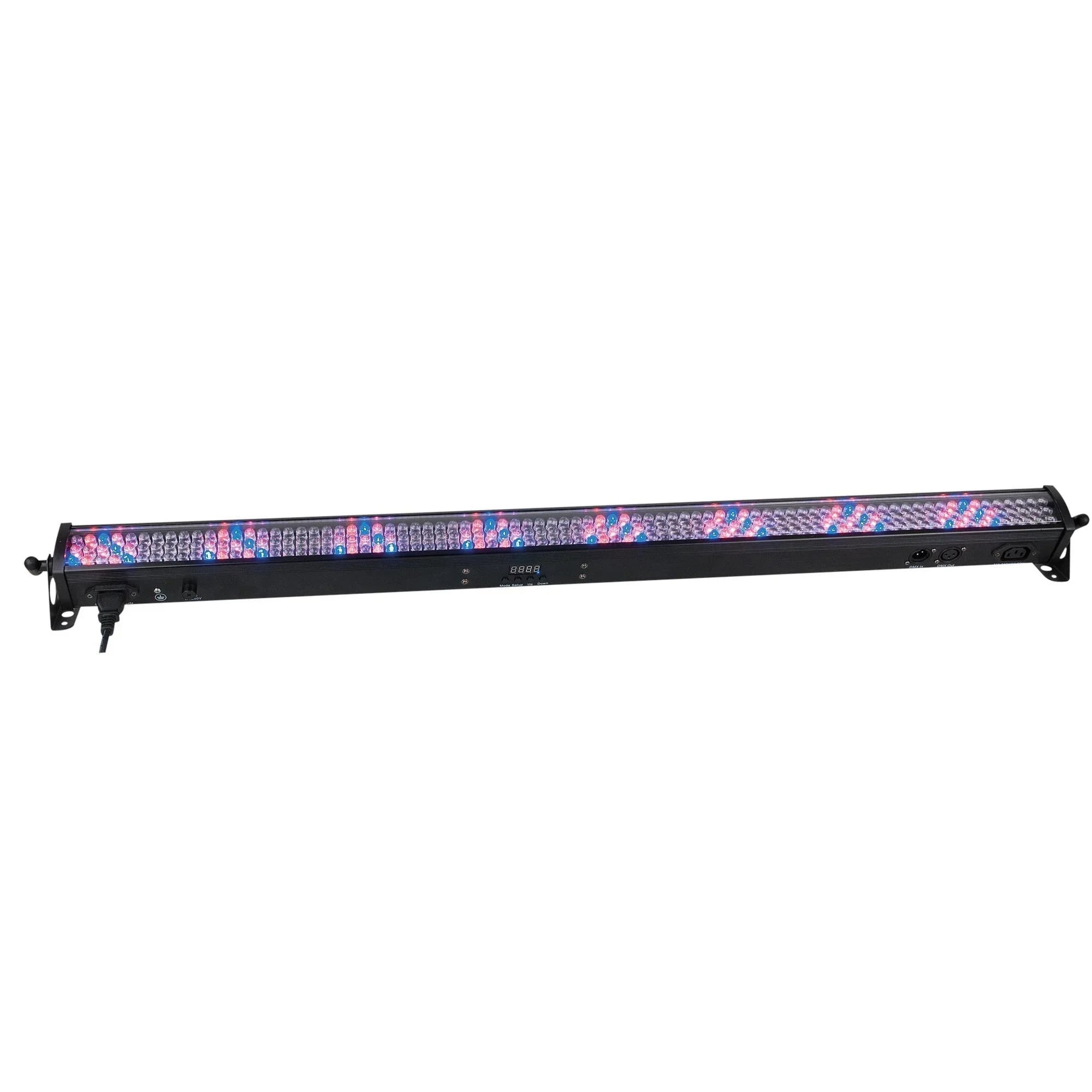

Showtec LED Light Bar 8 Indoor RGB light bar Batten
Product Description
The LED Light bar 8 is another member of the LED Light Bar range. It is equipped with 240 pieces 10 mm LED in Red, Green and Blue colour. A great advantage of this bar is that it is divided in 8 sections which allows you to create beautiful flows and great chases. It has multiple DMX modes for optimal control as well as sound to light function for easy applications. The LED Light Bar 8 offers you a true value for money.
Source
Light Source Type LED
Light Source Quantity 240
Light Source Power 5 W
LED Colour Type RGB
Refresh Rate 11600 Hz
Illuminance @ 2 m 613.3 lx
Luminous Flux (Total) 800 lm
Optical
Beam Angle (Horizontal) 30 °
Beam Angle (Vertical) 30 °
Control and Programming
Control Mode Auto, Built-in Program, DMX, Master Slave, Sound, Stand Alone
DMX Channels 2, 3, 4, 7, 14, 26
Protocols DMX
Display
7-segment Dynamic Effects
Dimmer 0-100 %
Strobe 0-15 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 23 W

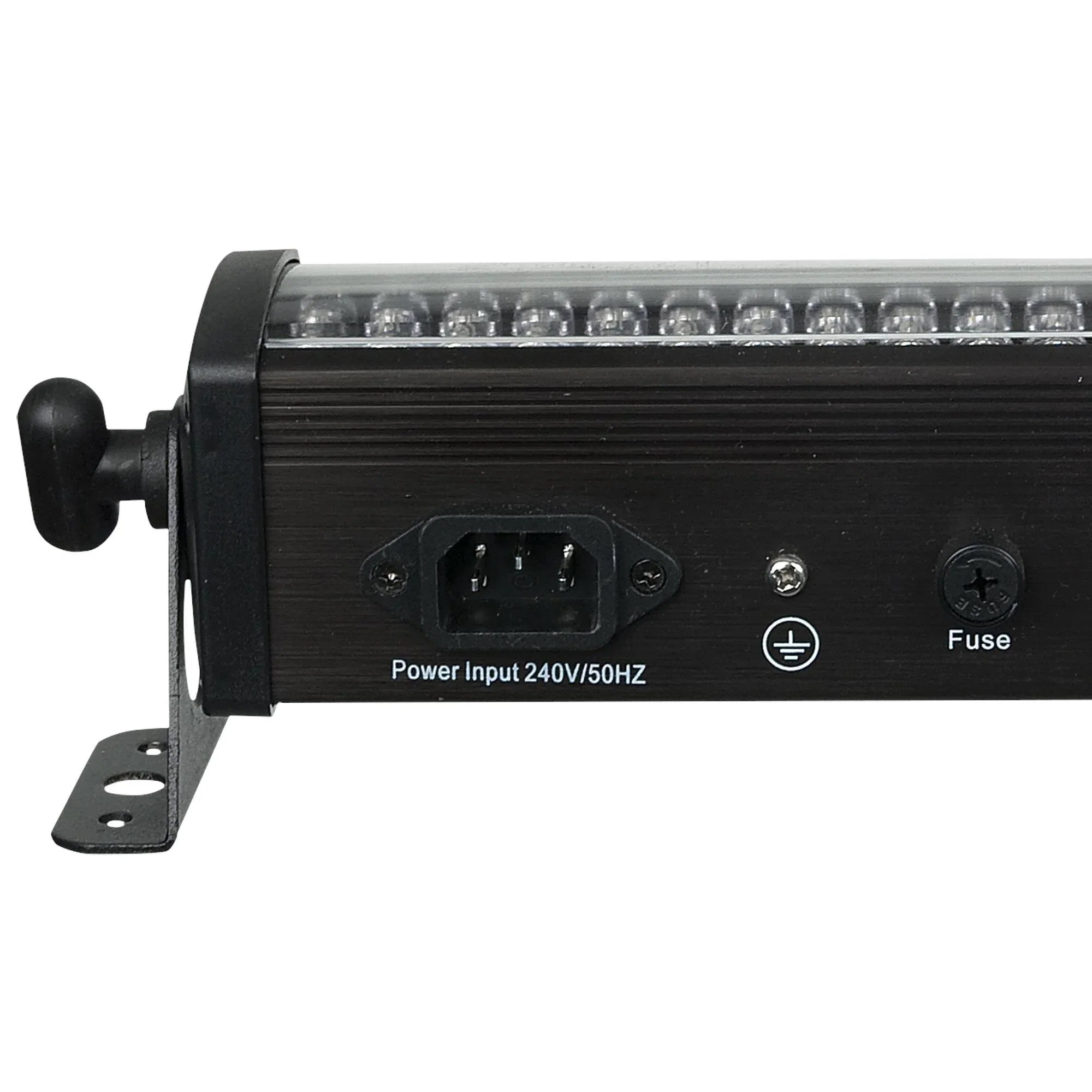

Power Connector In IEC
Power Connector Out IEC
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 1070 mm
Width (mm) 65 mm
Height (mm) 88 mm
Weight 1.58 kg
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black
