Showtec Mad Moon LED Projection Effect Light
Product Description
The Mad Moon has a wide projection angle of 75° and a built-in animation disc and coloured mirrors. Together, these create wonderful dynamic effects that are well-suited to provide a background ambiance. At the source is an efficient 100-W LED that generates white light, ensuring a powerful light output.
The Mad Moon can be controlled through 4 or 6 channels of DMX, has a Master/slave mode, and a sound control mode for stand-alone operation.
Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 100 W
LED Colour Type WW
Life Expectancy 20000 h
OpticaL
Beam Angle (Circular) 75 °
Control and Programming
Control Mode DMX, Master Slave, Sound
DMX Channels 4, 6
Protocols DMX

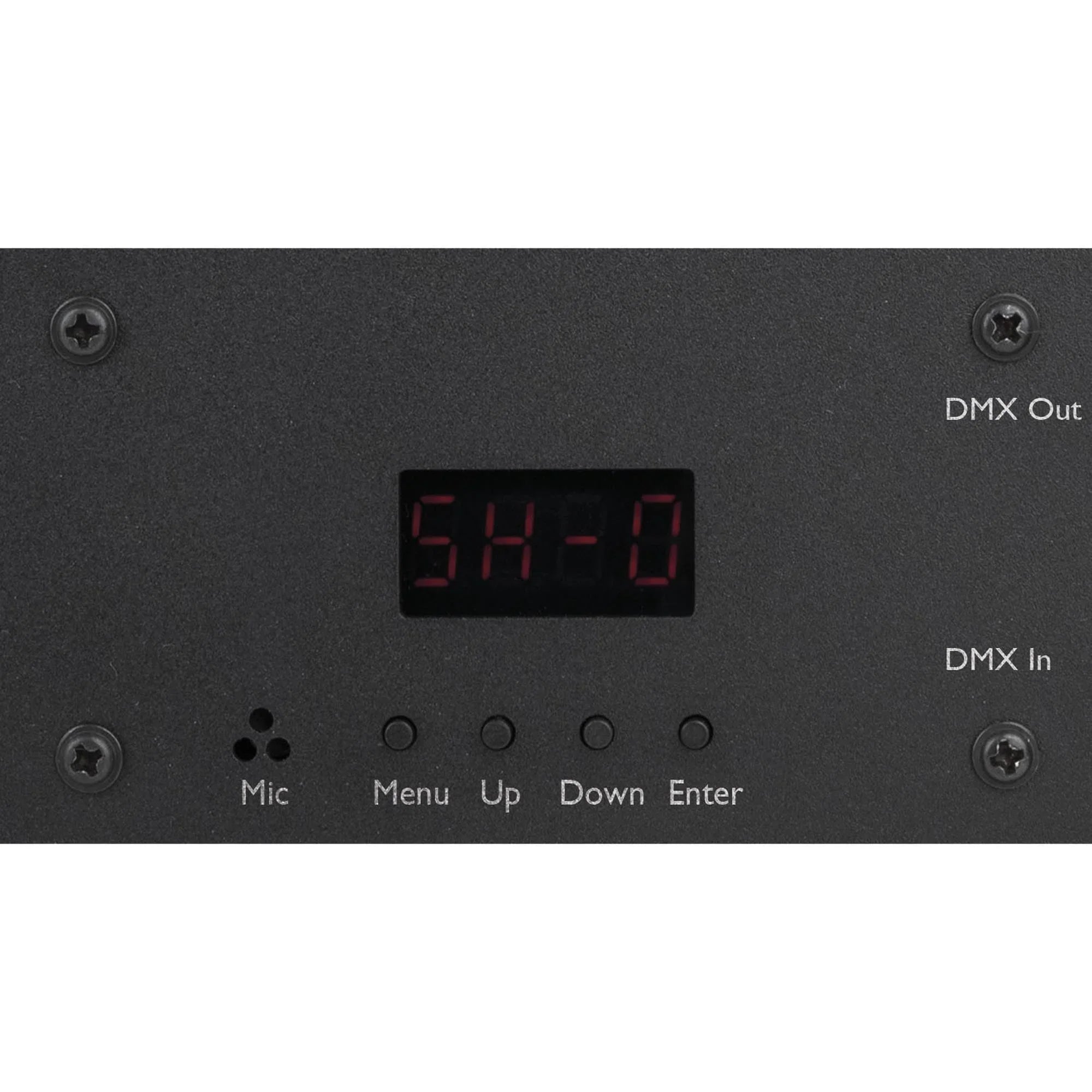

Display 4-segment
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 122 W
Power Connector In IEC
Power Connector Out IEC
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Height (mm) 186 mm
Width (mm) 308 mm
Depth (mm) 199 mm
Weight 3.7 kg
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
