Description

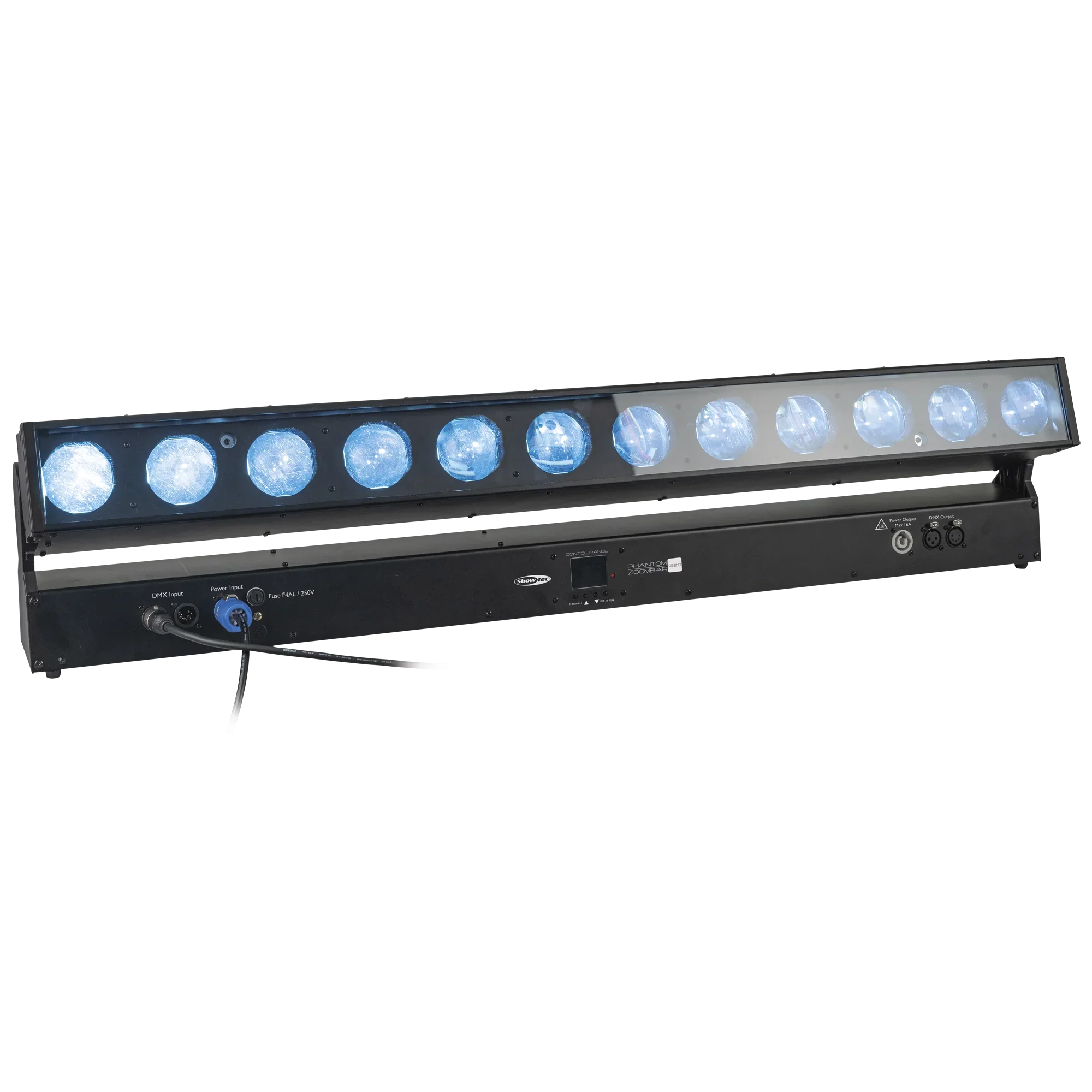

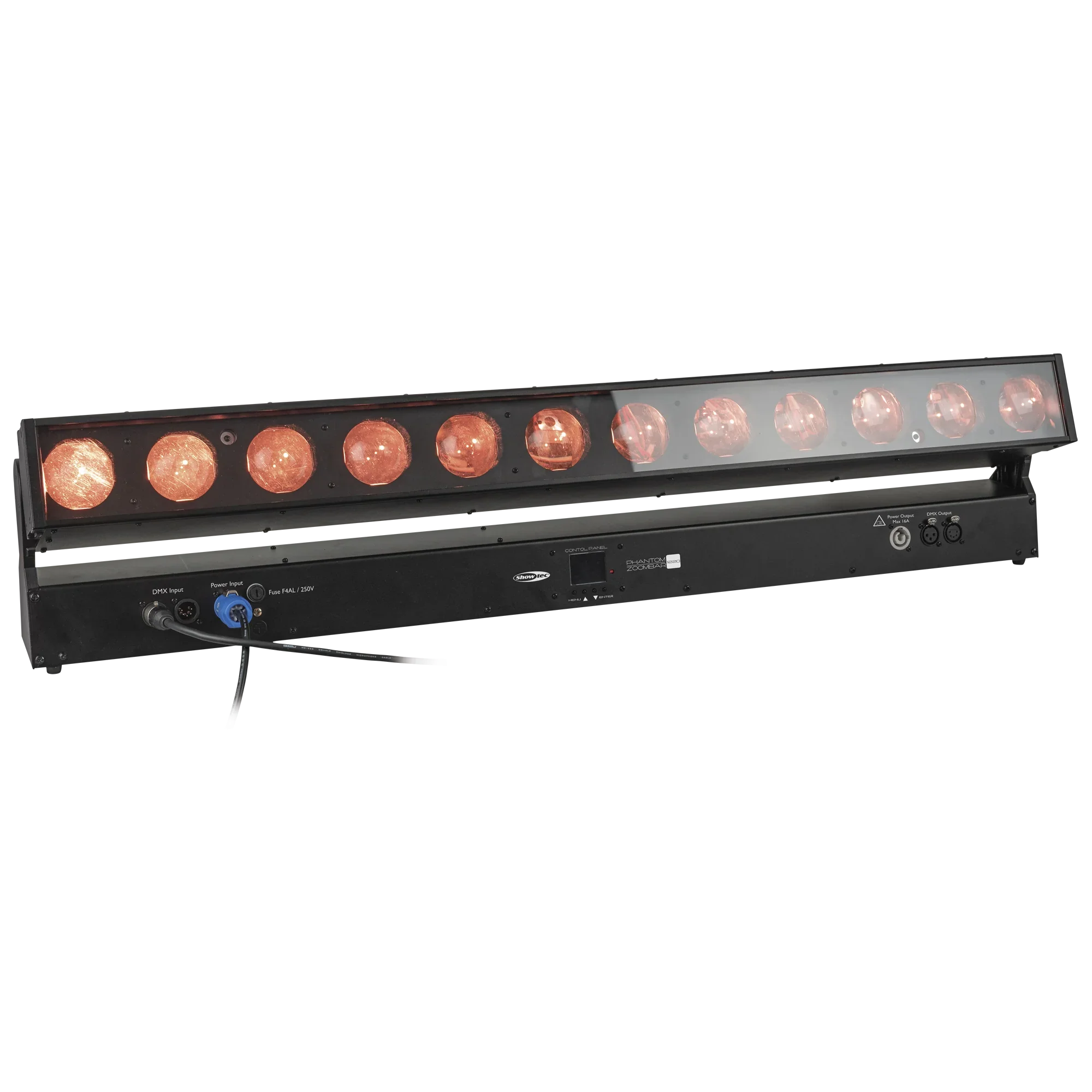

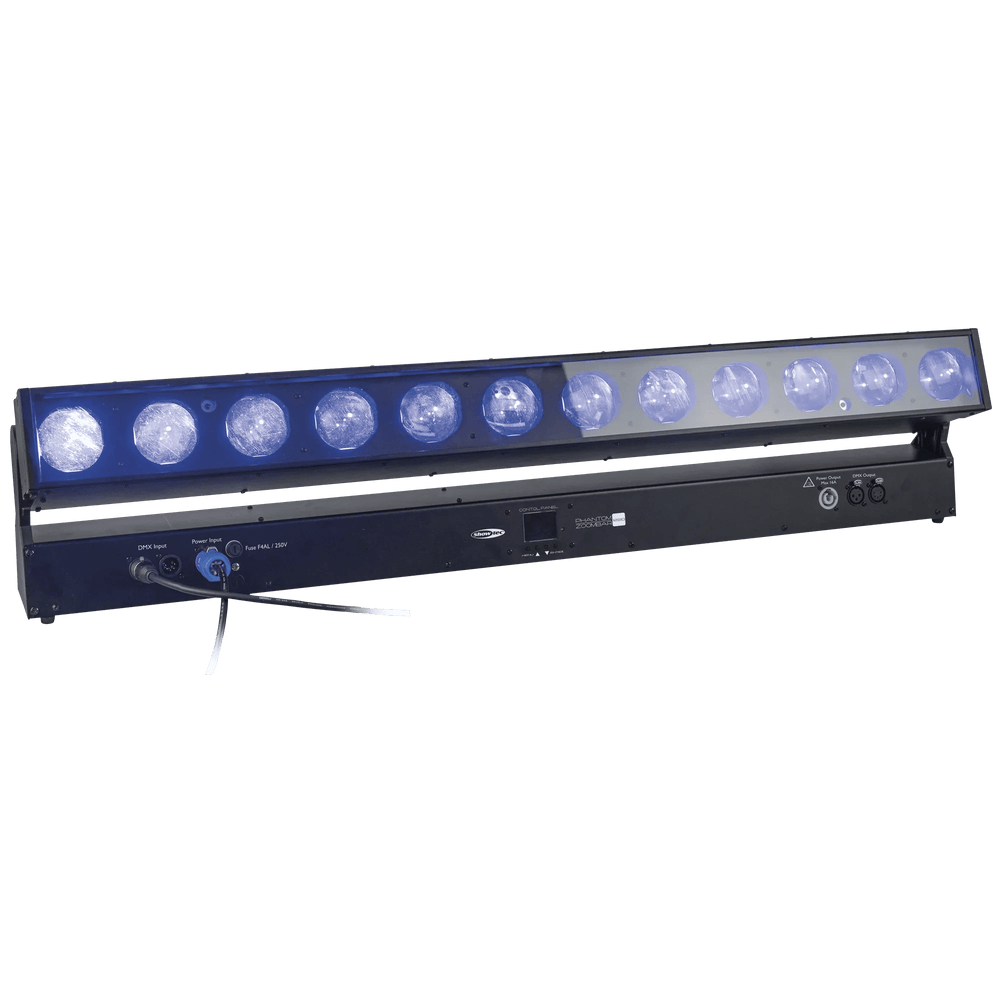

pThe Showtec Phantom 1220 Zoombar is a 12 x 20 watt RGBW Moving LED Bar within a 5° - 50° motorised zoom range, suitable for indoor venues. It allows you to create a multicoloured light curtain to a nice wash effect. The Phantom 1220 Zoombar has a fast 210° motorised tilt function for quickly changing the LEDs output direction. Its Full Pixel Control allows advanced light designers to set a different colour for every LED. Stunning automated programs can be accessed manually, via DMX and Master/Slave in both Auto Run and Sound-controlled mode.
Source
Light Source Type LED
Light Source Quantity 12
Light Source Power 20 W
LED Colour Type RGBW
Refresh Rate (Max.) 15 kHz
Illuminance @ 2 m 57000 lx
Luminous Flux (Total) 45000 lm
Optical
Beam Angle (Circular) 50 °
Zoom Type Motorised
Zoom Minimum 5 °
Zoom Maximum 50 °
Control and Programming Control Mode
Auto, DMX, Manual, Master Slave
DMX Channels 19, 24, 72, 84, 129
Protocols DMX, RDM
Display LCD
Dim Curve Linear, Square, I-Square, S-Curve
Zone Control (Sections) 12
Dimmer Resolution 16 bit
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Movement
Tilt 210 °
Pan/Tilt Resolution 16-bit
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 240 W
Power Connector In powerCON Blue
Power Connector Out powerCON Grey
DMX Connector XLR 3P In/Out, XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Mechanical Specifications
Length (mm) 1000 mm
Height (mm) 233 mm
Weight 13.2 kg
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Product Properties Cooling
Axial fan Rigging
Mounting Options Quick-Lock
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C
Included Items
Included Cables powerCON cable

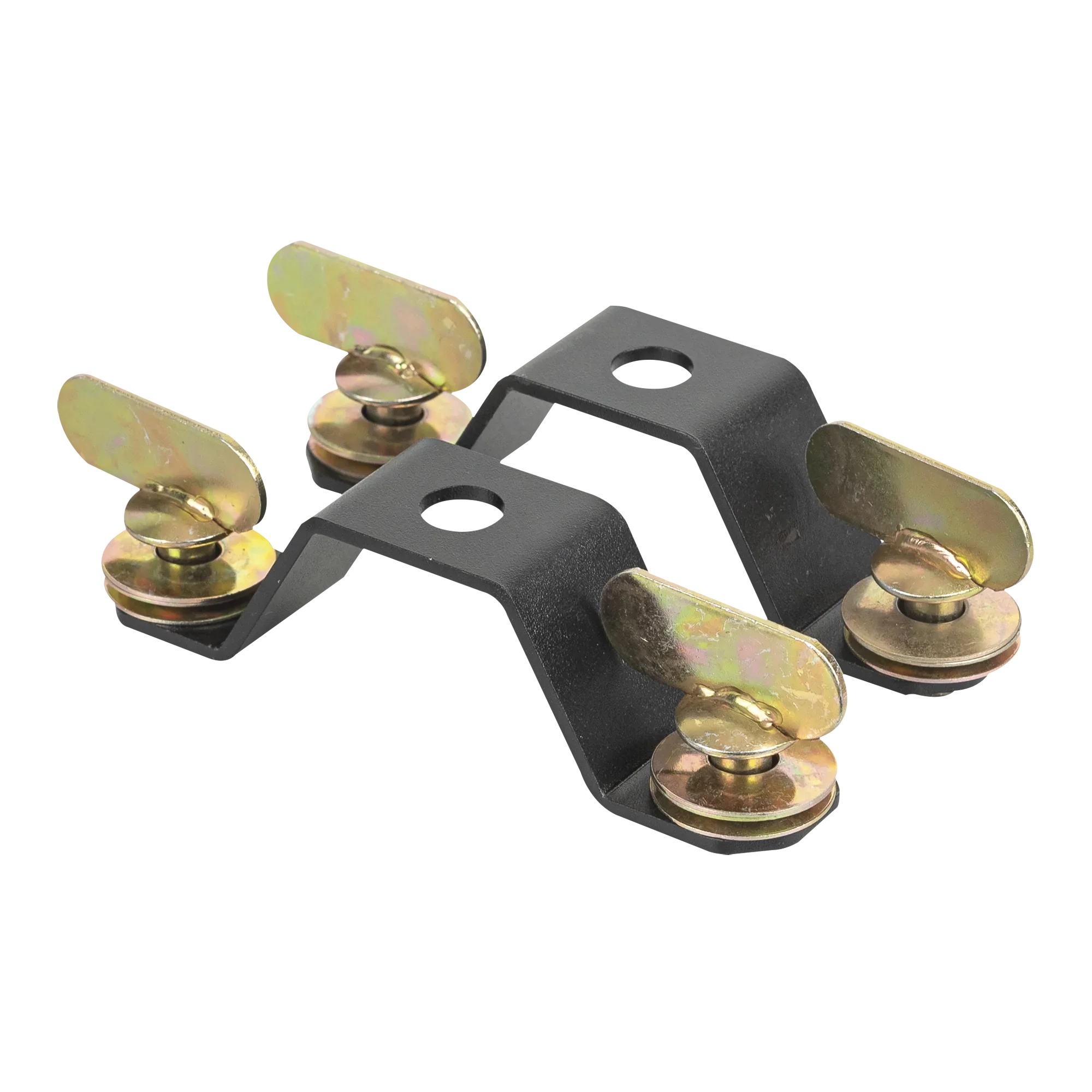

Included Rigging Quick-Lock Bracket
Showtec Phantom 1220 Zoombar. Product Code 40090 from Highlite International on Vimeo.
