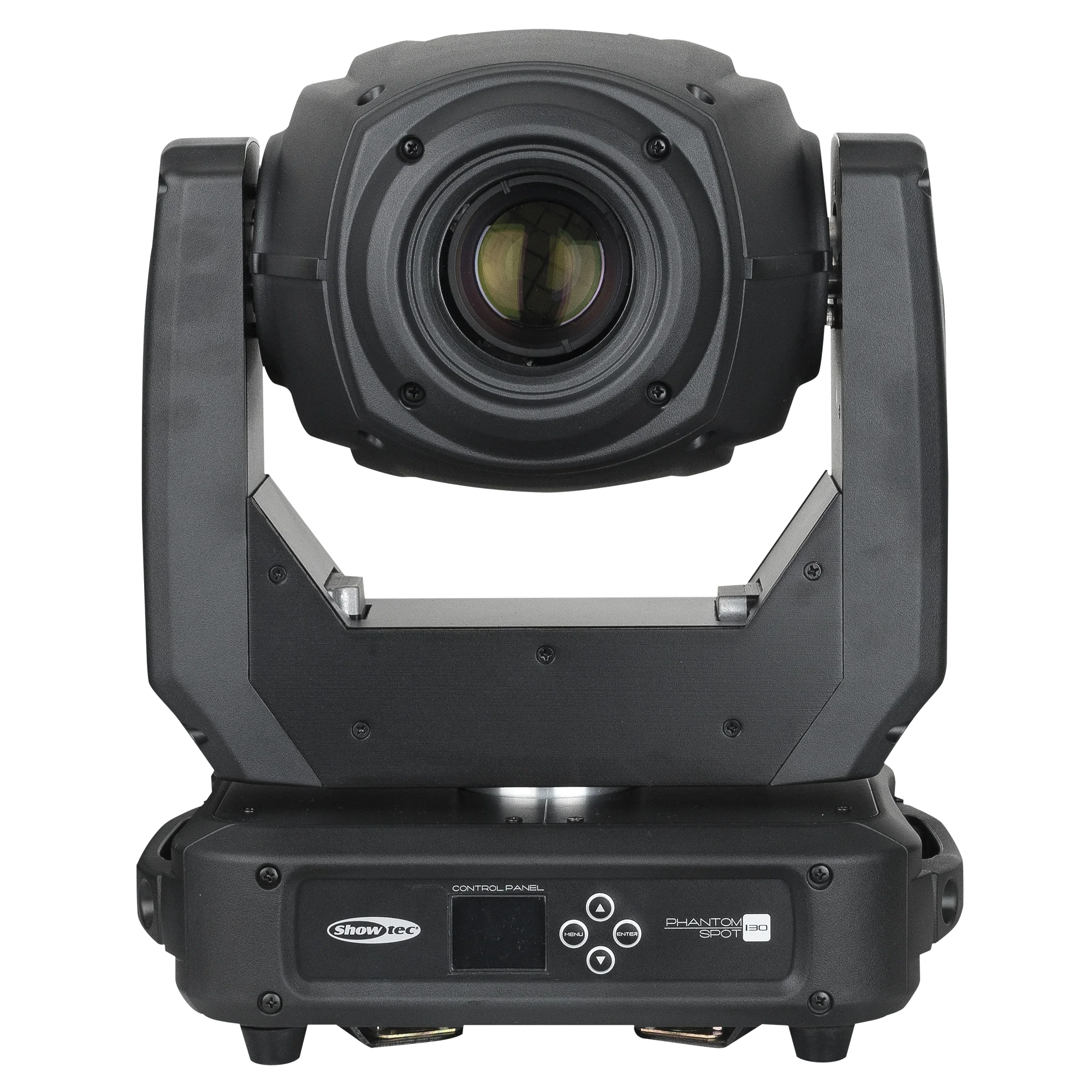

Showtec Phantom 130 Spot 130 W LED Spot Moving Head
Product Description
The Showtec Phantom 130 Spot is a medium-sized, yet powerful 130 watt LED Spot Moving Head including motorised zoom and focus, suitable for indoor venues. It has better features than the Phantom 100, like a 6-facet circular & 5-facet linear rotating prism and a bigger 12° - 21° motorised zoom range. Besides, the Phantom 130 Spot is W-DMX prepared for wireless communications. It creates stunning optical effects with 7 precise bi-rotating gobos + open and 7 dichroic colours + white. The mid-range priced Phantom 130 with razor sharp light beams and spectacular gobos, deliver a high performance/value ratio.
Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 130 W
LED Colour Type CW
Illuminance @ 5 m 5200 lx
Luminous Flux (Total) 5200 lm
Optical
Beam Angle Minimum (Circular) 12 °
Beam Angle Max. (Circular) 21 °
Zoom Type Motorised
Zoom Minimum 12 °
Zoom Maximum 21 °
Focus Motorised
Control and Programming
Control Mode Auto, DMX, Manual, Master Slave, Sound
DMX Channels 12, 16
Protocols DMX
Wireless Optional
Display LCD
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Prism 1 6-facet Circulair
Prism 2 5-facet Linear
Prism Overlay No
Prism Index & Rotate Yes
Colour System
Colour Wheel
Colour Wheel Index & Rotate Yes

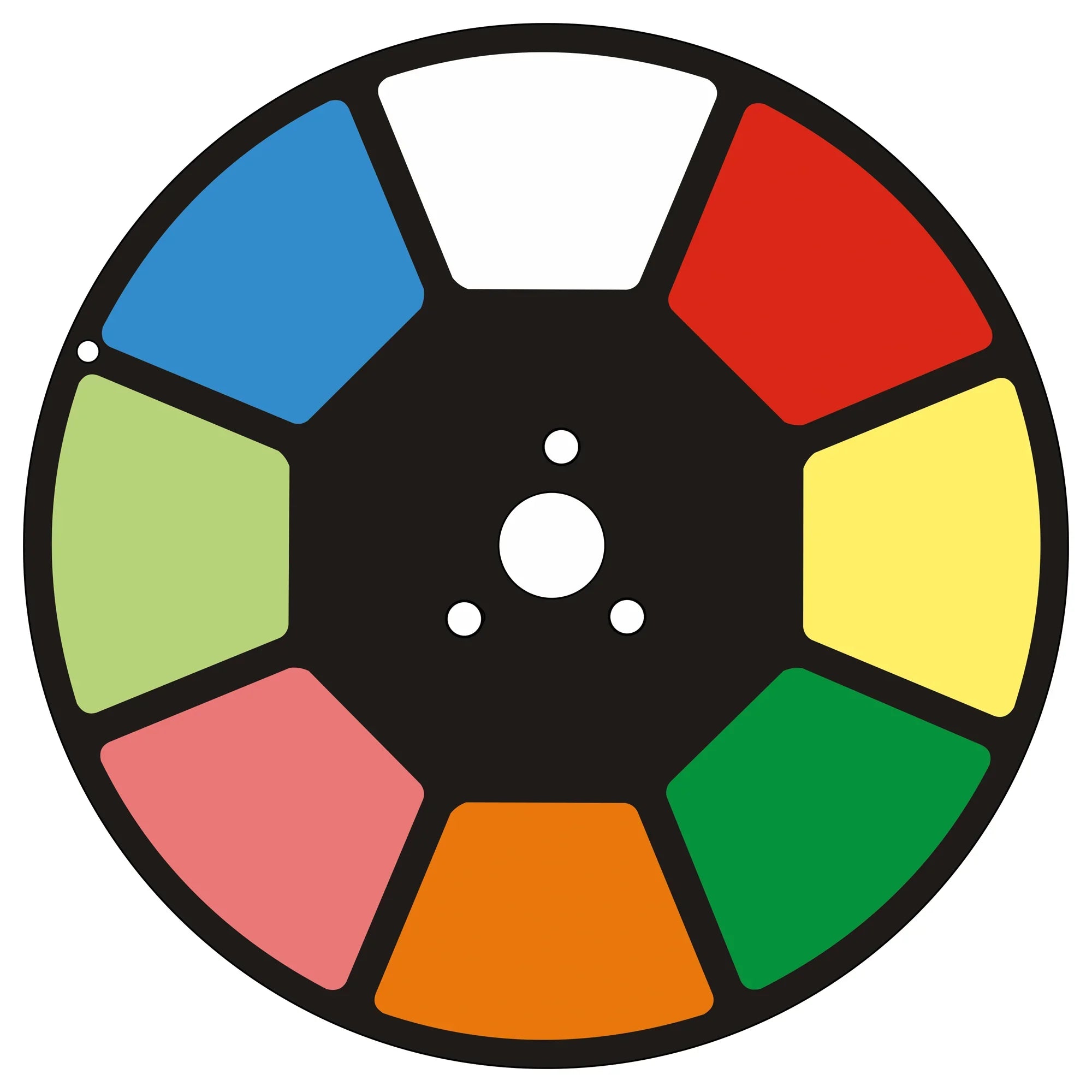

Dichroic Colour Wheel 1 7 + Open
Gobo System Glass + Metal
Gobo Wheel Index & Rotate Yes

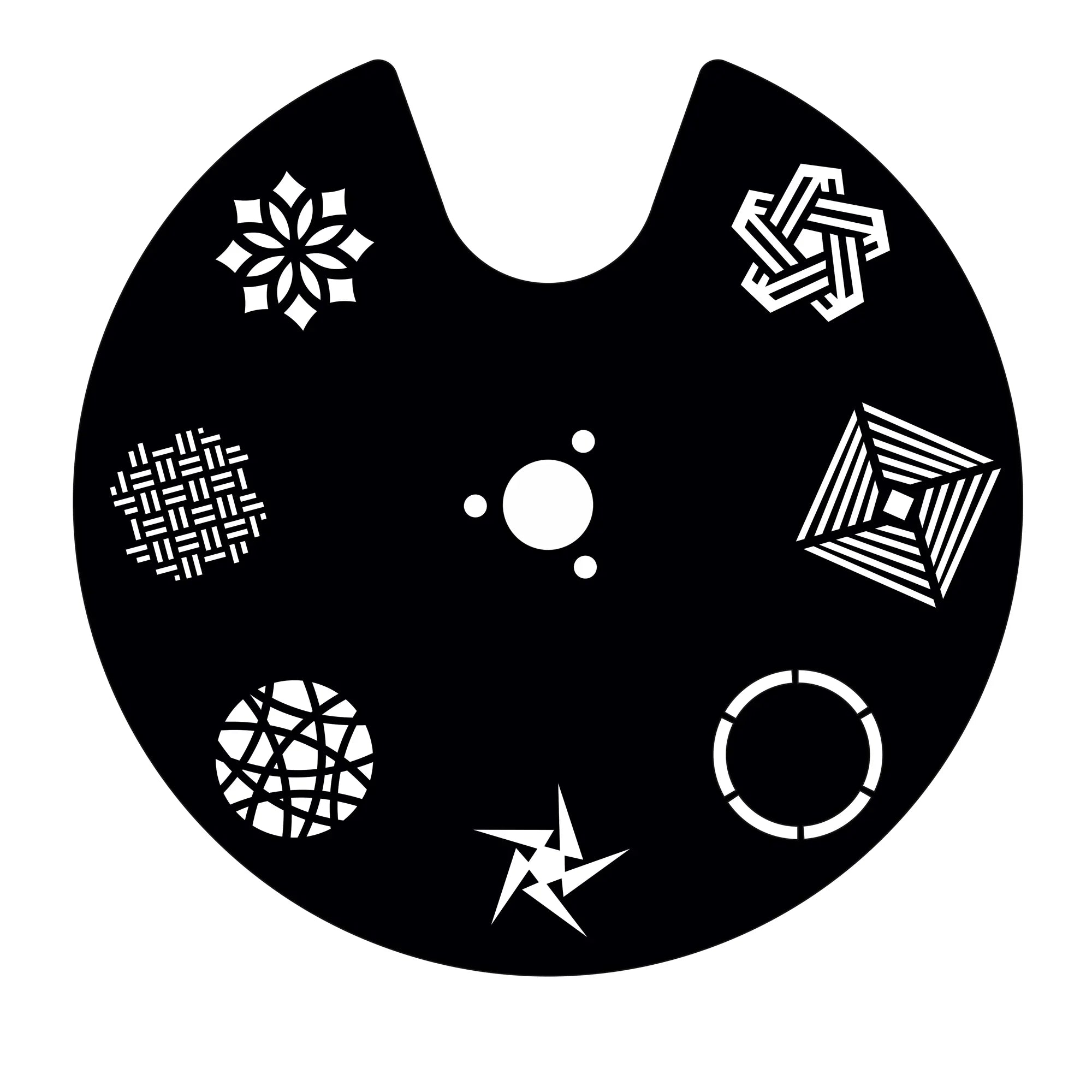

Gobo Wheel 1 7 + Open
Gobo Wheel 2 7 + Open
Gobo Size 24 mm
Image Diameter 20 mm
Movement
Pan 540 °
Tilt 245 °
Pan/Tilt Resolution 16-bit
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 245 W
Fuse 5 A

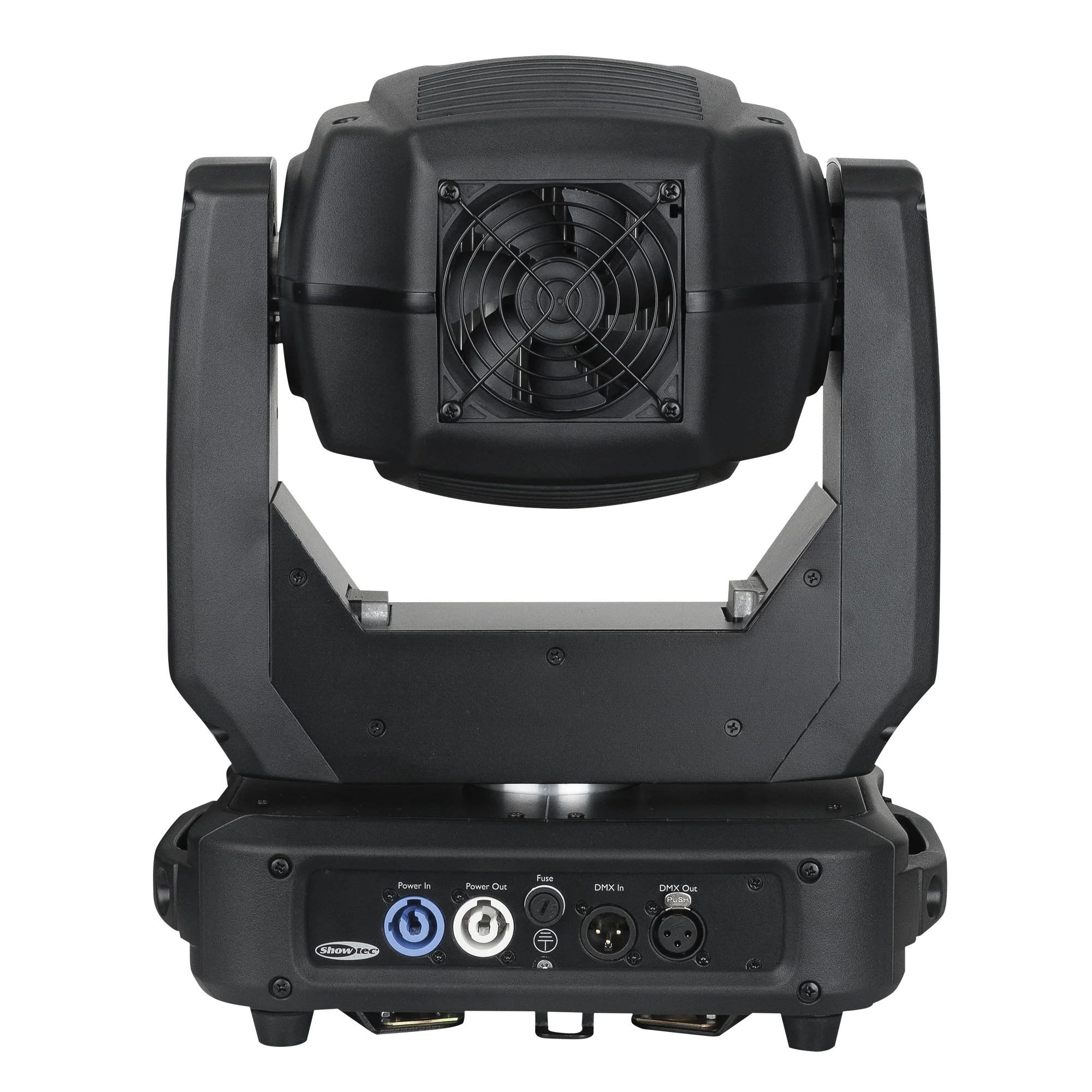

Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 321 mm
Width (mm) 211 mm
Height (mm) 462 mm
Weight 13 kg
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black
Product Properties Cooling
Axial fan Rigging
Mounting Options Quick-Lock
Thermal Specifications
Maximum Ambient Temperature 40 °C
Included Items Included Cables
powerCON cable
Included Rigging quick-Lock Bracket
