Description
The Pinspot Bar 4 is a high-output bar with 4 individual pin spots. This bar is lightweight, which makes it ideal for many different events and purposes. The included 20° beam shapers make the bar very suitable for highlighting buffets, displayed products, or pointing out tables.
This superb bar produces a bright, narrow 4.5° beam or a 20° wash of light output.

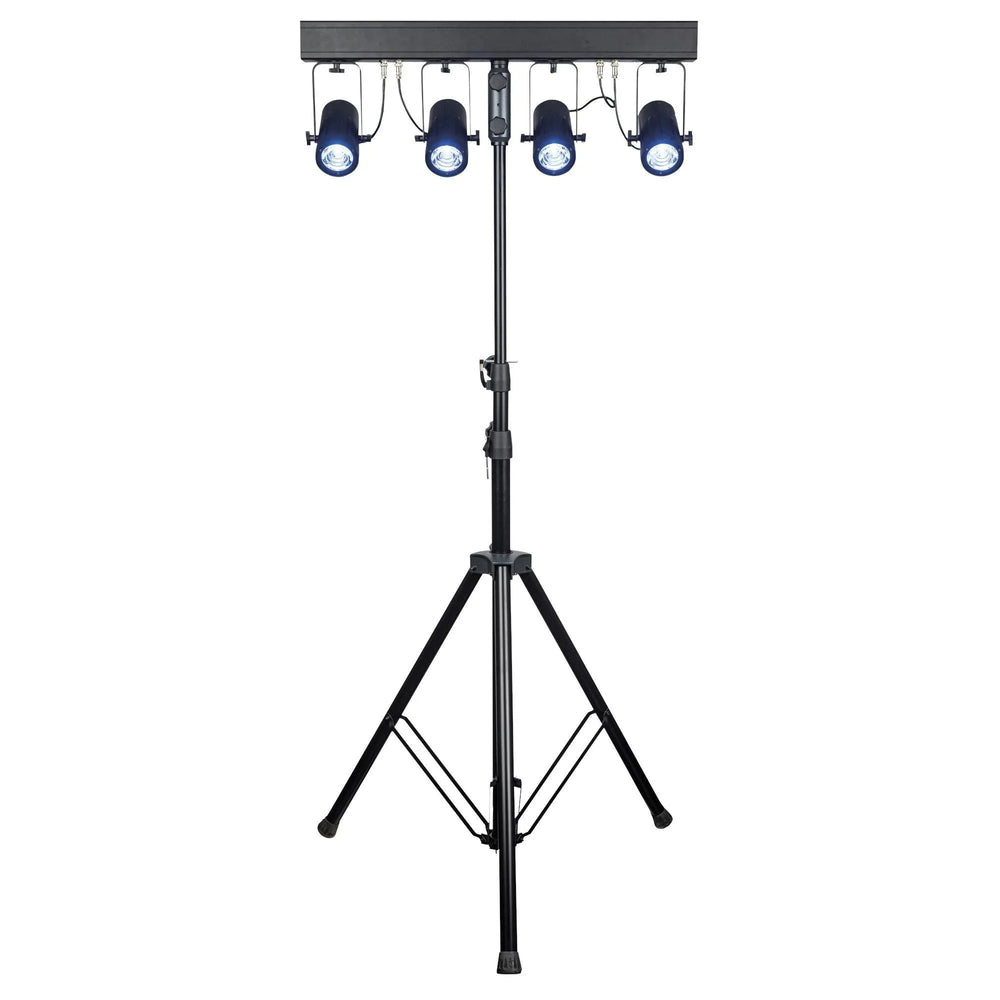

The T-bar can be placed on a stand with the included 28-mm spigot, or hanged on a truss with the included Quick-Lock brackets. Direct mounting of a clamp is possible as well thanks to the M10 thread holes.
You can easily setup each individual spot with the onboard controls. Just connect the main power of the bar and you are ready to go.
urce
Light Source Type LED
Light Source Quantity 4
Light Source Power 20 W
LED Colour Type R, G, B, W
Life Expectancy 50000 h
Optical
Beam Angle (Circular) 4 °
Beam Angle Max. (Circular) 20 °
Control and Programming
Control Mode Auto, DMX, Manual, Master Slave, Sound
DMX Channels 4, 5, 6, 8, 10, 16, 19
Protocols DMX, RDM
Display OLED
Dim Curve Linear, Square, I-Square, S-Curve
Dimmer Resolution 8 bit
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 90 W
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Mechanical Specifications
Height (mm) 278 mm
Width (mm) 800 mm
Depth (mm) 177 mm
Weight 6.5 kg
IP Rating IP20 (indoor use only)
Housing Aluminium die-cast
Colour Black
