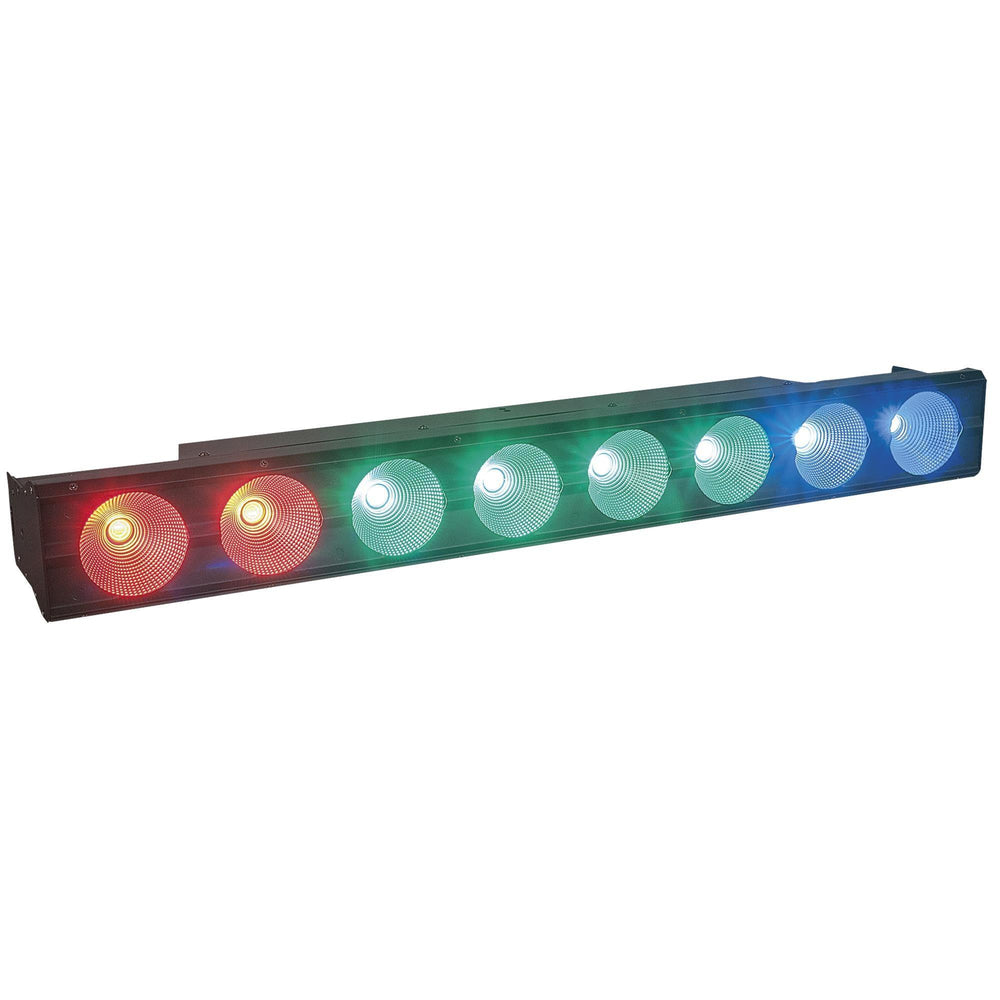

Showtec Pixel Bar 8 COB Indoor RGB light bar Batten
Product Description
The Pixel Bar 8 COB is a very powerful batten which uses the latest technology COB RGB LEDs.
Because of this new technology it is possible to achieve a very high light output with a wide beamangle, without getting a lot of uncomfortable glare. The advanced menu makes it possible to control the batten in different modes such as DMX, stand alone, music.
Source
Light Source Type LED
Light Source Quantity 8
Light Source Power 15 W
LED Colour Type RGB
Refresh Rate 7800 Hz
Luminous Flux (Total) 1050 lm
Optical
Beam Angle (Horizontal) 60 °
Beam Angle (Vertical) 60 °
Control and Programming
Control Mode Auto, Built-in Program, DMX, Master Slave, Sound
DMX Channels 2, 3, 5, 6, 12, 24
Protocols DMX
Display 7-segment
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 120 W
Power Connector In IEC
Power Connector Out IEC
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 735 mm
Width (mm) 110 mm
Height (mm) 85 mm
Weight 3.9 kg
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black
