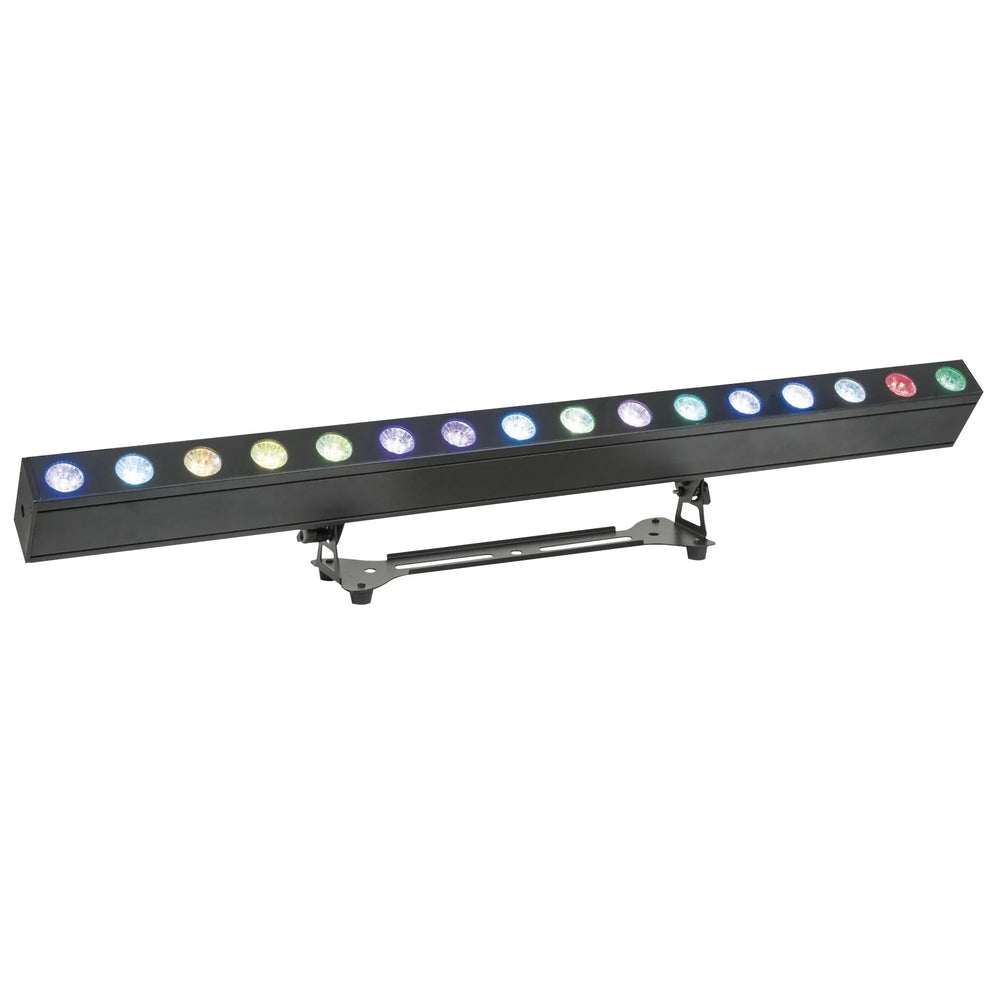

Showtec Pulse Pixel Bar 16 Q4 Indoor RGBW light bar Batten
Product Description
The Pulse Pixel bar is a luminaire fixture with individual 16x RGBW 4-in-1 Prolight Opto LEDs with a 20° beam angle and new, advanced optics. It is a compact wash fixture with a unique and distinctive design to illuminate large surfaces like curtains and walls. Features include full pixel control and selectable auto programs via the specially designed 4-button interface with OLED display. The bar is equipped with DMX (3-pin XLR) and Power Pro in- and output connectors. The fixture has an innovative bracket for easy floor placing and multiple rigging options.
Source
Light Source Type LED
Light Source Quantity 16
Light Source Power 5 W
LED Colour Type RGBW
Refresh Rate 2000 Hz
Illuminance @ 2 m 2405 lx
Luminous Flux (Total) 2405 lm
Optical
Beam Angle (Horizontal) 20 °
Beam Angle (Vertical) 20 °
Control and Programming
Control Mode Built-in Program, DMX, Master Slave, Stand Alone
DMX Channels 4, 6, 10, 64
Protocols DMX
Display OLED
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 58 W
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 960 mm
Width (mm) 130 mm
Height (mm) 185 mm
Weight 4.8 kg
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black
