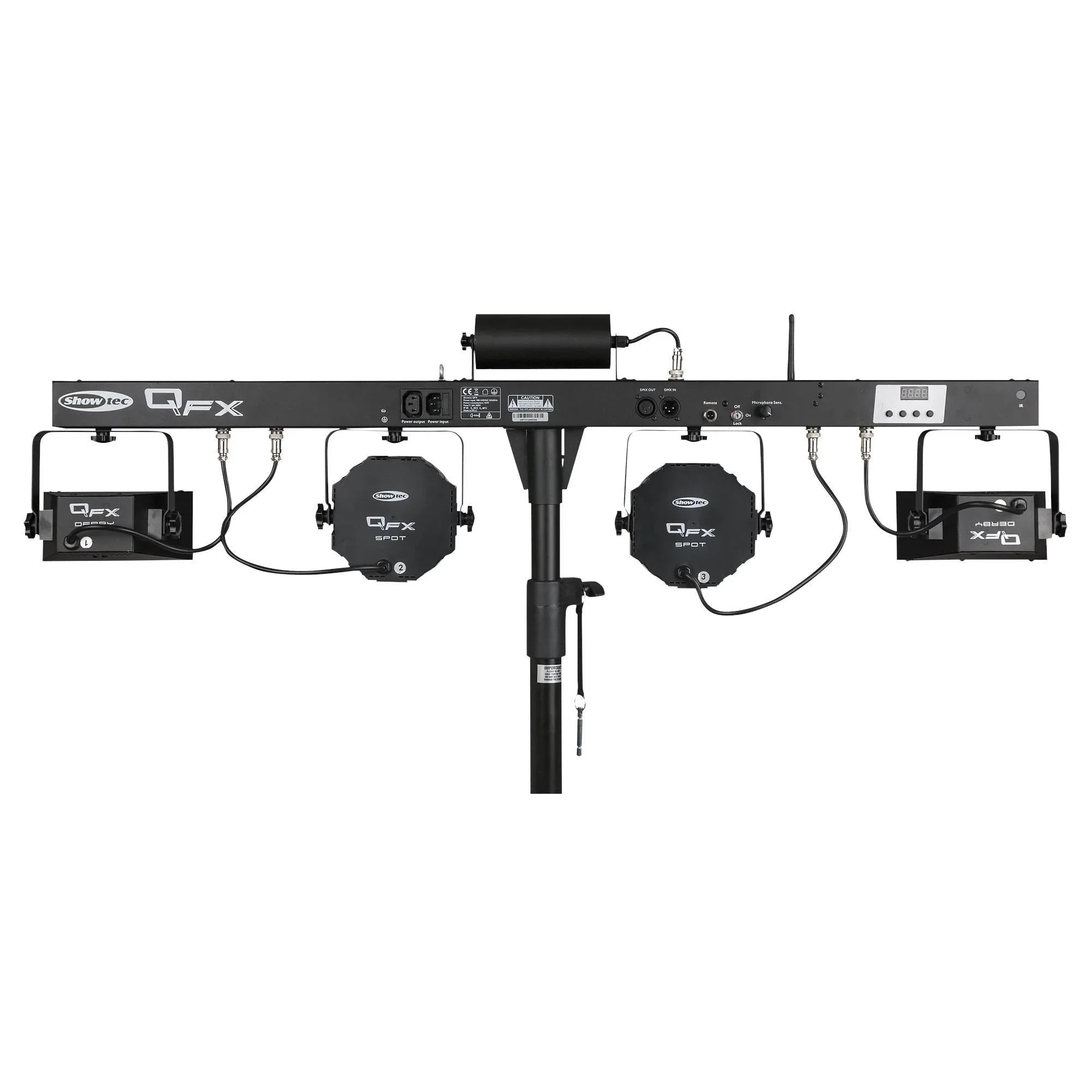

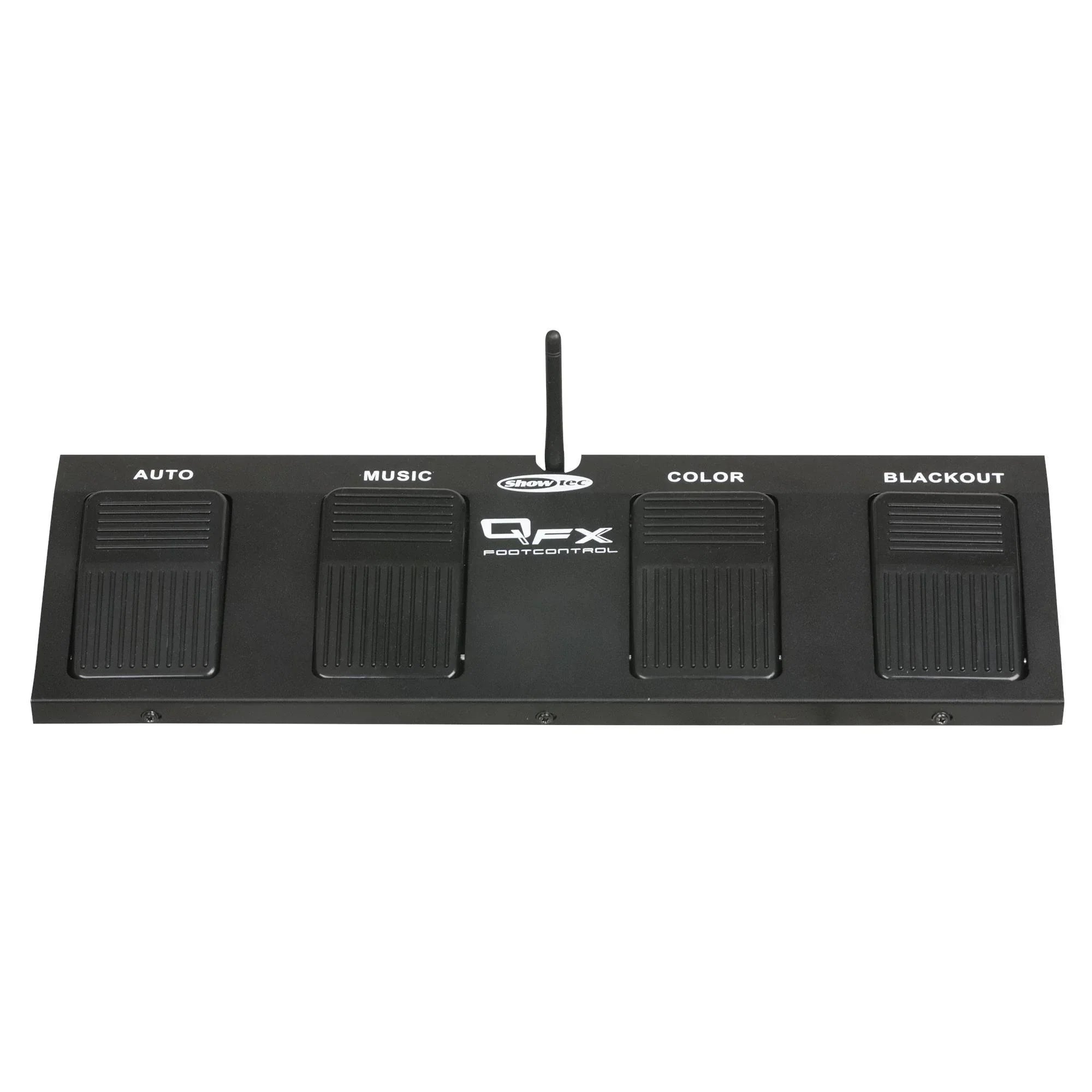

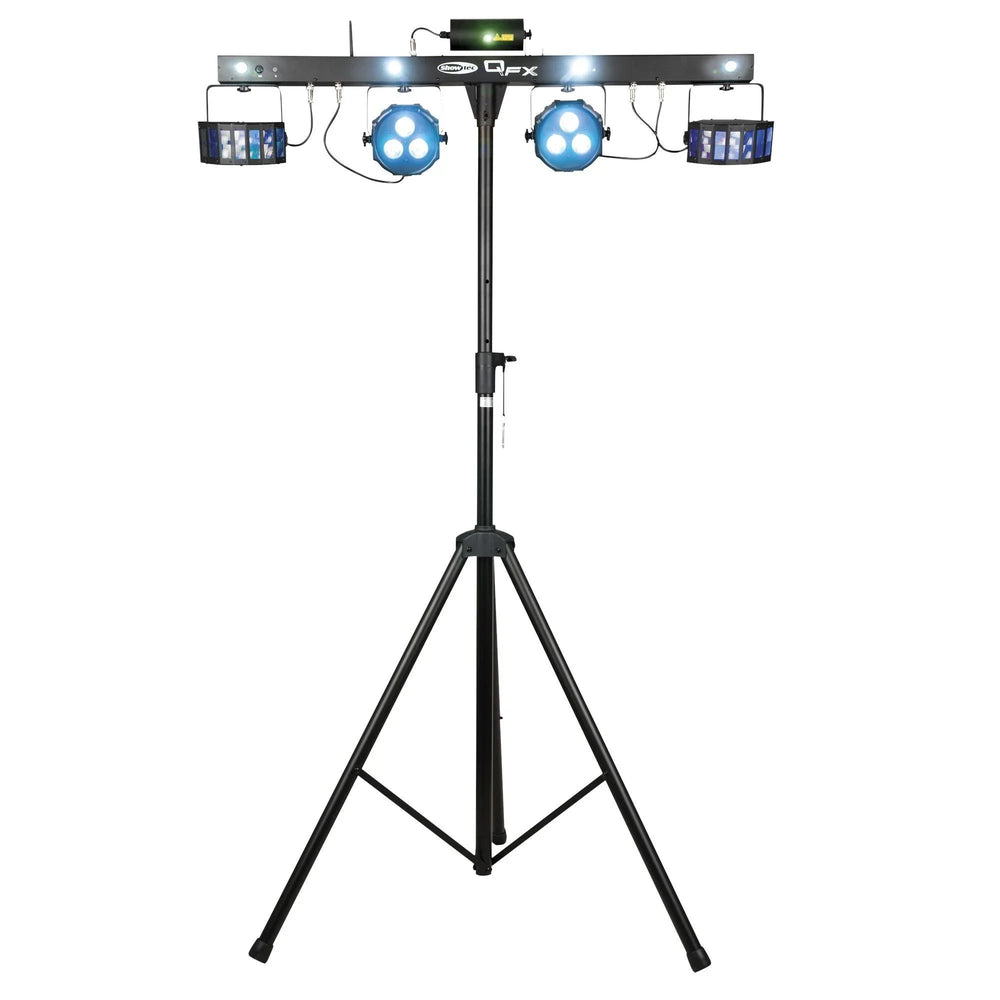

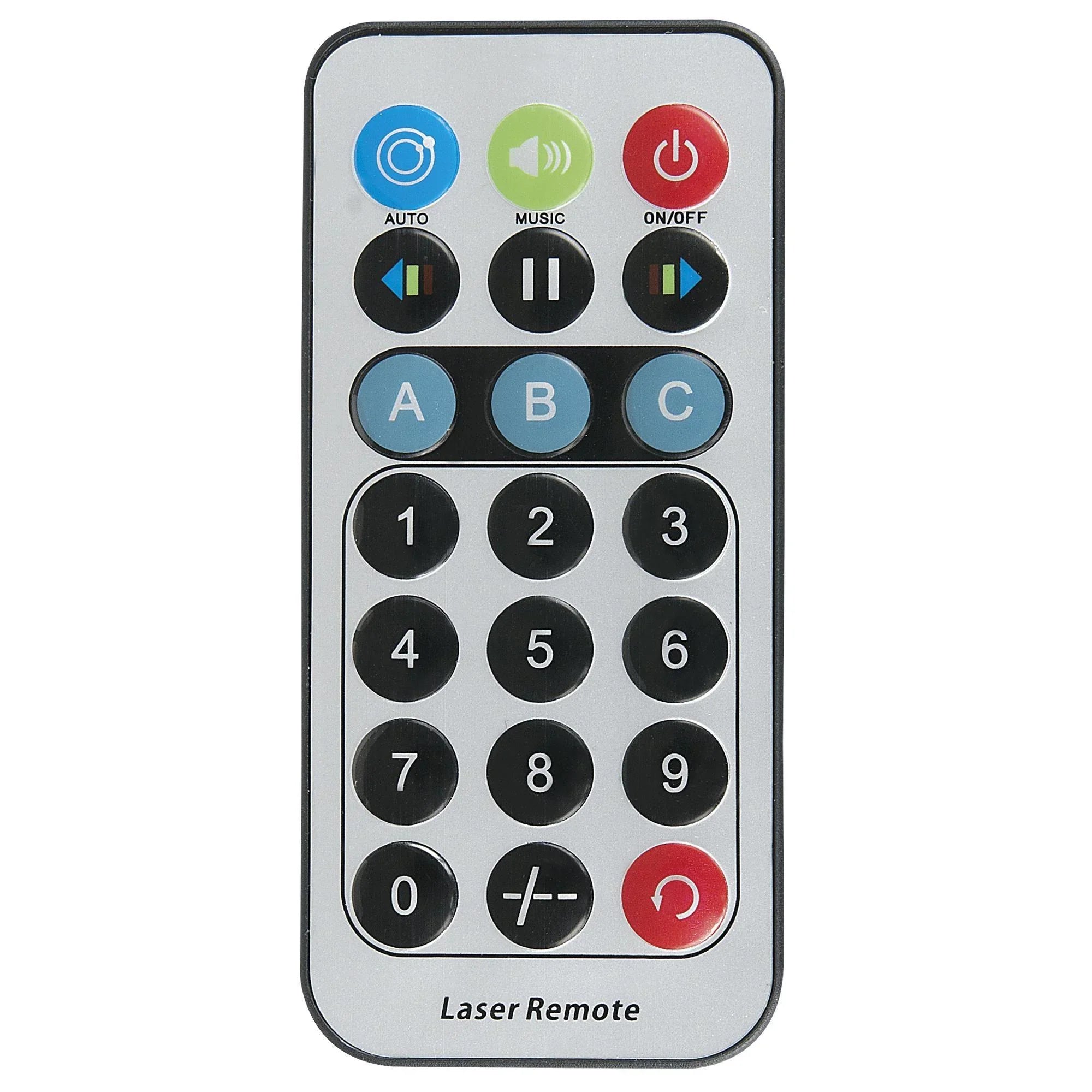

The Showtec QFX combines LED RGB spots, Derby fx, a Laser and a Strobe effect onto a single control bar. QFX maximizes convenience and ease of set-up and take-down for mobile entertainers who want to create a dynamic lighting experience for any event. The RG laser has many versatile grating & burst effects and is equipped with a key lock and remote interlock. The strobe has 4 sections with different preprogrammed patterns. The LED spot and Derby FX have RGB colours can be selected individually or in many preprogrammed combinations. The system is complete including a tripod stand, wireless footswitch, IR remote and carrying bags to protect the set during transport. The QFX controller bar features phenomenal built-in automated and sound-activated programs that include all 4 effects to make one complete show.
Attention, the laser only works when the interlock connector is connected with a remote interlock (ordercode 51316). You can test if the laser works properly with the included test connector. If you use the laser in public area's an remote interlock is necessary for safety regulations.
Light Source Type Diode, DPSS, LED
Light Source Quantity (Par) 6
Light Source Quantity (Effect) 6
Light Source Power (Par) 3 W
Light Source Power (Effect) 2 W
LED Colour Type RGB, White
LED Strobe Yes
LED Strobe Quantity 4
LED Strobe Power 4 W
Drive Current 0.95 A
Laser Class 2M
Laser Colour Red, Green
Laser Power (Total) 130 mW
Laser Power (Red) 100 mW
Laser Wavelength (Red) 650 nm
Laser Power (Green) 30 mW
Laser Wavelength (Green) 532 nm
Illuminance @ 2 m 1205 lx
Beam Angle (Circular) 24 °
Control and Programming
Control Mode Auto, DMX, IR, Master Slave, Sound
DMX Channels 3, 5, 9, 27
Display 7-segment, LED
Dynamic Effects Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 45 W
Power Connector In IEC
Power Connector Out IEC
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Height (mm) 378 mm
Width (mm) 1185 mm
Depth (mm) 110 mm
Weight 6.6 kg
IP Rating IP20 (indoor use only)
