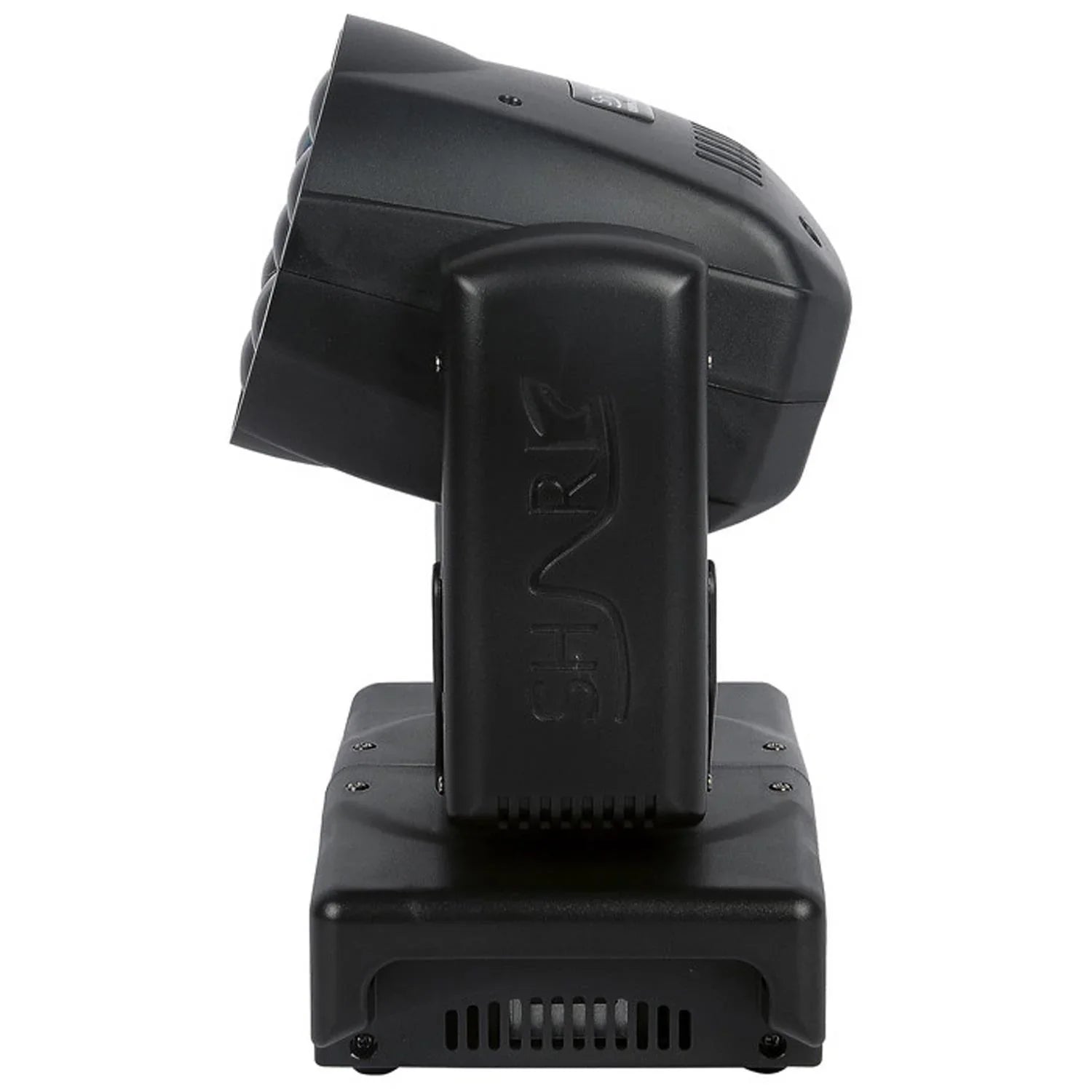

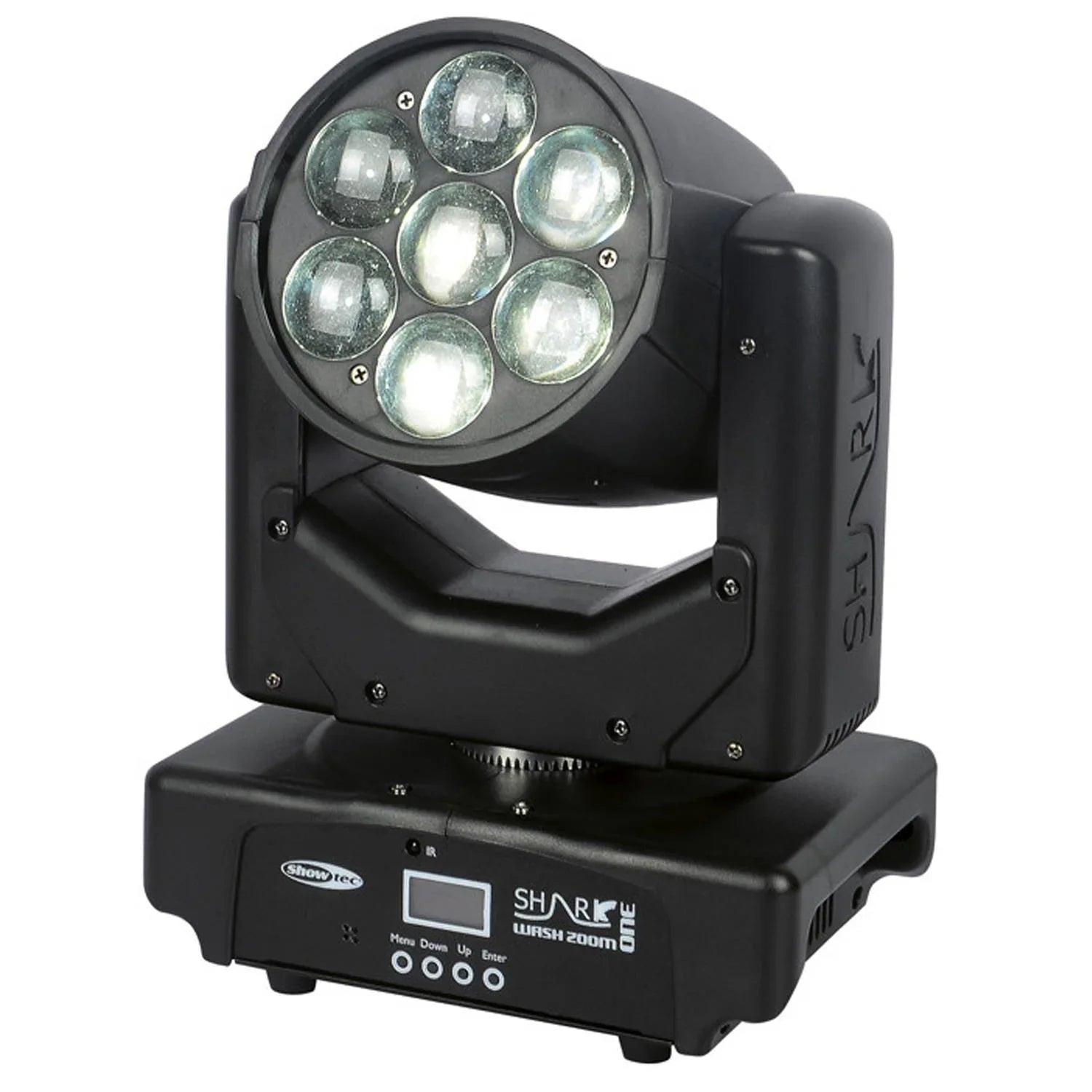

Showtec Shark Wash Zoom One 7 x 15 W RGBW LED Wash Moving Head
Product Description
The Showtec Shark Wash Zoom One is a compact and reliable 7 x 15 watt RGBW LED Wash Moving Head with a wide 6°–36° motorised zoom range, suitable for indoor venues. Its colour engine, 0–100 % dimmer and 0–20 Hz strobe effects are controllable via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode. Additionally, the Shark Zoom Wash One includes an infrared remote for wireless point-and-shoot control. With a single press on the button, you can activate Auto run and Sound-controlled programs, as well as other available features and effects.
Source
Light Source Type LED
Light Source Quantity 7
Light Source Power 15 W
LED Colour Type R, G, B, W
Illuminance @ 2 m 12569 lx
Illuminance @ 3 m 5586 lx
Illuminance @ 5 m 2011 lx
Luminous Flux (Total) 1081 lm
Luminous Flux (Red) 214 lm
Luminous Flux (Green) 489 lm
Luminous Flux (Blue) 128 lm
Luminous Flux (White) 569 lm
CRI 70
CCT N7200 K
Optical
Beam Angle Min. (Circular) 6°
Beam Angle Max. (Circular) 36°
Zoom Type Motorised
Zoom Minimum 6°
Zoom Maximum 36°
Control and Programming
Control Mode Auto, DMX, Master Slave, Remote, Sound
DMX Channels 8, 15
Protocols DMX
Display OLED
Dimmer Resolution 8 bit
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Movement
Pan 540°
Tilt 270°
Pan/Tilt Resolution 16-bit
Electrical Specifications and Connections
Power Supply 100-240 VAC 50-60 Hz
Power Consumption 80 W
Fuse 2 A
Power Connector In IEC
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 215 mm
Width (mm) 145 mm
Height (mm) 300 mm
Weight 4.3 kg
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black
