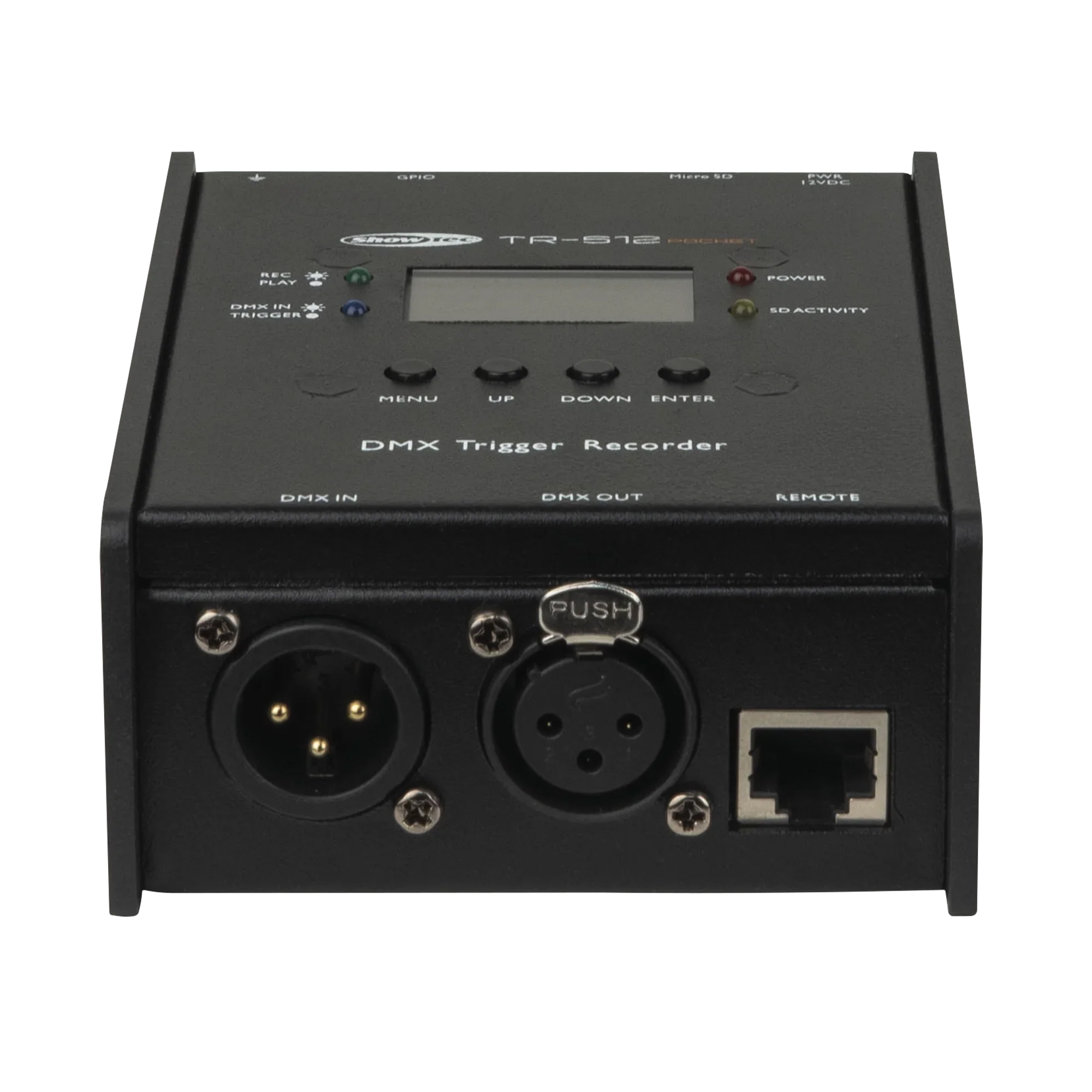

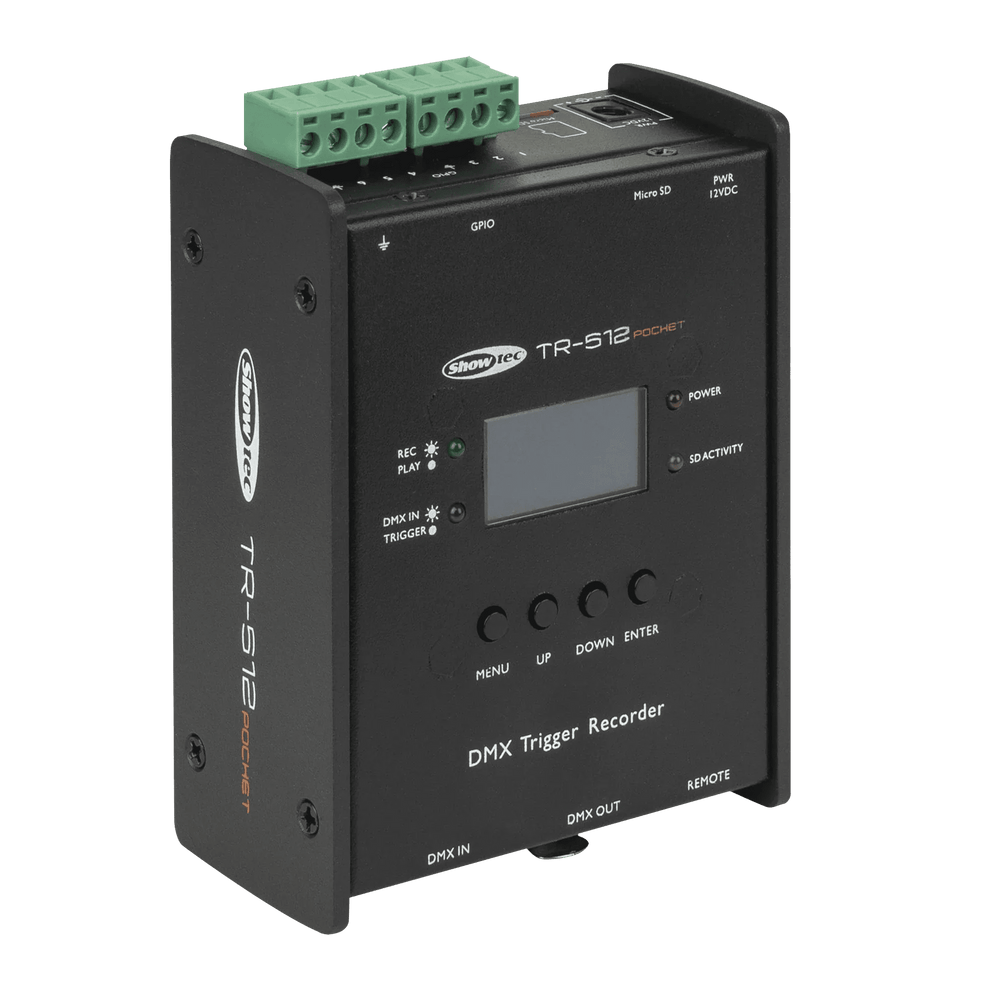

Showtec TR-512 Pocket DMX Trigger/Recorder
Product Description
The Showtec TR-512 Pocket is a compact DMX Recorder/Playback unit that can trigger your light show in an uncomplicated way.
The TR-512 Pocket can record and playback several shows, which are stored on the included micro-SD card. The card is big enough to hold shows lasting 24 hours. Each show can be played in loop mode or single play. An auto start on power-up or delayed start can be set. There are 6 GPIO pins available to start or stop your shows using external triggers, like regular switches, relays, motion detection sensors, et cetera.
Bidirectional communication with the dedicated Wall Panel Remote for TR-512 (order codes 50827, 50828) can be set up via the RJ45 terminal using regular CAT5 cable. The TR-512 Pocket is the right product for triggering your shows or scenes in theme parks, museums, shops, and other system integration projects.
Please note that this TR-512 Pocket is NOT suitable for the TR-512 Wallpanel (order code 50824).
Server Specifications
Memory Type SD-Card
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz (Power adapter)
Power over Ethernet (PoE) No
Power Consumption 6 W
Power Connector In Low Voltage DC plug
DMX Connector XLR 3P In/Out
Data Connector In RJ45
Power Adapter
Adapter type AC-DC adapter
Input voltage 100-240 V AC, 50/60 Hz V
Output voltage 12 V DC
Mechanical Specifications
Length (mm) 115 mm
Width (mm) 85 mm
Height (mm) 45 mm
Weight 0.45 kg
IP RatingIP20 (indoor use only)
Housing Metal
Colour Black
Product Properties
LED Indicators Operation mode, Power, Signal
Thermal Specifications
Maximum Ambient Temperature 40 °C
Control and Programming
Control Mode DMX, GPIO, Manual, Remote
DMX Channels 512
Protocols DMX
Display OLED
Universes 1
