Showtec Typhoon 640 6x RGBW LED mirror ball light effect
Product Description

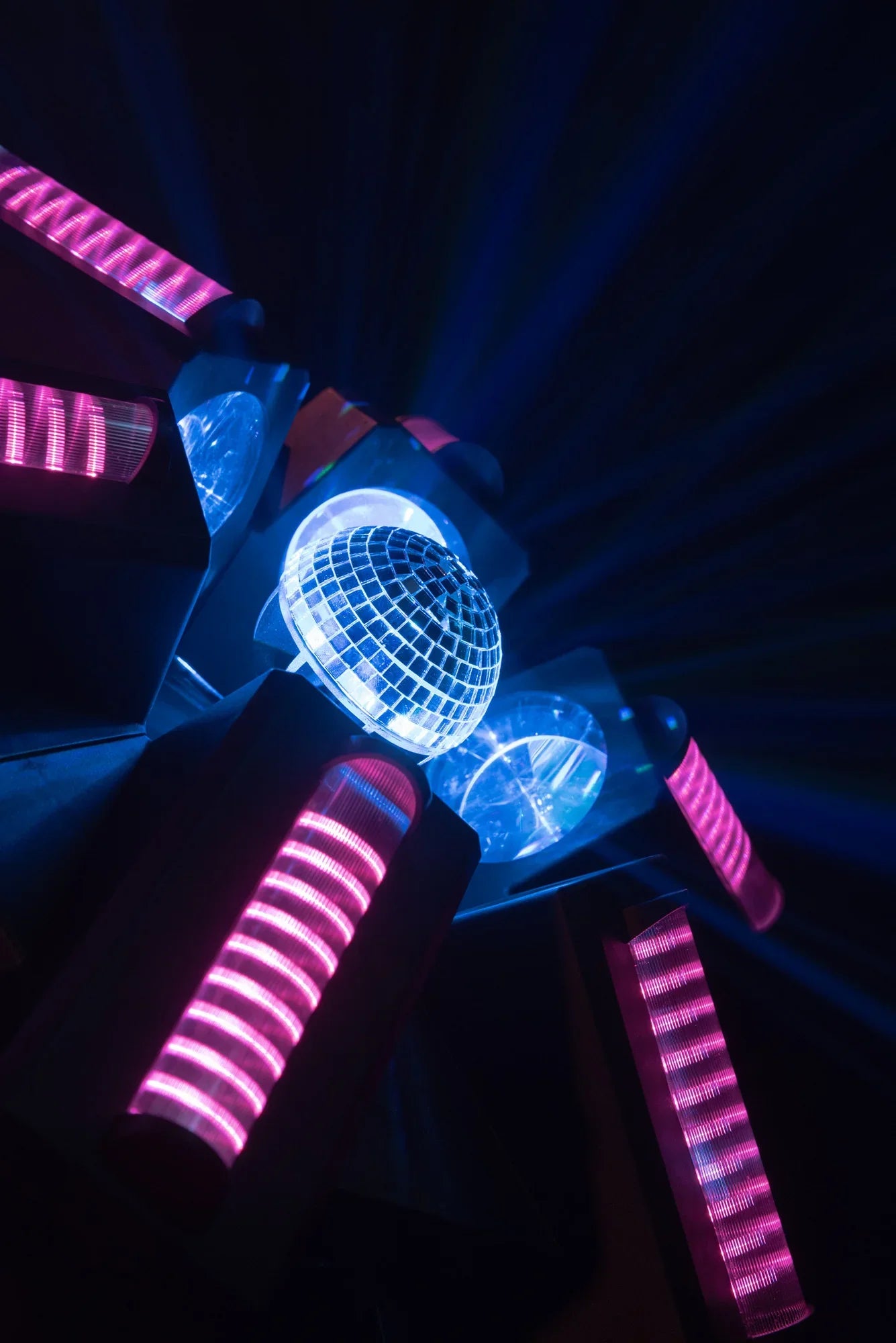

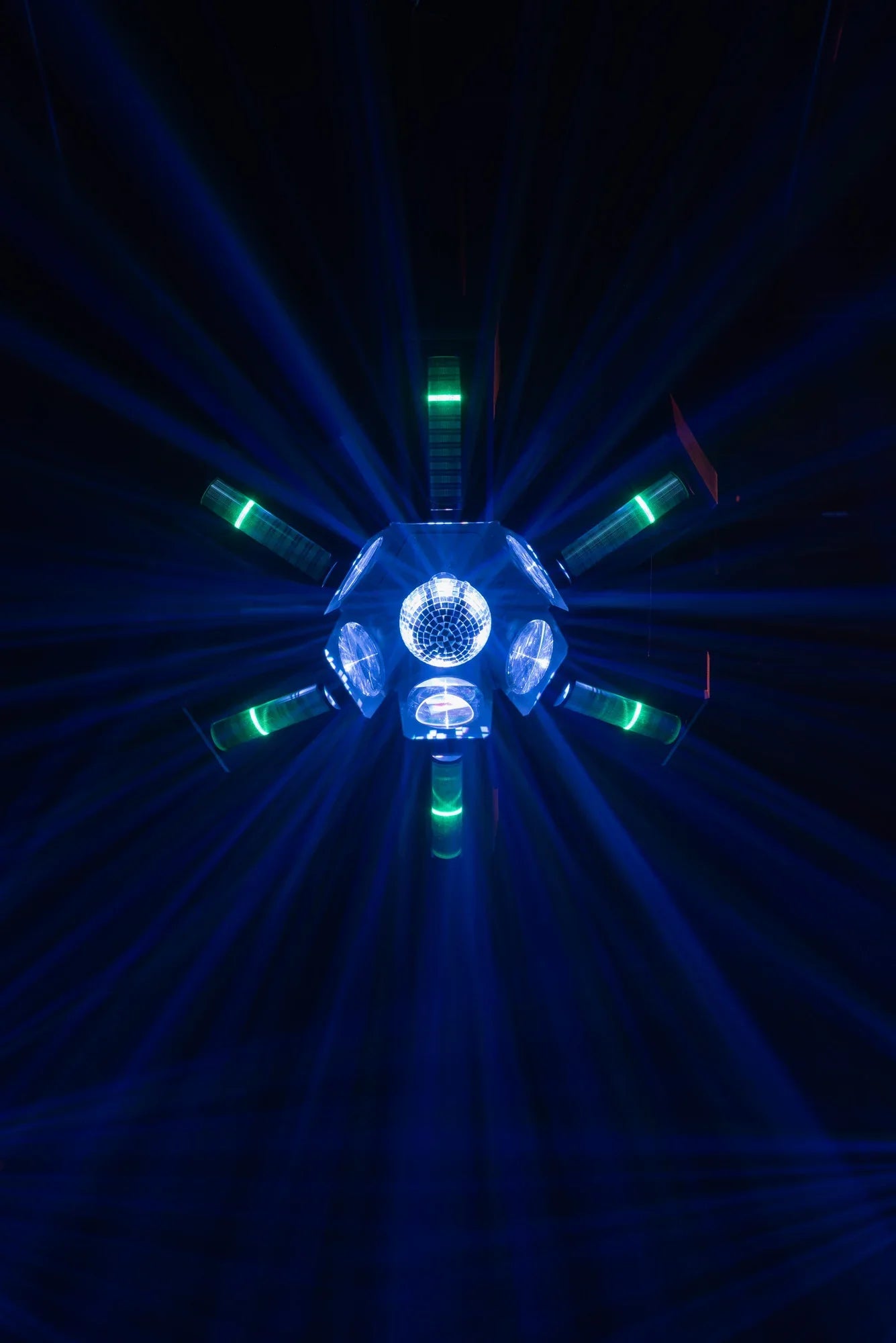

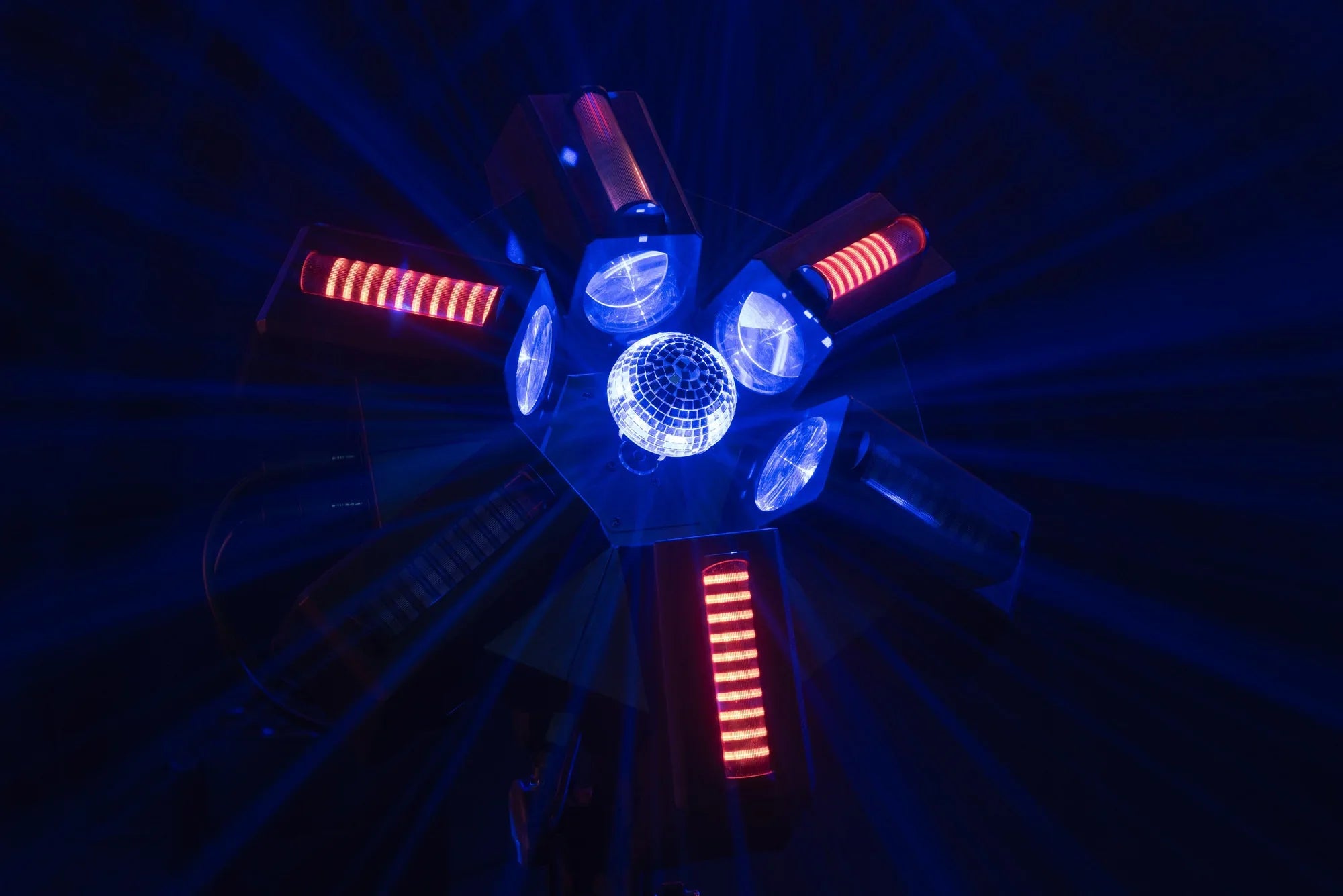

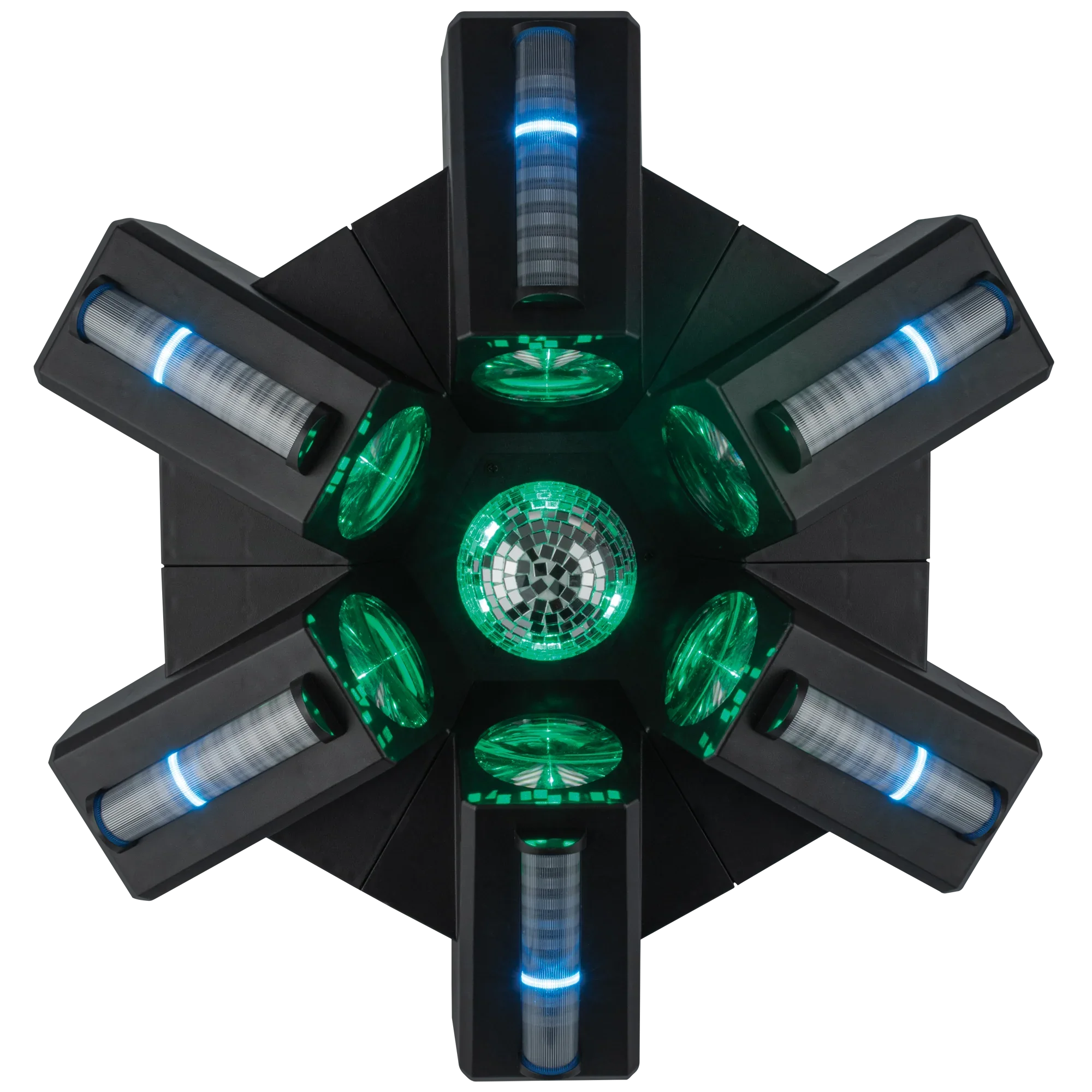

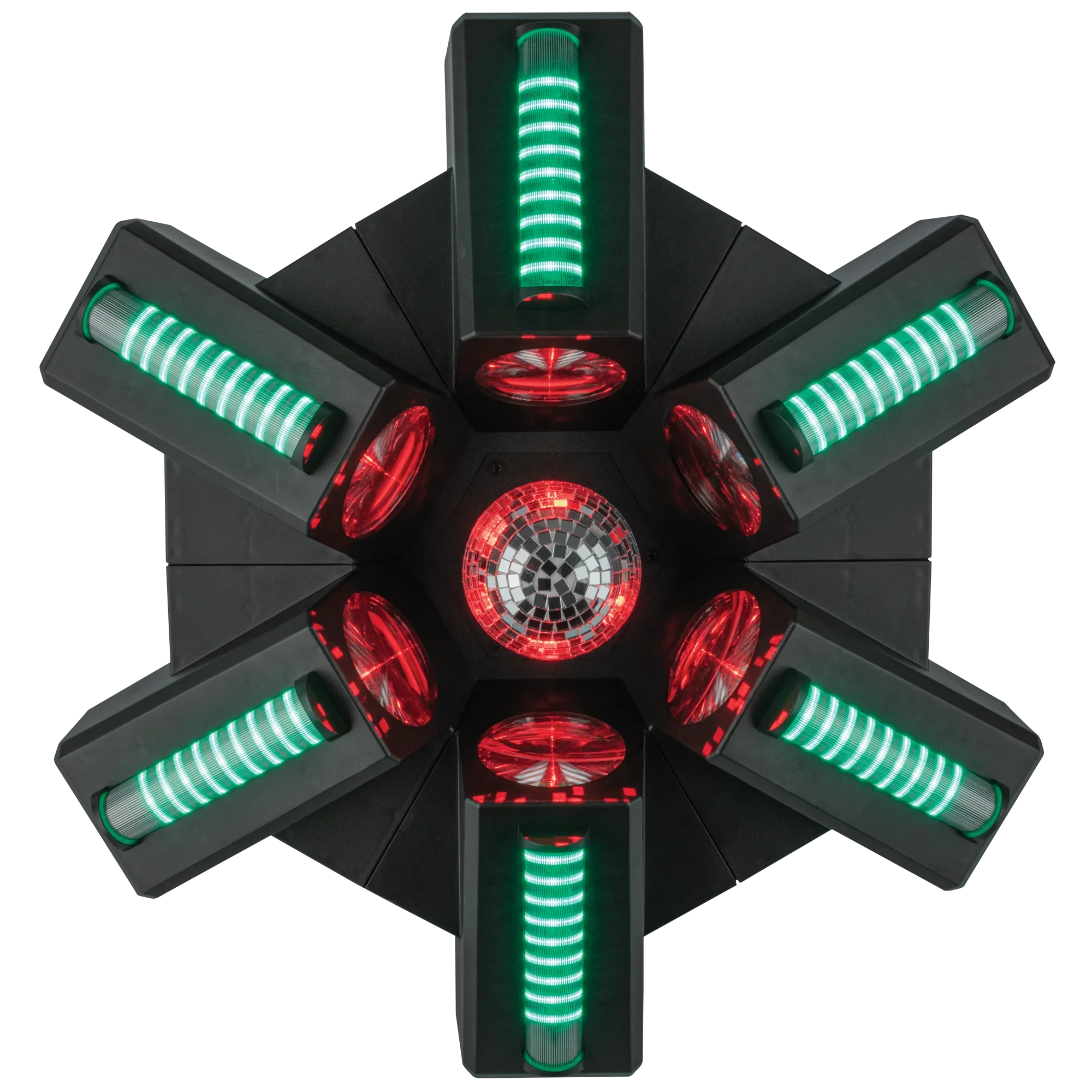

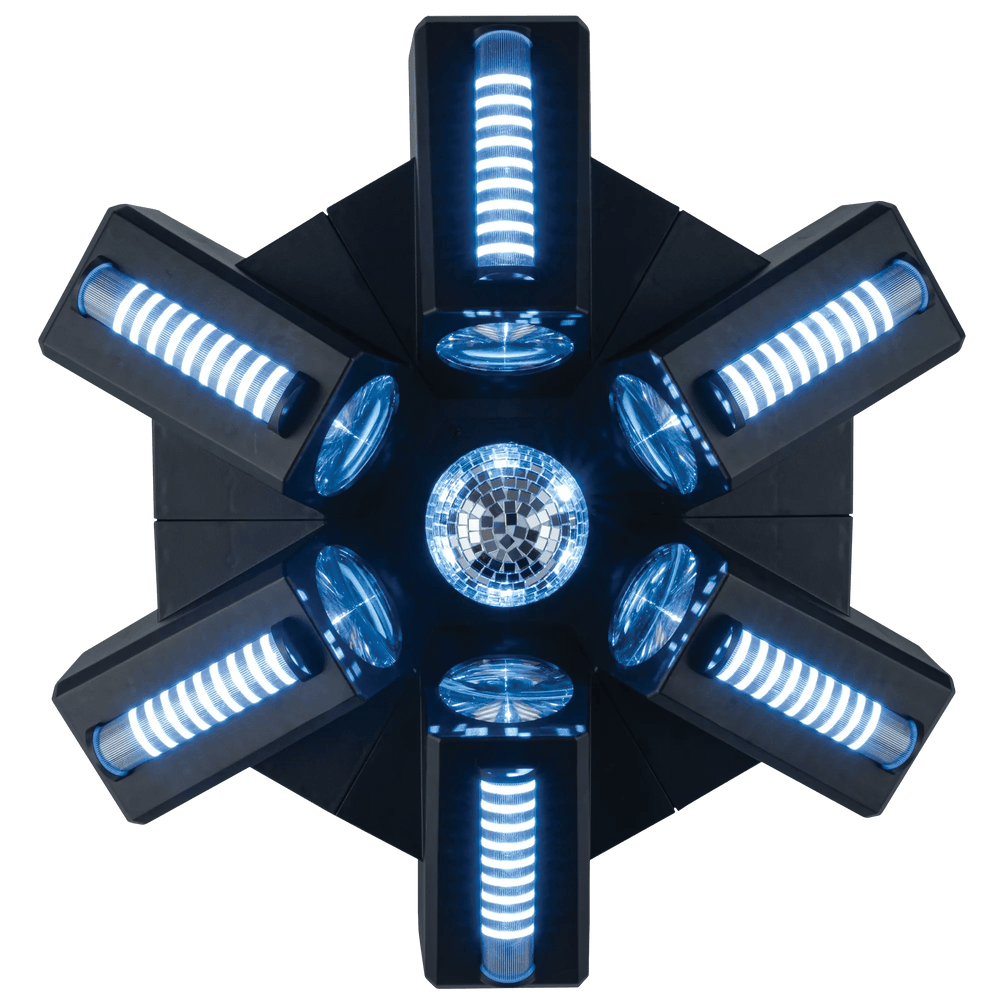

The Showtec Typhoon 640 is a unique lighting effect that uses six circular 40W RGBW LEDs pointing inwards towards a centrally positioned rotating half mirror ball. The six RGBW LEDs can be controlled individually and the speed and direction of the half mirror ball can be controlled to create unique, colourful mirror ball patterns. Each of the six RGBW LED housings also contains an RGB LED effect strip, which can be individually controlled, but can also display different shows that can be selected to display entertaining patterns and effects. It is convection cooled for low noise.

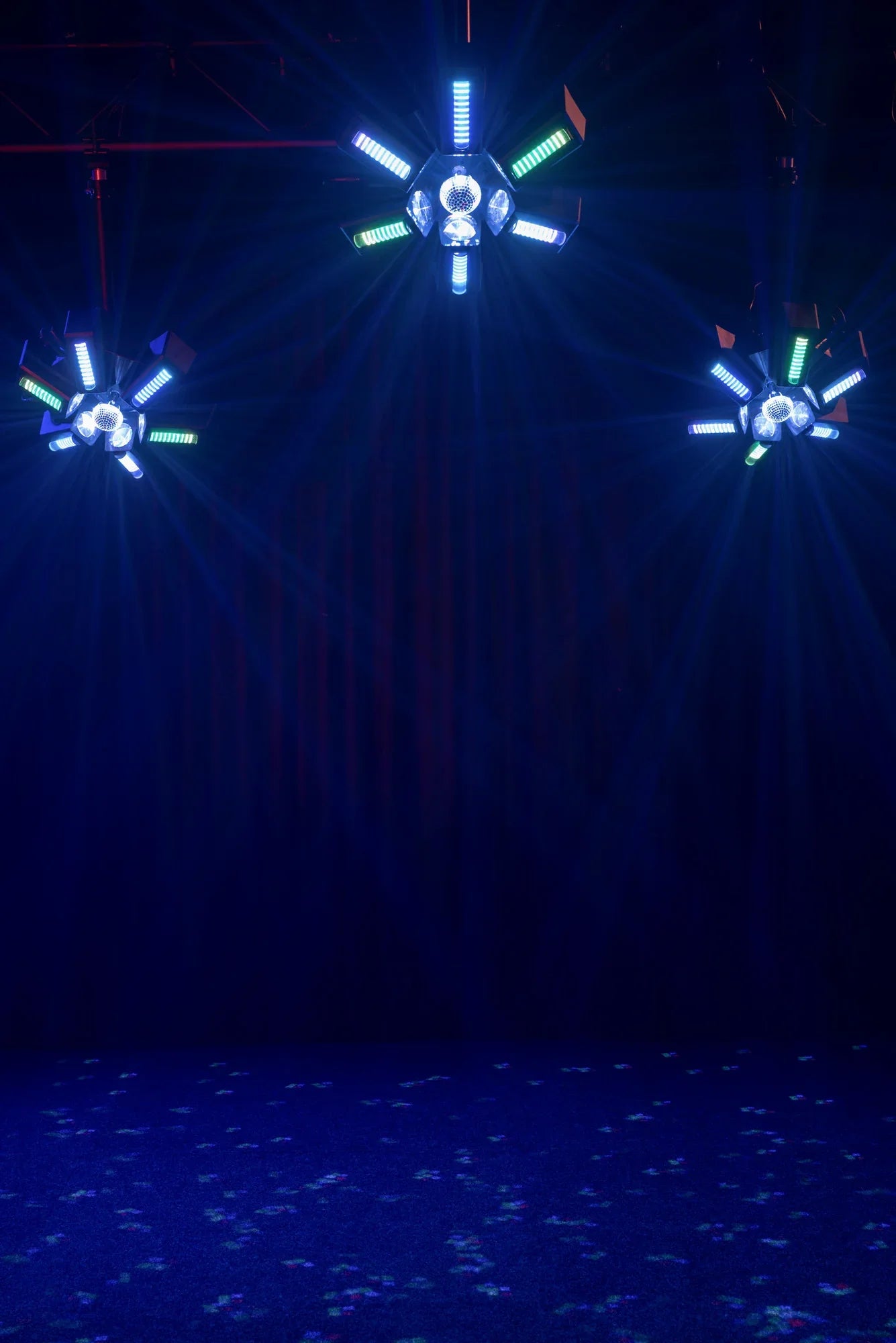

The Typhoon 640's low profile and wide beam angle make it ideal for rooms with low ceilings, but it can also be mounted vertically (or at any other angle) for creative effects and dazzling mirror ball twinkles. It has 4-, 16-, 31-, 36- and 51-channel DMX modes, but can also run stand-alone and sound-activated.
Source
Light Source Type LED
Light Source Quantity 6
Light Source Quantity (Effect) 60
Light Source Power 40 W
Light Source Power (Effect) 0.3 W
LED Colour TypeRGB, RGBW
Optical
Beam Angle (Circular) 160 °
Control and Programming
Control Mode
DMX, Manual, Master Slave, Sound
DMX Channels 4, 16, 31, 36, 51
ProtocolsDMX

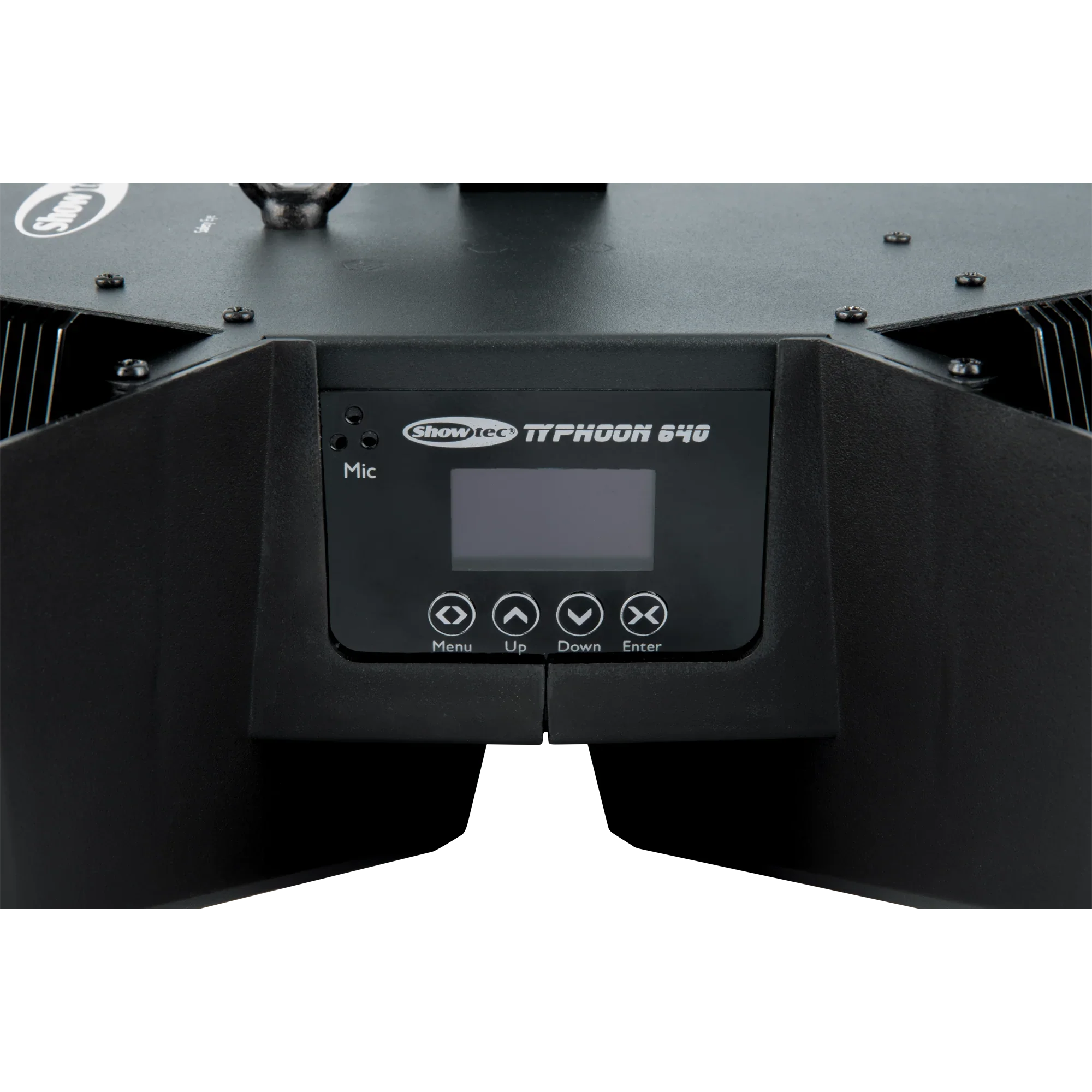

Display OLED
Electrical Specifications and Connections

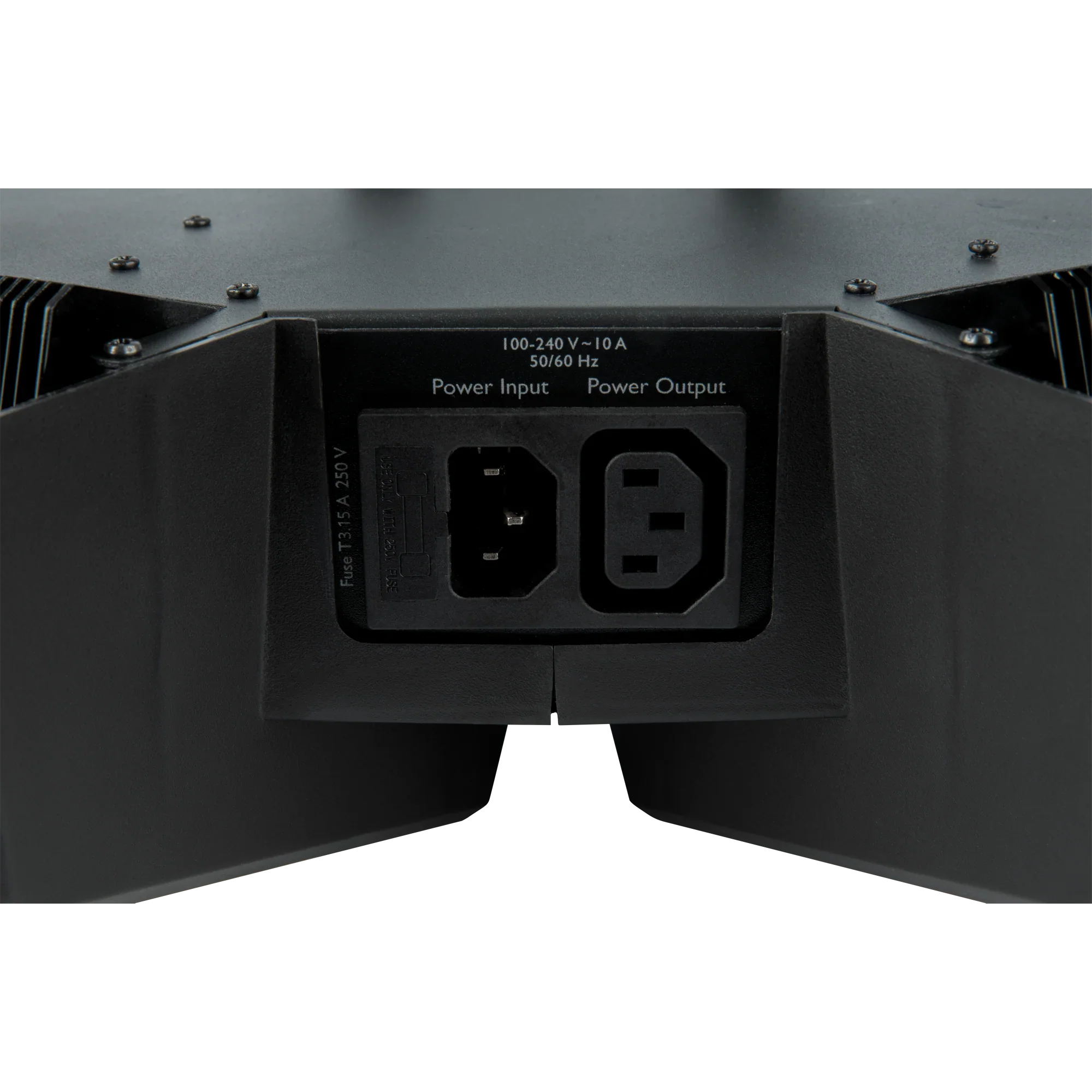

Power Supply 100-240 V AC 50/60 Hz
Power Consumption 138 W
Power Connector In IEC
Power Connector Out IEC
Fuse 3.15 A

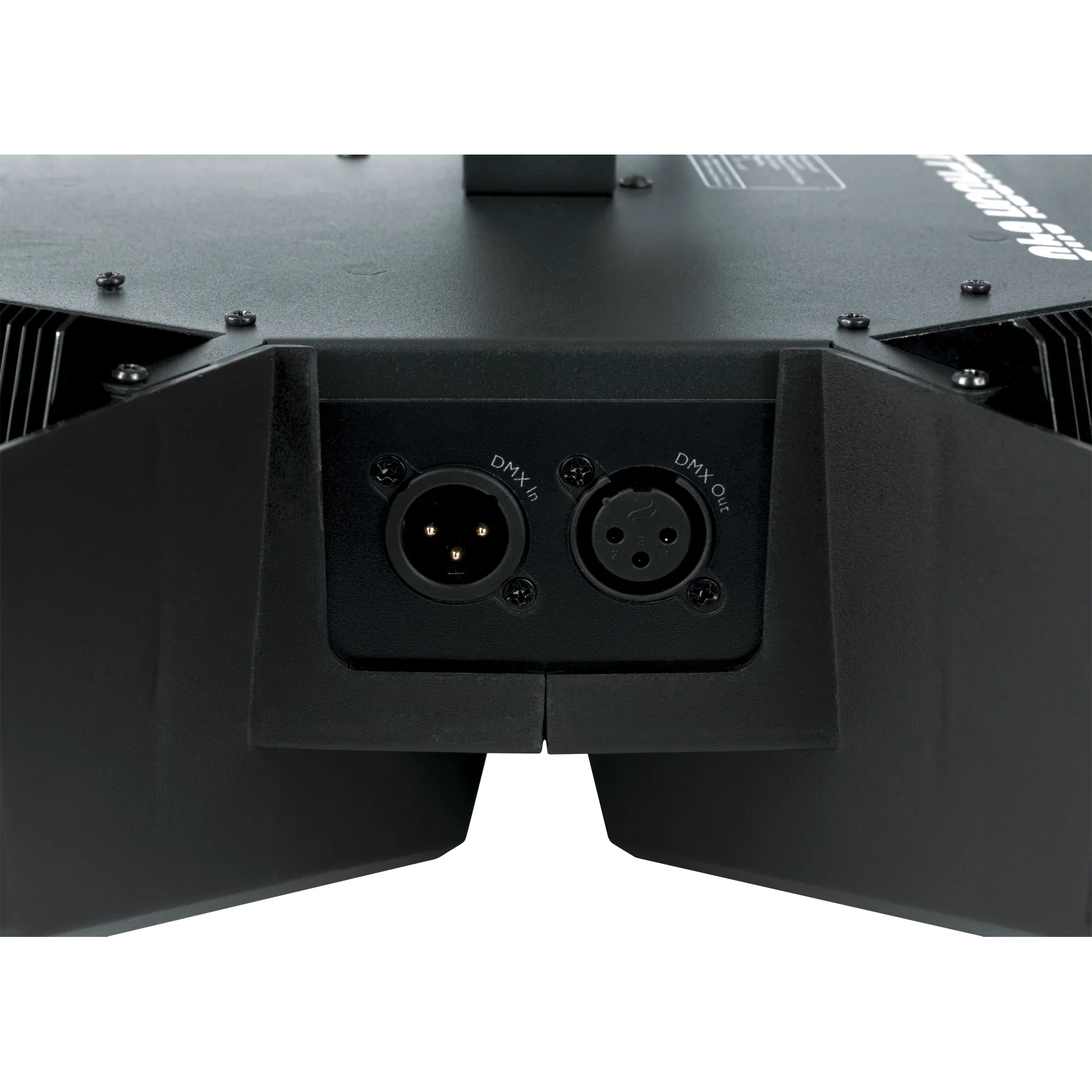

DMX Connector XLR 3P In/Out
Mechanical Specifications
Height (mm) 219 mm (8.622″)
Width (mm) 452 mm (17.795″)
Depth (mm) 431 mm (16.969″)
Weight 4.8 kg (10.582 lb)
IP Rating IP20 (indoor use only)
Housing ABS, Metal
Colour Black
Product Properties
Cooling Convection
Rigging

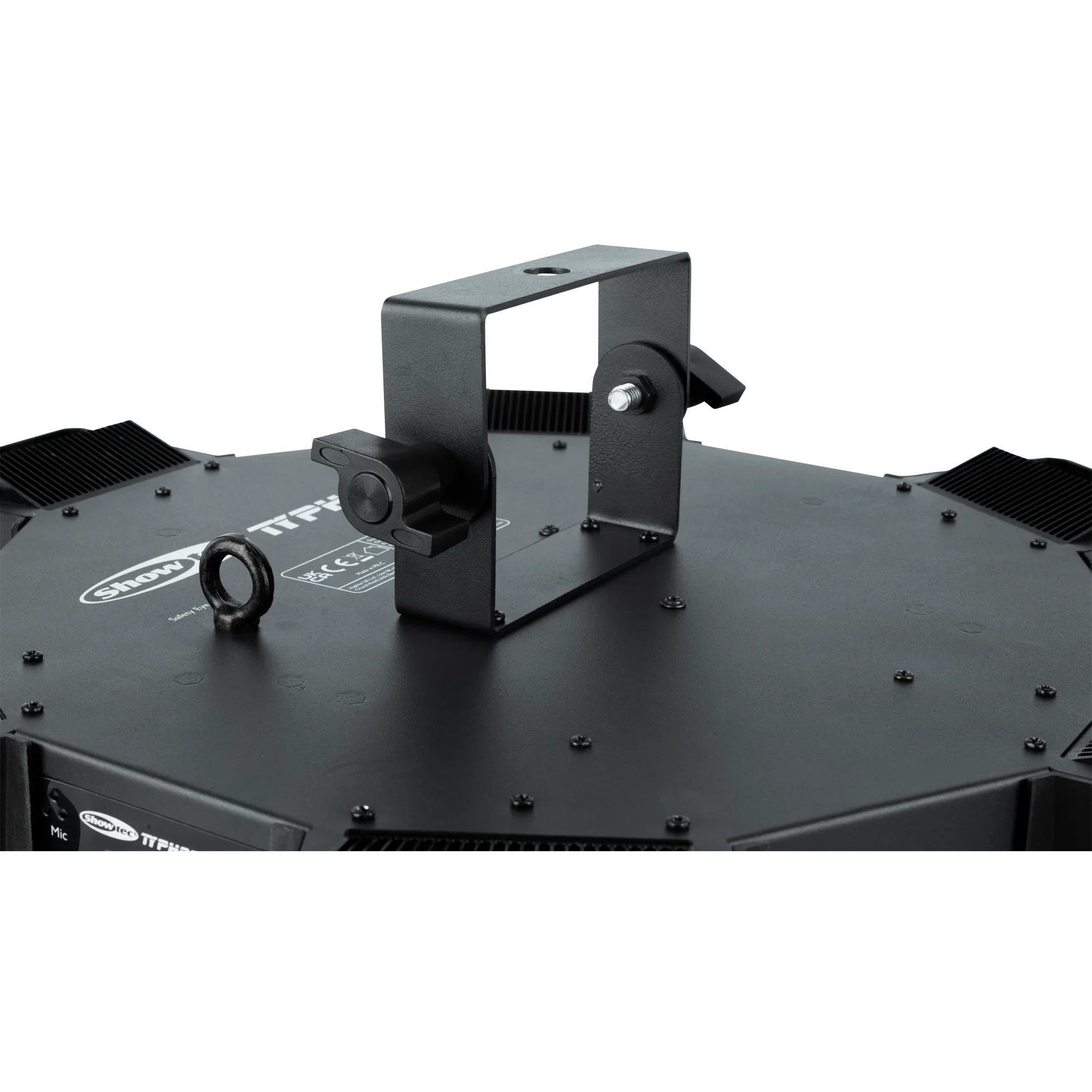

Mounting Options Bracket
Thermal Specifications
Maximum Ambient Temperature 45 °C (113 °F)
Included Items
Included Cables IEC cable
