Description

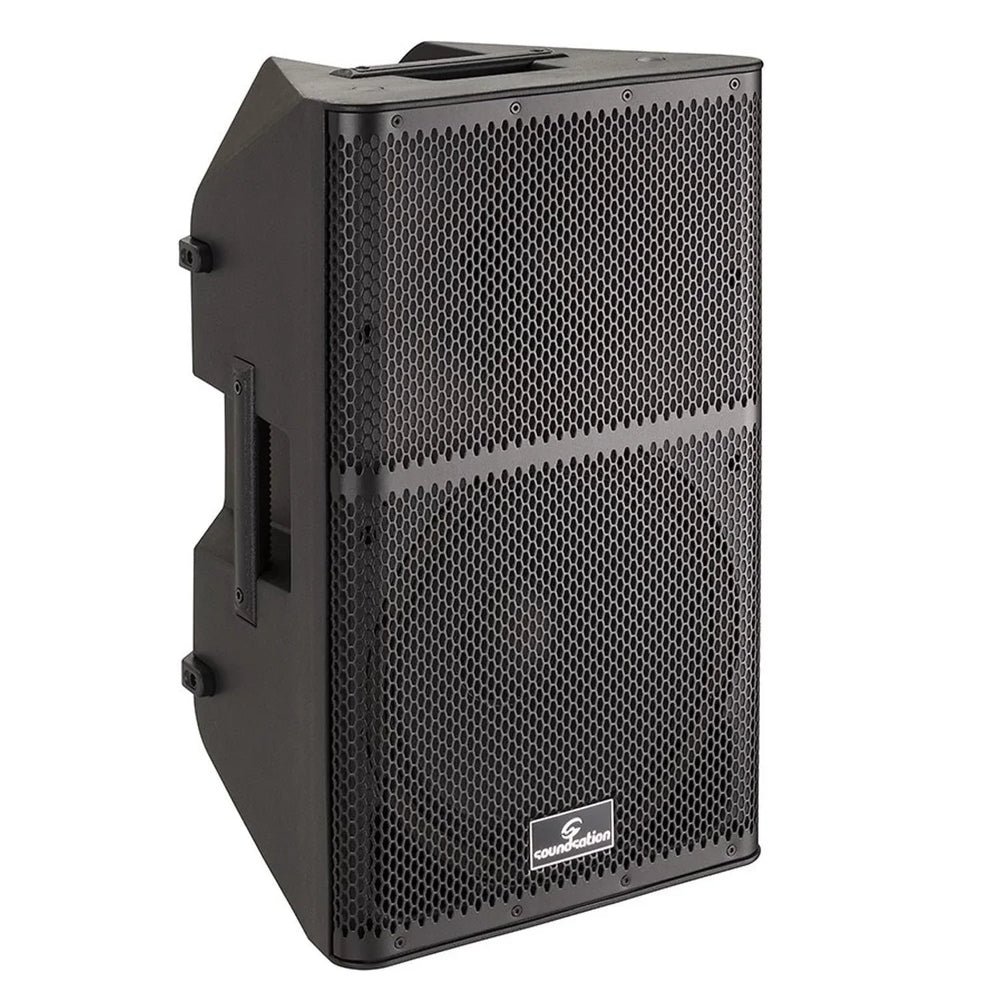

The Bi-Amplified Active speakers of the HYPER-PRO ACX series are part of the high range of SOUNDSATION Pro Audio products. Peak powers of 1600 W and 1800W respectively for 12“ and 15” models, selected transducers, CELESTION® compression drivers, powerful DSP: all the ingredients cleverly combined to offer the best even to the most demanding professionals. HYPER-PRO ACX series 12” and 15” woofers sound punchy and loud; the 1.4” driver lets them sound crystal clear. Sound control via the DSP is really simple. By pressing the PRESET switch you can choose between 4 audio programs (LIVE, DJ, SPEECH, MONITOR); the character of the sound will change and the corresponding LED will show the selected mode. The rear panel, organized in a very simple way and with separately controllable inputs, allows the choice of devices to be connected as a microphone, a mixer, an instrument, a CD player, a smartphone etc. In the three panel sections, input levels can quickly be set with gain controls independently of each other.
- Bi-Amped Active Speaker
- 1600W Peak Power
- Amplifier: Class-D (low-frequencies); Class-AB (high-frequencies)
- Celestion® 1.4" Compression Driver
- 4-Preset DSP (Live, DJ, Speech, Monitor)
- Balanced MIC / Line XLR input with Thru XLR output, Line Stereo input with 2x ¼ "jack, Stereo input with Mini-Jack and RCA, all with independent level controls
- Link output with Mono / Stereo selection
- Blue Front LED with On/Off Switch
- Sturdy Polypropylene Enclosure with black anti-scratch paint
- Flyable: 3 x M10 (2 on Top, 1 on Rear)
- Handles: 1 on top, 2 on sides
- Dual pole mount: Standard 36 mm, 0° and 7°
- Frequency Response: 50Hz - 20kHz / -10dB
- Max SPL: 134 dB
- Low-freq. Transducer: 12" Woofer
- High-freq. Transducer: Celestion® 1.4" Compression Driver
- Coverage: 90° x 90°
- Low-Frequency Amplifier: Class-D 350W RMS - 1400W Picco
- High-Frequency Amplifier: Class-AB 50W RMS - 200W Picco
- AC Mains: 100-120VAC/220-240VAC
- Power Consumption (Average/Peak): 800W / 1600W
- Fuse: T6.3AL 250V (100-120V) / T3.15AL250V (220-240V)
- DSP: 4 preset (Live, DJ, Speech, Monitor)
- Input Connections: 1x XLR connector, 2x 63mm Jack, 1x Mini-Jack, 1x RCA Pair
- Output Connectors: 1x XLR Thru Output (Input 1), 1x XLR Link Output with Mono/Stereo selection
- Housing Material: Polypropylene
- Grille: Steel/1.2mm
- Flyable: 3 x M10 points (2 on top, 1 on rear)
- Handles: 2 on sides; 1 on top
- Dual tripod/pole hole: Standard D36mm, 0° and 7°
- Speaker Size (WxHxD): 362 x 597 x 347 mm
- Packing Size (WxHxD): 405 x 645 x 395 mm
- Speaker Weight: 15.5 kg
- Carton Weight: 17 kg
