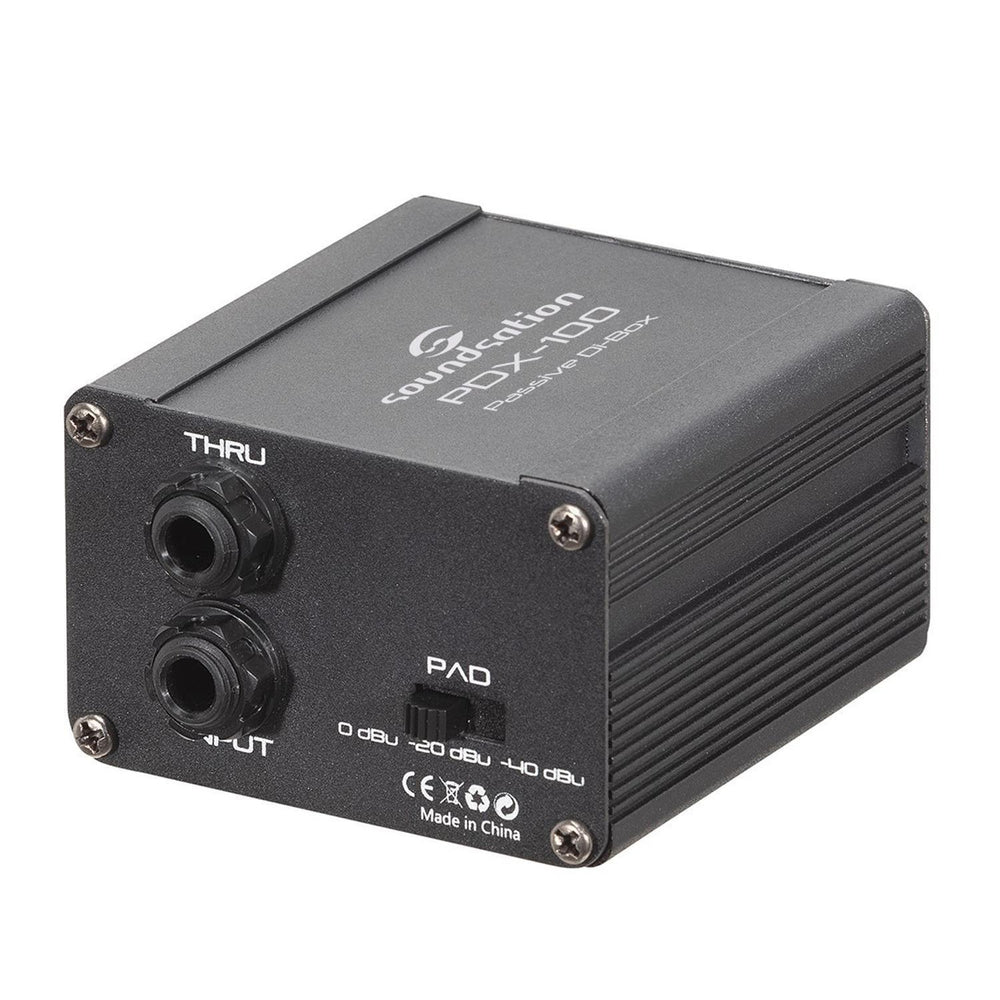

Soundsation PDX-100 Passive DI Box
Product Description
The DI-Box Soundsation PDX-100 converts high impedance audio signal from instruments or line outputs to a low impedance balanced output to be fed directly into a mixing console or amplifier input. Low impedance (Lo-Z) is capable of longer cable runs via XLR connection with lower signal degradation than high impedance.
Jack input (6.3mm) unbalanced
THRU connection (6.3mm jack) to send the audio signal to an additional high impedance input.
High level input signals can be attenuated so as not to overload the inputs of a mixer or amplifier using the PAD selector (odB, -20dB, -40dB).
Inbuilt noise filter to help eliminate RF and mains hum
GND selector with 3 positions to eliminate noise (GND, FLOAT, LIFT)
Input: Unbalanced 6,3mm Jack
Outputs: XLR Male balanced, 6,3mm THRU Jack unbalanced
Input Impedance: >100 KOhm
Output Impedance: 600 Ohm
Controls: PAD Selector (0/-20/-40dBu), GND Selector (GND, Float/Lift)
Dimensions (WxDxH): 86 x 70 x 45 mm
Weight: 0,234Kg
Packing Dimension (WxDxH): 90 x 75 x 60 mm
Packing Weight:0,25 Kg
