Description

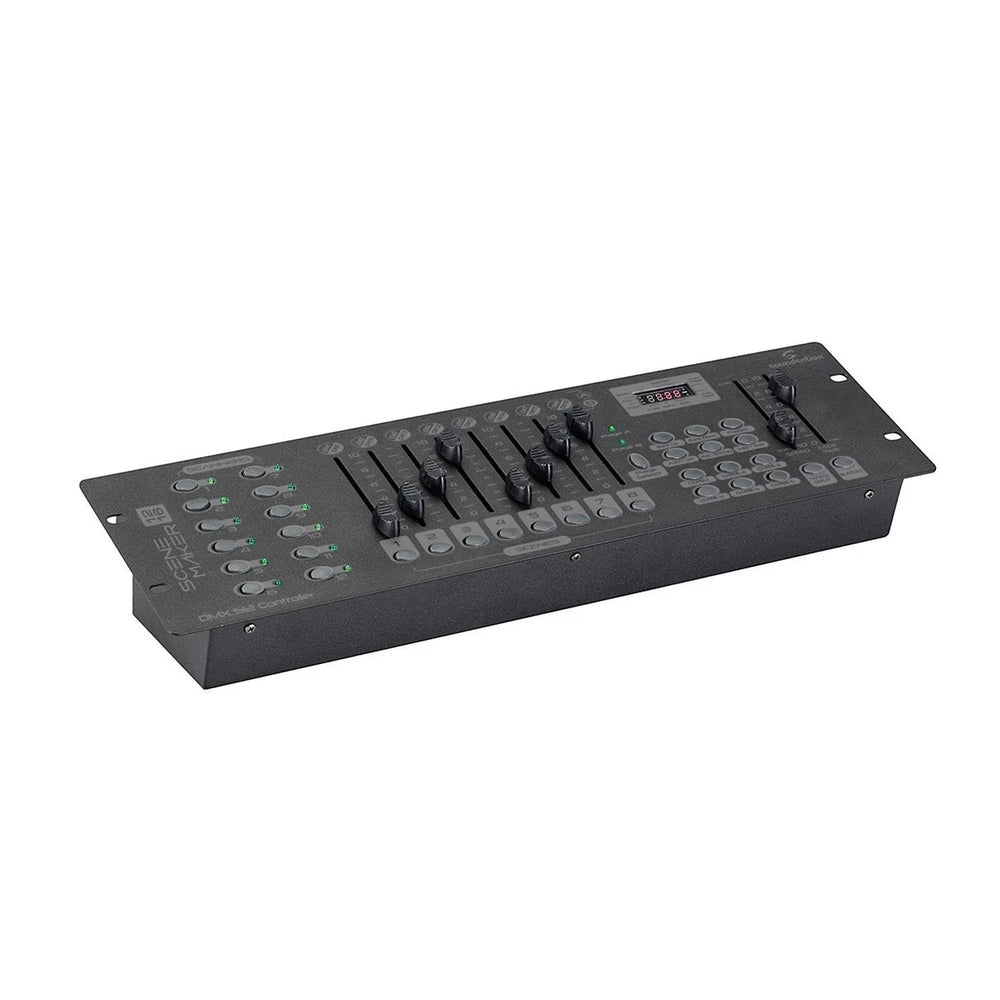

SCENEMAKER 1216 is a universal intelligent lighting controller. It allows you to manage up to 12 fixtures composed of 16 channels each (192 channels in total), and up to 184 programmable scenes. Six chases can contain up to 184 steps composed by the saved scenes (the steps) and in any order. Programs can be triggered by music, MIDI, automatically or manually. Its control surface hosts various programming tools such as 8 universal channel sliders, quick access scanner and scene buttons, as well as a LED display for easier navigation of controls and menu functions.
12 Fixtures with 16 DMX Channels each; 192 Channels in total
23 banks of 8 programmable scenes, 184 scenes total
6 chases of 184 programmed scenes from 23 banks
Execute multiple chases simultaneously
8 Sliders x 2 Pages for direct control of channels
Auto Mode controlled by Speed and Fade Time
8-CH / 16-CH modes for Assigned or Reversed DMX channels
Master Blackout
Built-in microphone for music triggering
USB connection for LED Goose-neck Lamp (Not included)
LED Display for easy navigation of menus
MIDI control over banks, chases and Blackout
Power Supply: DC 9V-12V, 500mA min.
USB Lamp (not included): 5V - 200 mA max
Protocols: DMX-512 USITT

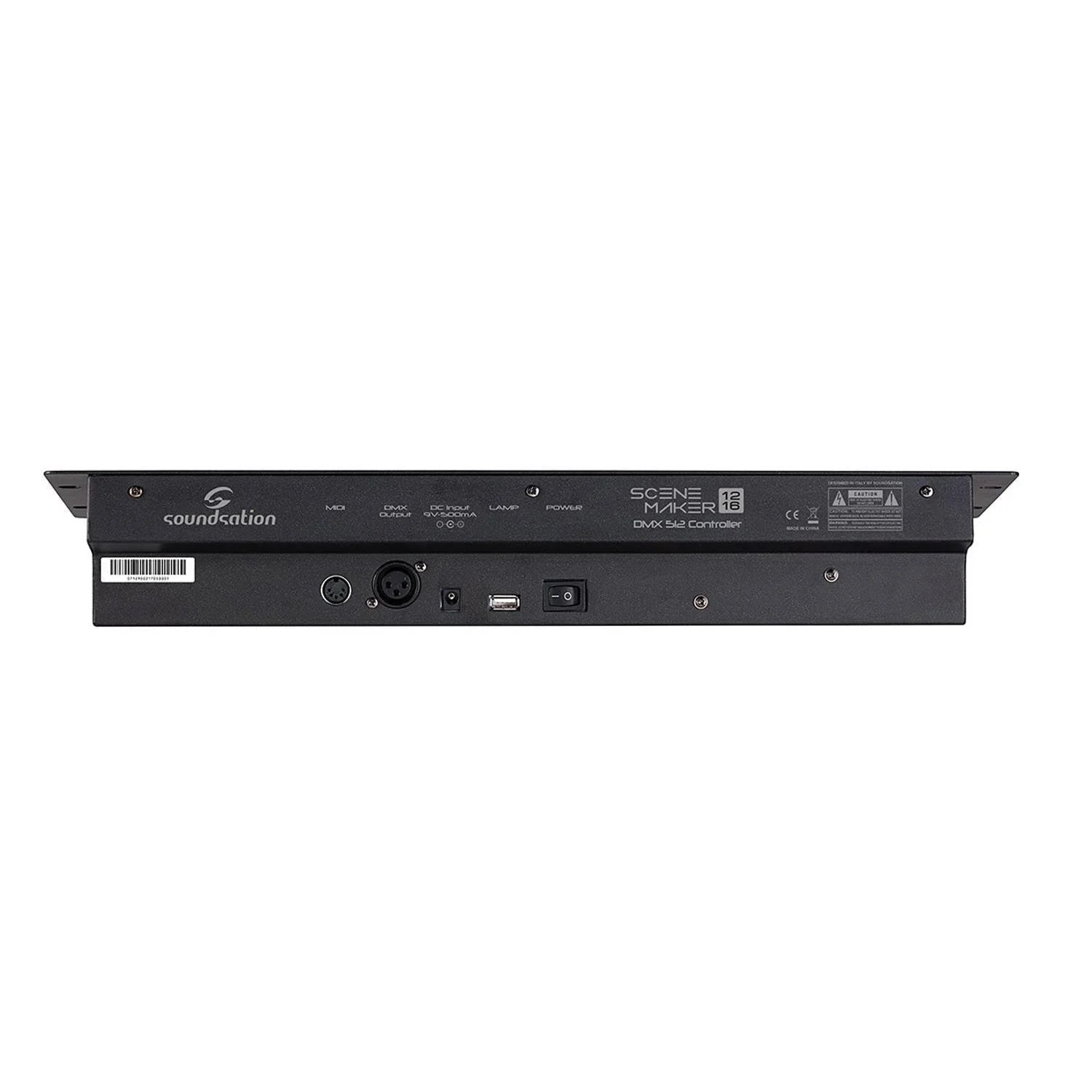

Data Input: Locking 3-pin XLR male socket
Data Output: Locking 3-pin XLR female socket
Data Pin Configuration: Pin 1 shield, Pin 2 (-), Pin 3 (+)
Controller Size (WxHxD): 482x82x133 mm
Net Weight 2.0 kg
Packing Dimension (WxHxD): 560x135x185 mm
Packing Gross Weight: 2.6 kg
