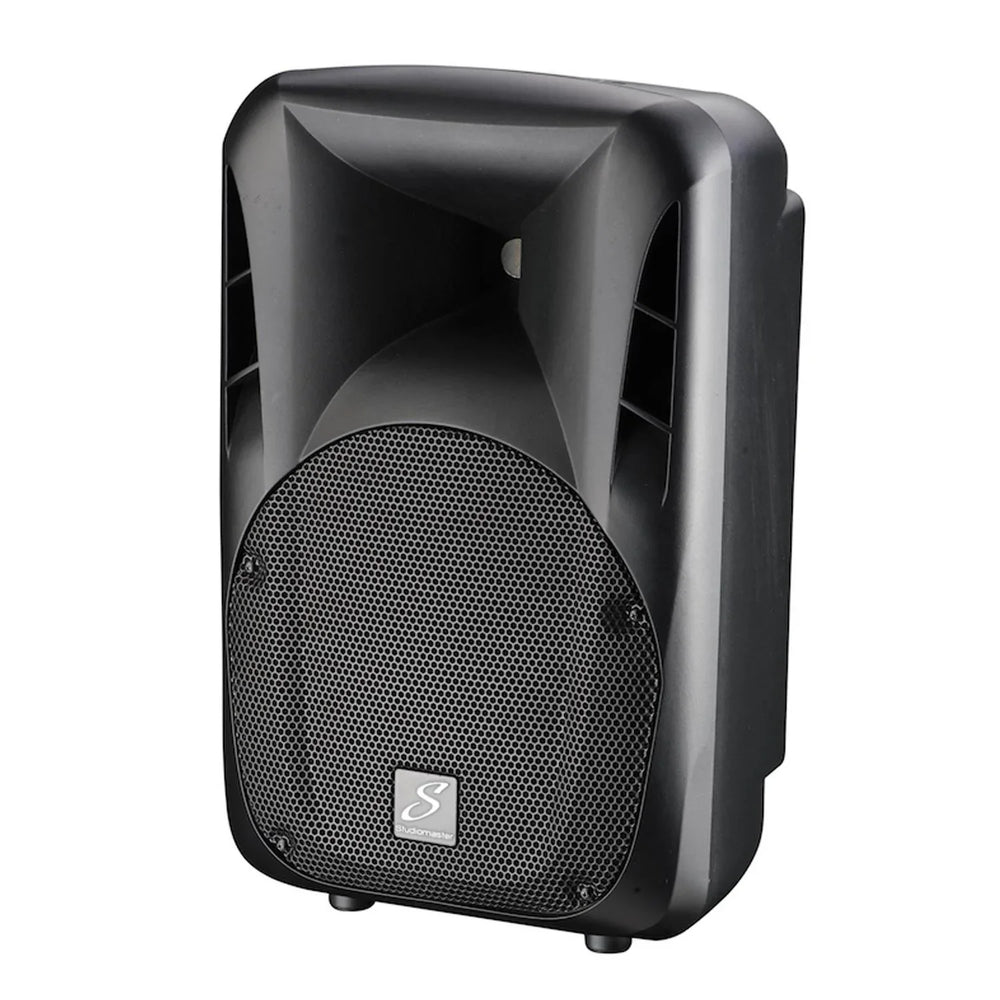

Studiomaster bDRIVE 10A 10" Active Speaker
Product Description
The active models feature 3 band EQ, mic/line input connections on XLR and Jack, gain and level controls and a link facility to connect through to multiple cabinets from one signal source. The new Class D amplifiers in these models has been designed to deliver high power and a clean sound at all power levels.
All models come in a great looking high quality injection moulded cabinet, with the additional benefits of 35mm speaker pole connection, multiple M10 flying points, and large easy to grip carry handles.
- 10″ two way active full range cabinet
- 250 watts (RMS)
- High quality durable injection moulded cabinet
- Class D amplification
- Lightweight, high powered components
- 3 Band EQ
- XLR and Jack inputs
- Link output
- Gain and level controls
Format: 10″ two way active full range cabinet
Frequency response (-10dB): 60Hz – 20kHz
Input sensitivity (Line): 0dBu
Input sensitivity (Mic): -36dBu
Max SPL: 121dB
Amp Power: 500W(PGM), 250W(RMS) / 200W(LF) + 50(HF)
LF: 10″ woofer / 50mm voice coil
HF: 34mm compression driver / 1″ throat
Coverage (HxV): 90° x 60°
Crossover: 2.5kHz
Input Connection: Jack/XLR
Power voltage: 115V / 230V
Hanging system: 2x M10 hanging points
Dimension W*H*D: 335 x 545 x 319 (mm)
Weight: 14KG
