Description

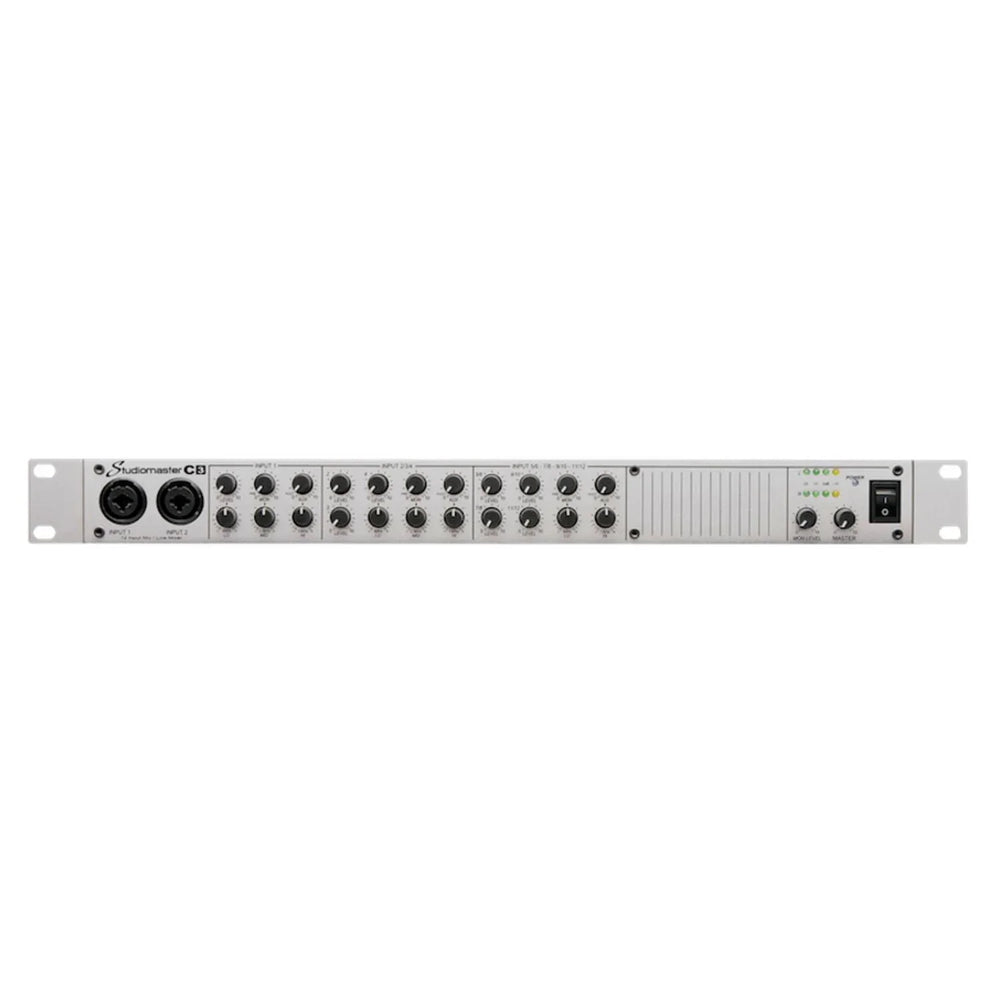

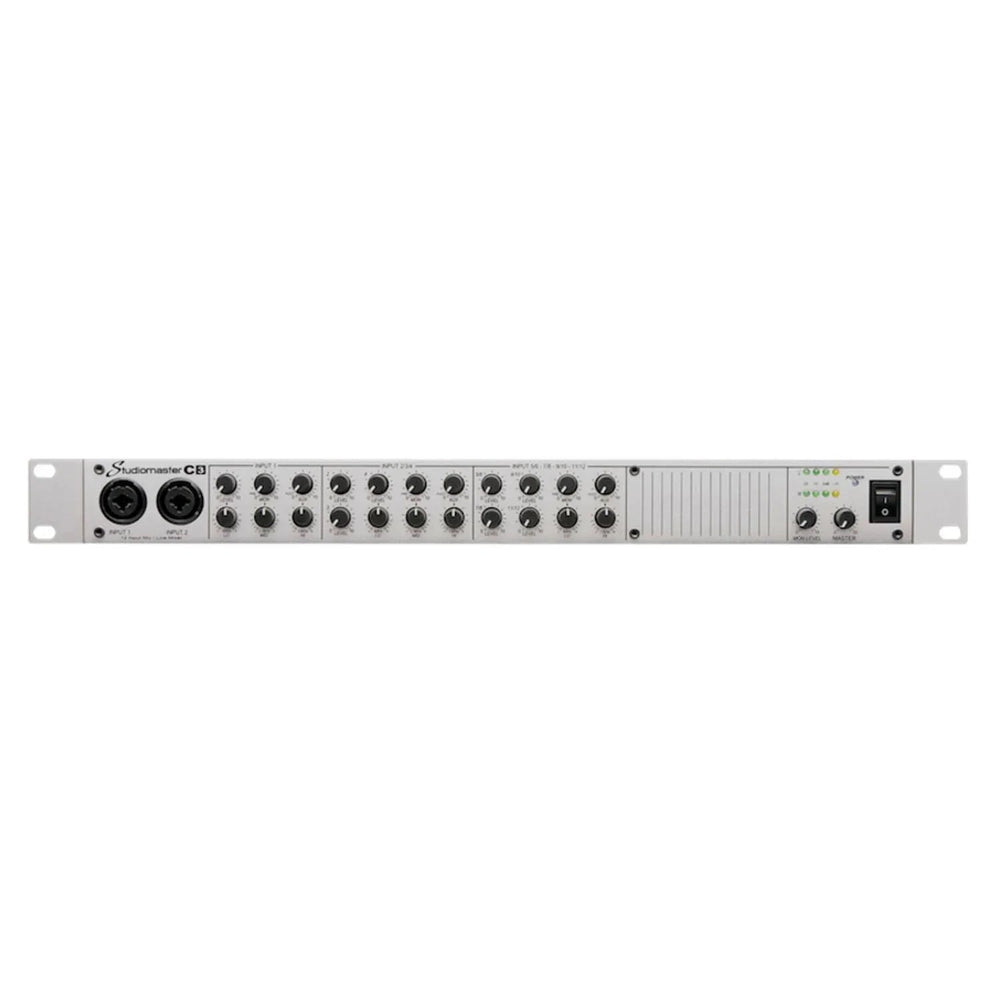

The Studiomaster C3 12 channel, 1U compact mixer is the perfect solution where functionality, versatility and compact design are important.
There are four balanced combination XLR and Jack inputs allowing the connection of microphones and line level equipment, for added flexibility 2 of the mic inputs are on the front panel and two on the rear. All mic pre-amps feature our studio grade design, making them ideal for all microphones even condenser mics as phantom power is available. All mic channels feature Studiomaster 3 band EQ design, providing you with maximum control across the crucial vocal range. There are four stereo inputs offering a selection of Jack and RCA/phono inputs making them perfect for most playback formats (CD, MD etc) and electronic instruments (keyboards, drum machines etc). has an individual level control and the shared two band EQ gives extra dimension.
The C3X gives you our latest generation of DSP effects, crystal clear, quality delays, reverbs and more. Three vocal settings are available along with room and plate reverbs. The delay mode is fully variable giving you an echo from 10ms up to 720ms, along with regen range of 0 to 90%, so you can control the fade time time. The DSP can be switched on and off with the front panel button or with an optional footswitch.
The stereo output features LED metering on the front panel, so you can see exactly what is going on. master level control and balanced XLR and RCA/phono connectors.
12 inputs
4 microphone inputs with 3 band EQ
4 stereo channels with 2 band EQ
2 aux sends
Balanced input and output connectors
Inputs: 12
Mic Inputs: 4
Stereo Inputs: 4
Frequency Responce: 22Hz – 40kHz (+/-0.5dB)
Distortion: THD @ 1kHz 0.008%
Residual Noise: -93dBu
Dynamic Range: >105dBu
Metering: Peak reading 4 segment 2 colour LED bargraphs
Mic EQ: Hi, Mid, Lo
Line EQ: Hi, Lo
Maximum Output Levels: XLR+23dBu, RCA+17dBu, Aux&Mon+23dBu
Power Requirements: 115-240V ~ 50/60Hz 52-104mA max
Dimensions 482 x 44 x 265 mm
Weight 3.6 kg
